Noctua NH-U14S single PWM fan LGA3647 Xeon Edition CPU Cooler, 165mm x 150mm x 78mm with included 140mm fan, includes mount brackets for square ILM and narrow ILM

Noctua NH-U14S single PWM fan LGA3647 Xeon Edition CPU Cooler, 165mm x 150mm x 78mm with included 140mm fan, includes mount brackets for square ILM and narrow ILM
Normally: $146.95 Normally: $168.99
$138 50  +GST $159 28  inc GST
Save: $8.45$9.72
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Noctua NH-U14S single PWM fan LGA3647 Xeon Edition CPU Cooler, 165mm x 150mm x 78mm with included 140mm fan, includes mount brackets for square ILM and narrow ILM

ON SPECIAL

Noctua NH-U14S single PWM fan LGA3647 Xeon Edition CPU Cooler, 165mm x 150mm x 78mm with included...

  • MPN: NH-U14S DX3647
  • Part #: FANNOC4963647
  • UPC:841501100130
  • Bearing Type Variation:N/A
  • Number of Fans:1
  • Fan Size:140mm
  • Radiator Size:N/A
  • Sound Level (Roughly):25dB
  • LED Colour:N/A
Normally: $146.95 Normally: $168.99
Save: $8.45$9.72
$138 50 $159 28
 +GST  inc GST
Ends in --, only 2 units left!

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 04/12/2020 When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $32.81 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $27.34 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Features

DX series for Intel Xeon

First introduced in 2008, Noctua's DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.).

Customised for LGA3647

The new DX-3647 line coolers are dedicated, customised solutions for Intel's professional LGA3647 platform, which makes them an ideal fit for both Skylake-SP based Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze, Purley series) and Xeon-Phi processors (code names Knight's Landing or Knight's Mill).

Enlarged contact surface

At 70x56mm, the heatsink's copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel's LGA3647-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

Supports square and narrow type LGA3647 sockets

The heatsink's SecuFirm2™ mounting system includes two sets of brackets in order to support both square and narrow type LGA3647 sockets. Thanks to pre-installed mounting screws and the included processor clips (square type and narrow type without Omni-Path fabric connector, with fabric connector on request), the installation procedure is easy, quick and secure.

140mm size for maximum performance

With six heatpipes, a fin surface area of more than 6000cm² and the large, highly optimised NF-A15 140mm fan, the NH-U14S DX-3647 provides a superior level of quiet cooling efficiency. This makes it ideal for building cutting-edge, ultra high-performance Xeon-based workstations that run almost silent.

NF-A15 140mm premium fan

Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market.

PWM support

The renowned NF-A15 140mm premium fan supplied with the NH-U14S DX-3647 supports PWM for convenient automatic speed control through the motherboard, which allows it to run near silent at lighter loads and speed up only when necessary.

Anti-vibration pads and fan-clips for second NF-A15 (optional)

For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.*

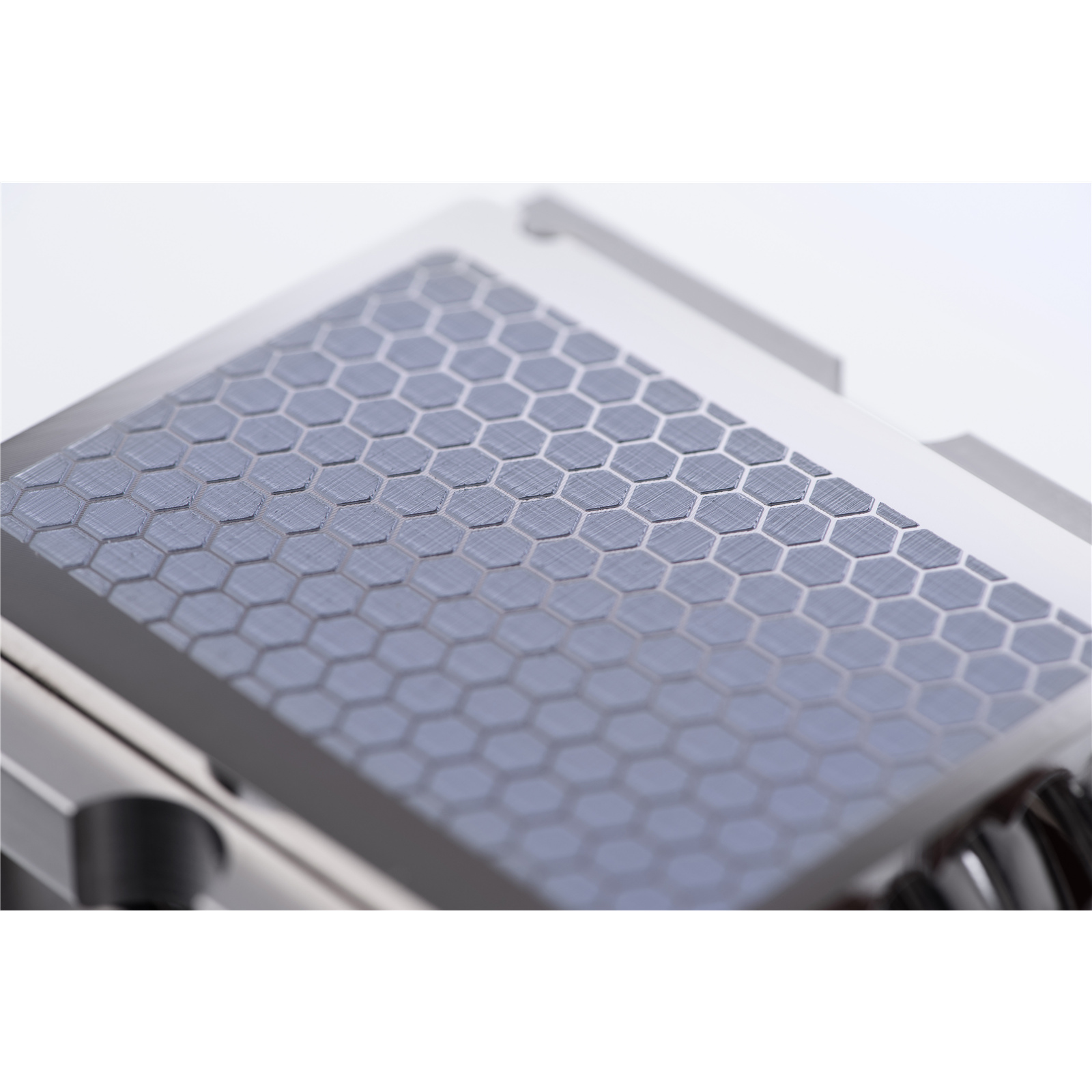

Pre-applied NT-H1 thermal compound

Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!

6-year manufacturer's warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. True to this legacy, the NH-U14S DX-3647 heatsink is built to last, and like all Noctua fans, the supplied NF-A15 unit features an MTTF rating of more than 150,000 hours. The entire package comes with a full 6-year manufacturer's warranty.

Specifications

Cooler Specification

Socket compatibility

Intel Xeon LGA3647

Height (without fan)

165 mm

Width (without fan)

150 mm

Depth (without fan)

52 mm

Weight (without fan)

797 g

Height (with fan)

165 mm

Width (with fan)

150 mm

Depth (with fan)

78 mm

Weight (with fan)

957 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

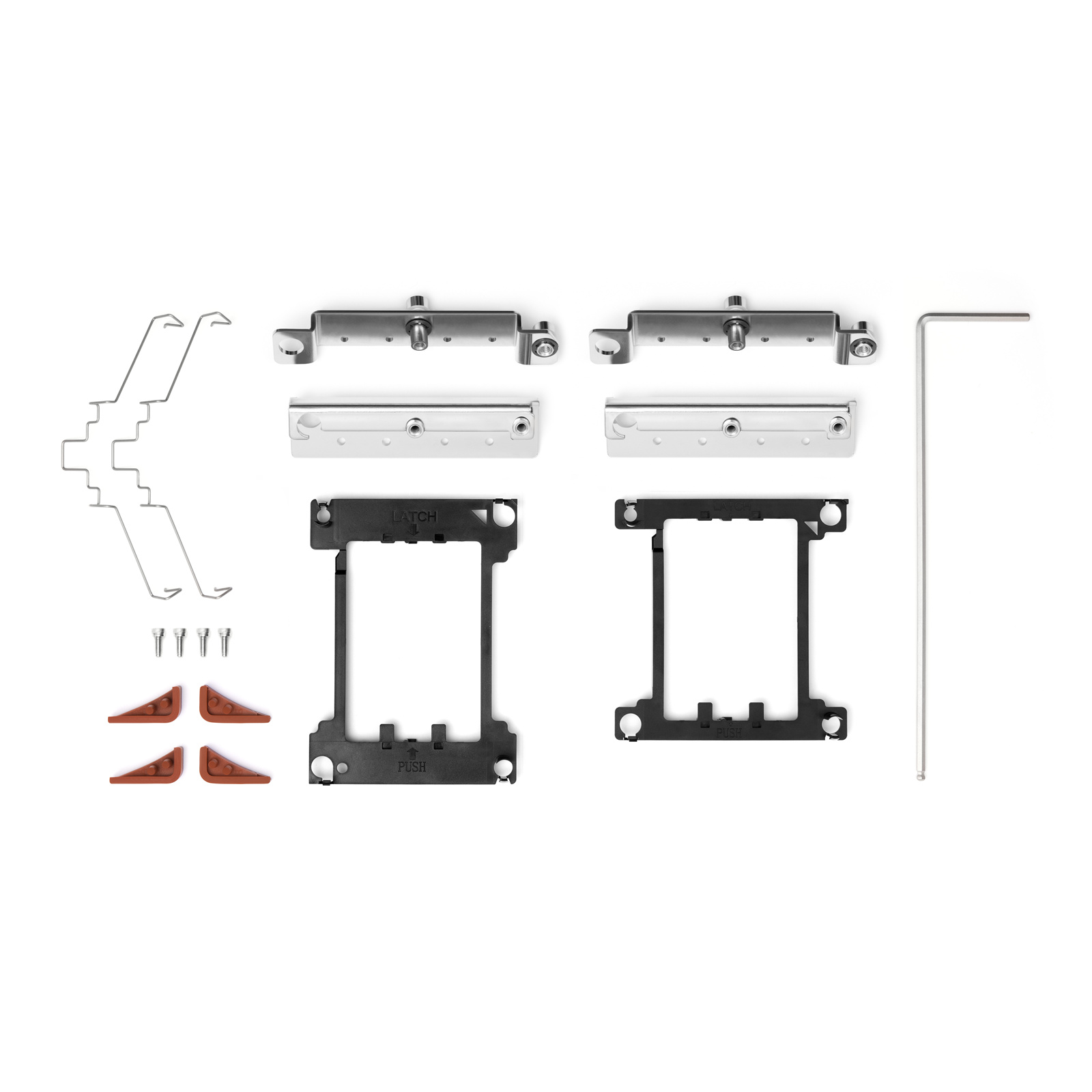

Scope of delivery

NF-A15 PWM premium fan
NT-H1 high-grade thermal compound (pre-applied)
SecuFirm2™ mounting kit for LGA3647
Anti-vibration pads and fan-clips for second NF-A15 (optional)
Noctua metal case-badge

FAN Specification

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Min. rotational speed (PWM, +/-20%)

300 RPM

Max. airflow

140.2 m³/h

Max. acoustical noise

24.6 dB(A)

Input power

1.56 W

Voltage range

12 V

MTTF

>150.000 h

Notes and warnings

Please note that the NH-U14S DX-3647 is a dedicated version for the Intel LGA3647 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua's standard mounting kits.

Manufacturer Part No: NH-U14S DX3647 Brand: Product Type: -
UPC 841501100130 Product Family: Noctua Shipping Weight: 1.523 kg
PB Part No: FANNOC4963647 Product Model: NH-U14S

Warranty: 72 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
