Allied Telesis AT-MMC2000/LC-960 10/100/1000T TO 1000SX/LC MM MEDIA RATE CONVERTER MULTI-REGION PSU TAA FEDERAL

PB Tech price
PB Tech price
$ 693 .91
 +GST
$ 798 .00
 inc GST

Out of stock

Allied Telesis AT-MMC2000/LC-960 10/100/1000T TO 1000SX/LC MM MEDIA RATE CONVERTER MULTI-REGION PSU TAA FEDERAL

PB Tech price
$ 693 .91 $ 798 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

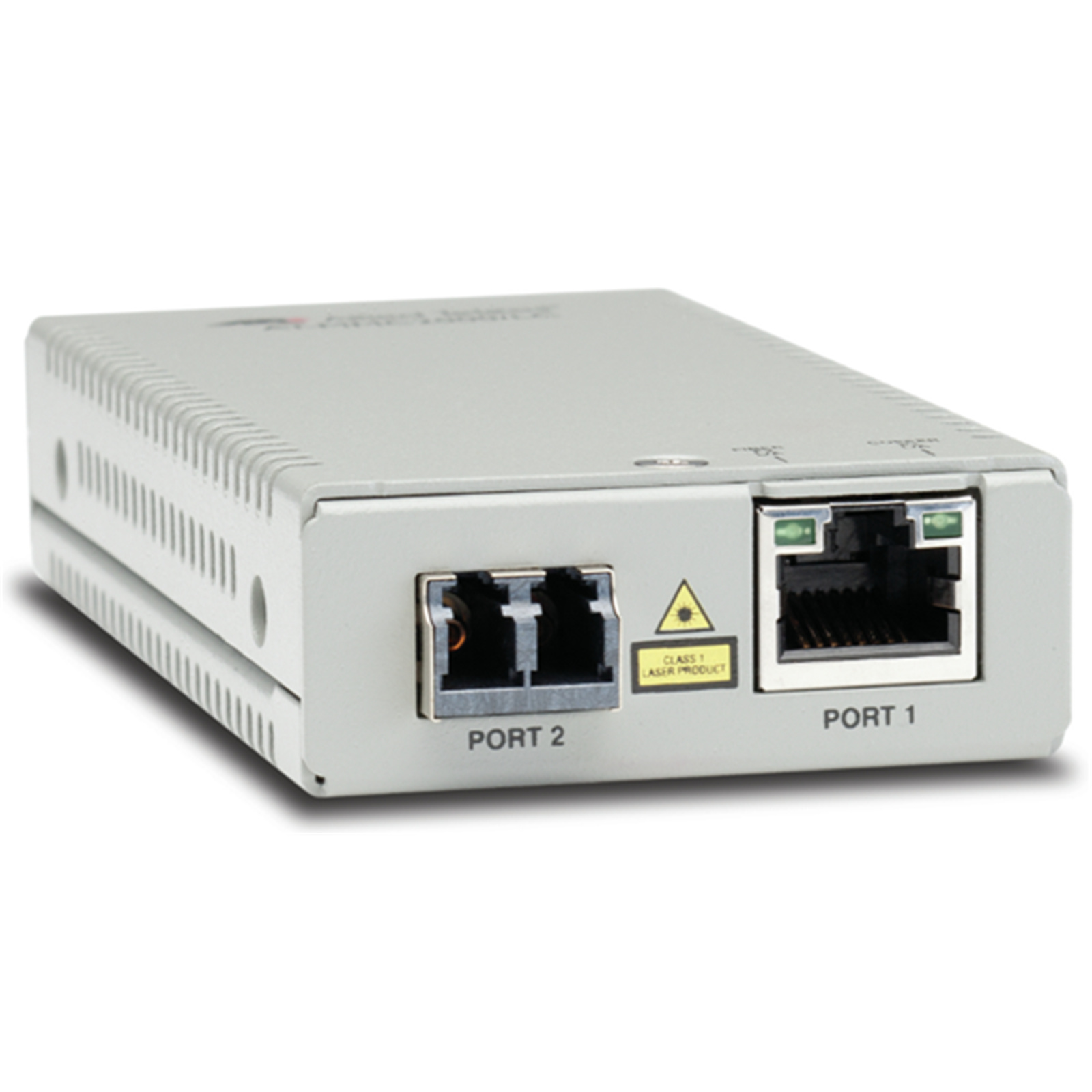

The MMC2000LC-960 mini media converter converts 10Mb, 100Mb and gigabit copper to multimode fibre (LC connector). Its small size saves space, reduces carbon footprint but offers all the features of full size alternatives.

-Convert speed as well as media type
-2K MAC address tables
-Store-and-forward switching mode
-Transparent to IEEE 802.1Q packets
-Auto Negotiation and Auto MDI/MDIX on copper port
-IEEE support on copper
-Far End Fault on Fiber
-10K byte Jumbo packets
-Link/Activity LED per port
-Smart MissingLink
-Fixed SC/ST/LC or SFP (100MB or 1000MB) optics
-12VDC power supply
-Wall-mountable using MMCWLMT
-Locking power supply jack to prevent accidental power disconnects
-Available in Trade Agreement Act (TAA) models

Specifications

Design

LED indicators

Activity, Link

Product colour

Grey

Safety

FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI

Certification

CE, EN55024, EN61000-3-2, EN61000-3-3

Power

Input voltage

12 V

Input current

0.14 A

Power consumption (typical)

1.7 W

Power over Ethernet (PoE)

Yes

Weight & dimensions

Width

54.9 mm

Depth

101.6 mm

Height

21.8 mm

Weight

170 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3048 m

Network

Maximum data transfer rate *

1000 Mbit/s

Converter input interface

10Base-T,100Base-T,1000Base-T

Converter output interface

1000Base-SX

Networking standards

IEEE 802.1Q

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Fiber ethernet cabling technology

1000BASE-SX

Jumbo frames support

Yes

VLAN support

Yes

Duplex system

Full

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

Fiber ports quantity

2

Fiber optic connector *

LC

DC-in jack

Yes

Performance

Maximum transfer distance *

2000 m

Wavelength *

1310 nm

Fiber mode structure

Multi-mode

Fiber cable diameters supported (core/cladding)

50/125,62.5/125 µm

Tx power (min)

-20 dBmW

Tx power (max)

-14 dBmW

Rx power (min)

-32 dBmW
