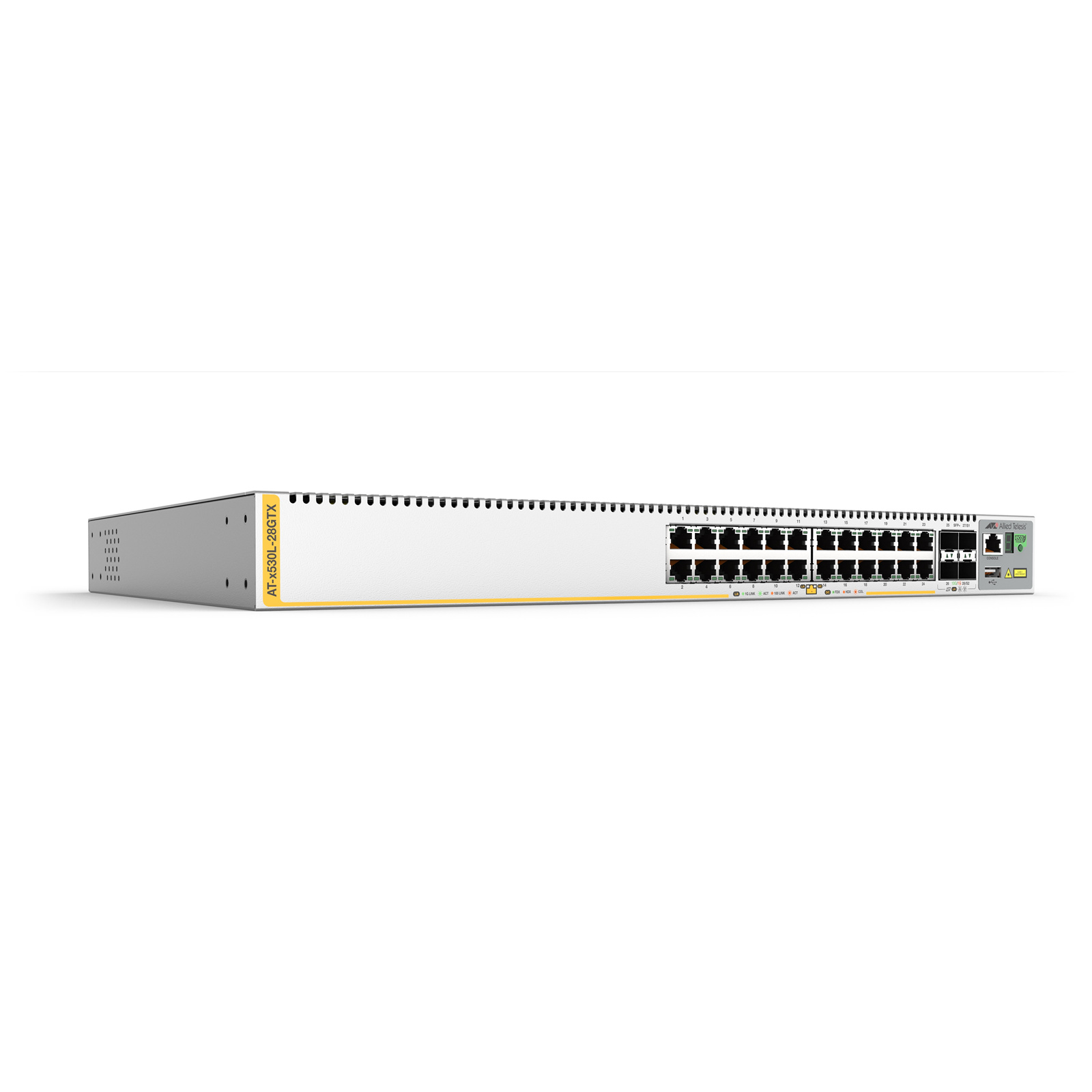

Allied Telesis AT-X530L-28GTX-B41 24-port 100/1000T stackable L3 switch with 4 SFP+ ports and 2 fixed power supplies AU Power Cord. 1 year NCP support Start date is shipment date from ATI - Grace period 90 days
Out of stock
Allied Telesis AT-X530L-28GTX-B41 24-port 100/1000T stackable L3 switch with 4 SFP+ ports and 2 fixed power supplies AU Power Cord. 1 year NCP support Start date is shipment date from ATI - Grace period 90 days
- Brand: Allied Telesis
- MPN: AT-X530L-28GTX-B41
- Part #: NETATS5193679
- UPC:
- Brand: Allied Telesis
- MPN: AT-X530L-28GTX-B41
- Part #: NETATS5193679
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Switch Module
Allied Telesis AT-X530L-28GTX-B41 24-port 100/1000T stackable L3 switch with 4 SFP+ ports and 2 fixed power supplies AU Power Cord. 1 year NCP support Start date is shipment date from ATI - Grace period 90 days
- Brand: Allied Telesis
- MPN: AT-X530L-28GTX-B41
- Part #: NETATS5193679
Product URL: https://www.pbtech.co.nz/product/NETATS5193679/Allied-Telesis-AT-X530L-28GTX-B41-24-port-1001000T
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Stackable Gigabit Layer 3 Dual PSU Switch
The x530L-28GTX stackable Gigabit Layer 3 switch is high-performing and feature-rich, with 24 x 10M/100M/1G ports, and 4 x 10G uplinks.
Key Features
- AlliedWare Plus™ Enterprise-class operating system
- VCStack™ up to 8 units locally or over distance to support resilient networking
- Ethernet Protection Switched Ring (EPSRing™) and G.8032 ERPS supports high-speed resilient ring-based networks
- Dual load-sharing power supplies enable maximum uptime and minimal maintenance
- Active Fiber Monitoring™ (AFM) secures fiber networks
Specifications
10/100/1000T (RJ-45) Copper Ports
24
100M/1/2.5/5 Gigabit Ports
N/A
1/10 Gigabit SFP+ Ports
4
Stacking Ports
2*
PoE Enabled Ports
N/A
Switching Fabric
128Gbps
Forwarding Rate
95.2Mpps
Note
* Stacking ports can be configured as additional 1G/10G Ethernet ports when the switch is not stacked
Physical
Width x Depth x Height
441 x 323 x 44 mm
(17.36 x 12.72 x 1.73 in)
Unpackaged Weight
4.4 kg (9.07 lbs)
Packaged Weight
6.3kg (13.89 lbs)
Mounting:
Rack-mount
Packaged Dimensions
577 x 440 x 153 mm
(22.72 x 17.32 x 6.02 in)
Power and Noise Characteristics - No PoE Load
Max Power Consumption (W)
39
Max Heat Dissipation (BTU/h)
133
Noise (dBA)
42*
Power and Noise Characteristics - Full PoE+ Load
Max Power Consumption (W)
890
Max Heat Dissipation (BTU/h)
3037
Noise (dBA)
42*
Note
*This figure is under 30 degree C ambient temperature
Noise: tested to ISO7779; front bystander position
