Lenovo Thinksystem SR530 1U Rack - Intel Xeon Silver 4208 8 Core 85W 2.1GHz - 16GB RDIMM - RAID 530-8I 2.5" - 750W - 3 Years

Lenovo Thinksystem SR530 1U Rack - Intel Xeon Silver 4208 8 Core 85W 2.1GHz - 16GB RDIMM - RAID 530...

  • Brand: Lenovo
  • MPN: 7X08A09HAU
  • Part #: SVRLEN708090
  • UPC:
  • Server Type:Barebone
  • Form Factor:1U Rack
  • CPU Sockets:2
  • CPU Physical Cores:8
  • DIMM Slots:16
  • System Memory:16GB
  • RAID Support:SAS RAID 0,1,5,10
  • Power Supply:Dual Redundant
  • View more

Features

Cost-efficient performance

The ThinkSystem SR530 features a balance of performance, capacity, and value in a 1U form factor. Essential performance components are delivered in a combination that is designed to elevate the cost efficiency of the system, allowing the SR530 to meet both the workload needs and the budgetary needs of the enterprise.

Workload optimized support

New second-generation Intel® Xeon® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory, and Intel's Vector Neural Network Instruction (VNNI) which accelerates processor performance on Deep Learning and AI workloads. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.

Empowering IT management

Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.

Key features

The SR530 server offers a balance of processing power, expandability, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.

Scalability and performance

The SR530 server offers numerous features to boost performance, improve scalability, and reduce costs:

- Improves productivity by offering superior system performance with the second generation of the Intel Xeon Processor Scalable Family with up to 22-core processors, up to 30.25 MB of last level cache (LLC), up to 2933 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
*Support for up to two processors, 44 cores, and 88 threads allows to maximize the concurrent execution of multithreaded applications.
*Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
*Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
*Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
Intel Speed Select Technology provides improvements in server utilization and guaranteed per-core performance service levels with more granular control over processor performance.
*Intel Deep Learning Boost (Vector Neural Network Instruction set [VNNI]) is designed to deliver significant, more efficient Deep Learning (Inference) acceleration for high-performance Artificial Intelligence (AI) workloads.
*Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.

- Helps maximize system performance for data intensive applications with up to 2933 MHz memory speeds and up to 768 GB of memory capacity.

- Offers flexible and scalable internal storage in a 1U rack form factor with up to 8x 2.5-inch drives for performance-optimized configurations or up to 4x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDDs/SSDs.

- Provides I/O scalability with a LOM slot and up to three PCI Express (PCIe) 3.0 I/O expansion slots in a 1U rack form factor.

- Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR530 server provides many features to simplify serviceability and increase system uptime:

- Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.

- Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.

- Offers affordable data protection with software RAID and Simple Swap drives and advanced hardware RAID data redundancy with hot-swap drives.

- Provides availability for applications with redundant hot-swap power supplies and redundant non-hot-swap fans.

- Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

- Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, M.2 storage), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.

- Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).

- Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.

Manageability and security

Powerful systems management features simplify local and remote management of the SR530 server and deliver enterprise-class data protection:

- Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.

-Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.

- Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.

- Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.

- Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.

- Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.

- Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).

-Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module (available only in PRC).

- Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.

- Provides faster, stronger encryption with industry-standard AES NI support.

- Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.

- Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR530 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

- Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.

- Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.

- Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.

- Helps reduce power consumption with variable speed fans.

- Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

The following figure shows the front of the SR530 server with four 3.5-inch drive bays.


Figure 2. Front view of the SR530: 4x 3.5-inch drive bays

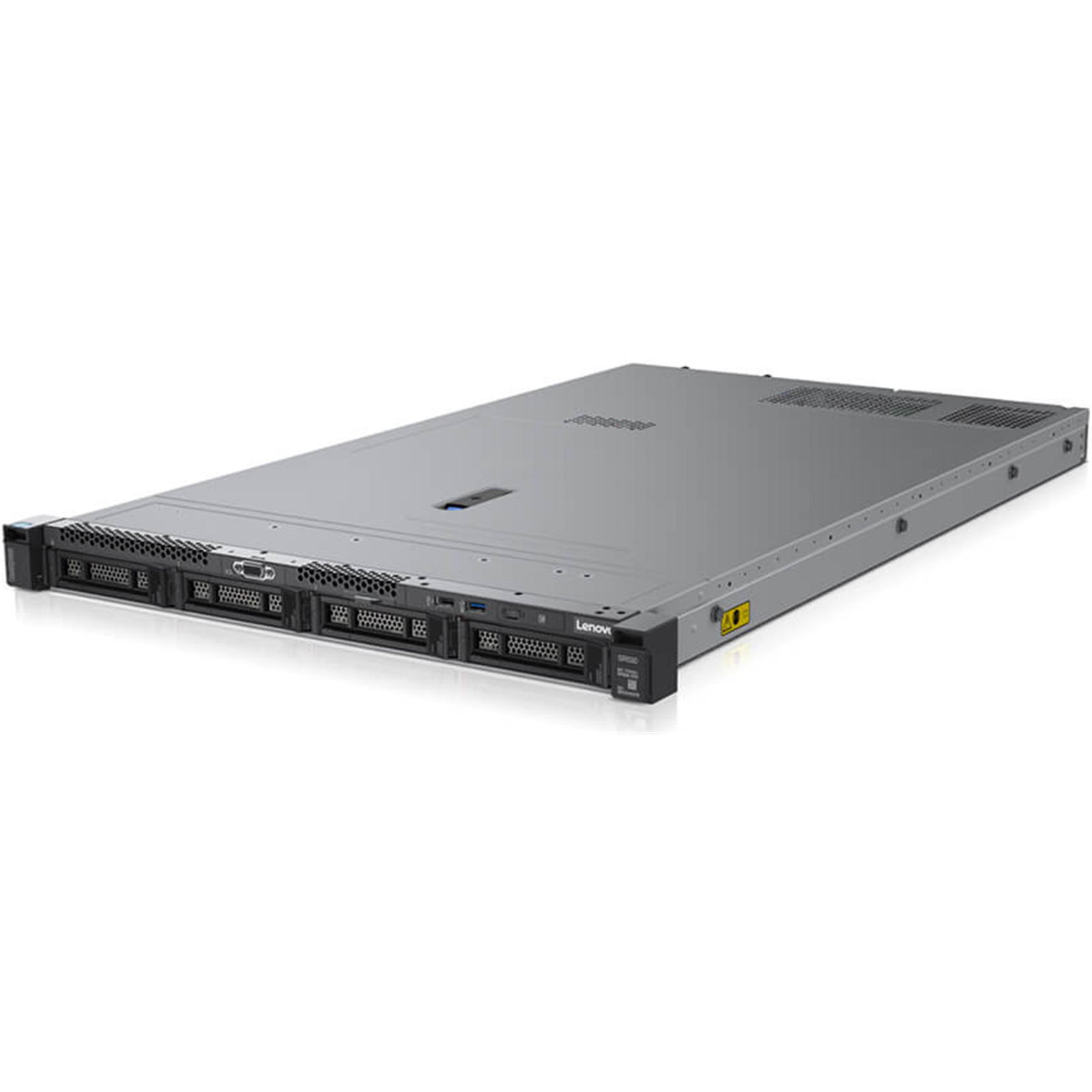

The following figure shows the front of the SR530 server with eight 2.5-inch drive bays.

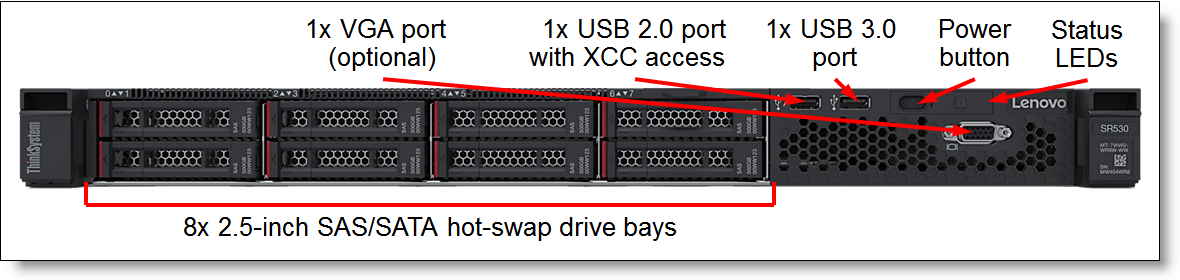

Figure 3. Front view of the SR530: 8x 2.5-inch drive bays

The front of the SR530 server includes the following components:

Up to 8x 2.5-inch or 4x 3.5-inch hot-swap drive bays, or 4x 3.5-inch Simple Swap drive bays.
One VGA port (optional).
One USB 3.0 port.
One USB 2.0 port with XClarity Controller access.
Power button.
Status LEDs.

The following figure shows the rear of the SR530 server with three PCIe low profile slots.

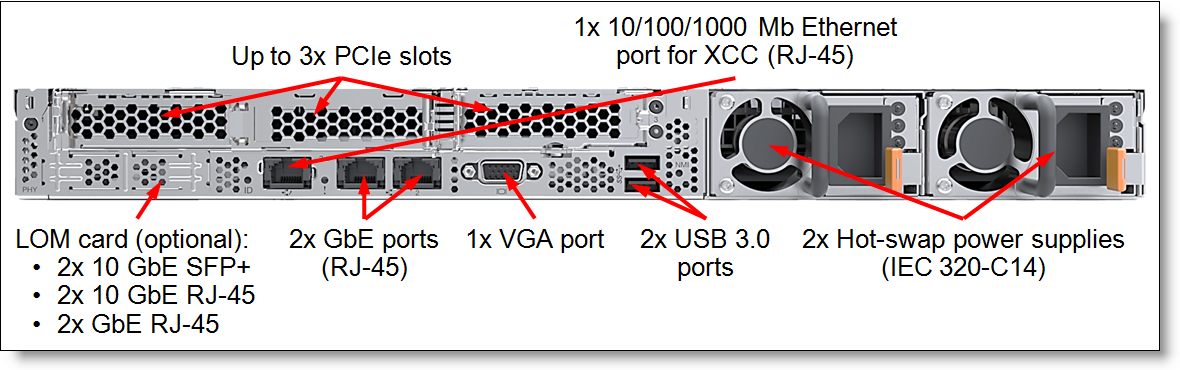

Figure 4. Rear view of the SR530

The rear of the SR530 server includes the following components:

- Up to three PCIe expansion slots (depending on the riser cards selected).
- One LOM card slot.
- One 1 GbE port for XClarity Controller.
- One VGA port.
- Two USB 3.0 ports.
- Up to two hot-swap power supplies.

The following figure shows the locations of key components inside the SR530 server.

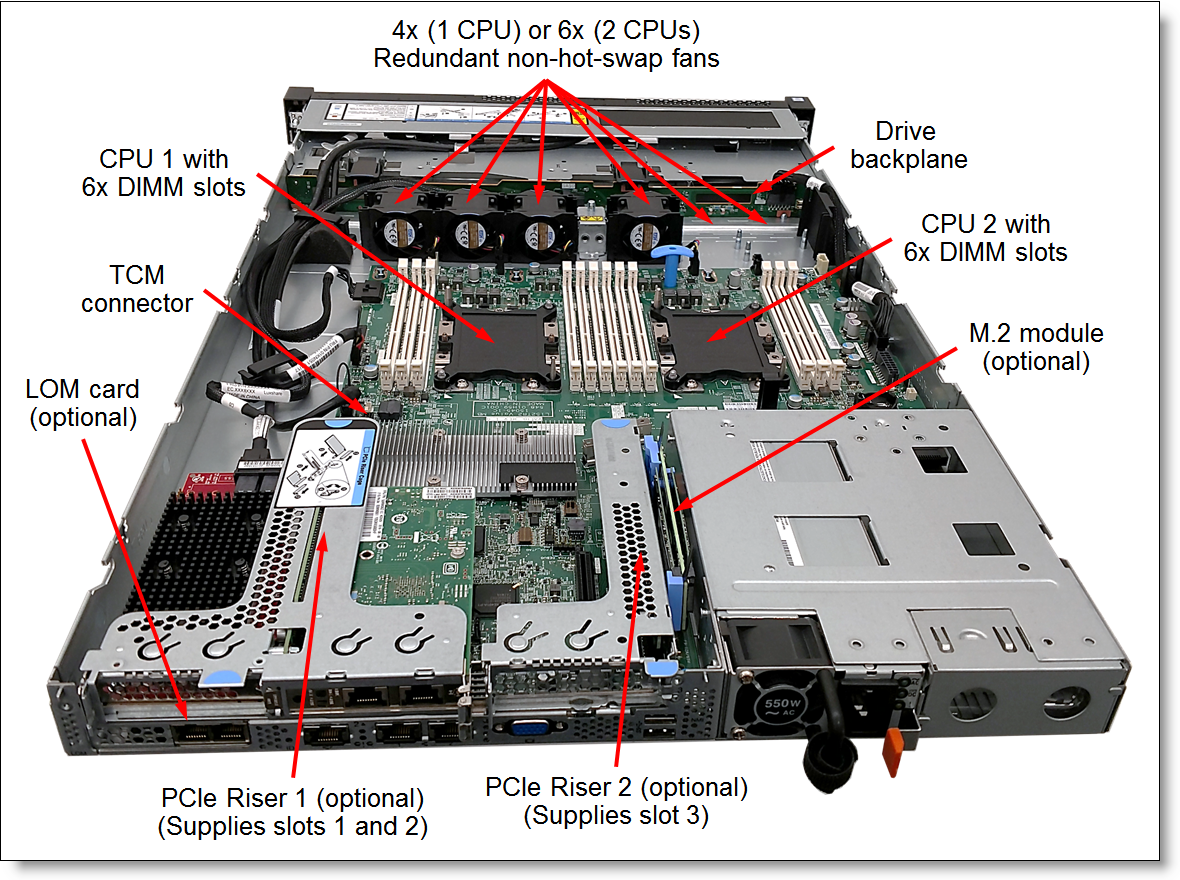

Figure 5. Internal view of the SR530

The following key components are located inside the SR530 server:

Up to two processors.
12 DIMM slots (6 DIMM slots per processor).
Drive backplanes.
One M.2 module connector.
One LOM card connector.
Two slots for PCIe riser cards.
One TCM connector.
Four (one processor) or six (two processors) non-hot-swap system fans.

Specifications

Form factor

1U rack-mount.

Processor

Intel Xeon Silver 4208 8 Core 85W 2.1GHz

Chipset

Intel C622.

Memory

Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel) with support for the following TruDDR4 RDIMM types and capacities:
8 GB, 16 GB, 32 GB, and 64 GB 2933 MHz.
16 GB and 32 GB 2666 MHz.

Memory protection

Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.

Memory capacity

Up to 768 GB with 12x 64 GB RDIMMs (Up to 384 GB per processor).

Drive bays

4 LFF SATA Simple Swap drive bays
4 LFF SAS/SATA hot-swap drive bays
8 SFF SAS/SATA hot-swap drive bays

Drive types

2.5-inch hot-swap drives:
12 Gbps SAS HDDs up to 2.4 TB
12 Gbps Nearline (NL) SAS HDDs up to 2 TB
12 Gbps SAS HDD SEDs up to 600 GB
12 Gbps SAS SSDs up to 15.36 TB
6 Gbps NL SATA HDDs up to 2 TB
6 Gbps SATA SSDs up to 7.68 TB

Internal M.2 SSDs:
6 Gbps SATA up to 480 GB
Intermix of SAS/SATA HDDs/SSDs is supported within a system, but not within a RAID array.

Internal storage capacity

3.5-inch models: Up to 64 TB with 4x 16 TB 3.5" HDDs
2.5-inch models: Up to 122.8 TB with 8x 15.36 TB 2.5" SSDs

Storage controller

6 Gbps SATA
Non-RAID: Onboard SATA AHCI
RAID 0/1/10/5: Onboard SATA RAID (Intel RSTe)
12 Gbps SAS/6 Gbps SATA RAID
RAID 0/1/10/5/50:
RAID 530-8i
RAID 730-8i 1GB Cache
RAID 0/1/10/5/50/6/60:
RAID 730-8i 2GB Flash
RAID 930-8i 2GB Flash
RAID 930-16i 4GB or 8GB Flash
12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i HBA

Optical drive bays

None

Network interfaces

2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports:
2x 1 GbE RJ-45 ports (no 10/100 Mb support)
2x 10 GbE RJ-45 ports (no 10/100 Mb support)
2x 10 GbE SFP+ ports (no 10/100 Mb support)
1x RJ-45 10/100/1000 Mb Ethernet systems management port.

I/O expansion slots

Up to three slots depending on the riser cards installed. The slots are as follows:
Slot 1: PCIe 3.0 x8; low profile
Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
Slot 3: PCIe 3.0 x8 or x16; low profile
PCIe x16 slot 3 requires the second processor to be installed.

Ports

Front

1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port

Rear

2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.

Cooling

Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.

Power supply

Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).

Video

Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.

Hot-swap parts

Drives (select models) and power supplies.

Systems management

XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.

Security features

Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).

Operating systems

Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7.

Warranty

Three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.

Service and support

Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.

Dimensions

Height

43 mm (1.7 in)

Width

434 mm (17.1 in)

Depth

715 mm (28.1 in)

Weight

Minimum configuration

10.2 kg (22.5 lb)

Maximum

16 kg (35.3 lb)

Manufacturer Part No: 7X08A09HAU Brand: Lenovo Product Type: 1U Rack
UPC - Product Family: Thinksystem Shipping Weight: 1 kg
PB Part No: SVRLEN708090 Product Model: SR530

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.

Lenovo Thinksystem SR530 1U Rack - Intel Xeon Silver 4208 8 Core 85W 2.1GHz - 16GB RDIMM - RAID 530-8I 2.5" - 750W - 3 Years

  • Brand: Lenovo
  • MPN: 7X08A09HAU
  • Part #: SVRLEN708090
  • UPC:
PB Tech price: $4,557.39 Excluding GSTPB Tech price:$5,241.00 Including GST
Date Created: 09:47, 31-10-2020
Product URL: https://www.pbtech.co.nz/product/SVRLEN708090/Lenovo-Thinksystem-SR530-1U-Rack---Intel-Xeon-Silv
Branch
New Stock
On Display
Albany
0
Glenfield
0
Queen Street
0
Auckland Uni
0
Penrose
0
Henderson (Express)
0
St Lukes
0
Manukau
0
Hamilton
0
Tauranga
0
New Plymouth
0
Wellington
0
Hornby
0
Head Office (Web)
0

Features

Cost-efficient performance

The ThinkSystem SR530 features a balance of performance, capacity, and value in a 1U form factor. Essential performance components are delivered in a combination that is designed to elevate the cost efficiency of the system, allowing the SR530 to meet both the workload needs and the budgetary needs of the enterprise.

Workload optimized support

New second-generation Intel® Xeon® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory, and Intel's Vector Neural Network Instruction (VNNI) which accelerates processor performance on Deep Learning and AI workloads. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.

Empowering IT management

Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.

Key features

The SR530 server offers a balance of processing power, expandability, and cost for small and medium businesses up to the large enterprise. Ease of use and comprehensive systems management tools help make deployment easier and efficient design improves your business environment and helps save operational costs.

Scalability and performance

The SR530 server offers numerous features to boost performance, improve scalability, and reduce costs:

- Improves productivity by offering superior system performance with the second generation of the Intel Xeon Processor Scalable Family with up to 22-core processors, up to 30.25 MB of last level cache (LLC), up to 2933 MHz memory speeds, and up to 10.4 GT/s Ultra Path Interconnect (UPI) links.
*Support for up to two processors, 44 cores, and 88 threads allows to maximize the concurrent execution of multithreaded applications.
*Intelligent and adaptive system performance with energy efficient Intel Turbo Boost 2.0 Technology allows CPU cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
*Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
*Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better utilize the hardware for virtualization workloads.
Intel Speed Select Technology provides improvements in server utilization and guaranteed per-core performance service levels with more granular control over processor performance.
*Intel Deep Learning Boost (Vector Neural Network Instruction set [VNNI]) is designed to deliver significant, more efficient Deep Learning (Inference) acceleration for high-performance Artificial Intelligence (AI) workloads.
*Intel Advanced Vector Extensions 512 (AVX-512) enable acceleration of enterprise-class and high performance computing (HPC) workloads.

- Helps maximize system performance for data intensive applications with up to 2933 MHz memory speeds and up to 768 GB of memory capacity.

- Offers flexible and scalable internal storage in a 1U rack form factor with up to 8x 2.5-inch drives for performance-optimized configurations or up to 4x 3.5-inch drives for capacity-optimized configurations, providing a wide selection of SAS/SATA HDDs/SSDs.

- Provides I/O scalability with a LOM slot and up to three PCI Express (PCIe) 3.0 I/O expansion slots in a 1U rack form factor.

- Reduces I/O latency and increases overall system performance with Intel Integrated I/O Technology that embeds the PCI Express 3.0 controller into the Intel Xeon Processor Scalable Family.

Availability and serviceability

The SR530 server provides many features to simplify serviceability and increase system uptime:

- Offers protection in the event of a non-correctable memory failure with Single Device Data Correction (SDDC, also known as Chipkill, requires x4-based DIMMs), Adaptive Double Device Data Correction (ADDDC, also known as Redundant Bit Steering [RBS], requires x4-based DIMMs and Intel Xeon Gold or Platinum processors), memory mirroring, and memory rank sparing.

- Provides easy access to upgrades and serviceable parts (such as processors, memory DIMMs, and adapter cards) with tool-less cover removal.

- Offers affordable data protection with software RAID and Simple Swap drives and advanced hardware RAID data redundancy with hot-swap drives.

- Provides availability for applications with redundant hot-swap power supplies and redundant non-hot-swap fans.

- Speeds up troubleshooting tasks to reduce service time with diagnostics built into the XClarity Provisioning Manager.

- Allows preventive actions in advance of possible failure, thereby increasing server uptime and application availability with Proactive Platform Alerts (including PFA and SMART alerts) for processors, voltage regulators, memory, internal storage (SAS/SATA HDDs and SSDs, M.2 storage), fans, power supplies, RAID controllers, and server ambient and sub-component temperatures.

- Continuously monitors system parameters, triggers alerts, and performs recovery actions in case of failure to minimize downtime with Built-in XClarity Controller (XCC).

- Provides quick access to system status, firmware, network, health, and alerts information via Virtual Operator Panel from the XClarity Mobile App running on the Android or iOS mobile device that is connected to the front USB port with XClarity Controller access.

Manageability and security

Powerful systems management features simplify local and remote management of the SR530 server and deliver enterprise-class data protection:

- Provides advanced service processor control, monitoring, and alerting functions with XClarity Controller, a next generation service processor.

-Improves Unified Extensible Firmware Interface (UEFI) system setup, configuration, updates, simplified error handling, and operating system deployment with the embedded XClarity Provisioning Manager.

- Offers XClarity Essentials software tools that can help you set up, use, and maintain the server.

- Increases uptime, reduces costs, and improves productivity through advanced server management capabilities with Lenovo XClarity Administrator that provides comprehensive hardware management.

- Provides on-the-go monitoring and management of devices in XClarity Administrator from anywhere with the Lenovo XClarity mobile app, which can help improve efficiency and reduce downtime risks.

- Centralizes infrastructure resource management with Lenovo XClarity Integrators for VMware vCenter and Microsoft System Center, extending XClarity Administrator features to virtualization management software tools and enabling users to deploy and manage infrastructure end-to-end.

- Offers advanced cryptographic functionality (such as digital signatures and remote attestation) with an integrated Trusted Platform Module (TPM) or optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC).

-Keeps user data safe with Lenovo Business Vantage, a security software tool suite designed to work with the Trusted Cryptographic Module (available only in PRC).

- Offers enterprise-class data protection with advanced RAID and optional self-encrypting drives.

- Provides faster, stronger encryption with industry-standard AES NI support.

- Helps prevent certain classes of malicious buffer overflow attacks with Intel Execute Disable Bit functionality, when combined with a supporting operating system.

- Enhances security through hardware-based resistance to malicious software attacks with Intel Trusted Execution Technology, allowing an application to run in its own isolated space, protected from all other software running on a system.

Energy efficiency

The SR530 server offers the following energy-efficiency features to save energy, reduce operational costs, increase energy availability, and contribute to the green environment:

- Delivers impressive compute power per watt, featuring 80 PLUS Titanium and Platinum redundant power supplies.

- Enables customers to lower energy costs with design to meet ASHRAE A4 standards in select configurations.

- Reduces power drawn with Intel Intelligent Power Capability that powers individual processor elements on and off as needed.

- Helps reduce power consumption with variable speed fans.

- Helps achieve lower heat output and reduced cooling needs with Lenovo XClarity Energy Manager that provides advanced data center power notification, analysis, and policy-based management.

Components and connectors

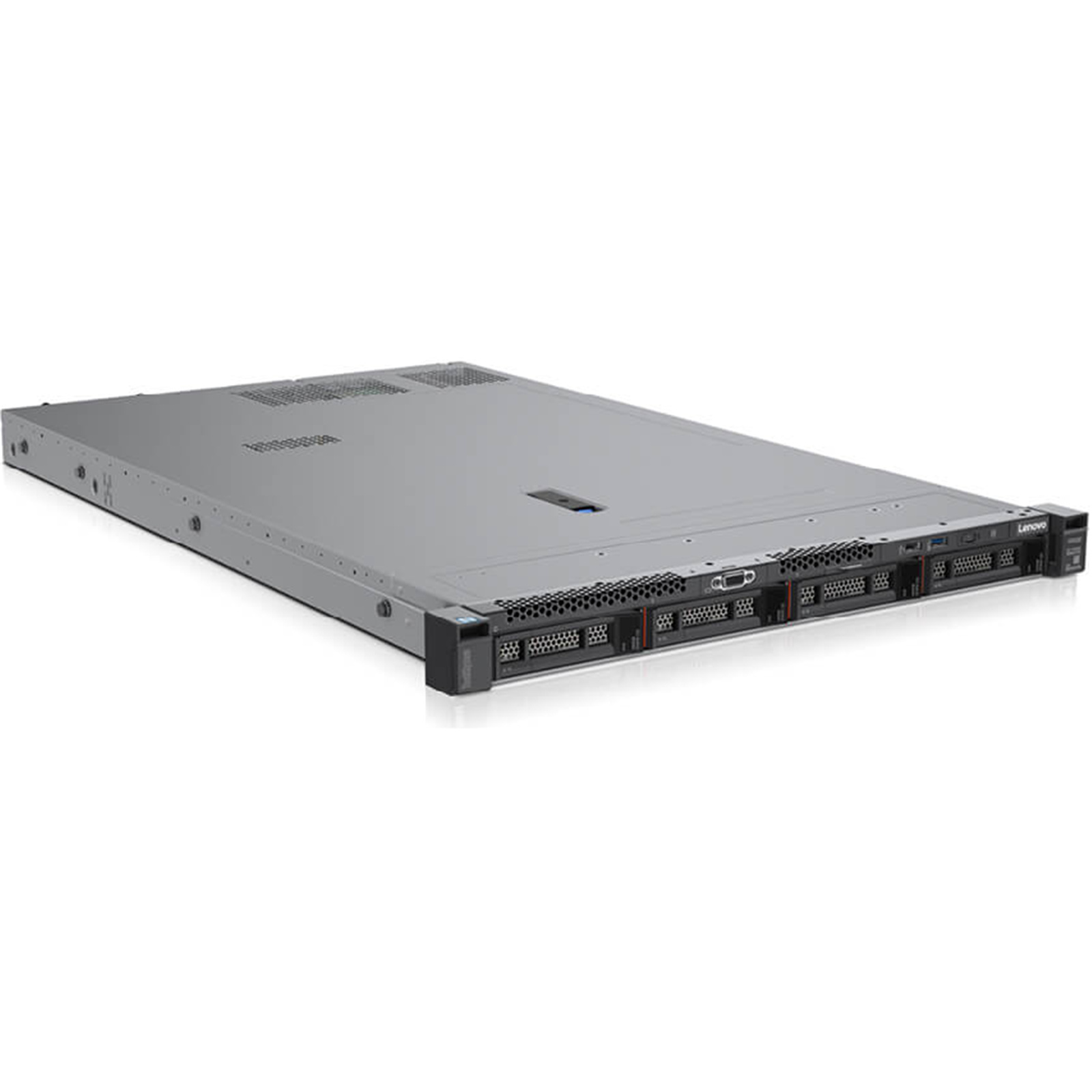

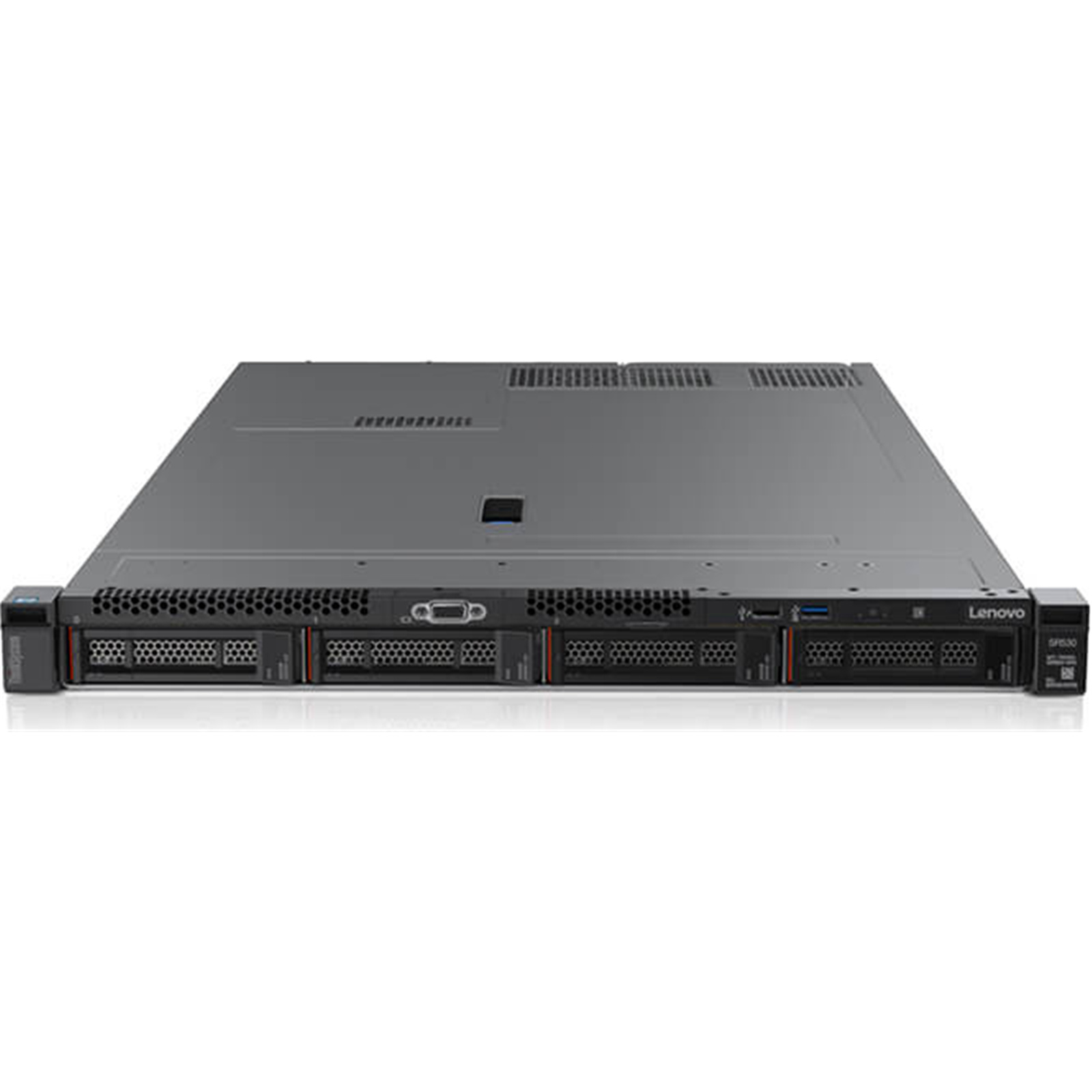

The following figure shows the front of the SR530 server with four 3.5-inch drive bays.


Figure 2. Front view of the SR530: 4x 3.5-inch drive bays

The following figure shows the front of the SR530 server with eight 2.5-inch drive bays.


Figure 3. Front view of the SR530: 8x 2.5-inch drive bays

The front of the SR530 server includes the following components:

Up to 8x 2.5-inch or 4x 3.5-inch hot-swap drive bays, or 4x 3.5-inch Simple Swap drive bays.
One VGA port (optional).
One USB 3.0 port.
One USB 2.0 port with XClarity Controller access.
Power button.
Status LEDs.

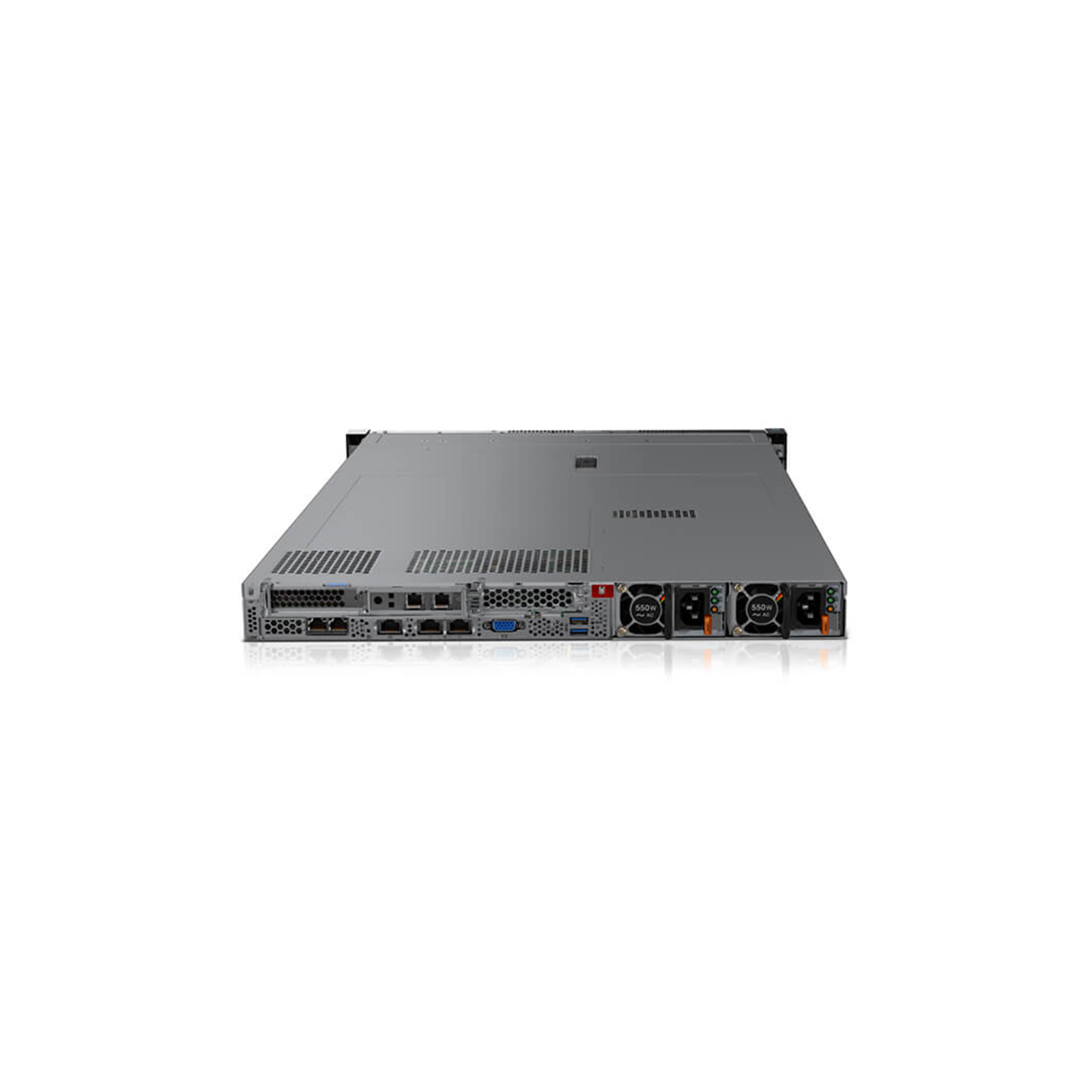

The following figure shows the rear of the SR530 server with three PCIe low profile slots.


Figure 4. Rear view of the SR530

The rear of the SR530 server includes the following components:

- Up to three PCIe expansion slots (depending on the riser cards selected).
- One LOM card slot.
- One 1 GbE port for XClarity Controller.
- One VGA port.
- Two USB 3.0 ports.
- Up to two hot-swap power supplies.

The following figure shows the locations of key components inside the SR530 server.


Figure 5. Internal view of the SR530

The following key components are located inside the SR530 server:

Up to two processors.
12 DIMM slots (6 DIMM slots per processor).
Drive backplanes.
One M.2 module connector.
One LOM card connector.
Two slots for PCIe riser cards.
One TCM connector.
Four (one processor) or six (two processors) non-hot-swap system fans.

Specifications

Form factor

1U rack-mount.

Processor

Intel Xeon Silver 4208 8 Core 85W 2.1GHz

Chipset

Intel C622.

Memory

Up to 12 DIMM sockets (6 DIMMs per processor; six memory channels per processor with one DIMM per channel) with support for the following TruDDR4 RDIMM types and capacities:
8 GB, 16 GB, 32 GB, and 64 GB 2933 MHz.
16 GB and 32 GB 2666 MHz.

Memory protection

Error correction code (ECC), SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, memory rank sparing, patrol scrubbing, and demand scrubbing.

Memory capacity

Up to 768 GB with 12x 64 GB RDIMMs (Up to 384 GB per processor).

Drive bays

4 LFF SATA Simple Swap drive bays
4 LFF SAS/SATA hot-swap drive bays
8 SFF SAS/SATA hot-swap drive bays

Drive types

2.5-inch hot-swap drives:
12 Gbps SAS HDDs up to 2.4 TB
12 Gbps Nearline (NL) SAS HDDs up to 2 TB
12 Gbps SAS HDD SEDs up to 600 GB
12 Gbps SAS SSDs up to 15.36 TB
6 Gbps NL SATA HDDs up to 2 TB
6 Gbps SATA SSDs up to 7.68 TB

Internal M.2 SSDs:
6 Gbps SATA up to 480 GB
Intermix of SAS/SATA HDDs/SSDs is supported within a system, but not within a RAID array.

Internal storage capacity

3.5-inch models: Up to 64 TB with 4x 16 TB 3.5" HDDs
2.5-inch models: Up to 122.8 TB with 8x 15.36 TB 2.5" SSDs

Storage controller

6 Gbps SATA
Non-RAID: Onboard SATA AHCI
RAID 0/1/10/5: Onboard SATA RAID (Intel RSTe)
12 Gbps SAS/6 Gbps SATA RAID
RAID 0/1/10/5/50:
RAID 530-8i
RAID 730-8i 1GB Cache
RAID 0/1/10/5/50/6/60:
RAID 730-8i 2GB Flash
RAID 930-8i 2GB Flash
RAID 930-16i 4GB or 8GB Flash
12 Gbps SAS/6 Gbps SATA non-RAID: 430-8i HBA

Optical drive bays

None

Network interfaces

2x Integrated 1 GbE RJ-45 ports (no 10/100 Mb support)
Onboard LOM slot for up to two additional 1/10 Gb Ethernet ports:
2x 1 GbE RJ-45 ports (no 10/100 Mb support)
2x 10 GbE RJ-45 ports (no 10/100 Mb support)
2x 10 GbE SFP+ ports (no 10/100 Mb support)
1x RJ-45 10/100/1000 Mb Ethernet systems management port.

I/O expansion slots

Up to three slots depending on the riser cards installed. The slots are as follows:
Slot 1: PCIe 3.0 x8; low profile
Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
Slot 3: PCIe 3.0 x8 or x16; low profile
PCIe x16 slot 3 requires the second processor to be installed.

Ports

Front

1x USB 2.0 port with XClarity Controller access and 1x USB 3.0 port

Rear

2x USB 3.0 ports and 1x VGA port; optional 1x DB-9 serial port.

Cooling

Four (one processor) or six (two processors) non-hot-swap system fans with N+1 redundancy.

Power supply

Up to two redundant hot-swap 550 W or 750 W (100 - 240 V) High Efficiency Platinum or 750 W (200 - 240 V) High Efficiency Titanium AC power supplies. HVDC support (PRC only).

Video

Matrox G200 with 16 MB memory integrated into the XClarity Controller. Maximum resolution is 1920x1200 at 60 Hz with 32 bits per pixel.

Hot-swap parts

Drives (select models) and power supplies.

Systems management

XClarity Controller (XCC) Standard, Advanced, or Enterprise (Pilot 4 chip), proactive platform alerts, XClarity Provisioning Manager, XClarity Essentials, XClarity Administrator, XClarity Integrators for VMware vCenter and Microsoft System Center, XClarity Energy Manager, Capacity Planner.

Security features

Power-on password, administrator's password, secure firmware updates, Trusted Platform Module (TPM) 1.2 or 2.0 (configurable UEFI setting). Optional lockable front bezel. Optional Trusted Cryptographic Module (TCM) or Nationz TPM (available only in PRC). Optional Lenovo Business Vantage security software (available only in PRC).

Operating systems

Microsoft Windows Server 2016 and 2019; Red Hat Enterprise Linux (RHEL) 7 and 8; SUSE Linux Enterprise Server (SLES) 12 and 15; VMware vSphere (ESXi) 6.5 and 6.7.

Warranty

Three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.

Service and support

Optional service upgrades are available through Lenovo Services: 2-hour or 4-hour response time, 6-hour or 24-hour committed service repair, warranty extension up to 5 years, 1-year or 2-year post-warranty extensions, YourDrive Your Data, Enterprise Software Support, and Basic Hardware Installation Services.

Dimensions

Height

43 mm (1.7 in)

Width

434 mm (17.1 in)

Depth

715 mm (28.1 in)

Weight

Minimum configuration

10.2 kg (22.5 lb)

Maximum

16 kg (35.3 lb)

Date Created: 09:47, 31-10-2020
Product URL: https://www.pbtech.co.nz/product/SVRLEN708090/Lenovo-Thinksystem-SR530-1U-Rack---Intel-Xeon-Silv
Your recently viewed items (1)
Home Computers & Tablets Servers Barebone Servers Lenovo Thinksystem SR530 1U Rack - Intel Xeon Silver...
Customer Testimonials - See More
