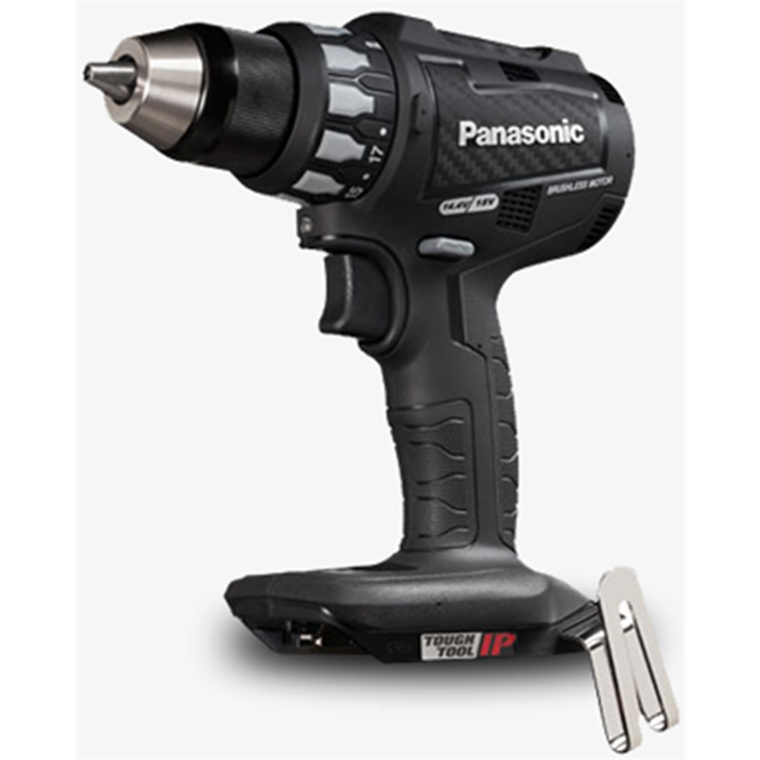

Panasonic EY74A2X57 14.4V / 18V LITHIUM ION DRILL & DRIVER (DUAL VOLTAGE SKIN)

Panasonic EY74A2X57 14.4V / 18V LITHIUM ION DRILL & DRIVER (DUAL VOLTAGE SKIN)
PB Tech price: PB Tech price:
$218 26  +GST $251 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

Panasonic EY74A2X57 14.4V / 18V LITHIUM ION DRILL & DRIVER (DUAL VOLTAGE SKIN)

Panasonic EY74A2X57 14.4V / 18V LITHIUM ION DRILL & DRIVER (DUAL VOLTAGE SKIN)

PB Tech price: PB Tech price:
$218 26 $251 00
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 02/11/2020 When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $51.71 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $43.09 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $2.85 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

14.4V/18V Cordless Drill & Driver

High speed performance with a compact body with extreme durability. Featuring a new brushless motor, possible to use with dual voltage, ultra hard chuck jaw tips and a hybrid switch. Increased efficiency and flexibility.

Key Features:

- Dual Voltage - 14.4V or 18V
- Compact body - length 178mm
- Electric brake
- Optimum rotation speed control
- High-power brushless motor
- Variable speed control / reversible
- 18-stage clutch plus drill position
- 13mm heavy duty keyless chuck
- Skin only, battery pack & charger not included
- Tough Tool IP Rating
- LED light, electric brake, variable speed control/reversible
- General construction, finishing carpentry, electric installation work or plumbing

High Performance 13mm Cordless Drill & Driver

The Panasonic EY74A2X57 14.4V/18V Dual Voltage Cordless Drill & Driver is lightweight and compact, yet powerful. With precision variable speed control/reversible, an 18-stage clutch, optimum rotation speed control plus high power brushless motor. The EY74A2X57 is ready for work with with a Panasonic 14.4V or 18V battery. Featuring a handy LED light for user-friendly operation in dark areas, a heavy-duty keyless chuck, and an electric brake for added safety.

New Brushless Motor

Without brushes and commutator which can reduce the lifetime of the tool, the motor lasts approximately twice compared with brushed motor.* Compared with Panasonic conventional brushed motor.

New Ultra Hard Chuck Jaw Tips

We increased durability of every part right down to the new metal chuck which features tungsten carbide jaw tips. These extra hardened inserts are brazed into each jaw to give extra 'bite strength' and substantially reduce wear.

New Hybrid Switch

To eliminate heavy friction to internal parts of the switch during use of electric brake, we developed a new semi-electronic switch. This gives smoother operation and double* the life expectancy of the part. * Compared with Panasonic conventional switches.

Powerful to the Finish

The new, large diameter brushless motors generate high power and efficiency (32Nm of torque - 18V battery). Plus the newly designed control circuit increases stable current flow to motor by more than 70%*. This enables high power output to be evenly maintained until the task is completed even during high-load operation. * Compared with previous brushless motor.

Increased Efficiency and Flexibility

The new 'Speed Control Function' allows the user to select from three different low rotation speed settings, based on allowable maximum speeds for metal hole saws. It greatly reduces 'run out' when using metal hole saws and prevents surface scorching on stainless steel and other materials.

The advanced 'Smooth Start' electronics allow easy, precise speed control, enabling the ultimate control when starting drilling or working with small screws in precise applications.

Tough Tools for Tough Conditions

Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.

Dust and Water Resistant Level IP56

The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.

LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

Performance Protection

Switch - An additional rubber cap seals the switch and protects it against dust and water.
Electronics - The electronic circuits of control panel and battery pack are covered by an Urethan layer for maximum dust and water protection.
Battery - The battery cells are designed to avoid intrusion of moisture.

Dual Voltage for Better Versatility

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.

18V 3.0Ah - With the 18V 3.0Ah battery, the application speed and working capacity goes up.
14.4V 4.2Ah - With the 14.4V 4.2Ah battery, it's easier to use with light weight and compactness.
18V 5.0Ah - With the 18V 5.0Ah battery, the application speed and working capacity goes up with increased power.

Powerful and Longer Lasting

Whether it's Panasonic's new generation 18V 5.0Ah battery cell, a slim and lightweight 18V 3.0Ah battery, or a compact standard 14.4V 4.2Ah battery - they all offer more durability during high workload conditions due to its reduction in internal resistance.

Durable New Design

Over-discharge prevention sensor - Prevents over-discharge to avoid lasting cell damage or recharge problems.
Battery overheat protection sensor - Cuts off power to the motor before the battery temperature rises.
Individual monitoring of battery cell voltage - Each cell monitored by sensor to ensure optimal discharge control.
Battery sensor - Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.
Heat resistance layer technology - In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.
NNP technology - Panasonic's own developed Nickel oxide material provides higher capacity and higher reliability.

Specifications

Max. Torque

28.0 N-m Stalling torque, 40.0 N-m Instand torque

Speed at No Load

Low 30-400 min-1 (rpm)
High 70-,1350 min-1 (rpm)

Clutch Torque

0.5-4.4 Nm (0.23 Nm per stage, total 18 stage)

Charging Time (using EY0L82B charger)

Usable - 50 minutes
Full - 60 minutes

Size (LxHxW)

178mm x 242mm x 68mm

Max. Drill Diameter

In Wood - ?35 mm
In Metal - ?13 mm

Max. Screws Driving

Wood screw - ?6.8 mm
Self-drilling screw - ?6 mm

Manufacturer Part No: EY74A2X57 Brand: Panasonic Product Type: -
UPC - Product Family: - Shipping Weight: 1.824 kg
PB Part No: TOLPAN1003 Product Model: -

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.

Panasonic EY74A2X57 14.4V / 18V LITHIUM ION DRILL & DRIVER (DUAL VOLTAGE SKIN)

  • Brand: Panasonic
  • MPN: EY74A2X57
  • Part #: TOLPAN1003
  • UPC:
PB Tech price: $218.26 Excluding GSTPB Tech price:$251.00 Including GST
Date Created: 02:55, 22-10-2020
Product URL: https://www.pbtech.co.nz/product/TOLPAN1003/Panasonic-EY74A2X57-144V--18V-LITHIUM-ION-DRILL--D
Branch
New Stock
On Display
Albany
0
North Shore
0
Auckland CBD
0
Auckland Uni
0
Penrose
0
Henderson (Express)
0
St Lukes
0
Manukau
0
Hamilton
0
Tauranga
0
New Plymouth
0
Wellington
0
Christchurch
0
Head Office (Web)
0

Features

14.4V/18V Cordless Drill & Driver

High speed performance with a compact body with extreme durability. Featuring a new brushless motor, possible to use with dual voltage, ultra hard chuck jaw tips and a hybrid switch. Increased efficiency and flexibility.

Key Features:

- Dual Voltage - 14.4V or 18V
- Compact body - length 178mm
- Electric brake
- Optimum rotation speed control
- High-power brushless motor
- Variable speed control / reversible
- 18-stage clutch plus drill position
- 13mm heavy duty keyless chuck
- Skin only, battery pack & charger not included
- Tough Tool IP Rating
- LED light, electric brake, variable speed control/reversible
- General construction, finishing carpentry, electric installation work or plumbing

High Performance 13mm Cordless Drill & Driver

The Panasonic EY74A2X57 14.4V/18V Dual Voltage Cordless Drill & Driver is lightweight and compact, yet powerful. With precision variable speed control/reversible, an 18-stage clutch, optimum rotation speed control plus high power brushless motor. The EY74A2X57 is ready for work with with a Panasonic 14.4V or 18V battery. Featuring a handy LED light for user-friendly operation in dark areas, a heavy-duty keyless chuck, and an electric brake for added safety.

New Brushless Motor

Without brushes and commutator which can reduce the lifetime of the tool, the motor lasts approximately twice compared with brushed motor.* Compared with Panasonic conventional brushed motor.

New Ultra Hard Chuck Jaw Tips

We increased durability of every part right down to the new metal chuck which features tungsten carbide jaw tips. These extra hardened inserts are brazed into each jaw to give extra 'bite strength' and substantially reduce wear.

New Hybrid Switch

To eliminate heavy friction to internal parts of the switch during use of electric brake, we developed a new semi-electronic switch. This gives smoother operation and double* the life expectancy of the part. * Compared with Panasonic conventional switches.

Powerful to the Finish

The new, large diameter brushless motors generate high power and efficiency (32Nm of torque - 18V battery). Plus the newly designed control circuit increases stable current flow to motor by more than 70%*. This enables high power output to be evenly maintained until the task is completed even during high-load operation. * Compared with previous brushless motor.

Increased Efficiency and Flexibility

The new 'Speed Control Function' allows the user to select from three different low rotation speed settings, based on allowable maximum speeds for metal hole saws. It greatly reduces 'run out' when using metal hole saws and prevents surface scorching on stainless steel and other materials.

The advanced 'Smooth Start' electronics allow easy, precise speed control, enabling the ultimate control when starting drilling or working with small screws in precise applications.

Tough Tools for Tough Conditions

Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.

Dust and Water Resistant Level IP56

The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.

LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

Performance Protection

Switch - An additional rubber cap seals the switch and protects it against dust and water.
Electronics - The electronic circuits of control panel and battery pack are covered by an Urethan layer for maximum dust and water protection.
Battery - The battery cells are designed to avoid intrusion of moisture.

Dual Voltage for Better Versatility

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.

18V 3.0Ah - With the 18V 3.0Ah battery, the application speed and working capacity goes up.
14.4V 4.2Ah - With the 14.4V 4.2Ah battery, it's easier to use with light weight and compactness.
18V 5.0Ah - With the 18V 5.0Ah battery, the application speed and working capacity goes up with increased power.

Powerful and Longer Lasting

Whether it's Panasonic's new generation 18V 5.0Ah battery cell, a slim and lightweight 18V 3.0Ah battery, or a compact standard 14.4V 4.2Ah battery - they all offer more durability during high workload conditions due to its reduction in internal resistance.

Durable New Design

Over-discharge prevention sensor - Prevents over-discharge to avoid lasting cell damage or recharge problems.
Battery overheat protection sensor - Cuts off power to the motor before the battery temperature rises.
Individual monitoring of battery cell voltage - Each cell monitored by sensor to ensure optimal discharge control.
Battery sensor - Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.
Heat resistance layer technology - In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.
NNP technology - Panasonic's own developed Nickel oxide material provides higher capacity and higher reliability.

Specifications

Max. Torque

28.0 N-m Stalling torque, 40.0 N-m Instand torque

Speed at No Load

Low 30-400 min-1 (rpm)
High 70-,1350 min-1 (rpm)

Clutch Torque

0.5-4.4 Nm (0.23 Nm per stage, total 18 stage)

Charging Time (using EY0L82B charger)

Usable - 50 minutes
Full - 60 minutes

Size (LxHxW)

178mm x 242mm x 68mm

Max. Drill Diameter

In Wood - ?35 mm
In Metal - ?13 mm

Max. Screws Driving

Wood screw - ?6.8 mm
Self-drilling screw - ?6 mm
