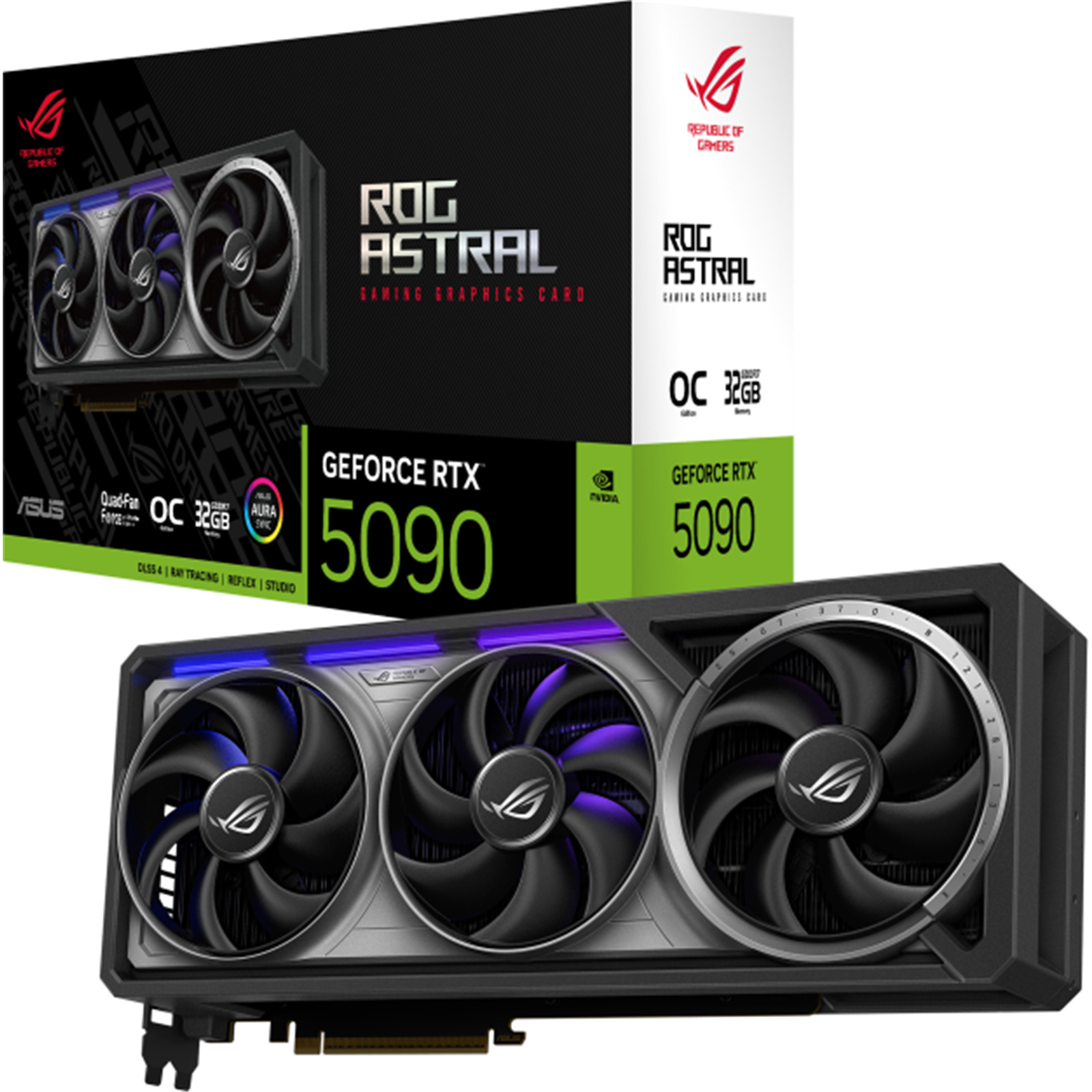

ASUS ROG ASTRAL NVIDIA GeForce RTX 5090 OC GAMING 32GB GDDR7 Graphics Card

ROG Astral GeForce RTX™ 5090 - The Final Frontier

The new ROG Astral family was inspired by the limitless expanse and beauty of the cosmos, and it is a testament to an unending dedication to exploring and defining new frontiers. In that spirit, the ROG Astral GeForce RTX 5090 introduces ROG's first quad-fan graphics card, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations - amplified by an eye-catching die-cast frame and metal GPU bracket - combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

NVIDIA Blackwell Architecture

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

AI-Enhanced Graphics and Performance
NVIDIA DLSS 4 with Multi Frame Generation

Game-Winning Responsiveness
NVIDIA Reflex 2 with Frame Warp

True-to-Life Graphics
Full ray tracing with neural rendering

Digital Humans and AI Assistants
NVIDIA ACE

Accelerate Your Creativity
NVIDIA Studio creator tools and technology

Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder

Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers

The Ultimate Gaming Display Technologies
NVIDIA G-SYNC

Engineered for Excellence

Driven by a passion for innovation and the pursuit of precision, we crafted the ROG Astral. Inspired by the universe's wonders, it blends art and technology, achieving stellar cooling and unmated performance.

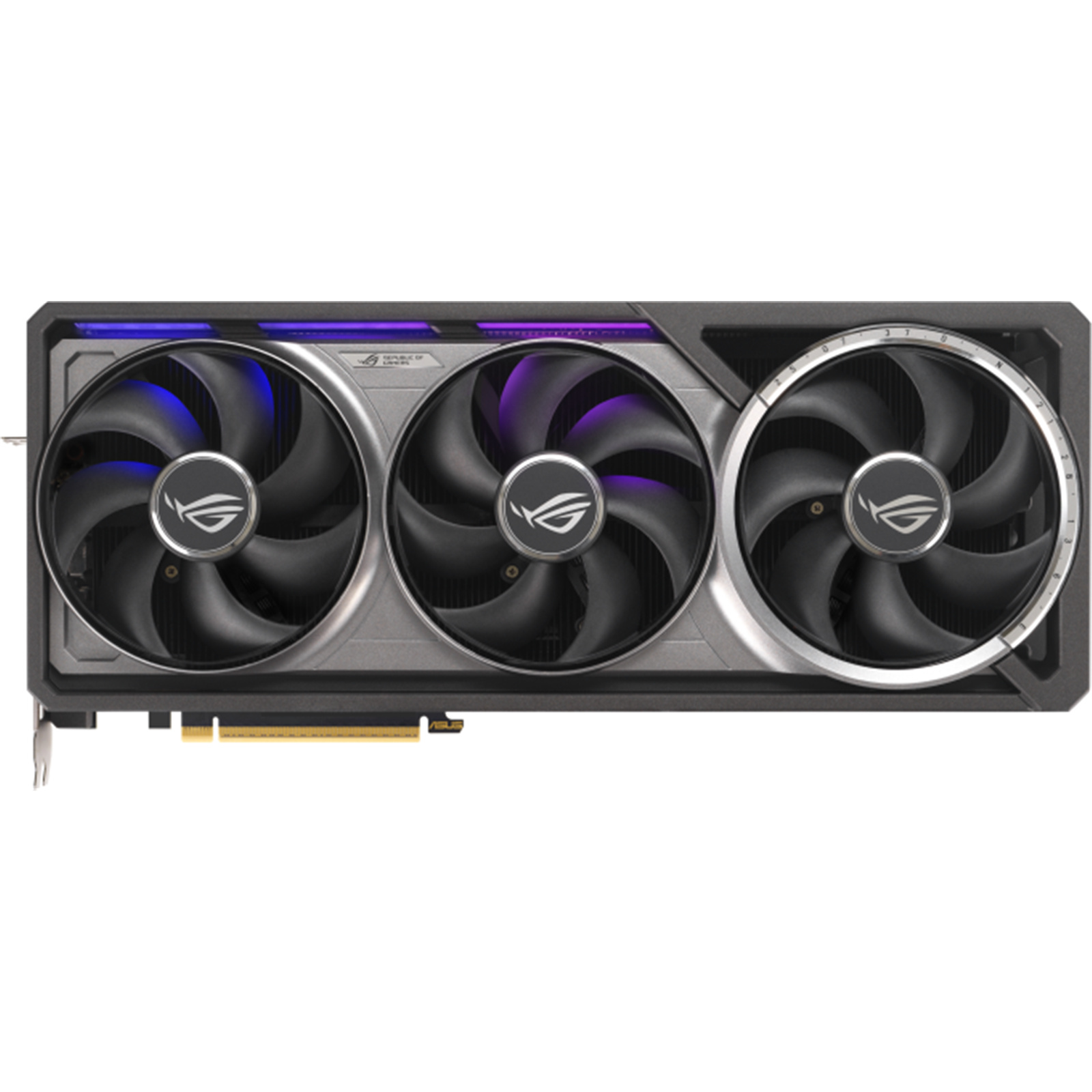

Fan Design

Four axial tech fan design enhances airflow for optimal cooling.

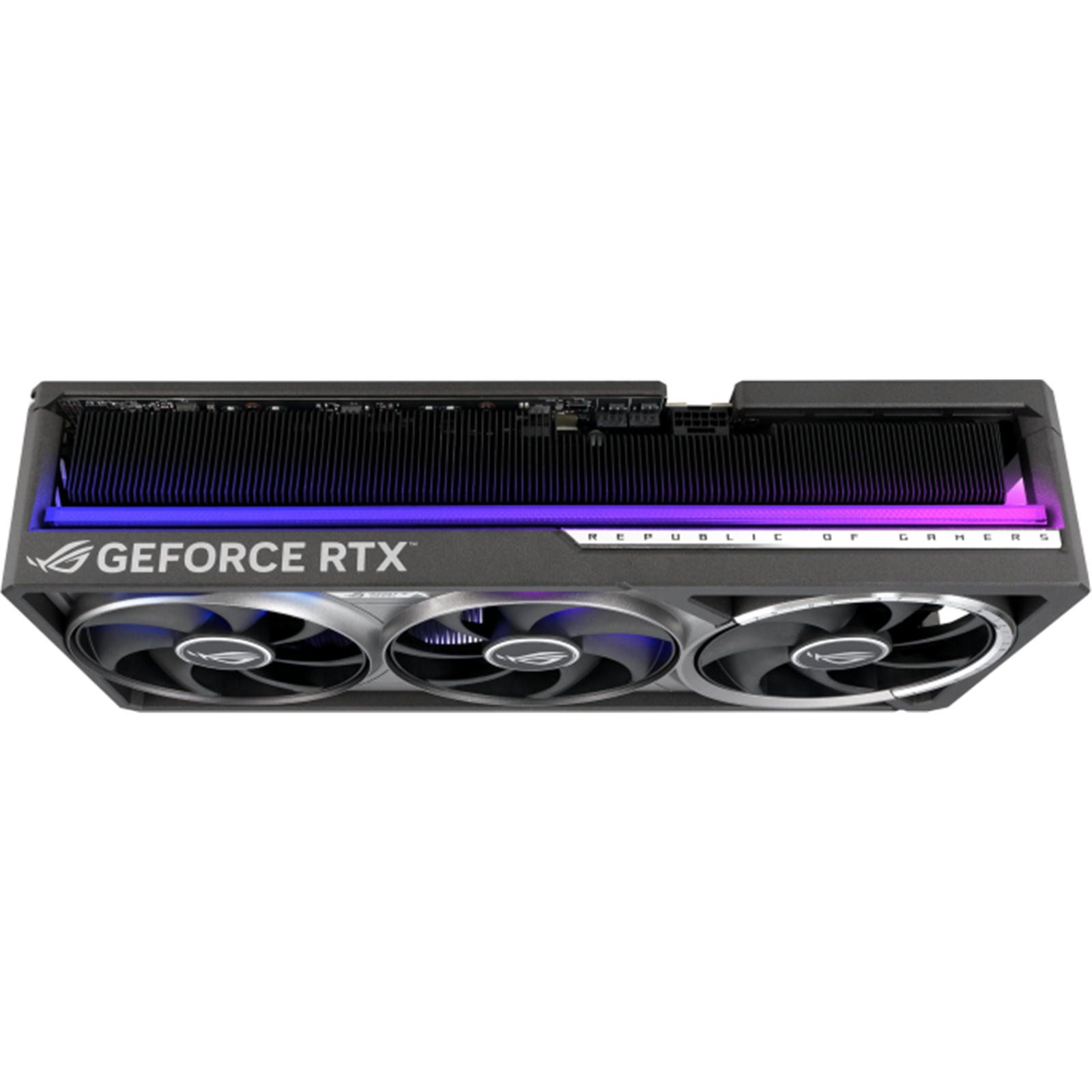

Indirect Aura Lighting

ARGB lighting allows for personalized setting.

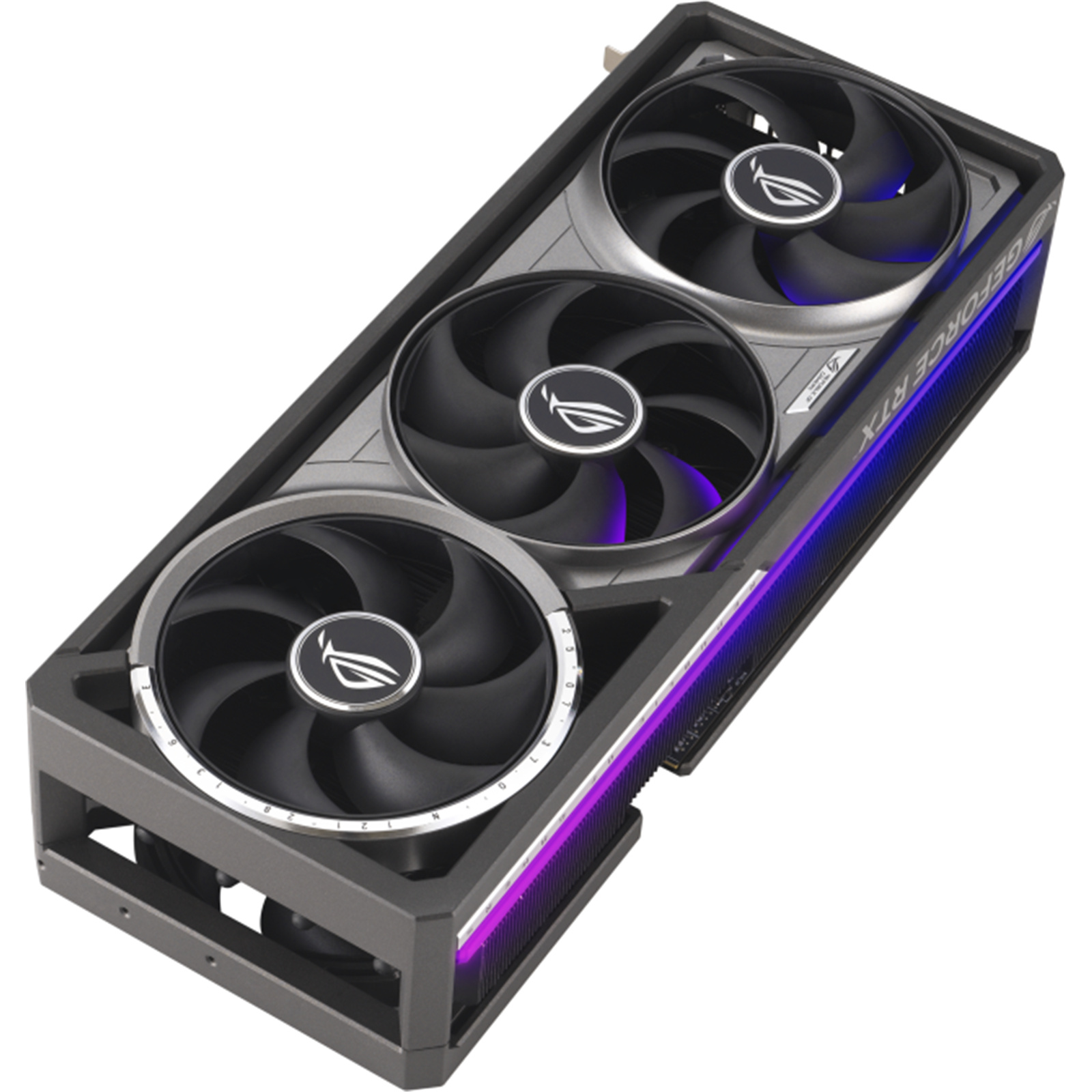

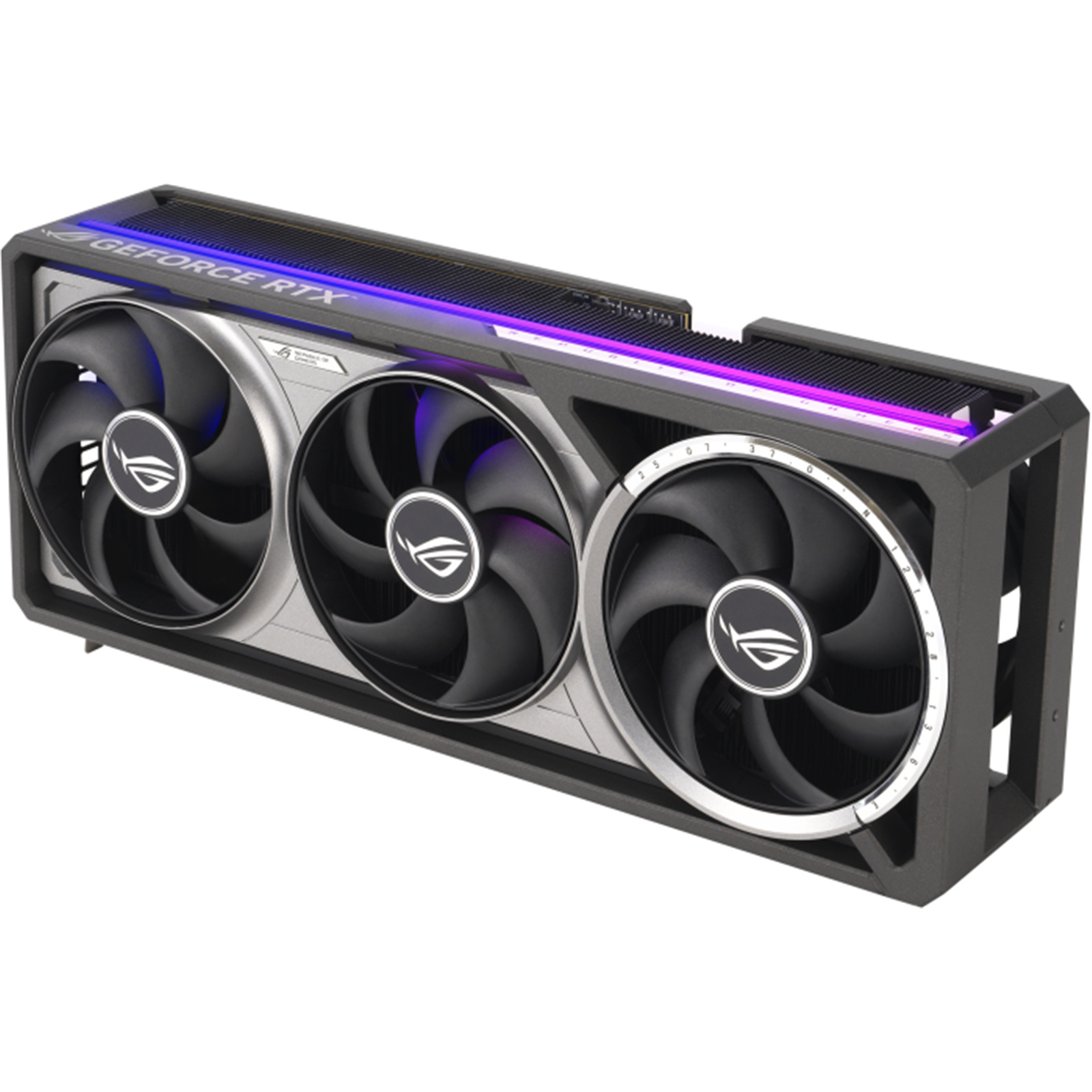

Cooling Expertise - Quad-Fan Force

A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.

Optimized Fin Spacing

The addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.

Patented Vapor Chamber

A patented vapor chamber designed with milled pathways allows heatpipes to sink in without flattening, boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by over 10%.

MaxContact Design

MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Premium Power Delivery

Powerful 80-amp MOSFETs deliver over 35% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.

ASUS GPU Guard & Bracket

To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating

A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto-Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Ultra Rigid Metal Case

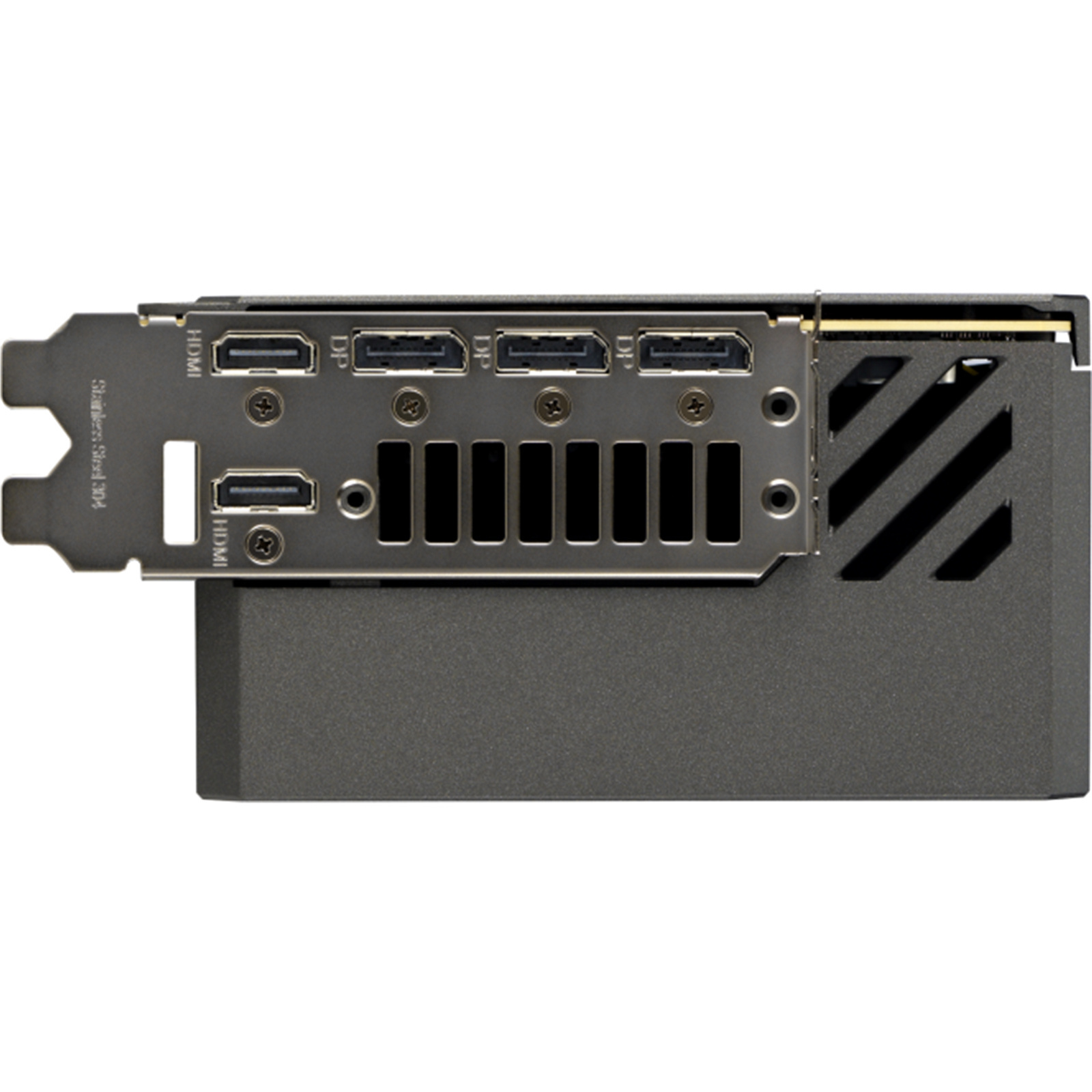

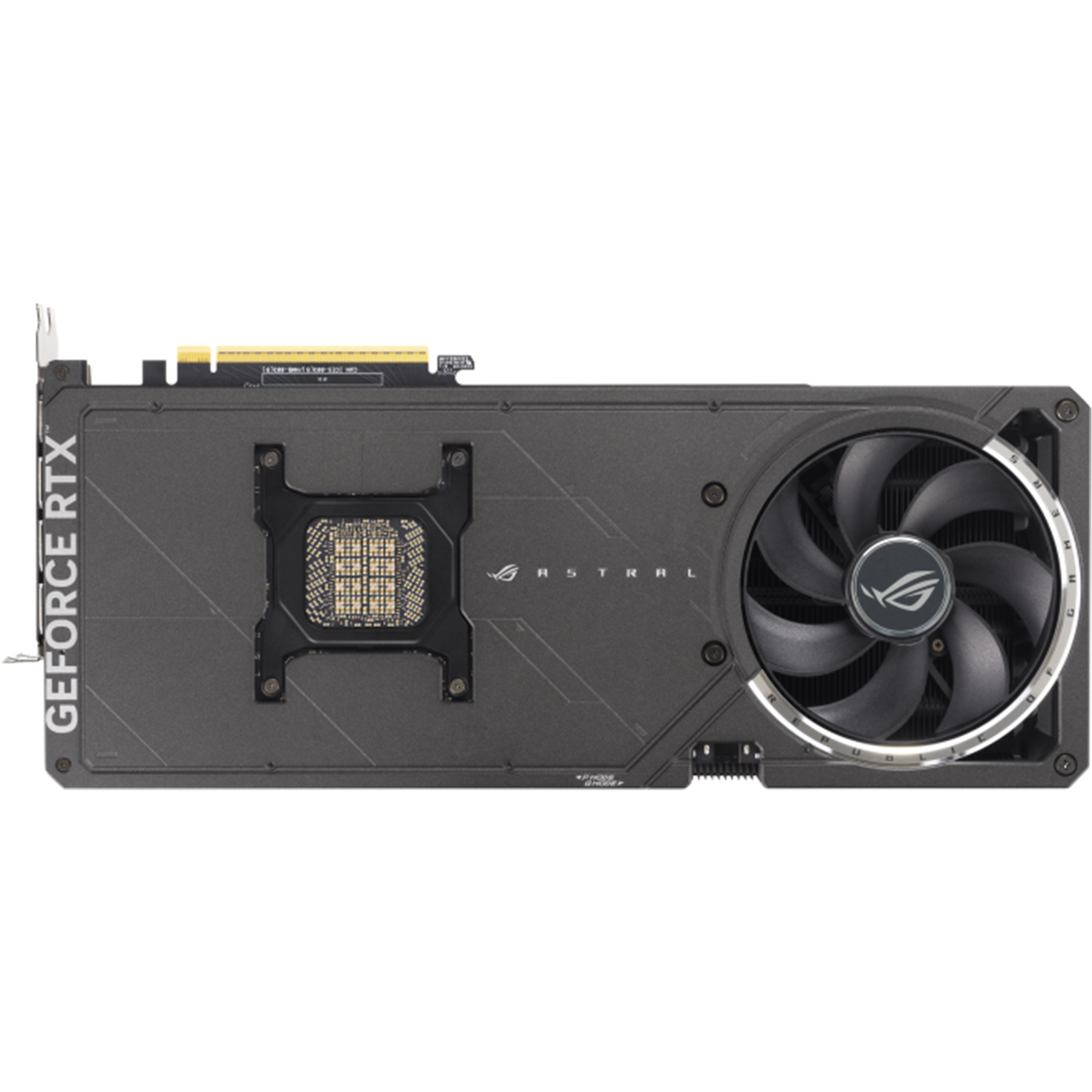

A high-quality diecast frame, shroud, and backplate tightly brace the PCB for rigidity, and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable mounting.

Game Friendly - GPU Tweak III: Effortless GPU Monitoring and Tuning

Effortless Overclocking
GPU Tweak III lets you effortlessly fine-tune overclocking settings to achieve peak performance. It includes OC mode & Silent mode toggles, an OC scanner and a Voltage-Frequency Tuner for precise adjustments.

Thermal Map
Embedded sensors across the VRMs, chokes and VRAM collect data for the Thermal Map, empowering you to check real-time temperatures in each area and to easily adjust system settings for optimized performance.

Power Detector+
Power Detector+ can detect anomalies across any of the six power pins from the 12VHPWR cable. If a fault is detected, you are immediately notified that the power cable needs to be reseated.

Mileage
The Mileage feature tracks usage at different power levels, so you can keep an eye on what kind of load you have used across multiple game sessions.

FanConnect II

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.

Aura Sync

With indirect Aura ARGB lighting, the ROG Astral GeForce RTX 5090 provides endless possibilities for personalization with color or functional effects. Use it with other Aura components to create a uniquely coordinated build.

Grow Your Dreams with AI Magic

MuseTree is an AI-powered image-generation app designed to spark your creativity. Effortlessly create and manage images and visual ideas, unlocking endless new inspirations. With its intuitive visual interface, generating stunning images has never been easier!

RTX. It's On. The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4 - Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC's gaming capabilities.

Full Ray Tracing with Neural Rendering - Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

NVIDIA Reflex 2 - Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game's latest mouse input.

RTX AI PCs - NVIDIA Powers the World's AI. And Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.

Creators - Your Creative AI-dvantage

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.

NVIDIA Broadcast - Your AI-Powered Home Studio

Take your livestreams, voice chats, and video calls to the next level with AI-enhanced voice and video. Remove distracting background noise, customize your background, and more at the touch of a button.

RTX Video - Upgrade Your Video Viewing

RTX Video Super Resolution and HDR uses AI to transform your videos in Chrome, Edge, or Firefox-automatically sharpening details and wiping out compression artifacts. Enjoy stunning clarity in up to 4K.

RTX Remix - Remaster The Classics

RTX Remix allows modders to easily capture game assets, enhance materials with AI tools, and create stunning RTX remasters with ray tracing and DLSS.

Video Editing - Speed Meets Creativity

Harness the power of the ninth-gen NVIDIA Encoder (NVENC) for blazing-fast video exports and AI-driven effects in DaVinci Resolve, Adobe Premiere Pro, and more.

Game Ready and Studio Drivers

GeForce Game Ready and Studio Drivers deliver the best experience for your favorite games. They're finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.

NVIDIA App

The essential companion for PC gamers and creators. Keep your PC up to date with the latest NVIDIA drivers and technology. Optimize games and applications with a new unified GPU control center, and discover the latest NVIDIA apps.

NVIDIA G-SYNC

NVIDIA G-SYNC® is a suite of the ultimate display technologies. They offer enhanced motion clarity, smooth tear-free immersion, ultra-high frame rates, and more.

Virtual Reality

The highest-performance graphics deliver the smoothest, most immersive VR experiences.
