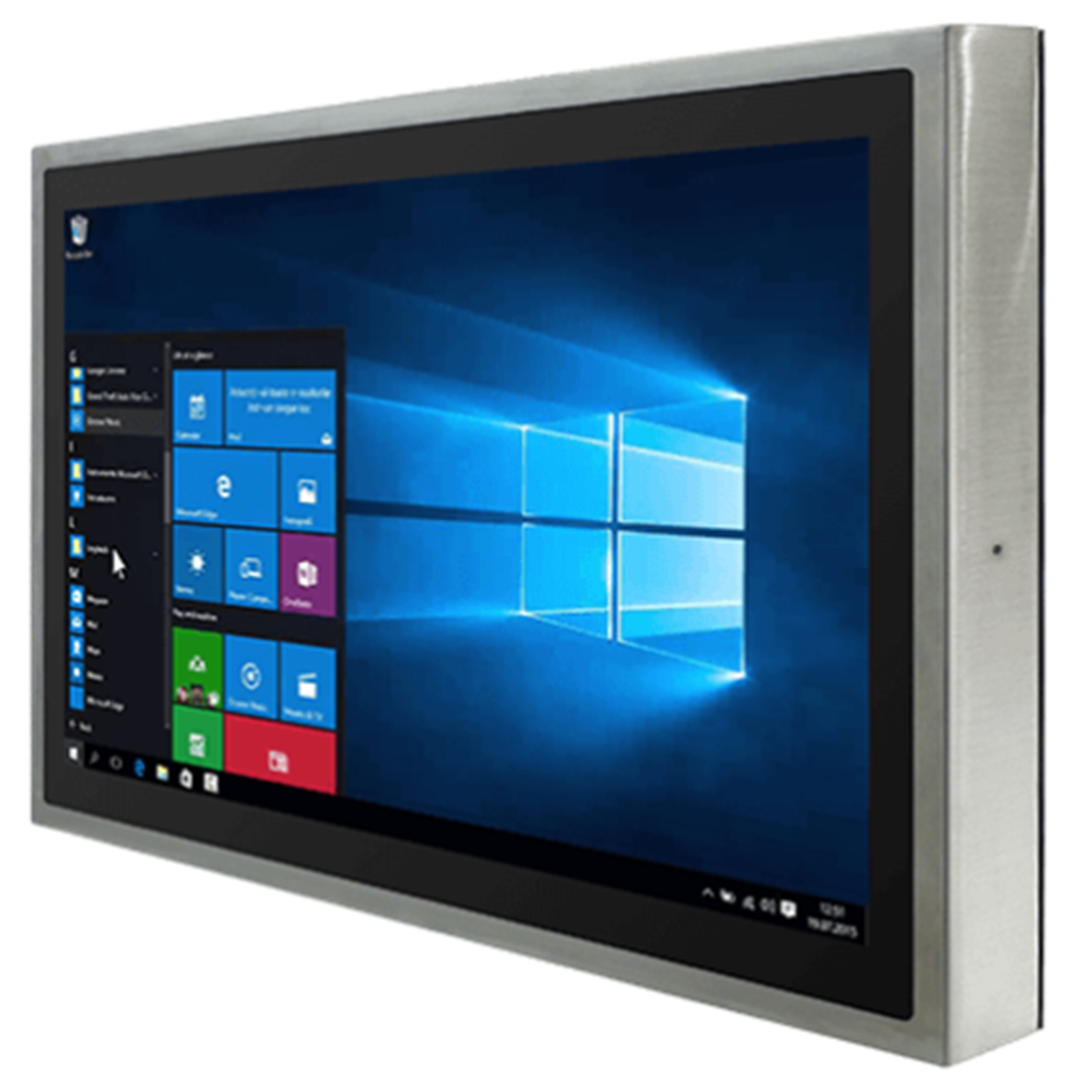

Winmate W22IH3S-SPA369 Panel PC, IP69 21.5" PcapTouchscreen, i5,4G, 64GB, 2XUSB, 1xGbit LAN,1xRS-232, 12v DC-in

Winmate W22IH3S-SPA369 Panel PC, IP69 21.5" PcapTouchscreen, i5,4G, 64GB, 2XUSB, 1xGbit LAN,1xRS-232, 12v DC-in

  • Brand: Winmate
  • MPN: 98C021A0004U
  • Part #: WKAWMA22101
  • UPC:

Features

Waterproof All-Around

The Panel PC fully complies with IP69K water and dust resistance to survive splashing conditions during stringent cleanup processes and strict hygiene demands in the Food, Beverage, and Pharmaceutical industries.

Comprehensive Stainless Solution

The wide range of stainless human-machine interfaces (HMI) and Panel PCs are widely used for automation processes in Food & Beverage applications and chemical factories.

Projected Capacitive Multi-Touch (P-CAP)

The highly-sensitive touch screen and PCAP multi-touch support make it easy for users to key in data, rotate images, drag and drop files, and zoom in with two or more fingers.

- 21.5", 1920 x 1080 P-cap touch with flat design
- 8th Generation (Whiskey Lake) Intel® Core™ i5-8265U 1.6GHz (turbo to 3.9GHz)
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Full IP69K waterproof enclosure
- A true flat, easy-to-clean front surface with edge-to-edge design
- Plentyof I/Os, including USB 2.0, RS232 and RJ45-10/100/1000 LAN
- Waterproof ports with adapter cables for external connectivity
- Support VESA/ YOKE mount
- Support Glove/ Rain mode
- Optical bonding (optional)

Specifications

Display

Size

21.5 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1920x1080

Panel Brightness

250 nits

Contrast Ratio

3000:1

View Angles

89,89,89,89

Active Area

476.64x268.11 mm

System Specification

Processor

Intel® Core™ i5 -8265U (6M Cache, 1.6GHz up to 3.9 GHz)

Memory

1 x SO-DIMM, DDR4 2400 MHz, 4GB

Storage

1 x M.2 2242 B-key SSD 64GB

Ethernet controller

Intel® Ethernet Controller I210-AT +
Intel® Ethernet Connection I219-LM

Security

TPM 2.0

Operating System

Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 18.04 (Optional)
Linux Ubuntu 20.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

541 x 337 x 56.2 mm

Mounting

VESA Mount
Yoke Mount

Enclosure

Stainless Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~45°C

Storage Temperature

-20~60°C

IP rating

IP69K

Certification

Certification

CE, FCC

IO Ports

USB Port

1x M12 waterproof connector for 2 x USB2.0

Serial Port

1 x M12 waterproof connector for RS232

LAN

1 x waterproof Giga LAN RJ45 connector

Indicator

1 x LED Indicator for power
1 x LED Indicator for storage

Power Input

1 x M12 waterproof connector for 12V DC

Control

Button

1 x Power Button
1 x Reset Button

Power

Power Rating

12V DC (M12 type)

Manufacturer Part No:
98C021A0004U
Brand:
Product Type:
Panel PC, IP69
UPC
-
Product Family:
-
Shipping Weight:
10 kg
PB Part No:
WKAWMA22101
Product Model:
W22IH3S-SPA369
Warranty: 12 months *
