EKWB EK-Quantum Kinetic FLT 120 D5 PWM D-RGB -Plexi

EKWB EK-Quantum Kinetic FLT 120 D5 PWM D-RGB -Plexi
Normally $286.08 Normally $328.99
Save: $17$20
$268 69  +GST $308 99  inc GST

Generating Print Page

EKWB EK-Quantum Kinetic FLT 120 D5 PWM D-RGB -Plexi

Part #: WTREKW819784
ON SPECIAL
Normally $286.08 Normally $328.99
Save: $17$20
$268 69 $308 99
 +GST  inc GST
Ends in --, only 2 units left!
Ends in --, only 2 units left!


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships today When will I receive it?

Six easy payments of $53.04 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $63.65 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Finance from $3.35 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

  • Brand: EKWB
  • MPN: WTREKW819784
  • Part #: WTREKW819784
  • UPC:
  • Bearing Type Variation: N/A
  • Fan Size: N/A
  • LED Colour: RGB
  • Number of Fans: N/A
  • Radiator Size: N/A
  • Sound Level (Roughly): N/A
  • View more

Features

All new Flat (FLT) series EK-Quantum Kinetic FLT D5 pump-reservoir units! The new Kinetic combo units are part of the EK Quantum Line of products and come with sophisticated addressable D-RGB lighting implementation and a genuine D5 pump! Each unit is featuring standard 120mm fan mounting holes for maximum flexibility during the installation. The reservoir is equipped with a total of six G1/4" ports so that users can choose the most optimal setup for their liquid cooling loops.

EK-Quantum Kinetic FLT D5 series pump-reservoir units are equipped with genuine D5 pumps, made in Europe, which are capable of delivering flow rates of 1500 liters per hour with a maximum head pressure up to 3.9 meters! These new FLT series combo units are available in three different sizes of 120mm, 240mm, and 360mm.



The new flat-shaped pump-reservoir units are to revolutionize the way you were thinking about combo units and loop building. Since 120mm fan mounting patterns are the most dominant mounting options inside PC cases these days, these new Kinetic FLT D5 combo units will allow greater flexibility for installation since they don't require drilling of new mounting holes on your case.

The combo unit is equipped with a total of six industry-standard G1/4" ports, which can be, based on the orientation of the unit, used as inlet and outlet ports, as well as fill and drain ports.

The reservoir is manufactured of premium quality acrylic material, machined to perfection, while the sealing is performed by a quality EPDM o-ring. Alongside the reservoir is a black anodized aluminum cover under which the Addressable D-RGB LED strip is placed. Proper LED implementation is one of the main focus points of EK so that there are as few visible "LED hotspots" as possible.

Made in Slovenia - EU!

Pump motor made in Hungary - EU!

PLEASE NOTE:

- Do not clean the reservoir with alcohol derivates or other solvents as the acrylic may crack!
- Coolant and additional plugs are just for showcase and are not delivered with the product!
- The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.

Specifications

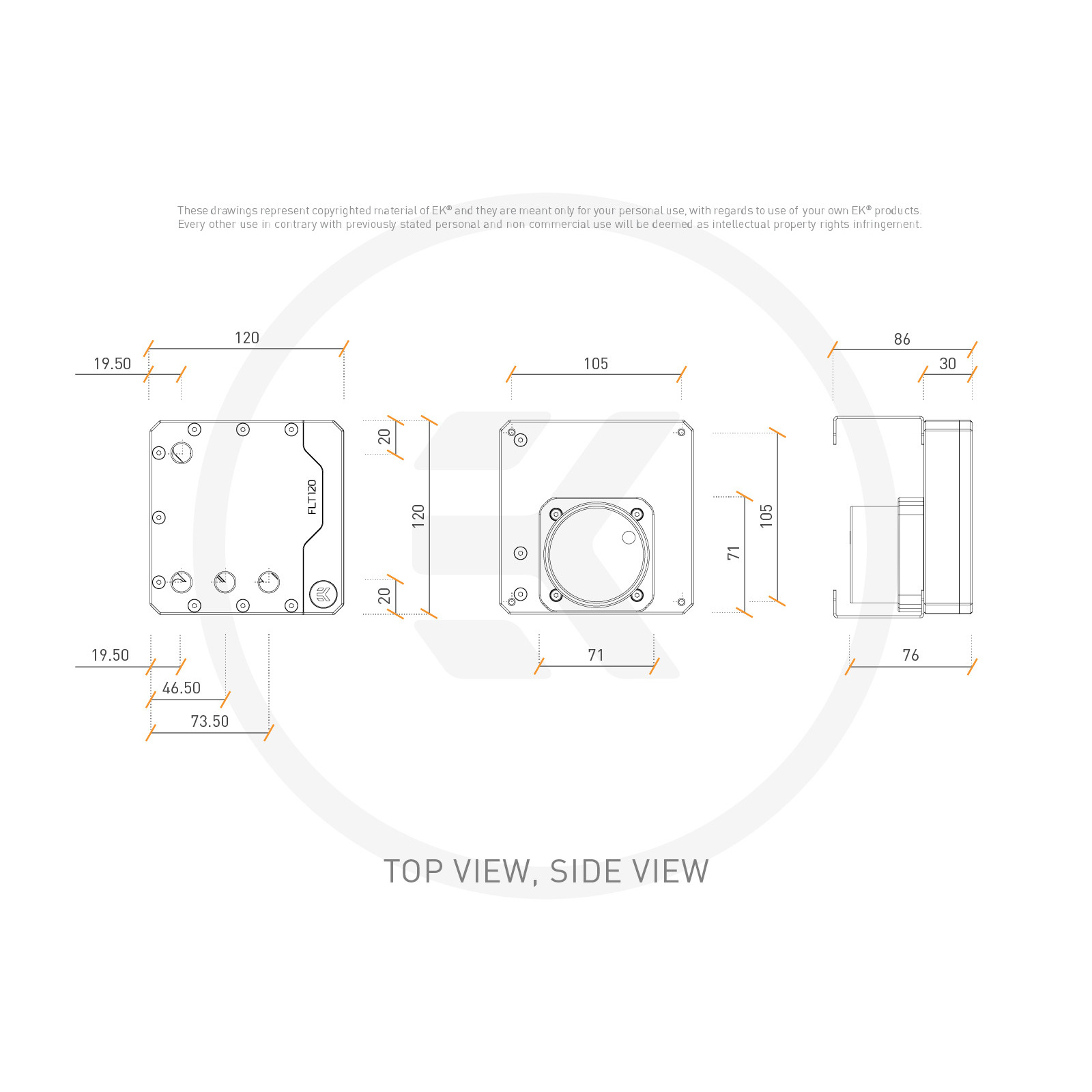

Size (HxWxT)

125x120x86mm (with the mounting system)

Capacity

~100ml

D-RGB connector

3-pin 5V digital LED header (Pinout: +5V, D, Blocked, Ground)

Pump electrical and mechanical properties

Motor

Electronically commuted spherical motor

Rated voltage

12V DC

Power consumption

23W

Maximum pressure head

3.9m

Maximum flow

1500L/h

Maximum system temperature

60°C

Materials

Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal

Power connector

4-Pin Molex- and 4-Pin PWM FAN connector

Operational regime

PWM duty cycle

~ 20-100%

Default behavior

Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed

- EK-Quantum Kinetic FLT 120 PWM D5 D-RGB
- Mounting mechanism with all necessary screws for 120mm fan mounting
- Pair of EK reservoir holders with mounting screws
- 4 × G1/4 Plugs
- 1 × Allen key for reservoir holders

Manufacturer Part No:
WTREKW819784
Brand:
Product Type:
120 D5 PWM
UPC
-
Product Family:
EK-Quantum
Shipping Weight:
1.1 kg
PB Part No:
WTREKW819784
Product Model:
Kinetic FLT
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
