Features

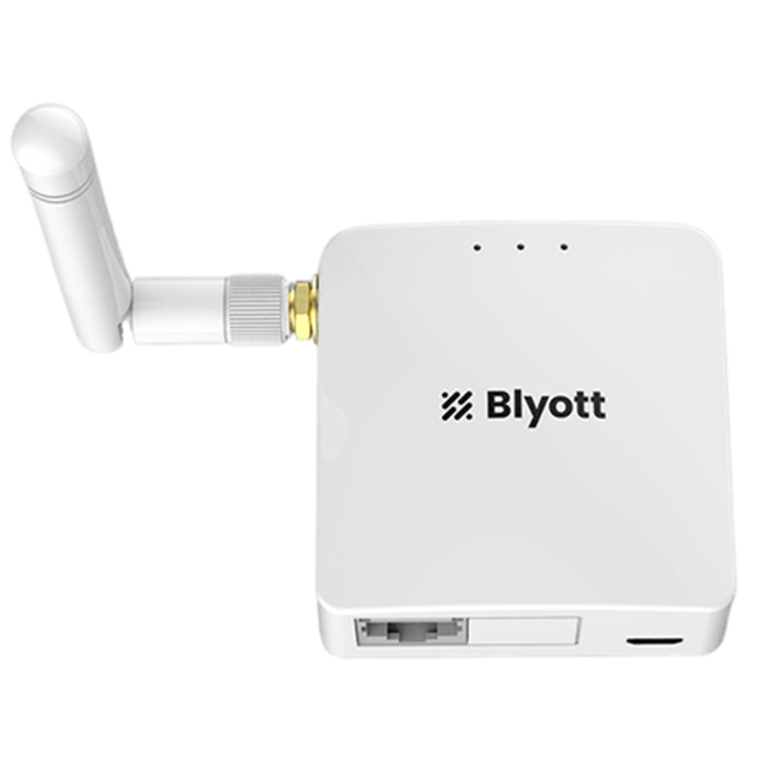

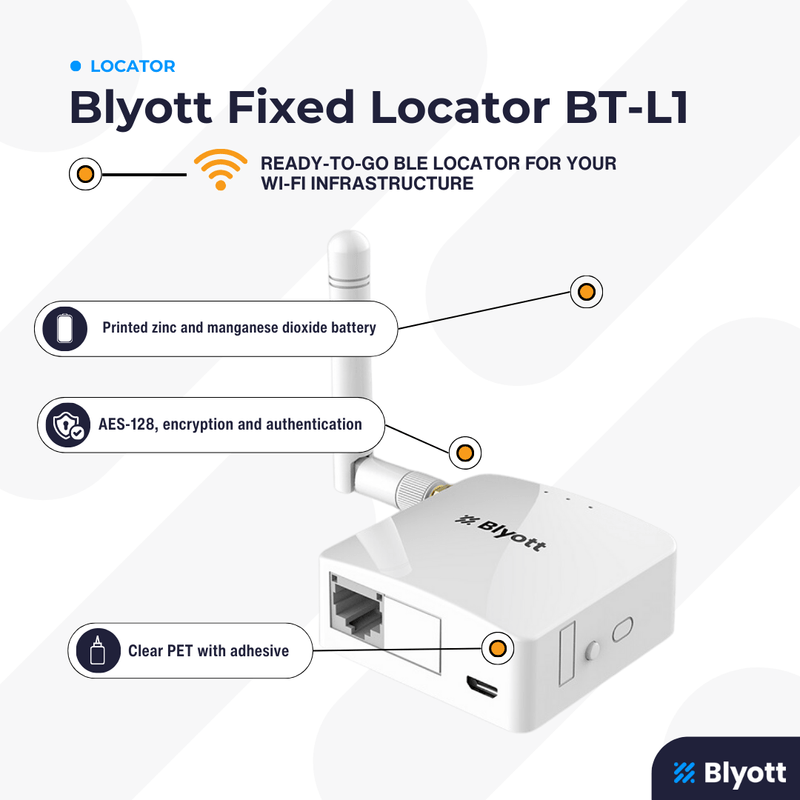

Blyott BT-L1 - FIXED LOCATOR
Reliable BLE locator with remote management and secure communication for efficient asset tracking.
If your existing Wi-Fi infrastructure doesn't have builtin BLE, the BT-L1 is an excellent option.
?The BT-L1 is pre-configured, works out of the box and includes remote management (OTA).Based on either BLE MAC address prefixes or BLE manufacturer ID's, the locator only listens to relevant BLE broadcasts, consequently saving overall network traffic.
?After picking up BLE broadcasts, data is securely sent to the Blyott Cloud via either the built-in 10/100 Mbit/s Ethernet port or 2.4 GHz Wi-Fi. The firmware on the BT-L1 is protected via code signing and secure boot.
?Communication between the locator and the Blyott Cloud happens via the MQTT protocol, secured by a TLS tunnel layer.
?Additionally, authentication and encryption are done Through X.509 certificates individually assigned to each device and signed by Blyott. That way, you can safely isolate devices in the unlikely event that certificates should breach. The device is powered via either USB or PoE and fully configurable via the Blyott Remote Insights Platform (OTA).
Specifications
General
Indoor Coverage
On average, one BT-L1 per 75-150 m2 / 807.29-1614.80 ft2
Connectivity
Built-in Wi-Fi (2.4 Ghz - 802.11 b/g/n MAX Speed 150 Mbit/s) & Ethernet (10/100 Mbit/s)
Antenna
External Wi-Fi & BLE antenna
Configuration
Pre-configured to work out-of-the-box with the Blyott Remote Insights Platform
Power
Power via USB or PoE-in (5V - 1A)
Packaging
Includes antenna & USB cable (power adaptor is not included)
Security
Ensure these ports are open on your firewall or router: TCP/UDP 123, 443 and 8883
Physical
Dimensions
50 mm / 1.96? (width) x 50 mm / 1.96? (length) x 20 mm / 0.78? (height)
Colors
White
Casing
PC and ABS, highly durable composite structures used in the automotive industry
Operation
Operating Temperature
-10°C to +60°C / +14°F to +140°F
Certificates
CE
