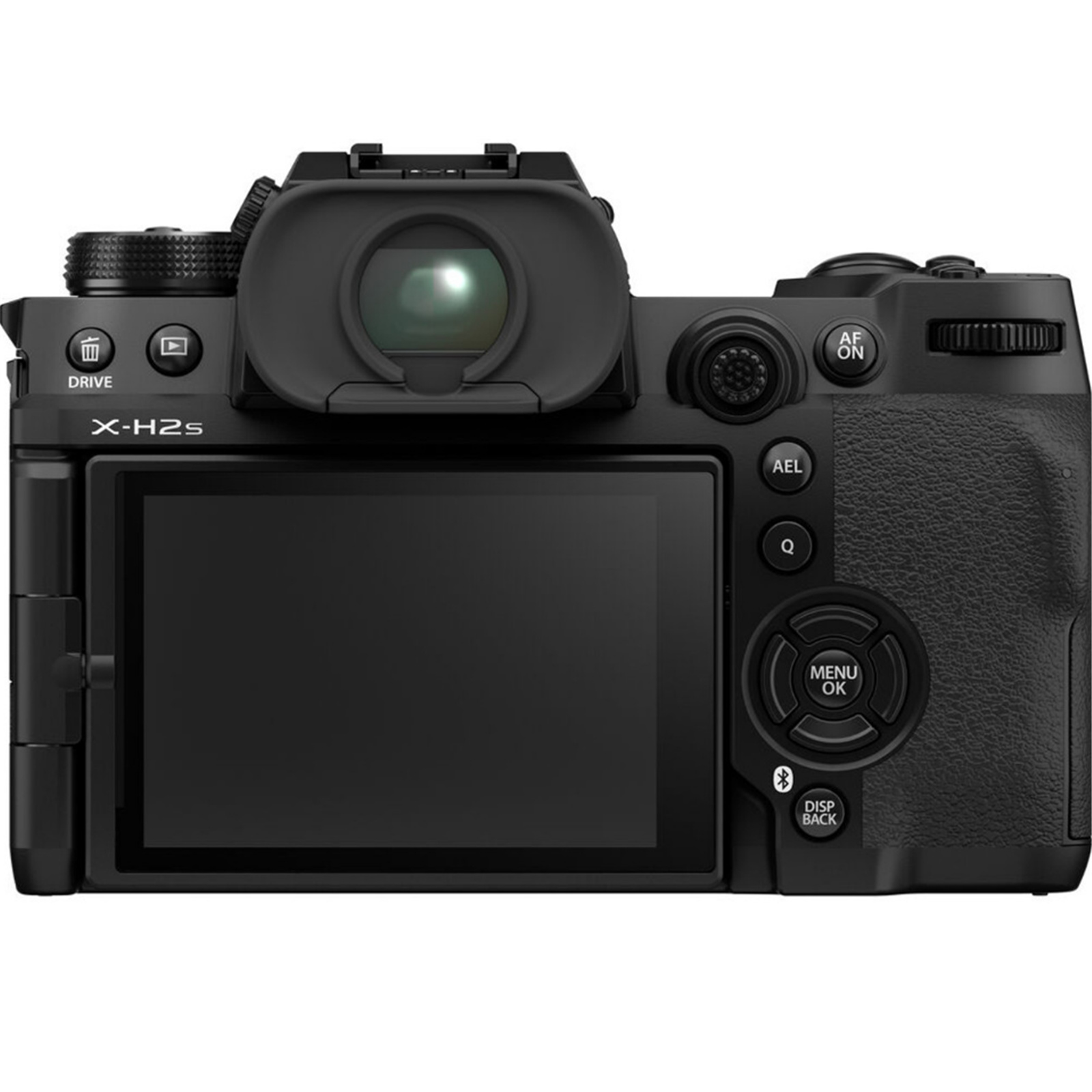

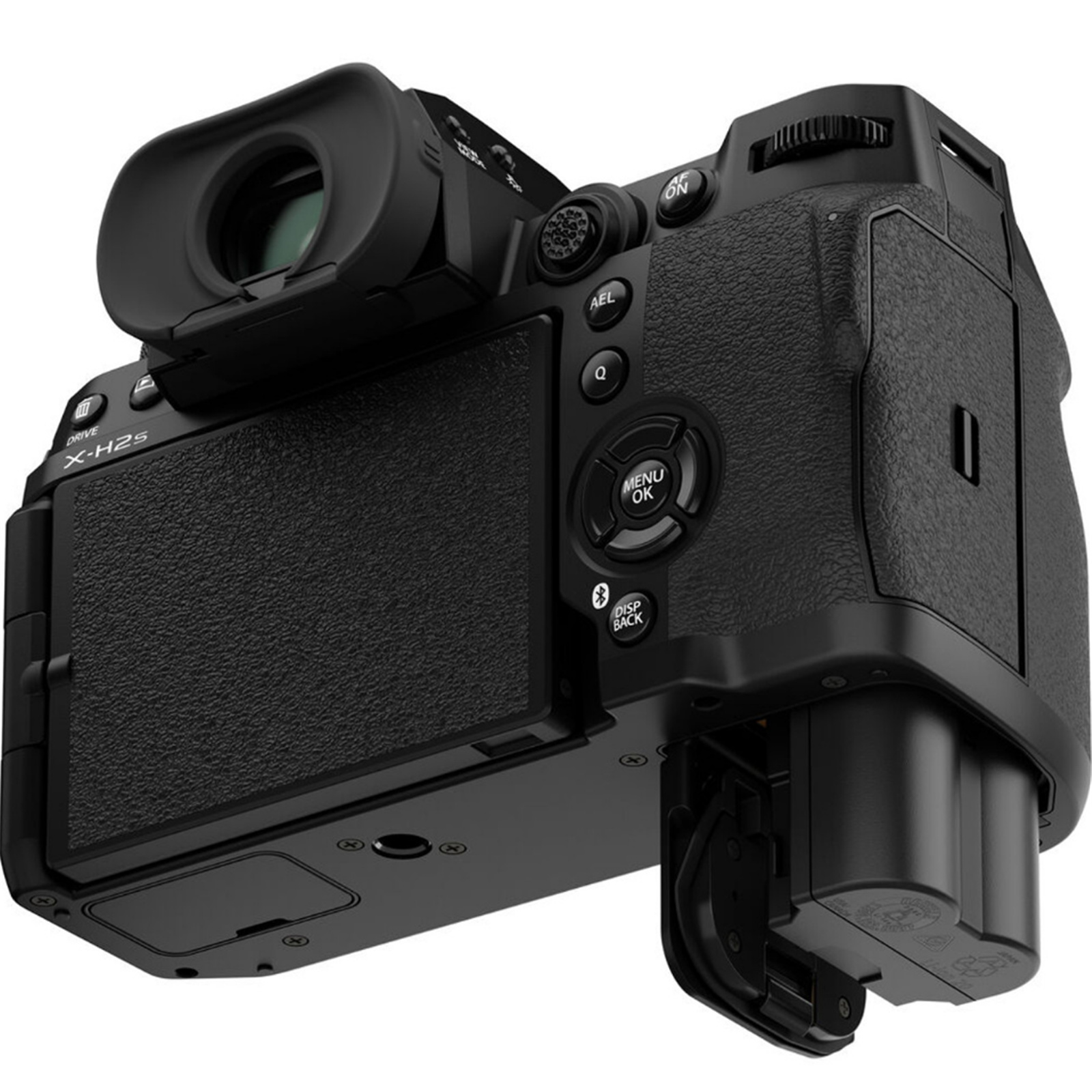

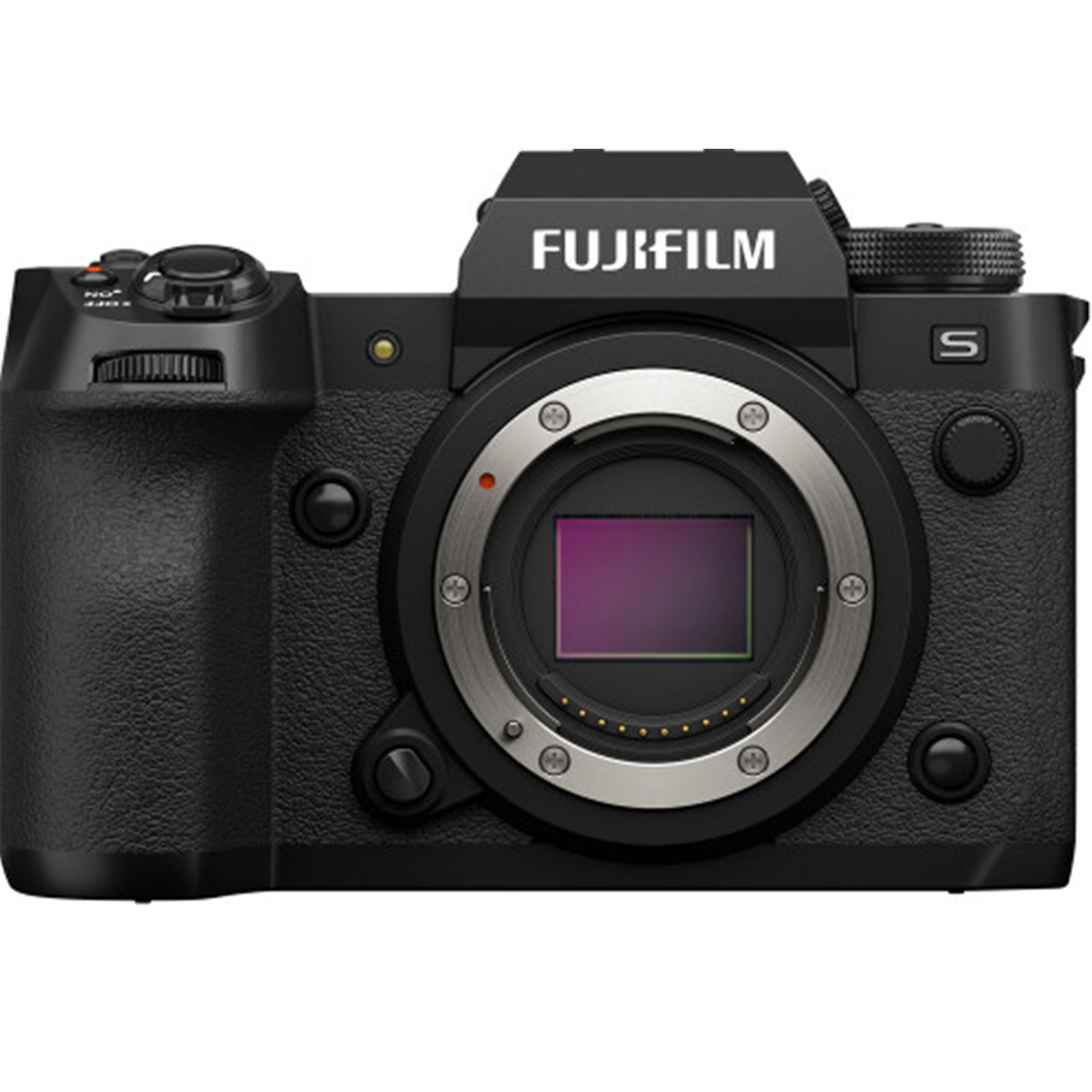

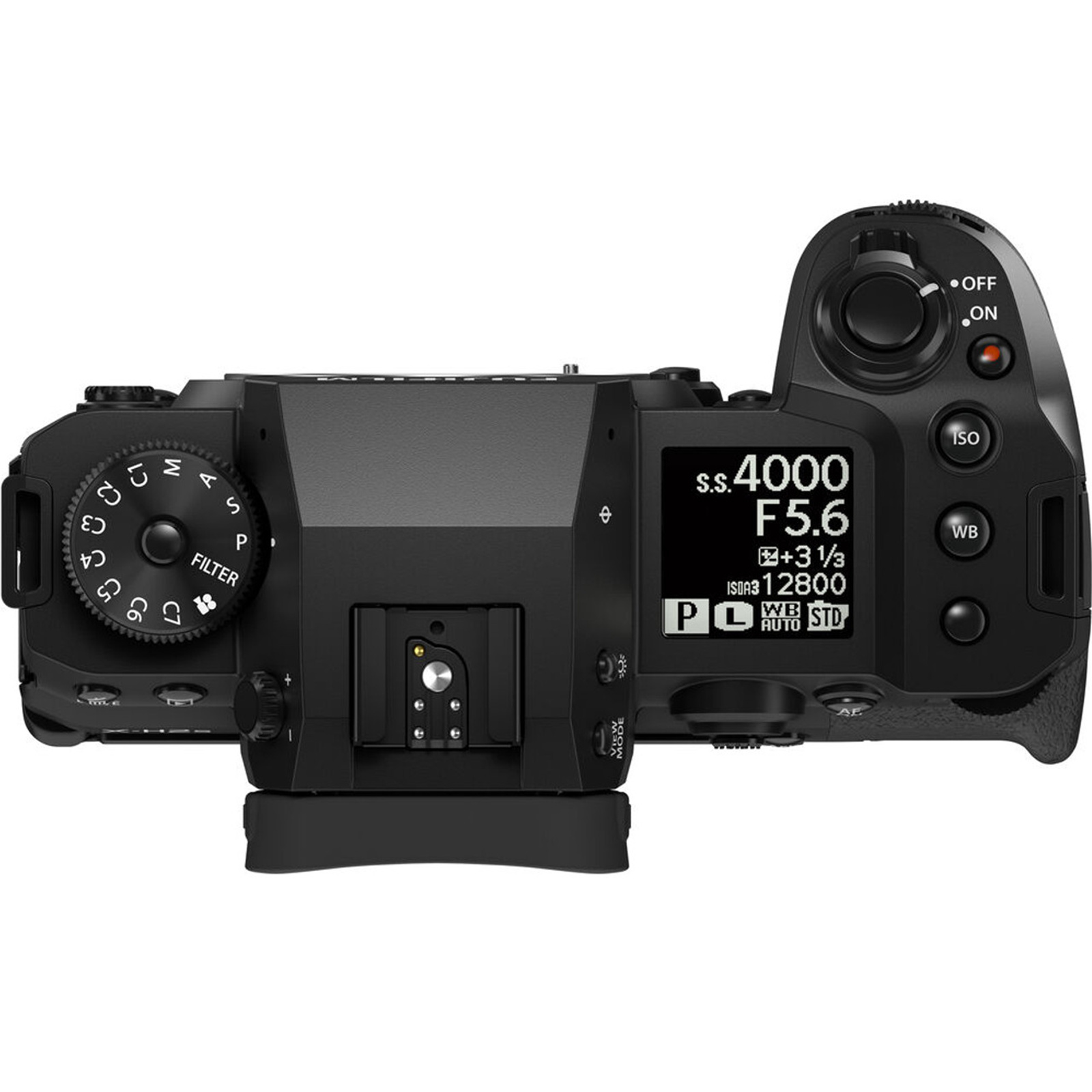

Fujifilm X-H2S Mirrorless Camera Body
Fujifilm X-H2S Mirrorless Camera Body
- Brand: Fujifilm
- MPN: 16756883
- Part #: CAMFUJ16756883
- UPC:
Select your store to check availability
- Brand: Fujifilm
- MPN: 16756883
- Part #: CAMFUJ16756883
- UPC:
COMBO DEALS: Buy Together and SAVE!
Combo item: PGYTECH Fingerless Photography Gloves (Medium)
Fujifilm NP-W235 Lithium-Ion Battery (7.2V, 2200mAh) for X-T5, X-H2S, X-H2, X-S20
$133.62 +GST
$153.66
Fujifilm 16651459 BC-W235 Dual Battery Charger
$128.84 +GST
$148.17
Features
Never miss a decisive moment.
Featuring a stunning 5th generation X-Trans CMOS 5 HS sensor and X-Processor 5 in a beautifully designed body, photographers and filmmakers alike can now create at the pace of life and the speed of their imaginations.
26.1-megapixel stacked back-side illuminated sensor
A brand new 26.1 megapixel imaging sensor combines our existing back-side illuminated technology with a stacked, layered structure that quadruples readout speeds for faster image processing capabilities.
High-speed burst shooting at up to 40 frames-per-second
X-Trans CMOS 5 HS is capable of blackout-free bursts of up to 40 frames-per-second. In burst mode, the sensor's phase-detection pixels are controlled independently from the image display. This triples the number of possible calculations, which enables the ability to focus at incredibly high-speeds between individual frames with accuracy and precision.
High-speed burst shooting at up to 30fps for over 1000 images
Increased memory capacity dramatically extends the camera's ability to record continuous frames in burst mode without stopping. Reach blackout free speeds of up to 40fps, make over 1000 frames continuously at 30fps in JPEG, or write RAW images at 20fps* when using electronic shutter on X-H2S.
Improved autofocus for better subject tracking in almost any lighting condition
An improved AF prediction algorithm alongside X-Trans CMOS 5 HS and X-Processor 5 provides a major boost to subject tracking and autofocus accuracy on moving objects, most notably in Zone AF and low-contrast conditions.
Subject-detection autofocus
X-Processor 5 features subject-detection AF based on Deep Learning techology that automatically detects and tracks a broader range of subjects, including animals, birds, cars, motorcycles, bicycles, airplanes, and trains - as well as human faces and eyes, so image-makers can concentrate on composition and creativity, confident that X-H2S will track focus accurately.
Support for HEIF image format
The HEIF image format delivers 10-bit image quality in files up to 30% smaller than standard JPEG files, continuing to expand Fujifilm's reputation of deliverying high-quality images straight out of camera.
Open Gate 6.2K/30P 4:2:2 10bit
Open Gate 6.2K movies can be recorded internally at 30P in 4:2:2 10-bit color.
X-H2S's 26.1MP Stacked BSI CMOS sensor has an incredible readout speeds of up to 1/180 sec,* which tightly controls rolling shutter effects, resulting in more natural-looking motion when recording video.
4K/120P high-speed video recording
X-H2S also supports 4K/120P high-speed video. Now, fast-moving subjects can be recorded in incredible detail for high-quality, slow-motion footage.
Up to 240 minutes of continuous recording
The camera features a new heat-dissipating structure, increasing the video recording time up to 240 minutes of 4K/60P video. *
Optional cooling fan accessory
Attach the optional cooling fan (FAN-001) to X-H2S to extend video recording capabilities in high temperatures.
Apple ProRes support
X-H2S supports Apple ProRes 422 HQ, ProRes 422, and ProRes 422 LT. ProRes 422 Proxy is also avaialble when recording ProRes, which can assist in streamlining post-production workflows.
Enhanced AF for video
X-H2S supports the AF+MF function when recording movies and offers subject-detection AF during video recording for accurate tracking of fast-moving subjects.
New F-Log2
In addition to F-Log, X-H2S also supports F-Log2, which records an expanded dynamic range of 14+ stops.* This range is wider than current F-Log and broadens post-production potential.
RAW output via HDMI
When combined with an ATOMOS HDMI device, the RAW video output from the X-H2S can be recorded as 12-bit Apple ProRes RAW at frame sizes up to 6.2K and frame rates up to 29.97fps. And when combined with Blackmagic Design Video Assist 12Gs, the RAW video output from the camera can be recorded as Blackmagic RAW at frame sizes up to 6.2K and frame rates up to 29.97fps.
Remote Rec function
Add the optional File Transmitter FT-XH* to support the Remote Rec function by wired LAN/wireless LAN. This new feature enables up to four X-H2S cameras to be simulatenously controlled from a browser.
Up to seven stops of in-body image stabilization
An all-new 5-axis in-body image stabilization system, made possible by X-Processor 5 and a sensing control function, provides up to seven stops of compensation. This powerful feature gives users the freedom to handhold in conditions that previously would have required support, such as sports or low light.
5.76 million dot high-resolution electronic viewfinder
The high-resolution electronic viewfinder has a 0.8x magnification and uses 5.76 million dots for incredible detail. A refresh rate of approx. 120fps supresses image blur and distortion typically caused by looking through the finder at extreme angles, making it easier to track moving subjects more accurately.
Tough, weather-resistant body for use in all conditions
With 79 weather-sealed points offering high levels of dust and moisture resistance, X-H2S is built to withstand the rigors of daily professional use and operate as normal in temperatures as low as -10°C (14°F).
Shutter durability
Shutter durability has been further improved, withstanding 500,000 actuations in the internal testing.
Updated handgrip
X-H2S improves on X-H1's beloved handgrip to provide a more assured feel. This is especially useful when using longer or large-aperture lenses.
Feather-touch shutter release
The shutter button's feel has been adjusted to make it more intuitive when half-pressed, helping users release the shutter at precisely the right moment.
Supports CFexpress™ Type B card
X-H2S has one CFexpress™ Type B memory card slot and one UHS-II SD memory card slot. Draw out the full potential of X-H2S's incredibly fast burst mode and its professional video performance with CFexpress™ Type B cards.
Enhanced video functions
Video operation has been made easier, thanks to the stand-alone video-recording button and 1.62 million dot vari-angle LCD monitor, which can be fully rotated - even when HDMI and microphone cables are plugged in. A full-sized HDMI Type A port is also provided for the first time on an X Series camera.
Increased connectivity
X-H2S can be connected directly to a PC for webcam and livestreaming use in 4K, without requiring the FUJIFILM X Webcam software. It can also be combined with the optional File Transmitter FT-XH to support FTP transfer and tethering capabilities through wired and wireless internet connections, or USB-connected smartphones.
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Mirrorless Cameras
Fujifilm X-M5 Mirrorless Camera with XC 15-45mm f/3.5-5.6 Lens -...
Canon EOS R50 Mirrorless Camera with 18-45mm Lens 24.2MP APS-C...
Sony ZV-E10 Mirrorless Camera with 16-50mm Kit - Black 24.2MP APS...
Canon EOS R100 Mirrorless Camera with 18-45mm Lens 24.2MP APS-C...
Fujifilm X-M5 Mirrorless Camera with XC 15-45mm f/3.5-5.6 Lens -...
Fujifilm X-H2S Mirrorless Camera Body
- Brand: Fujifilm
- MPN: 16756883
- Part #: CAMFUJ16756883
Product URL: https://www.pbtech.co.nz/product/CAMFUJ16756883/Fujifilm-X-H2S-Mirrorless-Camera-Body?qr=similar-w
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 1 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 1 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 1 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
( Include Bonus PGYTECH Fingerless Photography Gloves Worth $39 [Valid 14/09/25 - 30/09/25 , NZ Only] )
Never miss a decisive moment.
Featuring a stunning 5th generation X-Trans CMOS 5 HS sensor and X-Processor 5 in a beautifully designed body, photographers and filmmakers alike can now create at the pace of life and the speed of their imaginations.
26.1-megapixel stacked back-side illuminated sensor
A brand new 26.1 megapixel imaging sensor combines our existing back-side illuminated technology with a stacked, layered structure that quadruples readout speeds for faster image processing capabilities.
High-speed burst shooting at up to 40 frames-per-second
X-Trans CMOS 5 HS is capable of blackout-free bursts of up to 40 frames-per-second. In burst mode, the sensor's phase-detection pixels are controlled independently from the image display. This triples the number of possible calculations, which enables the ability to focus at incredibly high-speeds between individual frames with accuracy and precision.
High-speed burst shooting at up to 30fps for over 1000 images
Increased memory capacity dramatically extends the camera's ability to record continuous frames in burst mode without stopping. Reach blackout free speeds of up to 40fps, make over 1000 frames continuously at 30fps in JPEG, or write RAW images at 20fps* when using electronic shutter on X-H2S.
Improved autofocus for better subject tracking in almost any lighting condition
An improved AF prediction algorithm alongside X-Trans CMOS 5 HS and X-Processor 5 provides a major boost to subject tracking and autofocus accuracy on moving objects, most notably in Zone AF and low-contrast conditions.
Subject-detection autofocus
X-Processor 5 features subject-detection AF based on Deep Learning techology that automatically detects and tracks a broader range of subjects, including animals, birds, cars, motorcycles, bicycles, airplanes, and trains - as well as human faces and eyes, so image-makers can concentrate on composition and creativity, confident that X-H2S will track focus accurately.
Support for HEIF image format
The HEIF image format delivers 10-bit image quality in files up to 30% smaller than standard JPEG files, continuing to expand Fujifilm's reputation of deliverying high-quality images straight out of camera.
Open Gate 6.2K/30P 4:2:2 10bit
Open Gate 6.2K movies can be recorded internally at 30P in 4:2:2 10-bit color.
X-H2S's 26.1MP Stacked BSI CMOS sensor has an incredible readout speeds of up to 1/180 sec,* which tightly controls rolling shutter effects, resulting in more natural-looking motion when recording video.
4K/120P high-speed video recording
X-H2S also supports 4K/120P high-speed video. Now, fast-moving subjects can be recorded in incredible detail for high-quality, slow-motion footage.
Up to 240 minutes of continuous recording
The camera features a new heat-dissipating structure, increasing the video recording time up to 240 minutes of 4K/60P video. *
Optional cooling fan accessory
Attach the optional cooling fan (FAN-001) to X-H2S to extend video recording capabilities in high temperatures.
Apple ProRes support
X-H2S supports Apple ProRes 422 HQ, ProRes 422, and ProRes 422 LT. ProRes 422 Proxy is also avaialble when recording ProRes, which can assist in streamlining post-production workflows.
Enhanced AF for video
X-H2S supports the AF+MF function when recording movies and offers subject-detection AF during video recording for accurate tracking of fast-moving subjects.
New F-Log2
In addition to F-Log, X-H2S also supports F-Log2, which records an expanded dynamic range of 14+ stops.* This range is wider than current F-Log and broadens post-production potential.
RAW output via HDMI
When combined with an ATOMOS HDMI device, the RAW video output from the X-H2S can be recorded as 12-bit Apple ProRes RAW at frame sizes up to 6.2K and frame rates up to 29.97fps. And when combined with Blackmagic Design Video Assist 12Gs, the RAW video output from the camera can be recorded as Blackmagic RAW at frame sizes up to 6.2K and frame rates up to 29.97fps.
Remote Rec function
Add the optional File Transmitter FT-XH* to support the Remote Rec function by wired LAN/wireless LAN. This new feature enables up to four X-H2S cameras to be simulatenously controlled from a browser.
Up to seven stops of in-body image stabilization
An all-new 5-axis in-body image stabilization system, made possible by X-Processor 5 and a sensing control function, provides up to seven stops of compensation. This powerful feature gives users the freedom to handhold in conditions that previously would have required support, such as sports or low light.
5.76 million dot high-resolution electronic viewfinder
The high-resolution electronic viewfinder has a 0.8x magnification and uses 5.76 million dots for incredible detail. A refresh rate of approx. 120fps supresses image blur and distortion typically caused by looking through the finder at extreme angles, making it easier to track moving subjects more accurately.
Tough, weather-resistant body for use in all conditions
With 79 weather-sealed points offering high levels of dust and moisture resistance, X-H2S is built to withstand the rigors of daily professional use and operate as normal in temperatures as low as -10°C (14°F).
Shutter durability
Shutter durability has been further improved, withstanding 500,000 actuations in the internal testing.
Updated handgrip
X-H2S improves on X-H1's beloved handgrip to provide a more assured feel. This is especially useful when using longer or large-aperture lenses.
Feather-touch shutter release
The shutter button's feel has been adjusted to make it more intuitive when half-pressed, helping users release the shutter at precisely the right moment.
Supports CFexpress™ Type B card
X-H2S has one CFexpress™ Type B memory card slot and one UHS-II SD memory card slot. Draw out the full potential of X-H2S's incredibly fast burst mode and its professional video performance with CFexpress™ Type B cards.
Enhanced video functions
Video operation has been made easier, thanks to the stand-alone video-recording button and 1.62 million dot vari-angle LCD monitor, which can be fully rotated - even when HDMI and microphone cables are plugged in. A full-sized HDMI Type A port is also provided for the first time on an X Series camera.
Increased connectivity
X-H2S can be connected directly to a PC for webcam and livestreaming use in 4K, without requiring the FUJIFILM X Webcam software. It can also be combined with the optional File Transmitter FT-XH to support FTP transfer and tethering capabilities through wired and wireless internet connections, or USB-connected smartphones.
Specifications
Model name
FUJIFILM X-H2S
Lens Mount
FUJIFILM X mount
Image sensor
23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HS with primary color filter
Number of effective pixels
26.16 millions pixels
Sensor Cleaning System
Ultra Sonic Vibration
Image Processing Engine
X-Processor 5
Storage media
SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB)
File format of still image
DCF
Compliant with Design rule for Camera File system (DCF2.0)
JPEG
Exif Ver.2.32*1
HEIF
4:2:2 10bit
RAW
14bit RAW (RAF original format)
TIFF
8bit / 16bit RGB (In-camera Raw Conversion Only)
Number of recorded pixels
[L]
<3:2> 6240 x 4160 <16:9> 6240 x 3512 <1:1> 4160 x 4160
[M]
<3:2> 4416 x 2944 <16:9> 4416 x 2488 <1:1> 2944 x 2944
[S]
<3:2> 3120 x 2080 <16:9> 3120 x 1760 <1:1> 2080 x 2080
Panorama
[L]
[M]
Sensitivity
Still Image
Standard Output: AUTO1 / AUTO2 / AUTO3 /ISO160 - 12800 (1/3 step)
Extended Output: ISO80 / ISO100 / ISO125 / ISO25600 / ISO51200
Movie
Standard Output: AUTO / ISO160 - 12800 (1/3 step)
Extended Output: ISO25600
Exposure control
TTL 256-zone metering / Multi / Spot / Average / Center Weighted
Exposure mode
P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure)
Exposure compensation
Still -5.0EV - +5.0EV 1/3EV step
Movie -2.0EV - +2.0EV 1/3EV step
Image stabilizer
Mechanism
Image sensor shift mechanism with 5-axis compensation
Compensation Effect
7.0 stops
*based on CIPA standard
*Pitch/yaw shake only
*With XF35mmF1.4 R lens mounted
Digital Image Stabilization
Yes (movie mode only)
IS MODE BOOST
Yes (movie mode only)
Shutter type
Focal Plane Shutter
Shutter speed
Mechanical shutter
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec.
S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
Electronic shutter
P mode: 4sec. to 1/32000sec. A mode: 30sec. to 1/32000sec.
S/M mode: 15min. to 1/32000sec. Bulb: 1sec. Fixed
Electronic front curtain shutter
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec.
S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
Mechanical + Electronic shutter
P mode: 4sec. to 1/32000sec. A mode: 30sec. to 1/32000sec.
S/M mode: 15min. to 1/32000sec. Bulb: up to 60min.
*Mechanical shutter works until 1/8000sec.
E-front + Mechanical shutter
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec.
S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
*Electronic front curtain shutter works until 1/2000sec.
E-front + Mechanical + Electronic shutter
P mode: 4sec. to 1/32000sec. A mode: 30sec. to 1/32000sec.
S/M mode: 15min. to 1/32000sec. Bulb: up to 60min.
*Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec.
Movie
6.2K: 1/8000sec. to 1/24 sec.
DCI4K/4K: 1/8000sec. to 1/4 sec.
FHD: 1/8000sec. to 1/4 sec.
*Cannot choose slower shutter speed than framerate for some settings.
Synchronized shutter speed for flash
Mechanical shutter: 1/250sec. or slower
Electronic shutter: 1/125sec. or slower
Continuous shooting
CH Electronic shutter Approx. 40fps (JPEG: 184 frames, Compressed RAW: 175 frames, Lossless compressed RAW: 170 frames, Uncompressed RAW: 140 frames)
CH Electronic shutter Approx. 30fps (JPEG: 1000+ frames, Compressed RAW: 270 frames, Lossless compressed RAW: 250 frames, Uncompressed RAW: 180 frames)
CH Electronic shutter Approx. 20fps (JPEG: 1000+ frames, Compressed RAW: 1000+ frames, Lossless compressed RAW: 1000+ frames, Uncompressed RAW: 800 frames)
CH Electronic shutter Approx. 15fps (JPEG: 1000+ frames, Compressed RAW: 1000+ frames, Lossless compressed RAW: 1000+ frames, Uncompressed RAW: 1000 frames)
CH Mechanical shutter Approx. 15fps (JPEG: 1000+ frames, Compressed RAW: 1000+ frames, Lossless compressed RAW: 1000+ frames, Uncompressed RAW: 1000 frames)
CH Mechanical shutter Approx. 10fps (JPEG: 1000+ frames, Compressed RAW: 1000+ frames, Lossless compressed RAW: 1000+ frames, Uncompressed RAW: 1000+ frames)
CL Mechanical shutter Approx. 8.0fps (JPEG: 1000+ frames, Compressed RAW: 1000+ frames, Lossless compressed RAW: 1000+ frames, Uncompressed RAW: 1000+ frames)
Pre-shot Electronic shutter Approx. 40fps (While half press: 40 frames, After full press: 110 frames, Total: 150 frames)
Pre-shot Electronic shutter Approx. 30fps (While half press: 30 frames, After full press: 1000+ frames)
Pre-shot Electronic shutter Approx. 20fps (While half press: 20 frames, After full press: 1000+ frames)
Pre-shot Electronic shutter Approx. 15fps (While half press: 15 frames, After full press: 1000+ frames)
*No. of recordable frames are calculated based on CFexpress Type B card in a cold start
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames
Drive Mode
AE Bracketing
2 frames / 3 frames / 5 frames / 7 frames / 9 frames
*by 1/3EV step, up to ±3EV steps
Filmsimulation bracketing
Any 3 types of film simulation selectable
Dynamic Range Bracketing
100% / 200% / 400%
ISO sensitivity Bracketing
±1/3EV / ±2/3EV / ±1EV
White Balance Bracketing
±1 / ±2 / ±3
Focus Bracketing
AUTO / MANUAL
Multiple Exposure
Yes (Max. 9 frames) / Additive / Average / Bright / Dark
HDR Mode
AUTO / 200% / 400% / 800% / 800% +
Advanced filter
Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple)
Focus
Mode
Single AF / Continuous AF / MF
Type
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)
Low-light Performance
Contrast: -4.0EV XF50mmF1.0 attached
Phase Detection: -7.0EV XF50mmF1.0 attached
AF frame selection
Single point AF: 13x9 / 25x17 (Changeable size of AF frame)
Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid
Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking)
All: Yes
Face/eye detection
Yes
Subject detection
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train)
Flash
EF-X8
Guide Number: approx. 11 (ISO200·m) / approx. 8 (ISO100·m)
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF
Shoe mount flash
Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS)
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF
Synchronized terminal
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: MANUAL
Hot shoe
Yes (Dedicated TTL Flash compatible)
Viewfinder
EVF: 0.5 inch OLED Color Viewfinder, Approx. 5.76 million dots
Coverage of Viewing Area vs. Capturing Area: Approx. 100%
Eyepoint: Approx. 24mm (from the Rear End of the Camera's Eyepiece)
Diopter Adjustment: -5 - +3m-1
Magnification: 0.80x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1
Diagonal Angle of View: approx. 40° (Horizontal angle of view: approx. 32° )
Built-In Eye Sensor
LCD monitor
3.0 inch vari-angle Touch Screen Color LCD Monitor
Aspect Ratio: 3:2
Dots: Approx. 1.62 million dots
Touch Screen Mode
Shooting Mode
Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), EVF Touch Screen Area Setting
Playback Mode
Swipe, Pinch-in / Pinch-out, Double-tap, Drag
Sub LCD monitor
1.28 inch Monochrome LCD Monitor
Aspect Ratio: 1:1
Dots: 128x128-dot
Movie recording File format
MOV:
Apple ProRes 422 HQ, Linear PCM (Stereo sound 24bit / 48KHz sampling)
Apple ProRes 422, Linear PCM (Stereo sound 24bit / 48KHz sampling)
Apple ProRes 422 LT, Linear PCM (Stereo sound 24bit / 48KHz sampling)
HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MP4:
MPEG-4 AVC/H.264, AAC
Movie compression
All Intra / Long GOP
File size Frame rate
Bitrate [6.2K(3:2)] 6240 x 4160 29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K(17:9)] 4096 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[4K(16:9)] 3840 x 2160 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9)] 2048 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(16:9)] 1920 x 1080 59.94p/50p/29.97p/25p/24p/23.98p 720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K(17:9) High speed rec.] 4096 x 2160 120p/100p 720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
[4K(16:9) High speed rec.] 3840 x 2160 120p/100p 720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
[Full HD(17:9) High speed rec.] 2048 x 1080 240p/200p/120p/100p 720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
[Full HD(16:9) High speed rec.] 1920 x 1080 240p/200p/120p/100p 720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
*For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher.
*For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher.
*For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher.
*Selectable bitrate will be changed depends on the setting.
*Apple ProRes codec can be only recorded to CFexpress Type B card
*Bitrate for Apple ProRes codec is not selectable.
*Recording time can become short depending on the temperature and/or shooting conditions
Film simulation mode
19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)
Monochromatic Color
Yes
Grain Effect
Roughness
STRONG, WEAK, OFF
Size
LARGE, SMALL
Color Chrome Effect
STRONG, WEAK, OFF
Color chrome Blue
STRONG, WEAK, OFF
Dynamic range setting
Still
AUTO / 100% / 200% / 400%
ISO restriction: DR100%: No limit?DR200%: ISO320 or more?DR400%: ISO640 or more
Movie
100% / 200% / 400%
ISO restriction: DR100%: No limit?DR200%: ISO320 or more?DR400%: ISO640 or more
White balance
Auto
White Priority / Auto / Ambience Priority
Custom
Custom1 - 3
Color temperature selection
2500K - 10000K
Preset
Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater
Clarity setting
±5 steps
Self-timer
10sec. / 2sec.
Interval timer shooting
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)
Wireless transmitter
Standard
IEEE802.11a/b/g/n/ac (standard wireless protocol)
Encryption
WPA/WPA2 mixed mode, WPA3
Access mode
Infrastructure
Bluetooth®
Standard
Bluetooth Ver. 4.2 (Bluetooth low energy)
Operating frequency (Center frequency)
2402 - 2480MHz
Terminal
Digital interface
USB Type-C (USB3.2 Gen2x1)
HDMI output
HDMI connector (Type A)
Others
ø3.5mm, stereo mini connector (Microphone)
ø3.5mm, stereo mini connector (Headphone)
ø2.5mm, Remote Release Connector
Hot shoe
Synchronized terninal
Power supply
NP-W235 Li-ion battery (included)
Battery life for still images*2
Economy Mode: Approx. 720 frames
Normal Mode: Approx. 580 frames
*When XF35mmF1.4 R is set
Actual battery life of movie capture*2
6.2K: Approx. 90min. (29.97p)
4K: Approx. 70min. (59.94p), Approx. 60min (120p)
Full HD: Approx. 95min. (59.94p)
*Face detection is set to OFF
Continuance battery life of movie capture*2
6.2K: Approx. 120min. (29.97p)
4K: Approx. 105min. (59.94p)
Full HD: Approx. 165min. (59.94p)
*Face detection is set to OFF
Dimensions
Width: 136.3mm
Height: 92.9mm
Depth: 84.6mm
(Minimum Depth) 42.8mm
Weight
including battery and memory card: Approx. 660g
excluding battery and memory card: Approx. 579g
Operation Environment
Operating Temperature
-10? - +40?
Operating Humidity
10% - 80% (no condensation)
Starting up period
Approx. 0.49sec.
Accessories included
Li-ion battery NP-W235S
AC power adapter AC-5VJ
Plug adapter
USB cable
Shoulder strap
Body cap
Hot shoe cover
File transmitter/vertical battery grip connector cover
Memory card slot cover
Sync terminal cover
Cooling fan connector cover
Cable protector
