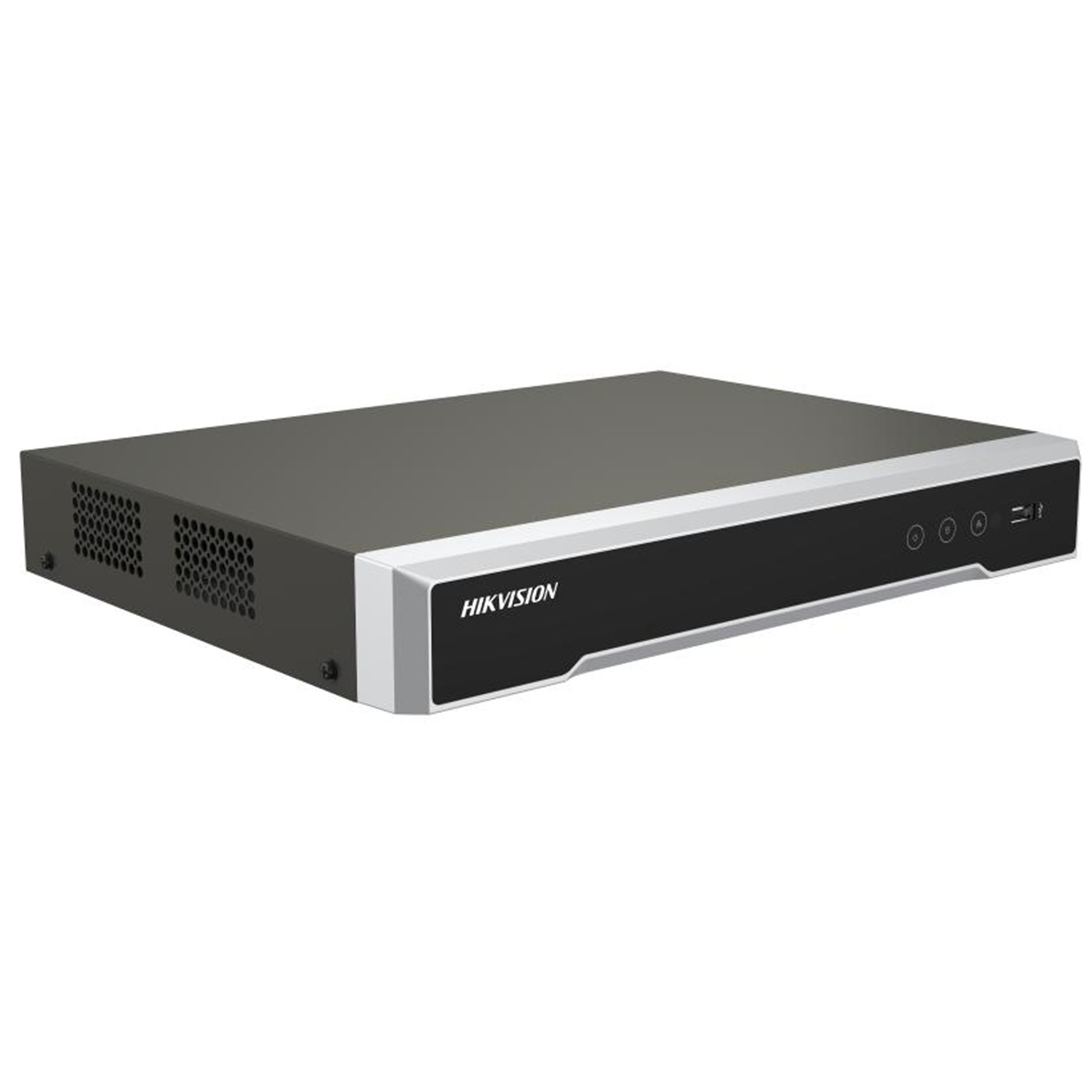

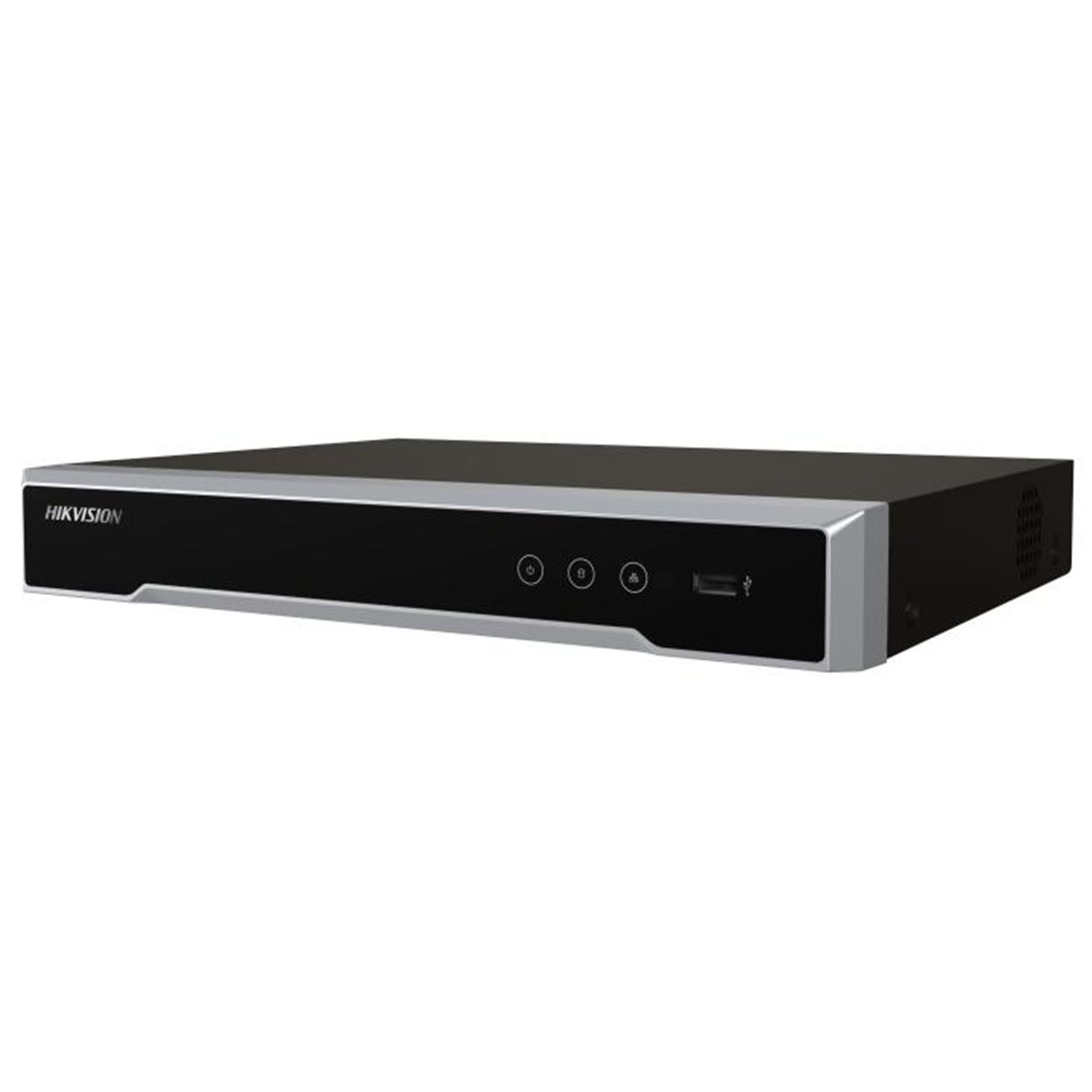

HIKVISION DS-7604NI-M1/4P 4 Channel PoE Network Video Recorder with 4TB HDD

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

HIKVISION DS-7604NI-M1/4P 4 Channel PoE Network Video Recorder with 4TB HDD

  • Brand: HIKVISION
  • MPN: DS-7604NI-M1/4P
  • Part #: CCTHIK0176
  • UPC:
CLEARANCE

Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Sign in to your education account or apply online now to view the price and order this product
  • Brand: HIKVISION
  • MPN: DS-7604NI-M1/4P
  • Part #: CCTHIK0176
  • UPC:

HDD Bays

1

Max Camera Resolution

8 MP

Max Cameras Supported

4

Video Recorder Type

NVR

Features

- H.265+/H.265/H.264+/H.264 video formats
- Up to 4-ch IP camera inputs
- Up to 4-ch@ 8 MP decoding capacity
- Up to 40 Mbps incoming bandwidth

Professional and Reliability

- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading

HD Video Output

- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution

Storage and Playback

- 1 SATA interface for HDD connection
- 4-ch synchronous playback

Smart & POS Function

- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

- 4 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in

Specifications

Video and Audio

IP Video Input

4-ch
Up to 32 MP resolution

Incoming Bandwidth

40Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60 Hz

VGA Output

1920 × 1080/60 Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

NA

Audio Output

1-ch, RCA (Linear, 1 KO)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KO, using the audio input)

Decoding

Dual-Stream Recording

Support

Decoding Format

H.265+/H.265/H.264+/H.264

Decoding Capability

4-ch@ 8 MP (30 fps)/8-ch@ 4 MP (30 fps)/16-ch@ 1080p (30 fps)

Synchronous Playback

4-ch

Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface

4, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

= 60 W

Standard

IEEE 802.3 af/at

Auxiliary Interface

SATA

1 SATA interfaces

Capacity

Up to 16 TB capacity for each HDD

Alarm In/Out

4/1

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

General

Power Supply

48 VDC, 1.875 A

Consumption

= 15 W (without HDD and PoE off)

Working Temperature

-10 °C to 50 °C (14 °F to 122 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

320× 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight

= 1.2 kg (without HDD, 2.6 lb.)

Manufacturer Part No:
DS-7604NI-M1/4P
Brand:
Product Type:
Network Video Recorder
UPC
-
Product Family:
-
Shipping Weight:
5 kg
PB Part No:
CCTHIK0176
Product Model:
DS-7604NI-M1/4P
