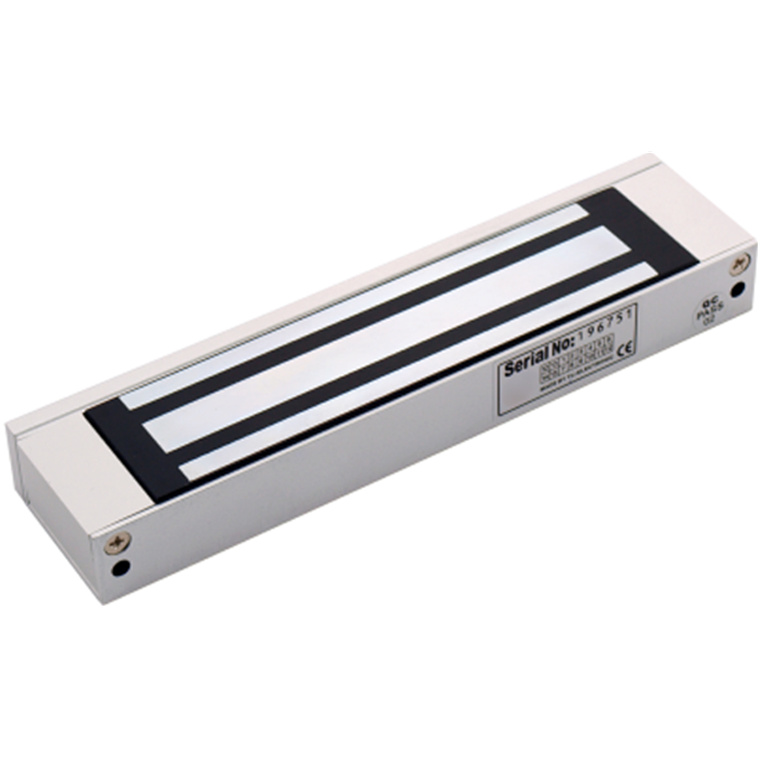

HIKVISION 302900530 DS-K4H250S Pro Series Single Magnetic Lock 300KG
HIKVISION 302900530 DS-K4H250S Pro Series Single Magnetic Lock 300KG
- Brand: HIKVISION
- MPN: 302900530
- Part #: CCTHIK302900530
- UPC:
- Brand: HIKVISION
- MPN: 302900530
- Part #: CCTHIK302900530
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Locks




HIKVISION 302900530 DS-K4H250S Pro Series Single Magnetic Lock 300KG
- Brand: HIKVISION
- MPN: 302900530
- Part #: CCTHIK302900530

Product URL: https://www.pbtech.co.nz/product/CCTHIK302900530/HIKVISION-302900530-DS-K4H250S-Pro-Series-Single-M?qr=popular_related_products
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The magnetic lock is designed for wooden door, glass door, and steel door with the opening angle of 90°.
- The maximum thrust of the lock is 280 kg (617 Lbs)
- Indicator shows the door status
- It supports signal output of door lock output status testing
- Equipped with internal voltage dependent resistor (MOV)
- Abrasion-proof materials
Specifications
Product Type
Magnetic Lock
Brand
HIKVISION
Model No.
DS-K4H250S
Indicator
Green: Locked
Red: Unlocked
Power supply
12 VDC/500 mA
24 VDC/250 mA
Working temperature
-10 °C to 55 °C (14 °F to 131 °F)
Working humidity
0 to 95% (relative Humidity)
Dimensions
Lock body: 240 mm × 49 mm × 25.5 mm (9.45" × 1.93\" × 1.00\")
Armature Plate: 180 mm × 38 mm × 11 mm (7.1 × 1.5\" × 0.4\")"
Material
Shell: hard Anodizing Electroplating Operated
Lock Body: eco-friendly Zinc with Electroplating Operated
Armature Plate: eco-friendly Zinc with Electroplating Operated
Thrust
Max. 272 kg (599.8 lb) linear thrust
Door type
Single leaf, double leaf, wooden door, glass door, metal door, fireproof door
Signal output
Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking
