Features
RM46-502I

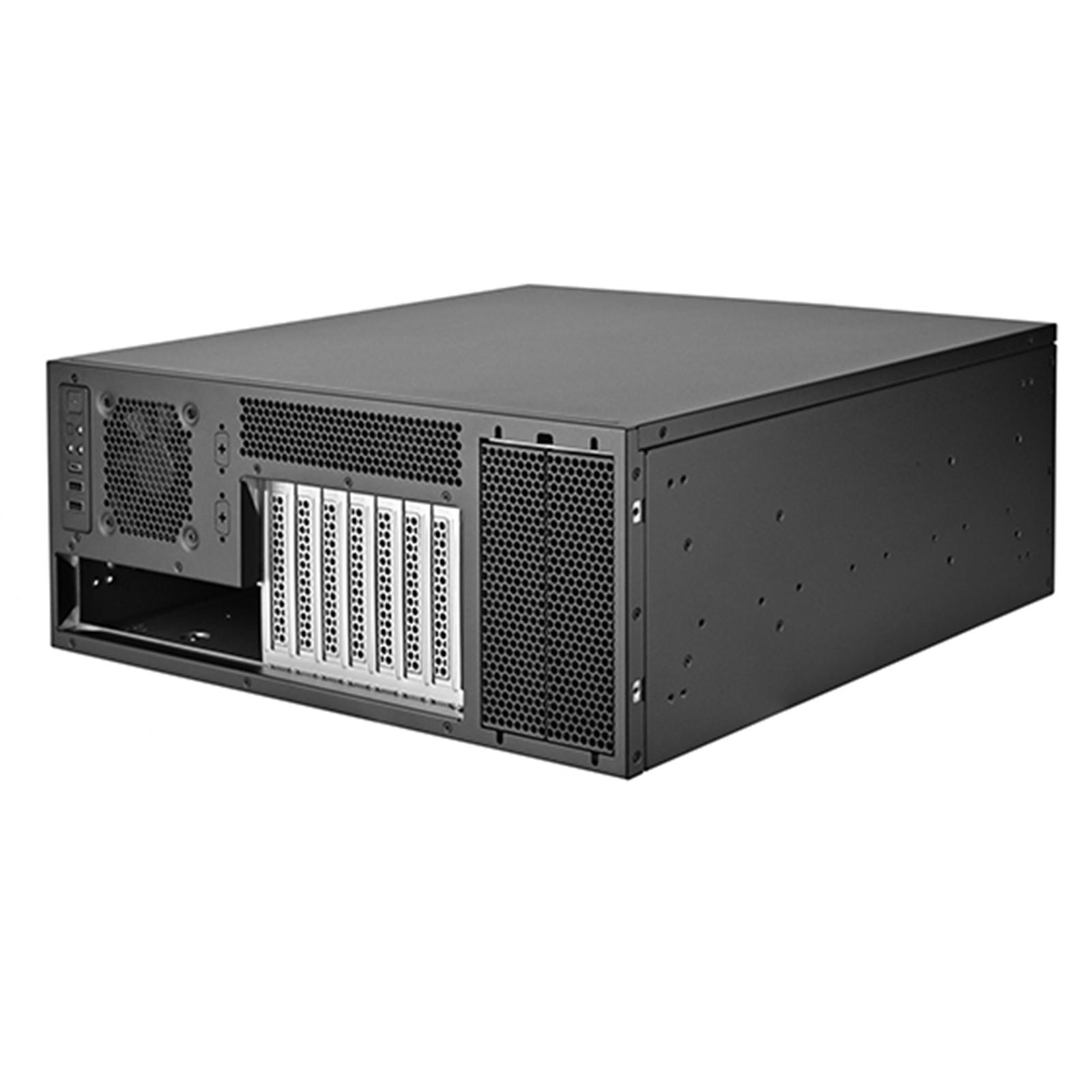

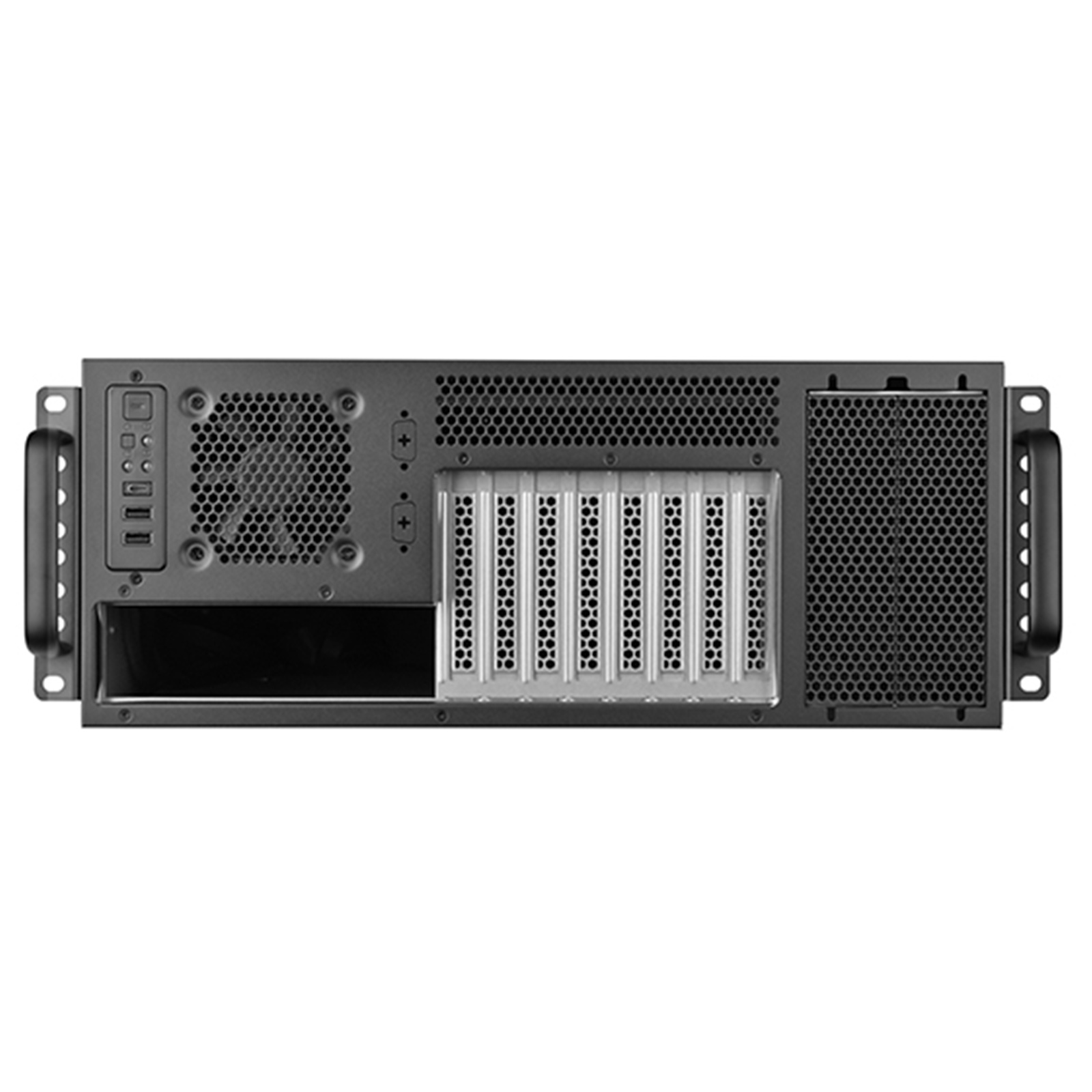

4U Interchangeable Rackmount Chassis with Front Accessible Expansion Slots
- Front-facing motherboard I/O
- Interchangeable front panel I/O, rackmount sliding rails, handlebars, 5.25" device, and PSU mounts can all be swapped between the front and back
- 8 standard height PCI expansion slots
- Support up to SSI-EEB motherboards
- Supports 280mm radiator or 2 x 160mm fans*
- 1 x USB Type-C interface
- Upright or horizontal placement flexibility**
KEY FEATURES
Elevated Versatility via Interchangeable Components - With a front-accessible expansion slot card ports and I/O components design, both the handlebars and rackmount sliding rail positions are interchangeable to facilitate this orientation. Internally, both the 5.25" drive cage and PSU mount positions offer interchangeable options between the front and rear configurations.
Multi-Expansion Card Configuration - The RM46-502I supports motherboards of up to SSI-EEB form factor, paired with a total of 8 PCI expansion slots to effortlessly accommodate up to 4 server-grade graphics cards.
Excellent Cooling Capabilities - Aligned with SilverStone's rackmount design philosophy, the RM46-502I incorporates compatibility with liquid cooling radiators of up to 280mm in size, enhancing the cooling capabilities of the server chassis, allowing for efficient heat dissipation and optimal performance.
Advancing Flexibility to New Heights

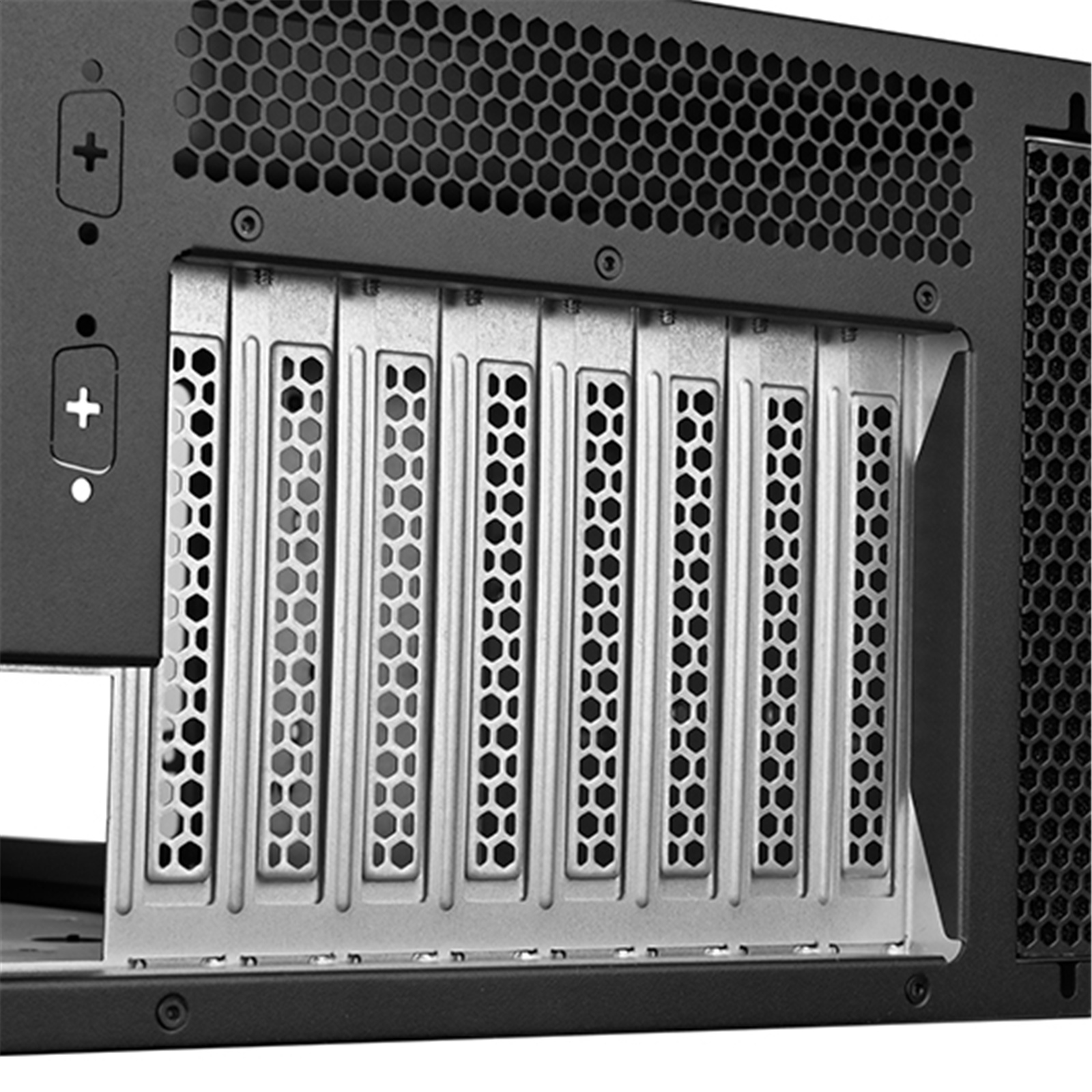

RM46-502I's core functionality is encapsulated within its front-facing PCI expansion slots, offering specific advantages to users in scenarios where convenience and accessibility to the expansion slot area are paramount.

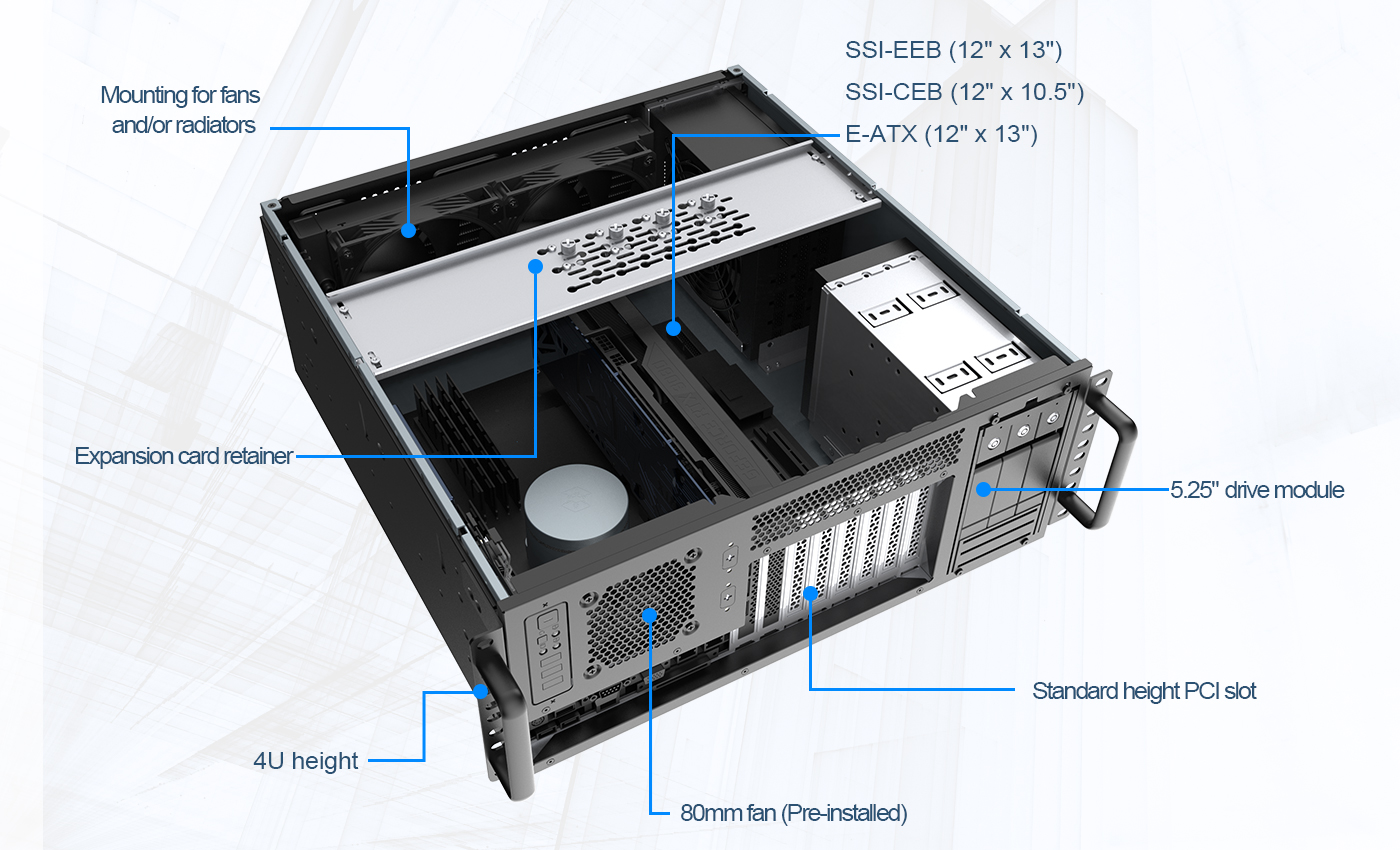

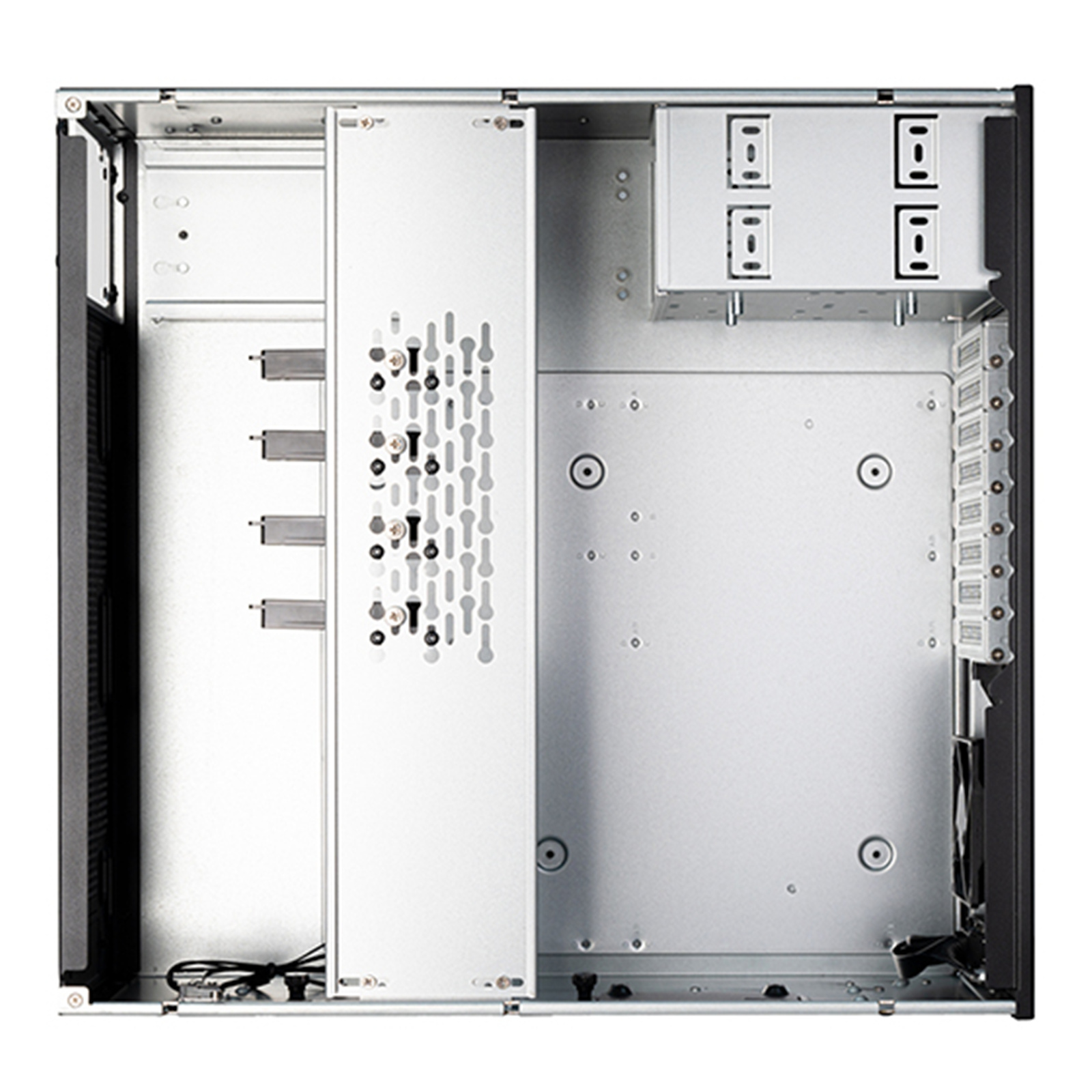

System Layout

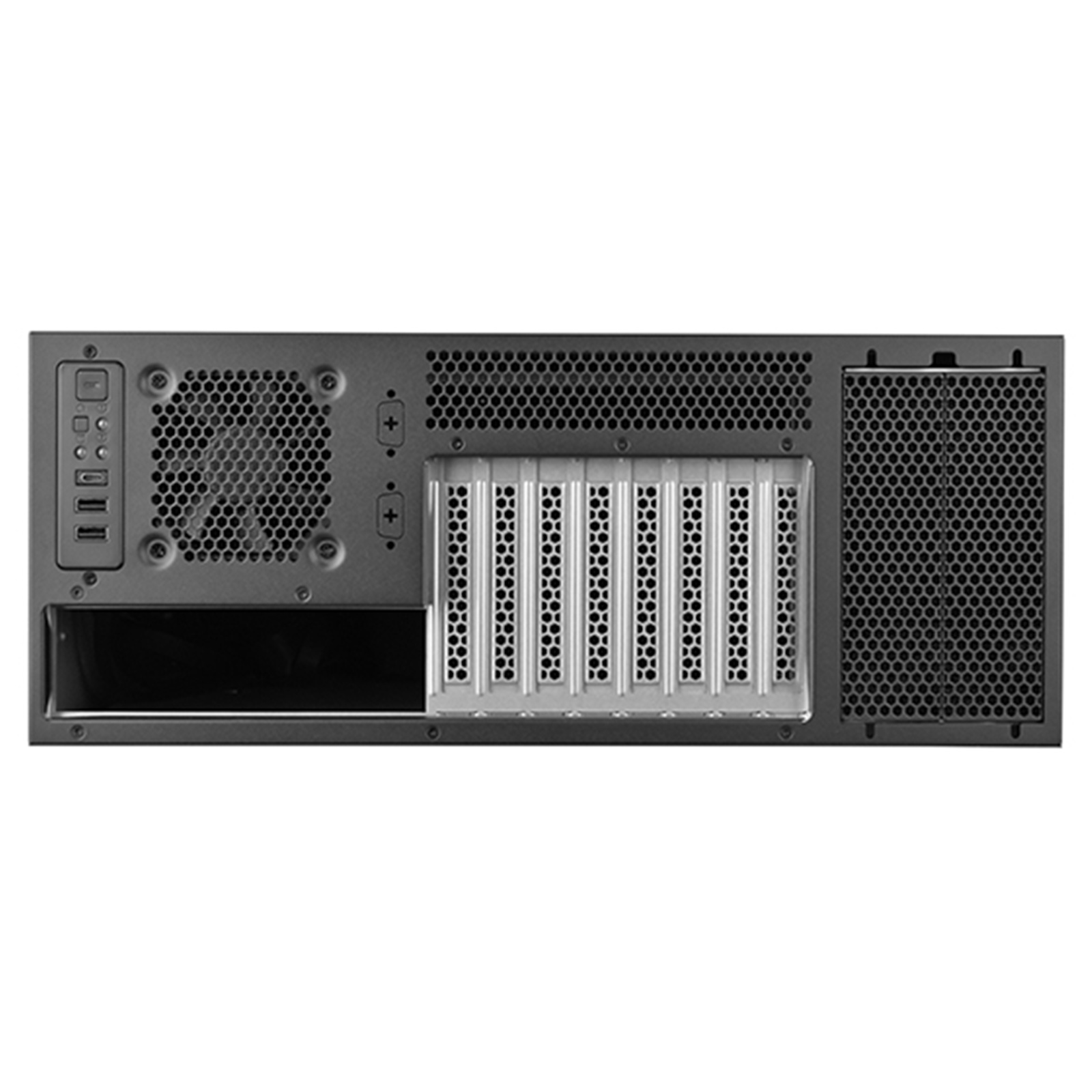

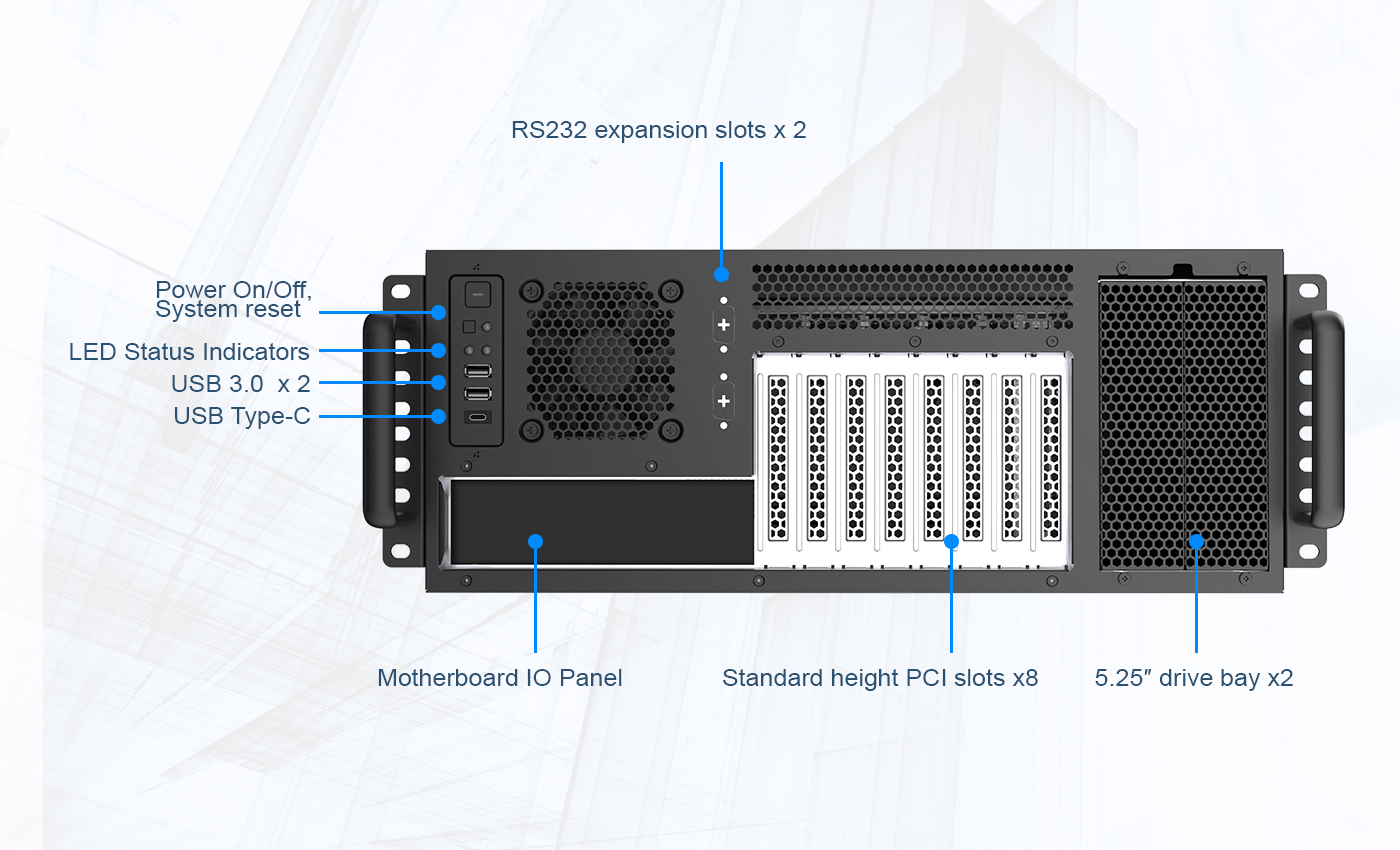

Panel Layout

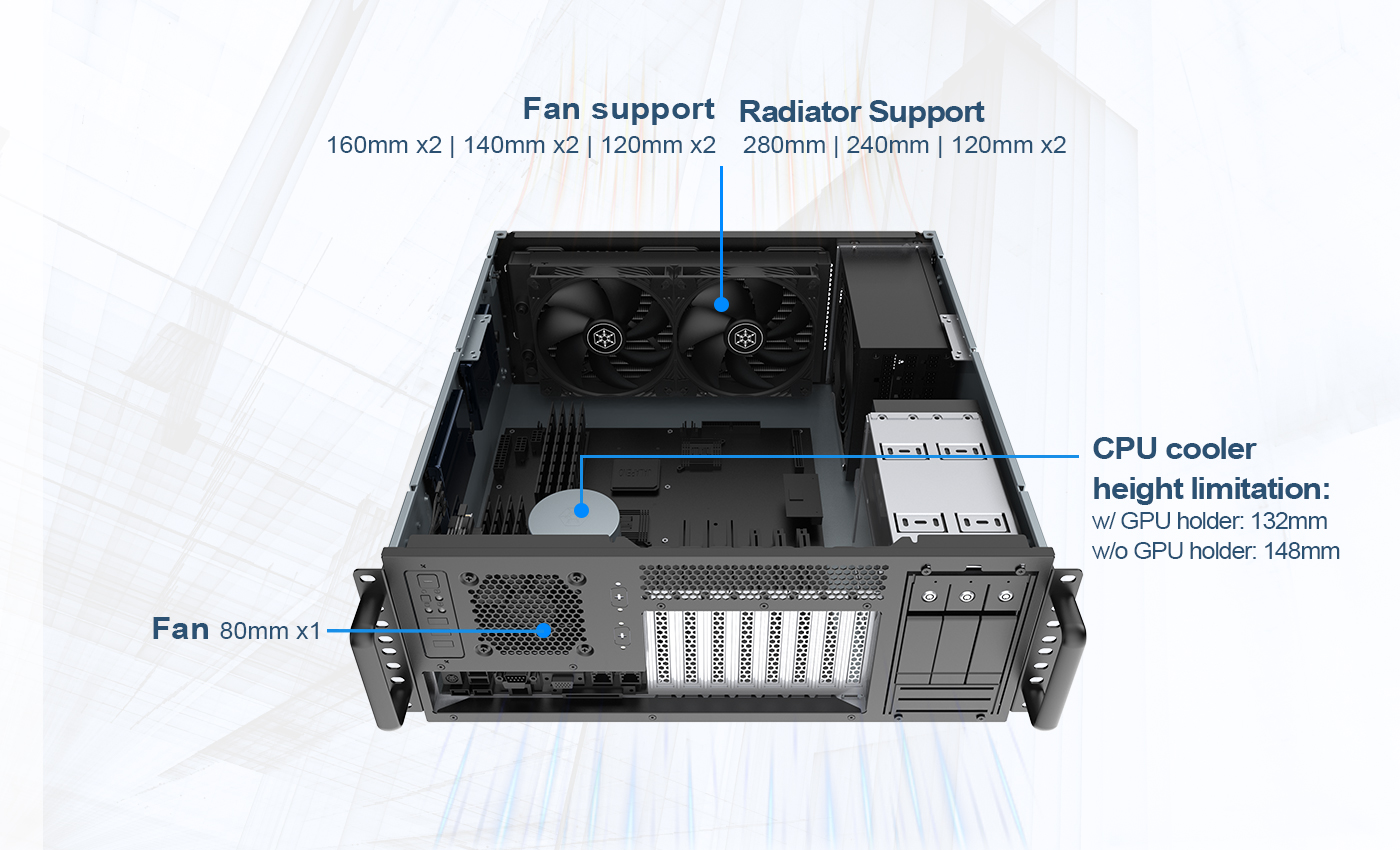

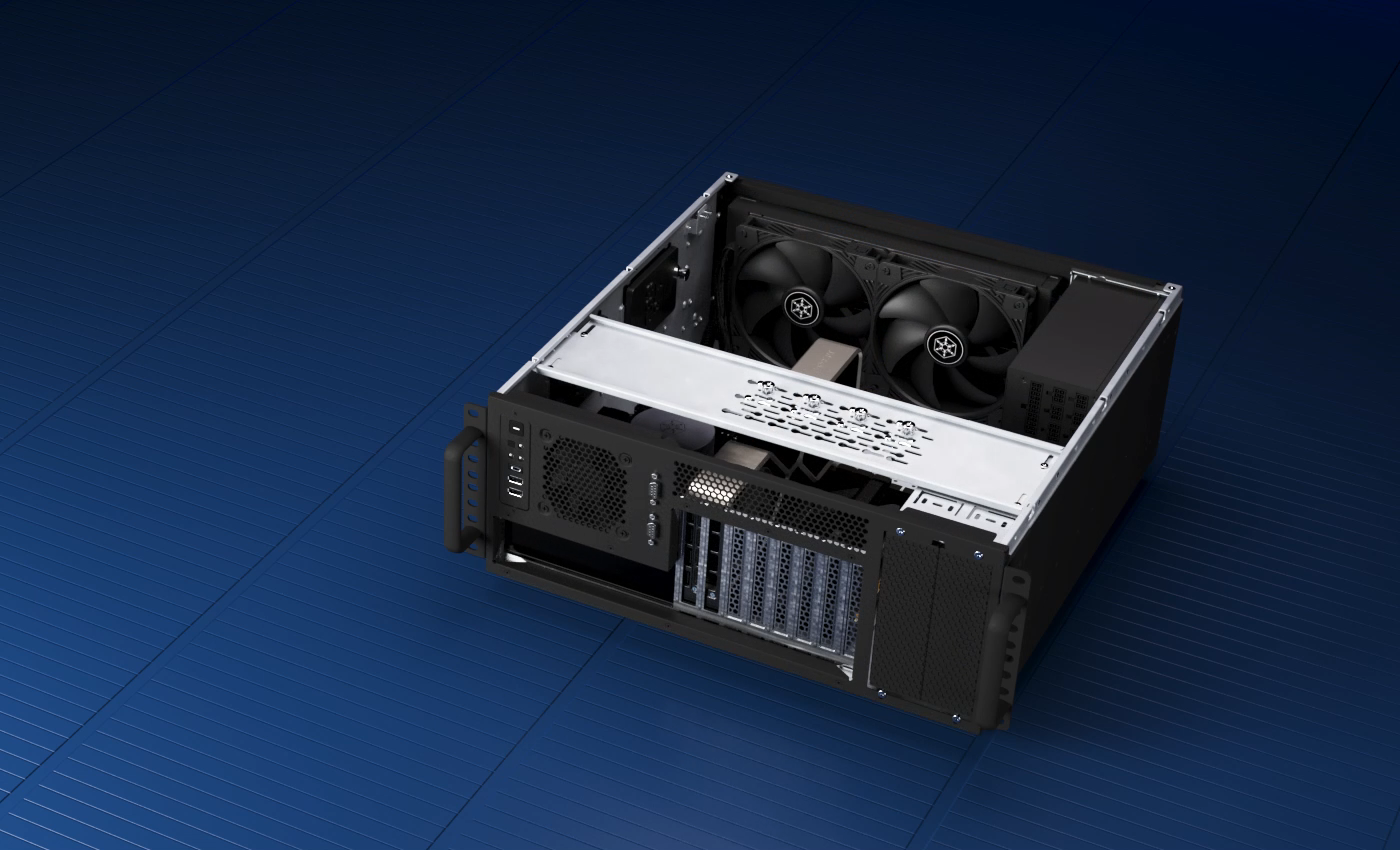

Thermal Solution
Capacity
* Since 160mm fans use 140mm mounting holes for installation, two 160mm fans cannot be installed when I/O is relocated to the rear side.
** Vertical orientation requires an optional vertical kit - RAC-CF4-440.
**** Anti-theft lock designed to deter theft and unauthorized access of system effectively.
***** 2 x reserved RS232 mounting ports for enhanced connectivity and versatility. The ECD01 serial adapter card is available for this enhancement.
Specifications
Model No.
SST-RM46-502I
Chassis Form Factor
4U
Material
Steel
Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

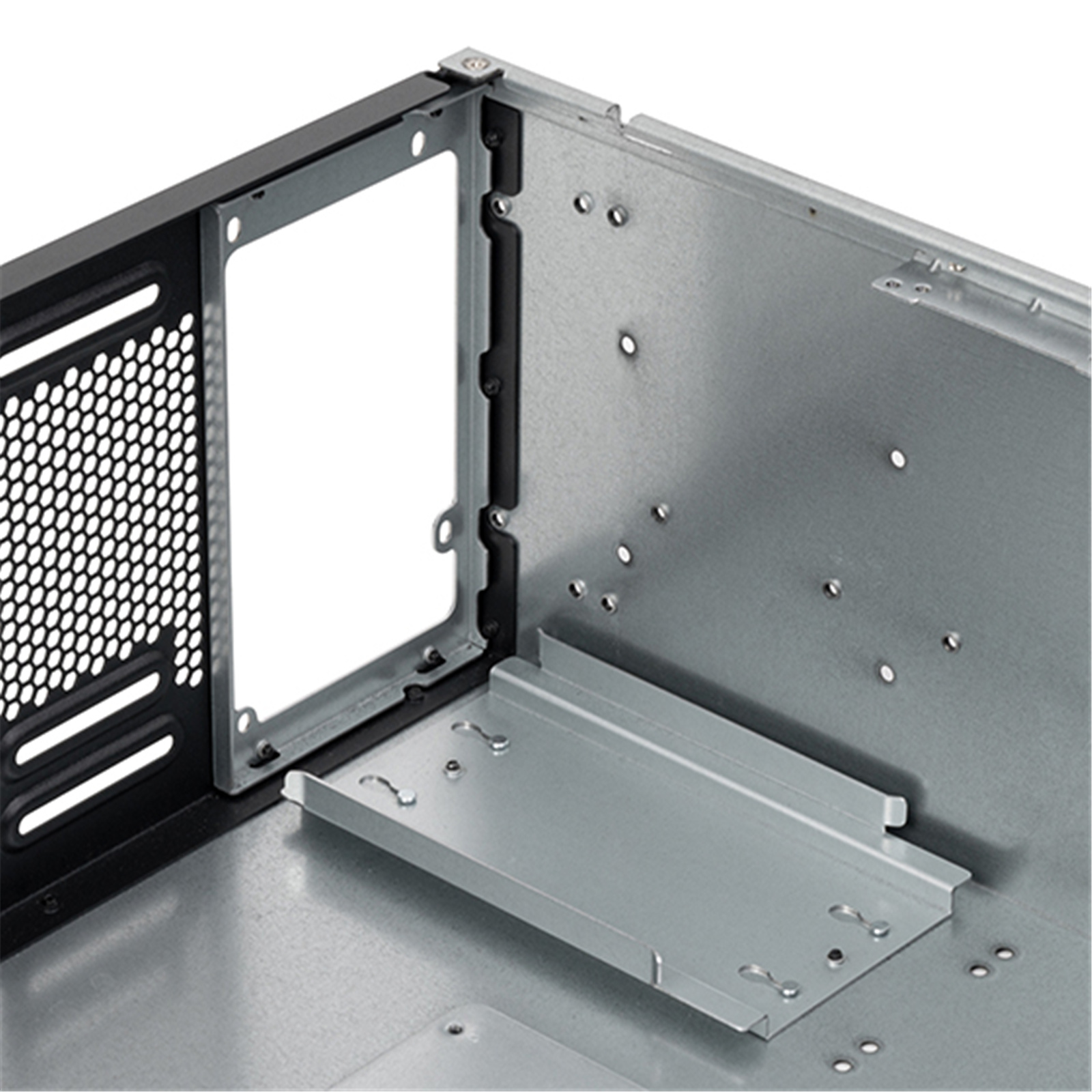

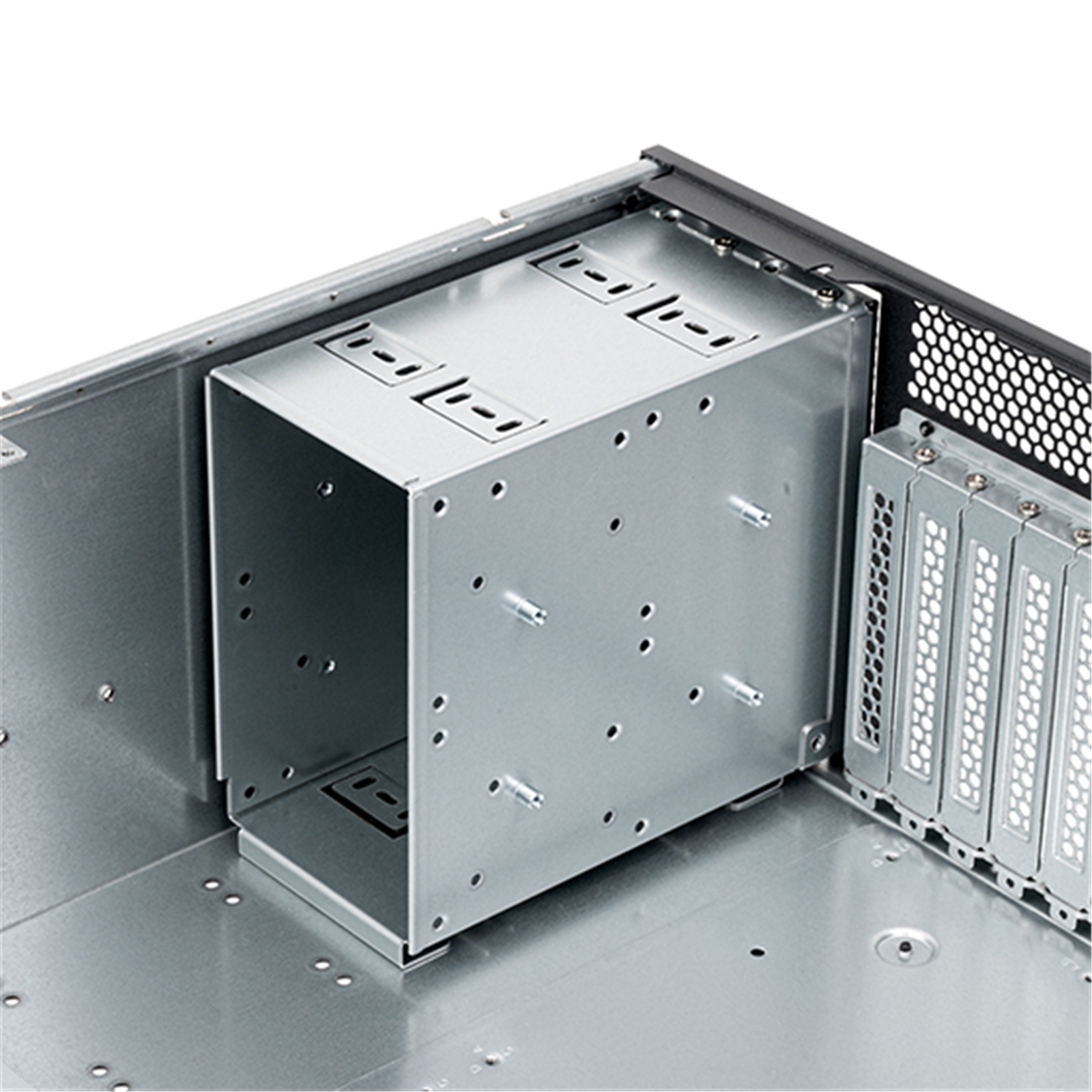

Drive bay
External 5.25" x 2 (downwards compatible with 2.5" SSD x 4 or 3.5" HDD x 2)
Internal 2.5" x 2
Cooling system
Front 80mm x 1 (80mm x 1 fan included)
Rear 120mm x 2 / 140mm x 2 / 160mm x 2*
Radiator support
Rear 120mm x 2 / 240mm x 1 / 280mm x 1
Limitation of CPU cooler
132mm (with GPU holder)
148mm (without GPU holder)
Expansion slot
8
Limitation of expansion card
Length : 437mm (without rear fans and radiator installed)
Width : 116mm (with expansion card retainer)
154mm (without expansion card retainer)
Power supply
PS2 (ATX) / Mini Redundant / 2U Redundant / 2U 1+1 CRPS
Limitation of PSU
PSU + ODD / 5.25" device: 430mm

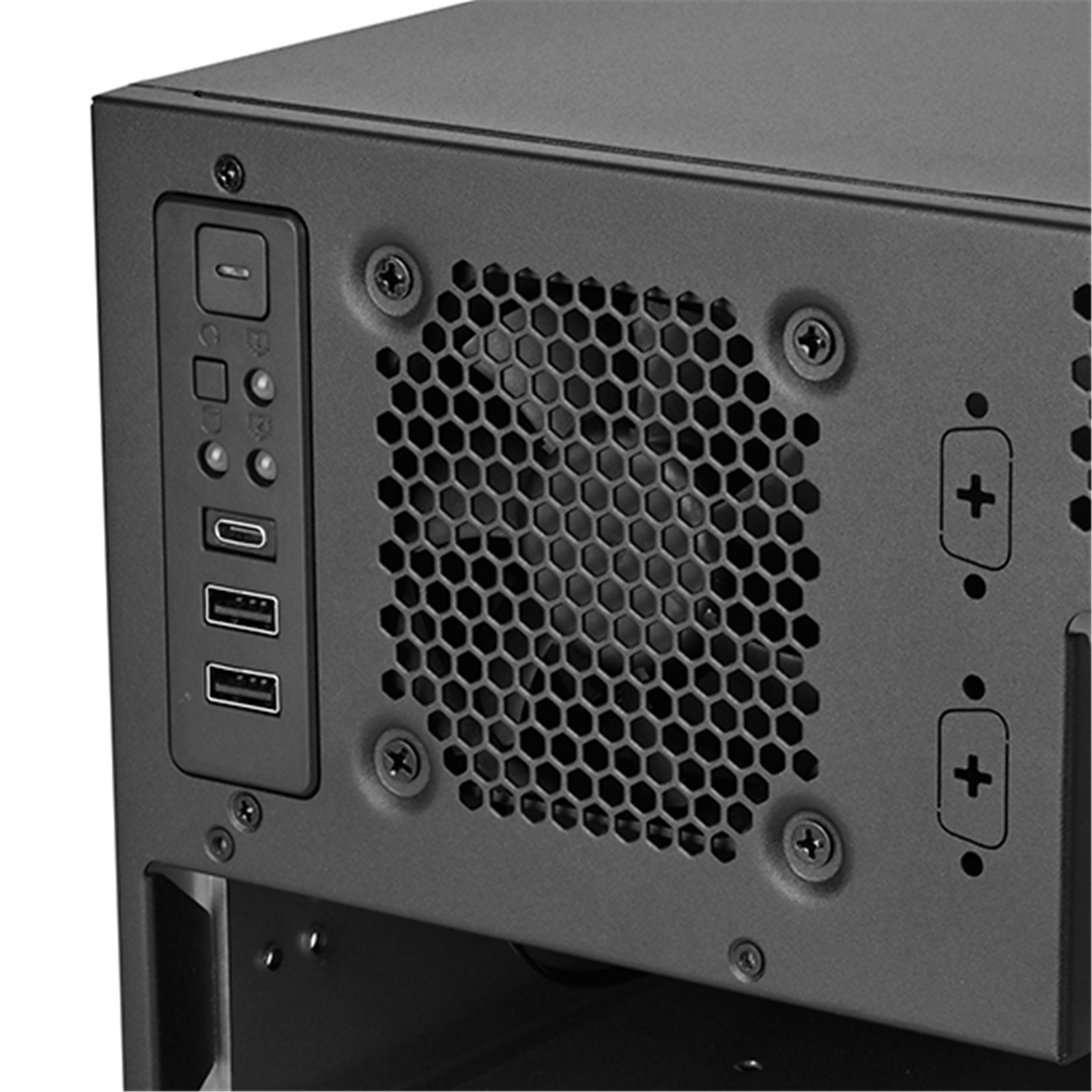

Front I/O port
USB Type-C x 1
USB 3.0 x 2
LED Indicators
Power LED x 1
HDD Access x 1
LAN LED x 2
Dimension
440mm (W) x 176mm (H) x 456mm (D), 35.3 Liters
17.32" (W) x 6.93" (H) x 17.95" (D), 35.3 Liters
Net weight
8.69 kg
