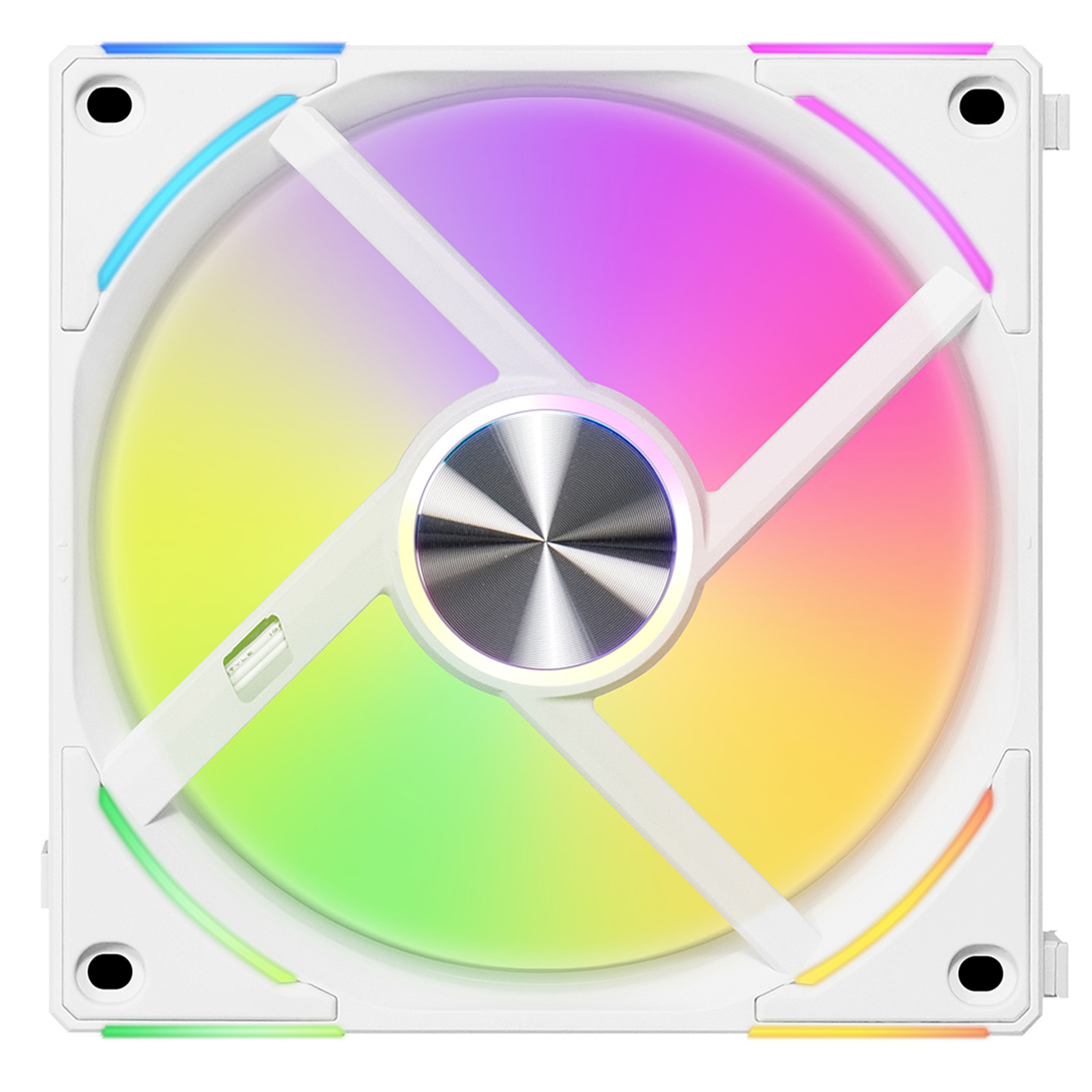

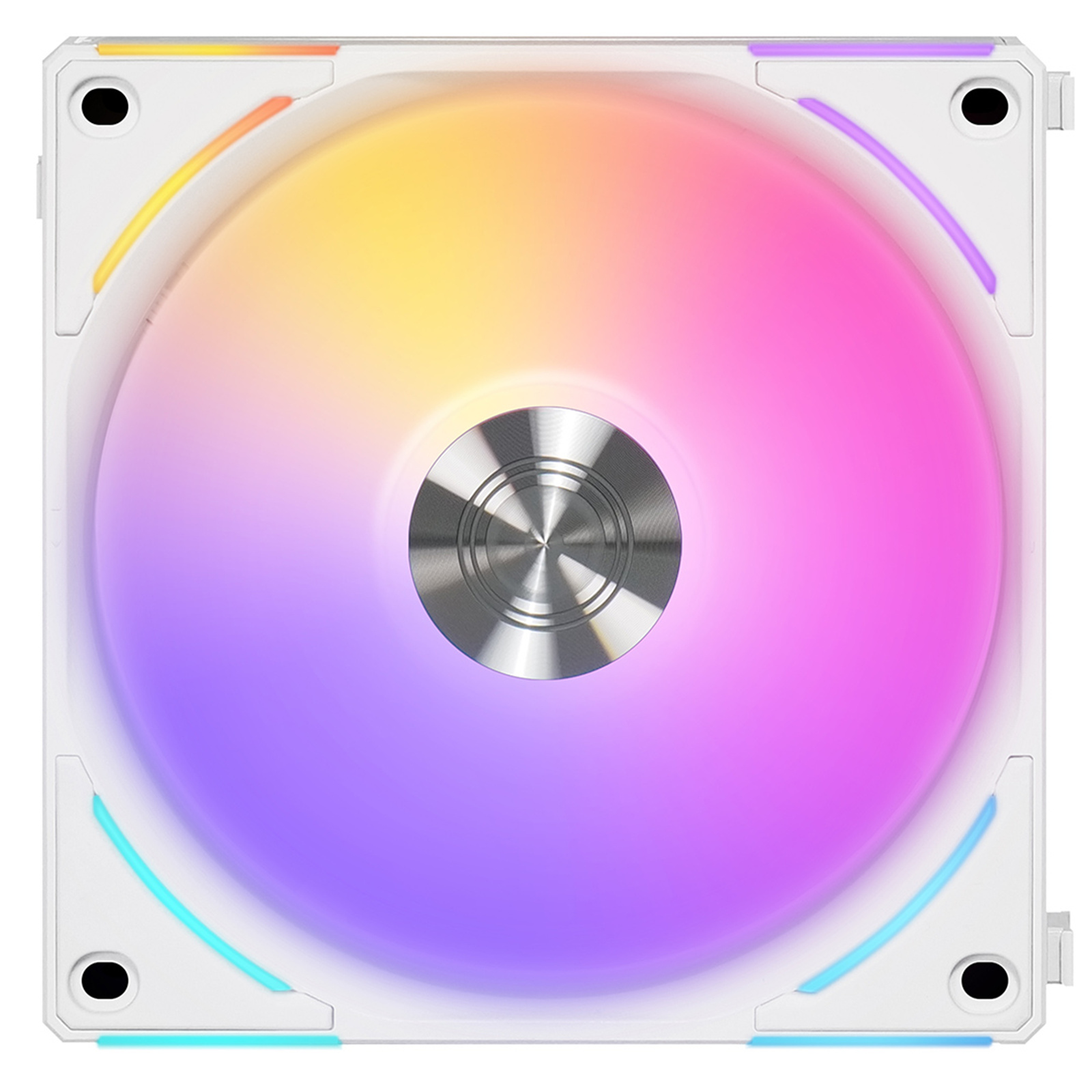

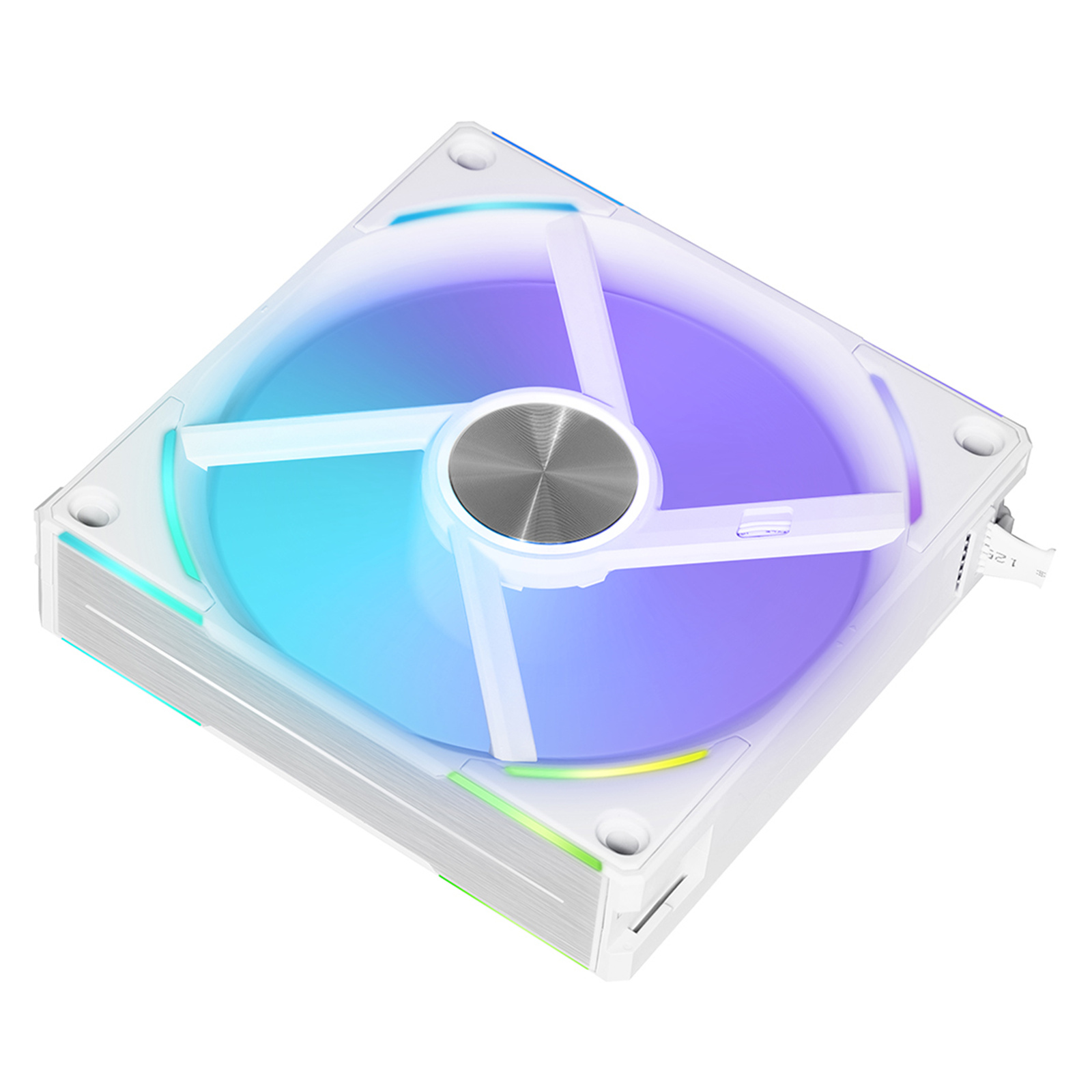

Lian Li UNI FAN AL120 V2 Digital Addressable RGB 120 Fan, Single pack , White
Lian Li UNI FAN AL120 V2 Digital Addressable RGB 120 Fan, Single pack , White
- Brand: Lian Li
- MPN: G99.12ALV21W.00
- Part #: FANLAN0031
- UPC: 840353043428
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"No issues so far- works as expected"
COMBO DEALS: Buy Together and SAVE!







Arctic Silver ArctiClean Thermal Compound Remover 60ml Kit, Material Remover & Surface Purifier
$19.13 +GST
$22.00


Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50 +GST
$7.48


ProsKit SD-9857M DIY Tool 57 IN 1 Screwdriver Set For Cell Phone, Notebook, Electronic Field, Home,...
$29.75 +GST
$34.21


Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics,...
$11.54 +GST
$13.27
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Case Fans





Lian Li UNI FAN AL120 V2 Digital Addressable RGB 120 Fan, Single pack , White
- Brand: Lian Li
- MPN: G99.12ALV21W.00
- Part #: FANLAN0031
- UPC:840353043428

Product URL: https://www.pbtech.co.nz/product/FANLAN0031/Lian-Li-UNI-FAN-AL120-V2-Digital-Addressable-RGB-1?qr=similar-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 5 | |
Auckland - Westgate | 3 | |
Auckland - Penrose | 8 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 1 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 2 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
UNI FAN AL V2
- Improved daisy chain design to connect 2 clusters of fans.
- AL120 V2 fan frame thickness is 28mm to provide 20% improved airflow compared to V1.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- New corner lighting visible from all sides
- Only one cable is required for each fan cluster when using the new UNI HUB to control lighting effects via L-Connect 3. (Hub not included. Only included in the triple pack.)
UPGRADED MODULARITY
UNI FAN AL V2 features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.

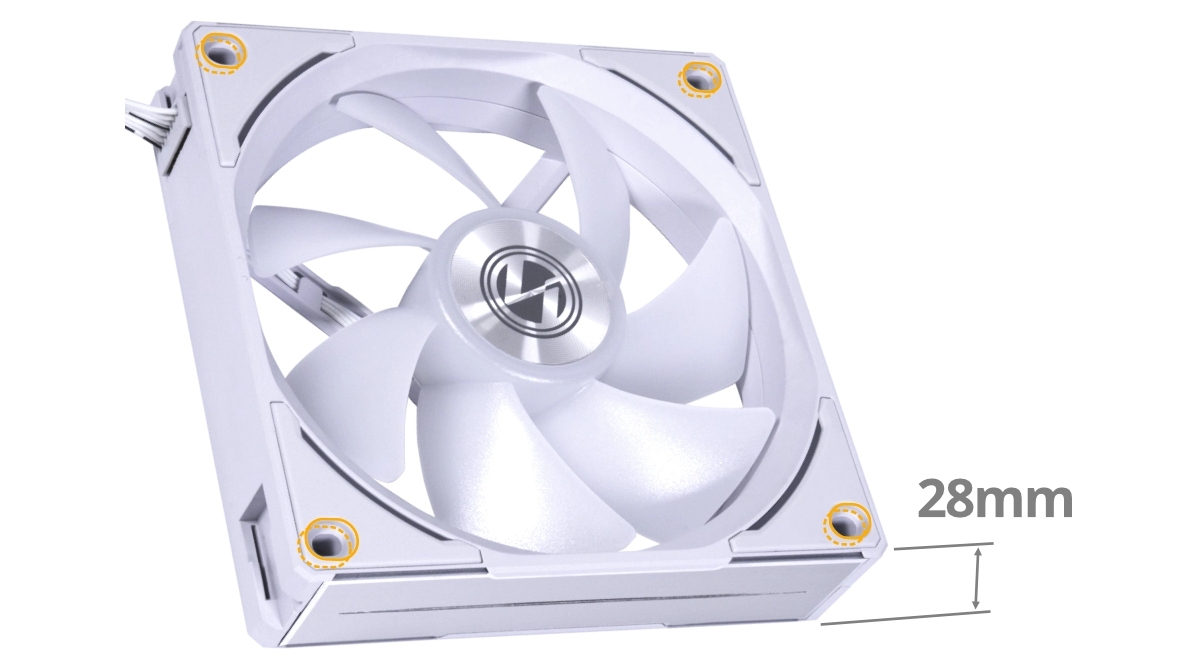

THICKER YET EASY TO INSTALL
The UNI FAN AL120 V2 has been amended to a slightly thicker frame of 28mm, and implements indented screw holes to fit standard 25mm long screws for installation.
Note: The optional 33.8mm long screw set is provided for those who need to mount the UNI FAN AL120 V2 through a fan bracket used in a push-pull rad/fan combo.

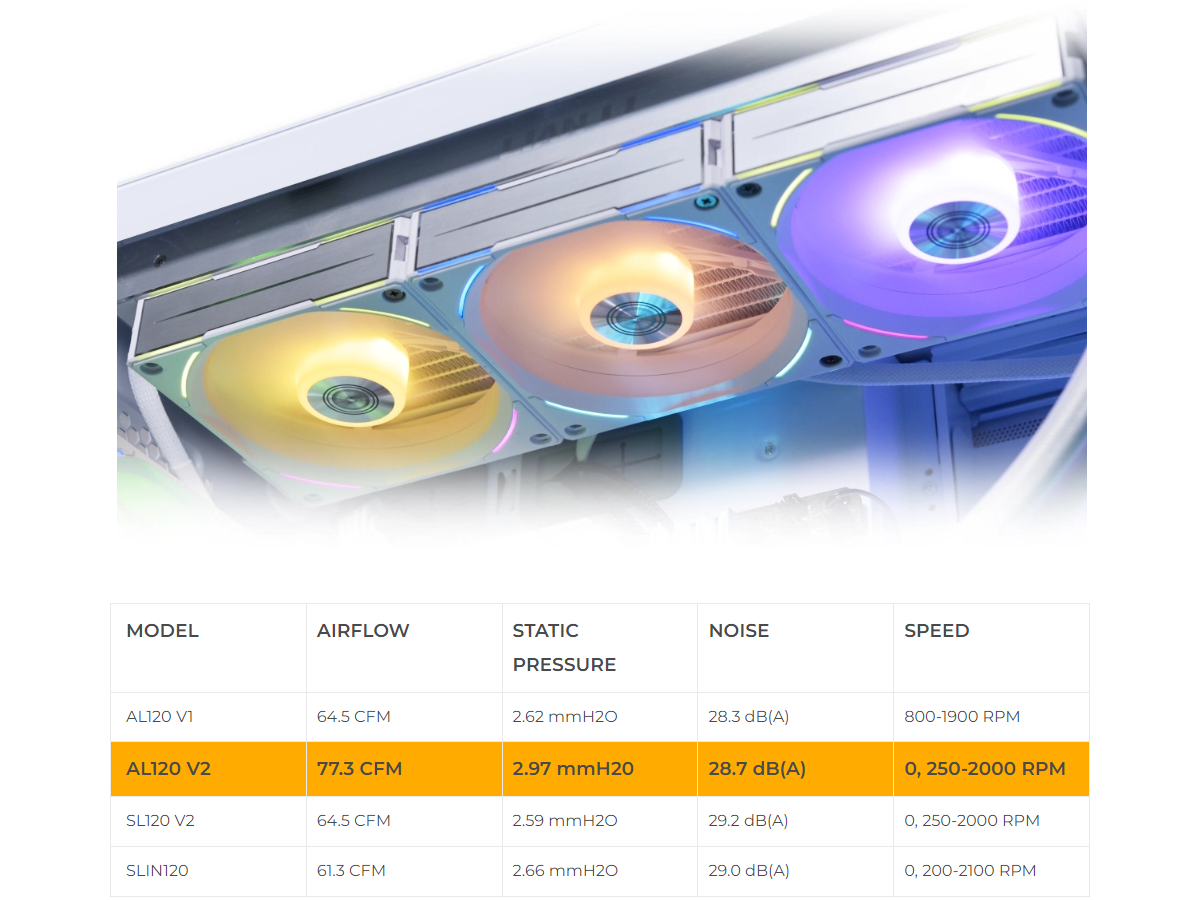

ULTIMATE PERFORMANCE ARGB FAN
Running at peak performance while keeping low noise levels, the UNI FAN AL120 V2 is the best-performing ARGB fan within the entire UNI FAN lineup.
DURABLE DESIGN
DAZZLING FROM ALL ANGLES
UNI FAN ALV2 has comprehensive lighting all around with independent control of the effects at the fan blades and fan frame, and combined lighting effects.
MORE LIGHTING EFFECT CHOICES
New lighting effects have been developed for the updated version of the AL fans, offering more lighting options.
CONTINUOUS LIGHTING EFFECTS
A merge function is available to allow lighting effects to flow not only across a single cluster but across the whole system.
SIMPLE CONNECTION
2 ways to connect UNI FAN ALV2 fans, adapted to your personal needs.
1 - UNI HUB - 16 Fans in One Go
The included controller in the triple pack (also available separately) can support up to 16 fans and 2 SM-type connected devices to simplify cable management and provide efficient power to the fans.
Note:
Please lower the static white lighting effect's brightness to 75% when connecting more than 8 x140 or 11 x 120 AL V2 fans synchronized to the motherboard. Failing to do so may cause inaccurate colors.
*Note: Fan controller not included in this model
2 - DIRECT TO MOTHERBOARD
The single pack includes a cable module that features a 4-PIN PWM and a 3-PIN SM-type ARGB cable (3P to 3P 5V ARGB cable is included) to connect directly to the motherboard.
L-CONNECT 3 SOFTWARE TO CONTROL SL-V2 FANS
Control and preview with precision the lighting effect of the AL-V2 fans with the new L-Connect interface.
Note: L-Connect 3 is only supported when connecting the fans to an ALV2 UNI HUB.
PACKAGE CONTENT
AL120V2 Single Pack White
Specifications
PRODUCT NAME
UNI FAN AL120 V2
MODEL
AL120V2-1W
COLOR
White
NUMBER OF FANS
1
CONTROLLER
No
CONNECTOR TYPE
1 × 4-PIN PWM
+ 3-PIN SM Type
1 × ARGB MB Adaptor
FAN DIMENSION
120 X 120 X 28 (mm)
FAN SPEED
0, 250~2000 RPM
MAX. AIR PRESSURE
2.97 mmH2O (Maximum)
MAX. AIRFLOW
77.3 CFM (Maximum)
ACOUSTIC NOISE
28.7 dB(A) Max
MATERIAL
PBT/PC/Aluminum)
RATED VOLTAGE
DC 12V (FAN) & 5V (LED)
BEARING TYPE
Fluid Dynamic Bearing (FDB)
OPERATE VOLTAGE
DC12V & 5V
START-UP VOLTAGE
5V
INPUT POWER
7.2W
