Fanvil CA400 All-in-One Screen Share Video Conference Solution MS10 speakerphone & receiver RC10 & USB camera CM70

PB Tech price

$ 730 .04

+GST

$ 839 .55

inc GST

Fanvil CA400 All-in-One Screen Share Video Conference Solution MS10 speakerphone & receiver RC10 & USB camera CM70

Brand: Fanvil
MPN: LIN-CA400
Part #: IPHFAN1150
UPC:

PB Tech price

$ 839 .55

inc GST

+GST inc GST

*Price includes surcharge

In stock at PB Tech

Check store stock levels

Click & Collect: Select your store to check availability

Delivery: Order now and it ships today When will I receive it?

Add To Compare

Stock Alerts

Finance from $8.29 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

View All Finance Options

Click or hover over image to enlarge

Brand: Fanvil
MPN: LIN-CA400
Part #: IPHFAN1150
UPC:

Be the first to review this product

Colour

Black

Microphone

Yes - 8x Microphone Array

Microphone Noise Cancelling

Interface

Not Specified

Noise Cancelling

Not Specified

Sound Mode

Not Specified

Wireless Technology

View full specs

Returns & Warranty Bulk Quote Print Page

Features

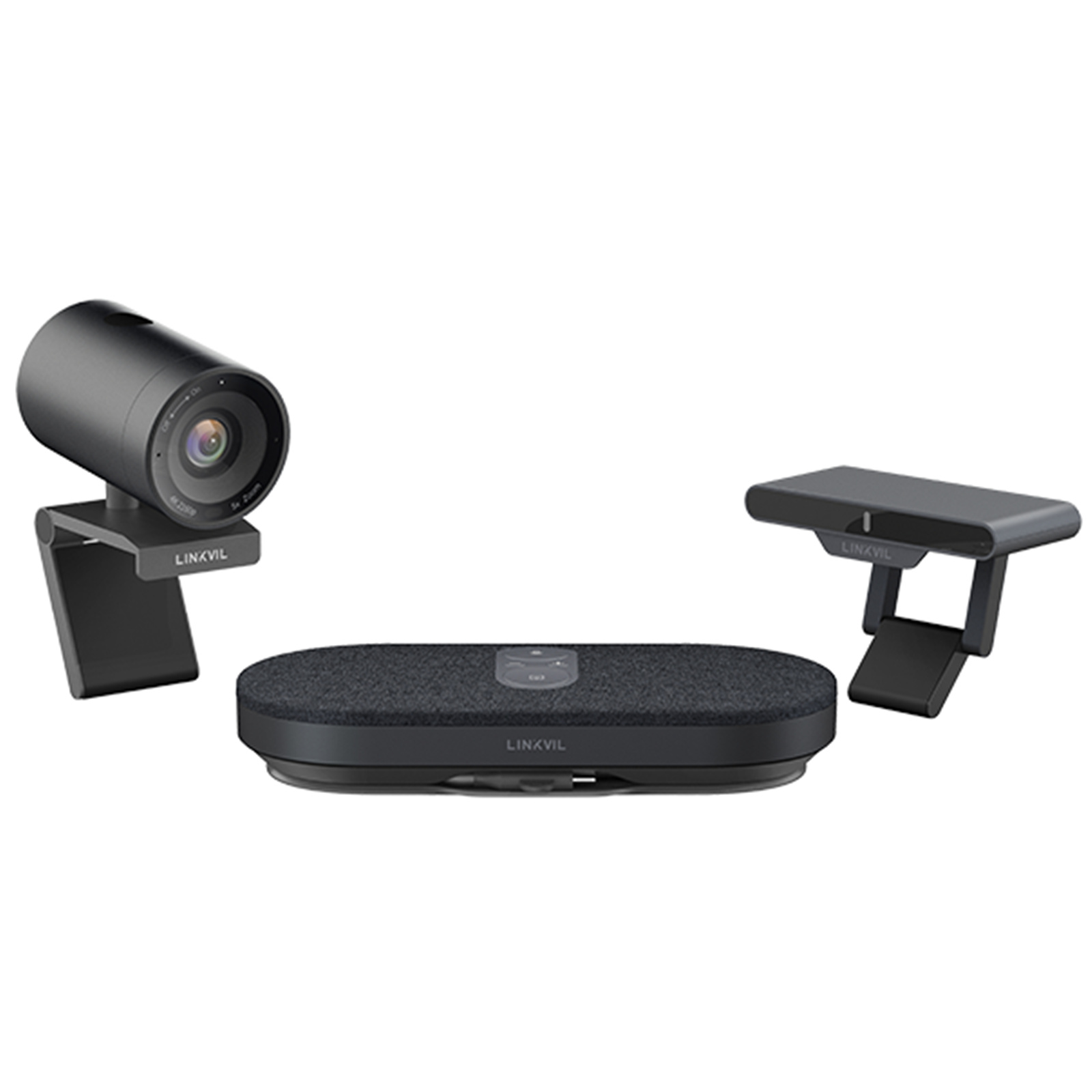

CA400 All-in-one Wireless Conference Solution

Designed for small and medium meeting rooms up to 32m², the CA400 system consists of a unique speakerphone MS10, that supports wireless screen sharing, a receiver RC10, and a USB camera CM70.

The CA400 achieves far-field voice pickup, delivering HD crystal-clear sound. Participants can also wirelessly cast at 4K and access FHD video streaming.

Specifications

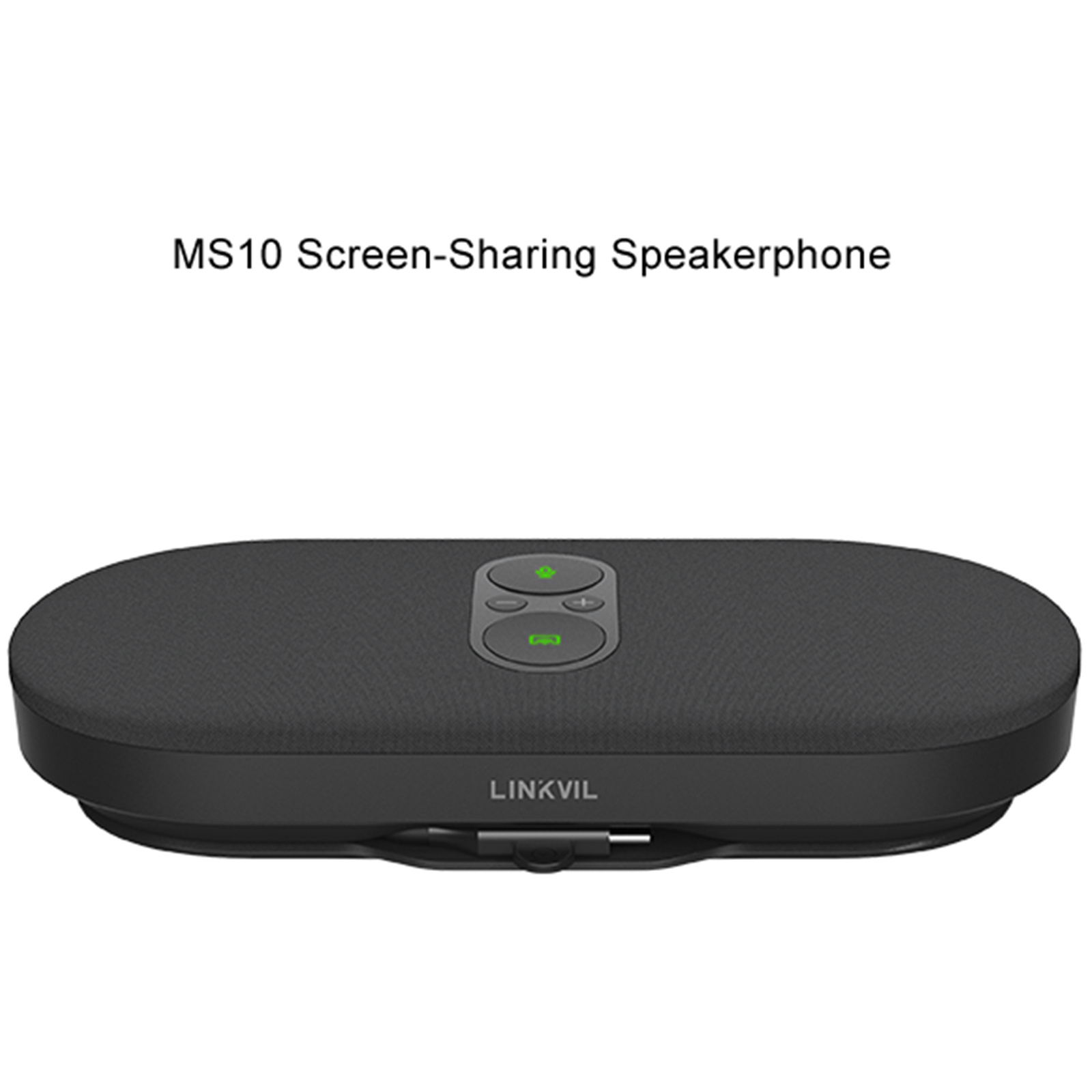

MS10 Screen-share Speakerphone

Max. Screen Share Resolution

3840*2160 @ 30fps

Microphone

8 MEMS microphones for 360° pickup
Pick-up Range: 4-meter
Signal to Noise Ratio (SNR): 64.5dB(A)
Sensitivity: -26dBFS @ 1kHz (0dB=1V/Pa)
Acoustic Overload Point: 119dB SPL <10% @ 1kHz
Frequency: 20Hz-10KHz
Full-duplex
Beamforming
Acoustic Echo Cancellation (AEC)
Adjustive Noise Suppression (ANS)
Automatic Gain control (AGC)
Reverberation Reduction

Speakerphone

Speaker/Rated power: 4?/3W
Speaker Size: 50mm
Sensitivity: 1KHz 85 dB ± 3dB @ 1m
Signal to Noise Ratio (SNR): 50dB
Frequency Range: 200Hz- 10KHz MAX 5%
Max. Sound Pressure Level: 85dB SPL @ 1m @ 3W
Background Noise: <30dB
Total harmonic Distortion: 200Hz-10KHz MAX 5%

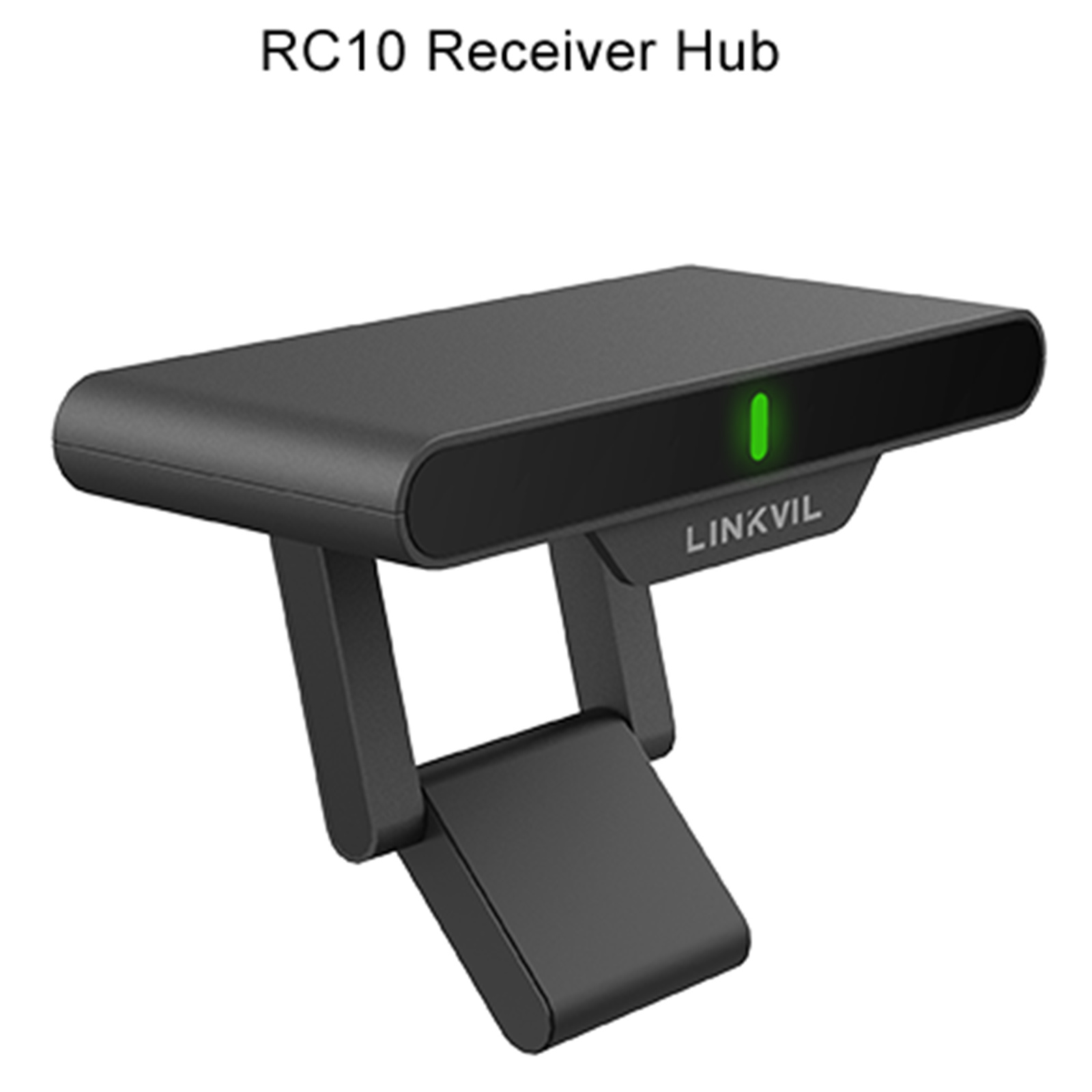

RC10 Receiver Hub

Camera Streaming

Max. Output Resolution: 1920x1080 @30fps
Support Camera Type: UVC camera
Format Supported: H.264

Physical Character

magnetic attraction

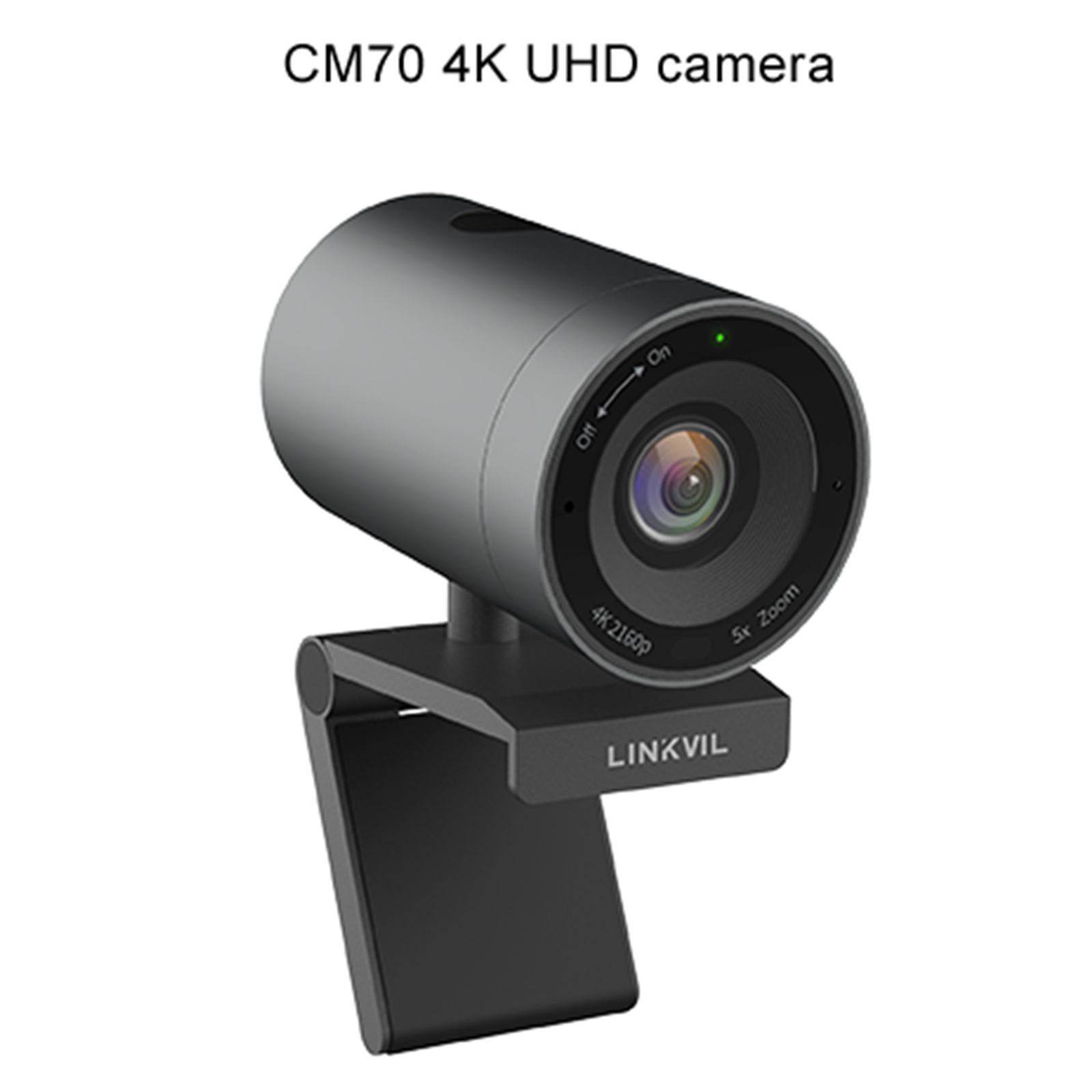

CM70 UHD Camera

USB Camera

Sensor Type: IMX 415 (1/2.8") 3840*2160
Output: MJPEG/ H264/ H265 /YUV / NV12 30P (YUV and NV12 don 't support 4K and 2K) 3840*2160/2560*1440/1920*1080/1280*720/1024*576/960*540/800*448/640*360/320*180/960*720/800*600/640*480/480*270/352*288/320*240
FOV: DFOV 118.5°/HFOV 109.9°/VFOV 74.6°
Auto-Framing: Auto
F/No: F2.5
Zooming: 5x digital zoom
Maximum Resolution: USB3.0: 3840*2160 30fps/USB2.0: 1920*1080 30fps
Security Protection: manual privacy cover

USB Microphone

Type: 2 electret microphones
Pick-up Range: 4-meter
Signal to Noise Ratio: 94dB SPL@ 1KHz 65dB(A)
Sensitivity: 94dB SPL@ 1KHz - 30±2dB FS
Full-duplex
Adjustive Noise Suppression (ANS)
Automatic Gain Control (AGC)

Physical Character

magnetic attraction

Connectivity

Protocol

802.11 a/n/ac

Wireless Transmission Protocol

Quick UDP

Transmission Distance

up to 10-meter

Frequency bands & max. transmitted power

Wi-Fi 5GHz, Max 20dBm (Support for selecting corresponding 5G channels based on the country.)

I/O Interface

USB Camera

Type C x1

Speakerphone

Type C PD + DP ALT

Receiver Hub

HDMI x1, Type C PD, USB A 3.0 x1

Physical Specifications

Dimensions

USB Camera: 80*75*53mm/3.15*2.95*2.09"
Speakerphone: 180*81*32mm/7.09*3.19*1.26"
Receiver Hub: 102*45*20mm/4.02*1.77*0.79"
Gift Box Dimension: 233*188*110mm
Outer CTN Dimension: 498*408*258mm (8PCS)

Weight

USB Camera: 210g/7.4oz
Speakerphone: 385g/13.58oz
Receiver Hub: 70g/247oz
Carton Net Weight: 12.56 kg
Carton Gross Weight: 13.78 kg

Temperature and humidity

Working temperature: 0°C-40°C
Working humidity: 10%-90%RH

Package

Package Contents

USB Camera: CM70
Speakerphone: MS10
Receiver Hub: RC10
Remote Control
20cm USB-C to HDMI & USB-A/C Adapter: H2C, 1.5m HDMI Cable, 40cm USB Extension Cable, 1.8m Type C-A USB Cable
Power Adapter: 5V/2A
Quick Installation Guide

Manufacturer Part No:

LIN-CA400

Brand:

Fanvil

Product Type:

All-in-One Screen Share Video Conference Solution

UPC

Product Family:

Shipping Weight:

1.66 kg

PB Part No:

IPHFAN1150

Product Model:

CA400

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
