Aten CS22DP 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector up to 4096 x 2160 30Hz

Aten CS22DP 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector up to 4096 x 2160 30Hz
Normally $122.63 Normally $141.02
Save: $16$18 (13%)
$106 28  +GST $122 22  inc GST

Generating Print Page
This product currently has a Buy Limit of 10 Units Per Customer.

Aten CS22DP 2-Port USB DisplayPort Cable KVM Switch with Remote Port Selector up to 4096 x 2160 30Hz

Part #: KVMATN0021
ON SPECIAL
Normally $122.63 Normally $141.02
Save: $16$18 (13%)
$106 28 $122 22
 +GST  inc GST
Ends in --, while stocks last!
Ends in --, while stocks last!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?

Six easy payments of $20.98 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $25.18 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Features

  • The CS22DP 2-Port USB DisplayPort Cable KVM Switch is a control unit that allows access to two computers from a single USB and DisplayPort console (keyboard, video and mouse) with audio. With the CS22DP, you can quickly and effortlessly switch between two DisplayPort computers using a convenient remote port selector pushbutton.

    The CS22DP supports multiplatform operations allowing you to switch between two PC's running different operating systems. Moreover, the compact design allows for an efficient and tidy installation, providing an ideal space-saving solution to keep your desk well-organized.

    It's fast and easy to set up the CS22DP. Simply plug the KVM cables into their respective ports on the CS22DP and on the computers. There is no need to install software or configure devices - just plug and play.

  •
  • One KVM console controls two USB DisplayPort computers
  • Superior video quality - up to 4096 x 2160 @ 30Hz
  • Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
  • Bus-powered design


Package Contents

  • 1x CS22DP 2-Port USB DisplayPort Cable KVM Switch
  • 1x User Instructions
    • One KVM console controls two USB DisplayPort computers
    • Superior video quality - up to 4096 x 2160 @ 30Hz
    • Computer selection via Remote Port Selector
    • OS Support: Windows, Mac and Linux
    • Supports DisplayPort Dual-Mode (DP++)* for directly outputting single-link HDMI and/or DVI signals via an externally powered DisplayPort-to-HDMI/DVI DP++ adapter
    • Supports microphone and speakers
    • The USB ports can be used for USB peripheral sharing**
    • Supports USB hot-plugging
    • HDCP Compatible
    • Bus-powered

      *DisplayPort Dual-Mode (DP++) requires the use of a powered DP++ adapter. The graphics source must be DP++ compliant.
      ** The CS22DP may require an external power supply via a micro USB port




Specifications

Computer Connections 2
Port Selection Remote Port Selector
Connectors

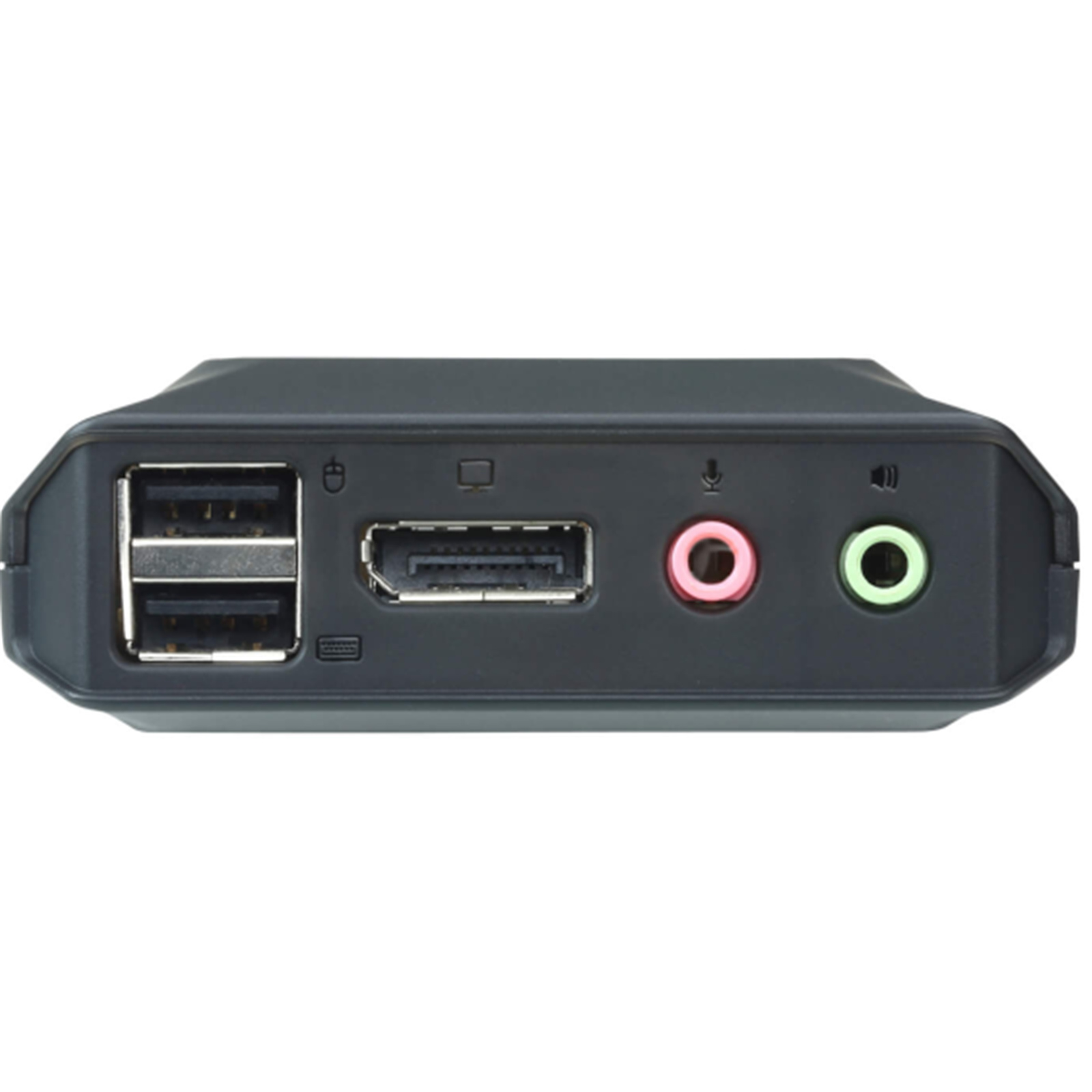

Console Ports 1 x DisplayPort Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

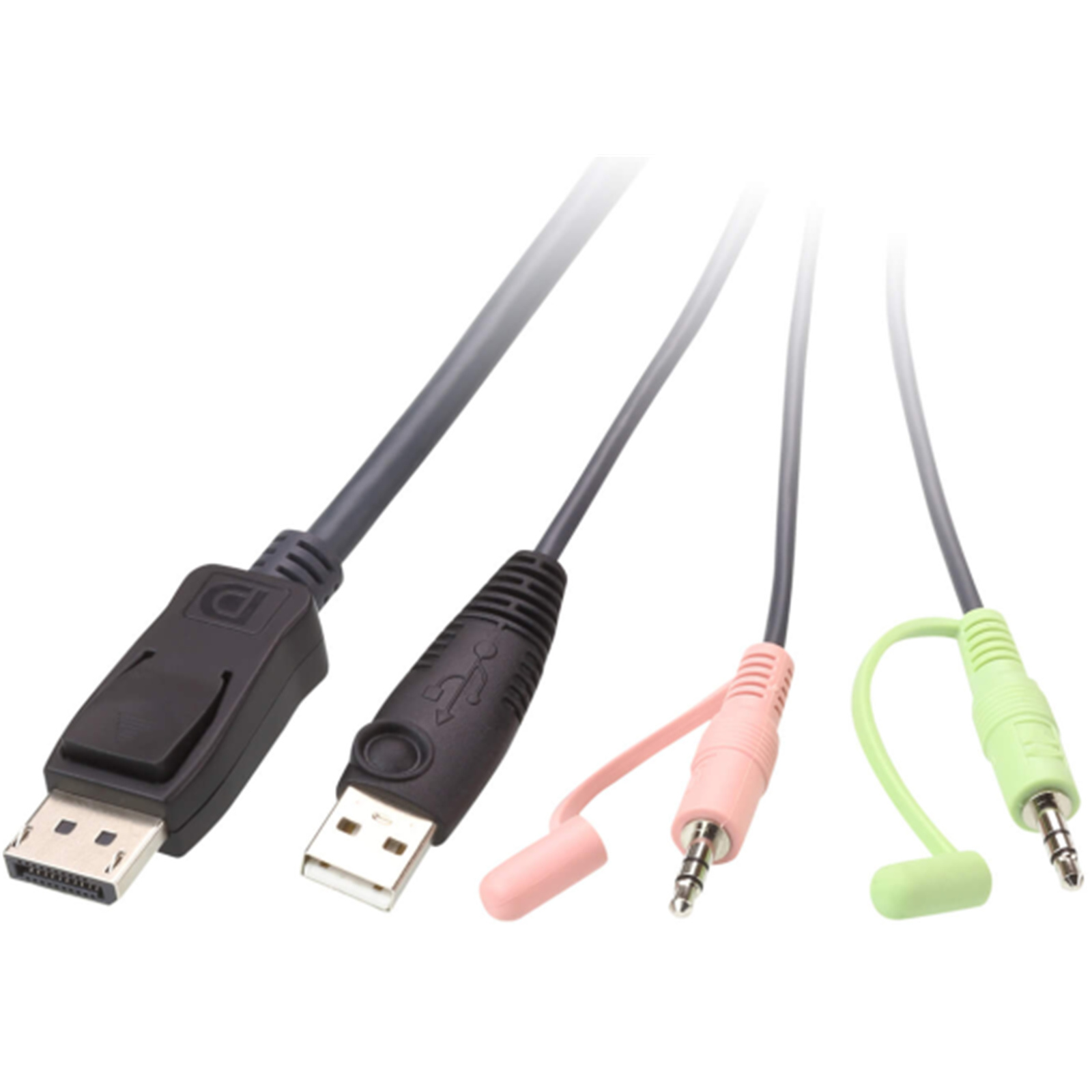

KVM (Computer) Ports 2 x DisplayPort Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)
Power (Optional) 1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected) 2 (White)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse N/A
Video 4096 x 2160 @ 30Hz
Power Consumption DC5V:1.38W:28BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.35 kg ( 0.77 lb )
Dimensions (L x W x H) 8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Manufacturer Part No:
CS22DP
Brand:
Product Type:
-
UPC
672792007408
Product Family:
-
Shipping Weight:
0.536 kg
PB Part No:
KVMATN0021
Product Model:
CS22DP
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
