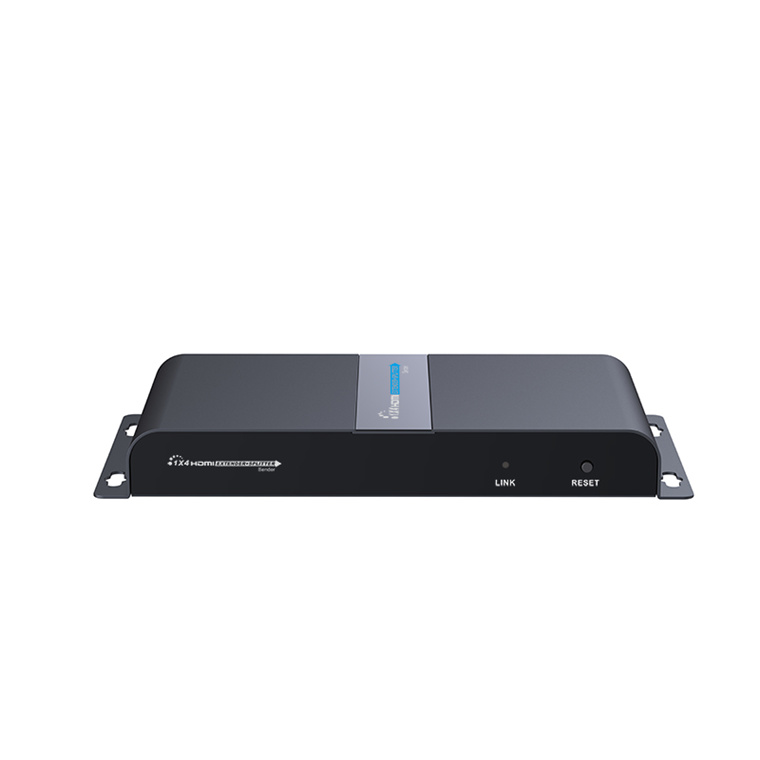

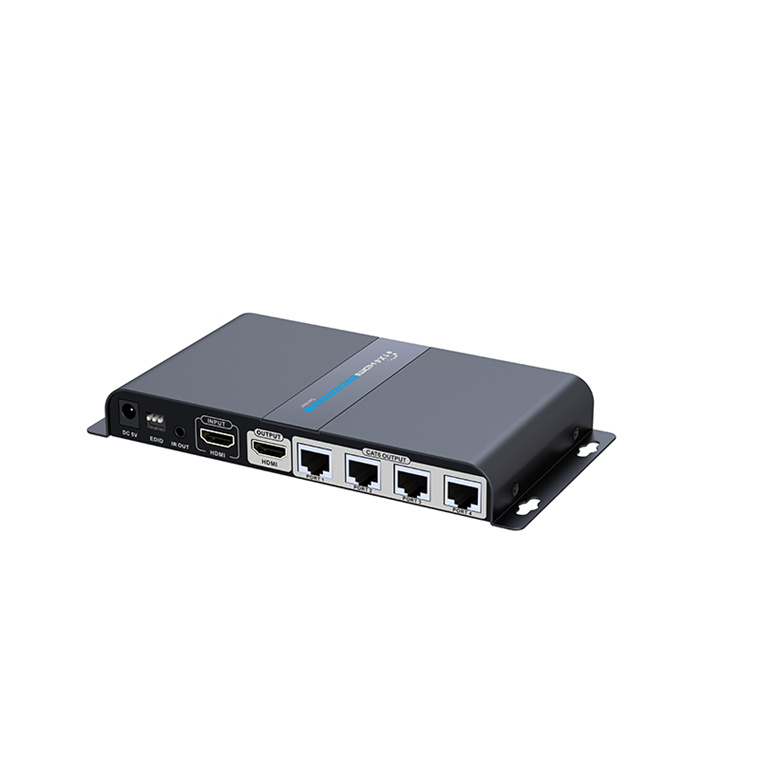

LENKENG LKV714PRO 1 in 4 Out HDMI Extender. 1x HDMI in to 4x RJ45 out. 4x Receivers Included. Supports 1080p 60Hz over Cat6 for up to 40m. Remote power receivers from transmitter. With local HDMI out. w/IR accessories

LENKENG LKV714PRO 1 in 4 Out HDMI Extender. 1x HDMI in to 4x RJ45 out. 4x Receivers Included. Supports 1080p 60Hz over Cat6 for up to 40m. Remote power receivers from transmitter. With local HDMI out. w/IR accessories
PB Tech price: PB Tech price:
$267 83  +GST $308 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

LENKENG LKV714PRO 1 in 4 Out HDMI Extender. 1x HDMI in to 4x RJ45 out. 4x Receivers Included. Supports 1080p 60Hz over Cat6 for up to 40m. Remote power receivers from transmitter. With local HDMI out. w/IR accessories

LENKENG LKV714PRO 1 in 4 Out HDMI Extender. 1x HDMI in to 4x RJ45 out. 4x Receivers Included....

  • Brand: LENKENG
  • MPN: LKV714PRO
  • Part #: KVMLNK1056
  • UPC:
  • Extension Distance:40m
  • Video Interface:HDMI
  • Wireless Technology:Not Specified
  • Device Type:Transmitters & Receivers
  • Maximum Supported Resolution:1920x1080
PB Tech price: PB Tech price:
$267 83 $308 00
 +GST  inc GST
Hurry, only 2 units left!

Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $63.45 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $52.87 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $3.34 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

What PB Tech customers are saying about this product...See More Reviews

"A very handy product to split a single HDMI signal from a PC or any other device with HDMI output into five HDMI displays around the place. Works nicely over CAT5e as well as CAT6 ...view more"

I
By: iTechEE 16/12/20
Verified Owner

"Very good product works perfectly! Arrived before shipping estimate. Very Happy."

G
By: Guest 13/07/20

Features

This HDMI extender splitter works with 4 HDMI CAT6 extender receivers to split and extend 1 HDMI source to 4 HDMI displays over single CAT6/6a/7 cable up to 40m/131ft. The highest resolution supported is 1920x1080 @ 60Hz, and it supports IR passback, EDID pass through and only one power adapter for the transmitter is needed, the Receiver is powered by the transmitter over CAT6 cable. Ideal solution for HDMI exhibition, Video conference and show center, ect.

-Distribute 1 HDMI source to 4 HDMI displays over network cable simultaneously.
-Support one HDMI Loop-out.
-Compatible with CAT6/6a/7 network cables.
-The transmission distance is up to 40m/131ft.
-The highest resolution supported is 1920x1080 @ 60Hz.
-Support 20~60Hz IR pass back.
-Support EDID Setting function.
-Support power from transmitter to receiver unit over the CAT6 cable.
-Plug and play.
-Wall-mounted function, easy installation.

Specifications

HDMI signal

HDMI1.3, Compatible with HDCP1.2

Input

1 x HDMI

Output

4 x RJ45

Support resolutions

480i @60Hz, 480p @60Hz, 576i @50Hz, 576p @50Hz, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz

Transmit distance

Full HD resolution 1080p @60Hz up to 40 meters via CAT6 cable

IR signal

Support 20~60kHz IR device

EDID

Support EDID setting function

Power supply

DC5V/3A

Power Consumption

<15W

Dimension

TX: 190(L) x 95.9(W) x 23.9(H) mm
RX: 71.6×66.6×22.6mm

Color

Black

Manufacturer Part No: LKV714PRO Brand: LENKENG Product Type: -
UPC - Product Family: - Shipping Weight: 1.415 kg
PB Part No: KVMLNK1056 Product Model: LKV714PRO

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 StarsBased on 2 Reviews

5 Stars
2
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 2 of 2 reviews

LENKENG LKV714PRO HDMI Extender

A very handy product to split a single HDMI signal from a PC or any other device with HDMI output into five HDMI displays around the place. Works nicely over CAT5e as well as CAT6, a great way have your video files following you around the house from room to room.

I
By: iTechEE 16/12/20
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Very good product

Very good product works perfectly! Arrived before shipping estimate. Very Happy.

G
By: Guest 13/07/20
0 out of 0 users found this review helpful
Did you find it helpful?

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.
A
Yes it does.
Answered by: PB Tech on 20 August 2020
A
This model supports 1080p at 60Hz.
Answered by: PB Tech on 15 April 2020
Q
G
Does this come with 4 receivers PB TECH.? Asked by: Guest on 27 January 2018
A
Yes it does
Answered by: PB Tech on 30 January 2018
