Features

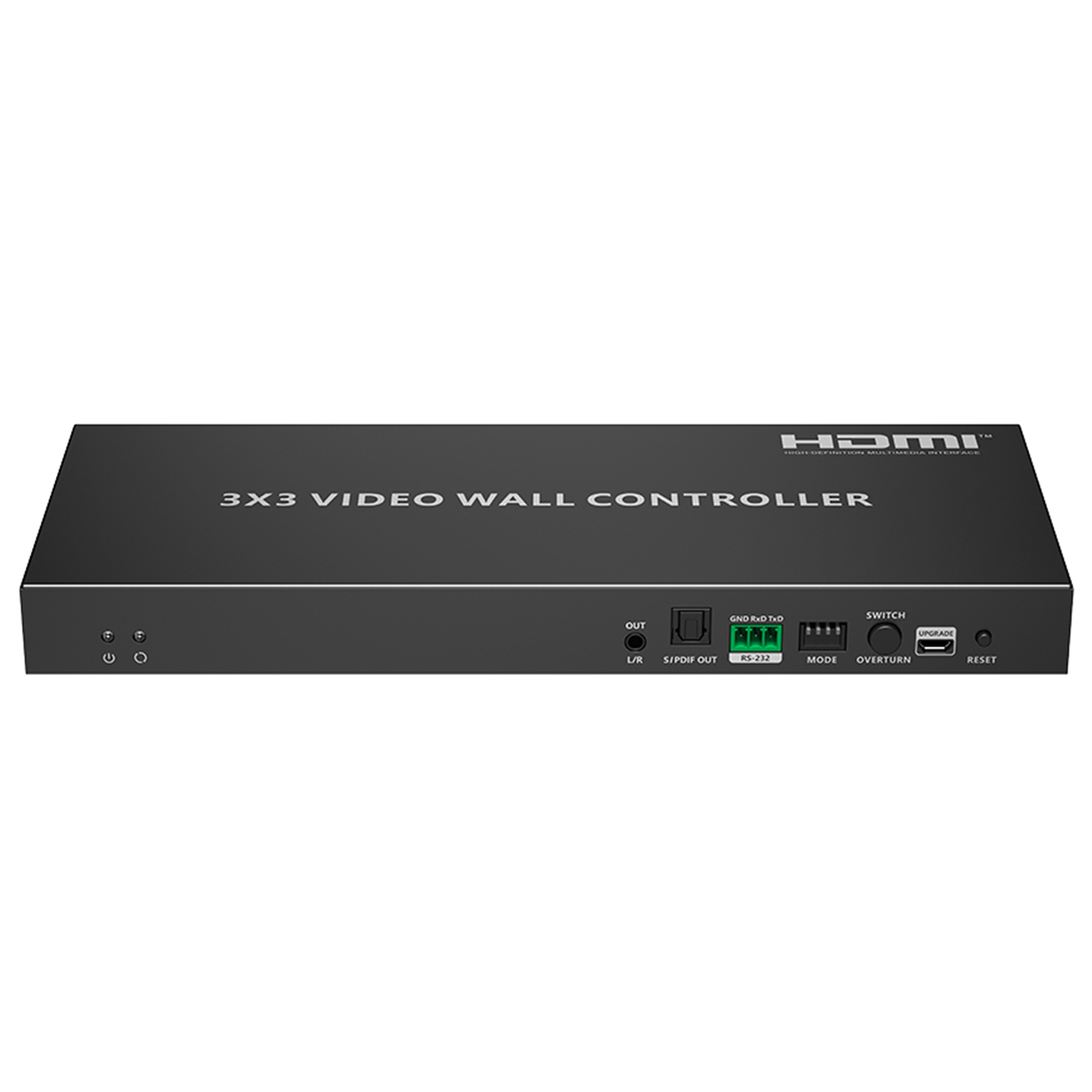

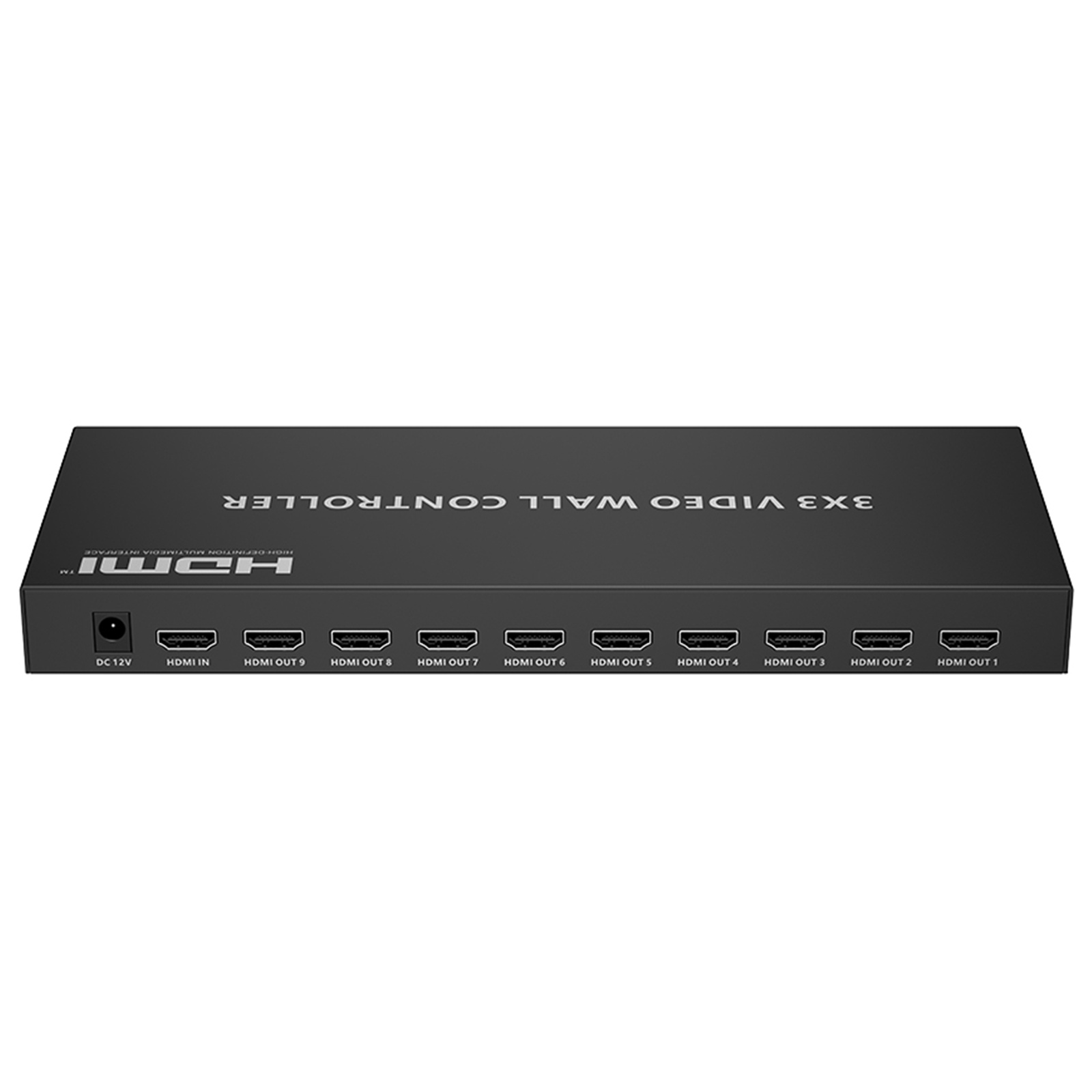

LENKENG 3x3 HDMI Videowall Controller with 1x HDMI In & 9x HDMI Out
This product is a 1-in-9-out video wall controller, supports one HDMI source input and nine HDMI outputs. Supports 1x2/1x3/1x4/2x2/2x3/3x2/2x4/4x2/ 3x3 splicing modes, which can be set by RS-232 or dip switch. Equipped with 3.5mm audio output,S/PDIF audio output,180-degree rotation of display image.The product can flexibly adapt to different installation requirements, which can be widely used in security monitoring, rail transit, broadcasting, smart cities, home theatre, training and other fields.
Specifications
Video Signal
HDMI Input
1x HDMI
HDMI Output
9x HDMI
Compatibility
HDMI 2.0
HDCP 1.4/HDCP 2.2
Resolutions
Input: 4096x2160@ 24/25/30/50/60Hz, 3840x2160@ 24/25/30/50/60Hz, 3440x1440@ 60Hz, 2560x1600@ 60Hz, 2560x1440@ 60Hz, 2560x1080@ 60Hz, 2048x1536@ 60Hz,
1920x1200@ 60Hz, 1080P@ 24/25/30/50/60Hz
Output: 1080P@ 30/60Hz
Audio signal
3.5mm Output
PCM
S/PDIF Output
PCM
HDMI Output
PCM
Splice Settings
Mode
1x1, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1, 2x2, 2x3, 3x2, 2x4, 4x2 & 3x3
RS-232 (GND/RxD/TxD)
Baud rate: 9600
The mode can be switched using RS-232 only when the DIP switch is set to 1111
Operating Environment
Working temperature
20?~60?
Storage temperature
-30?~70?
Humidity
0%~90%RH (No condensation)
Physical Properties
Housing
Iron
Weight
775g
Color
Black
Dimensions (LxWxH)
265x105x25mm
Protection
Protection
ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV)
Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
