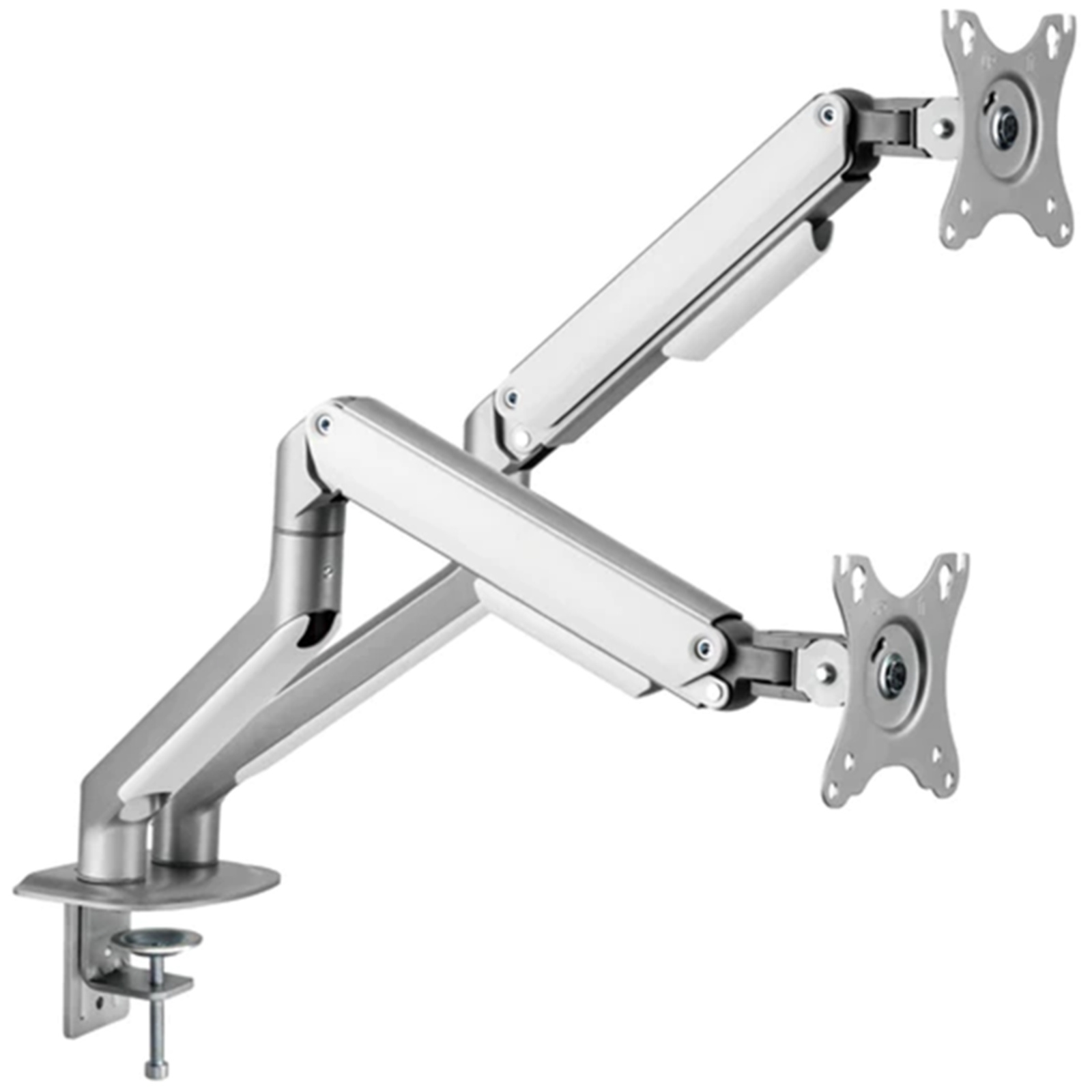

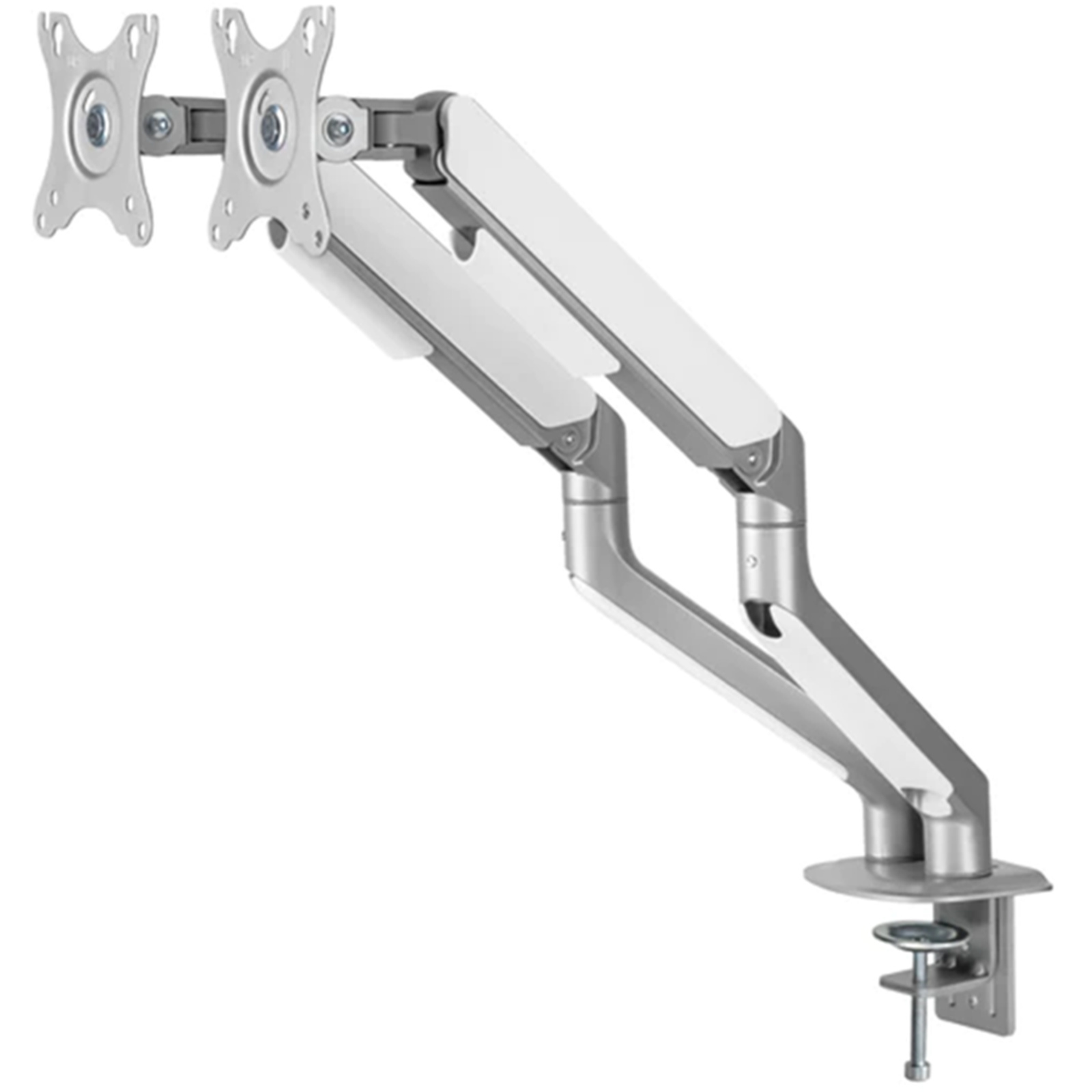

LUMI LDT63-C024 Dual Monitor Economical Spring-Assisted Monitor Arm suits 17"-32" monitors

PB Tech price
PB Tech price
$ 85 .00
 +GST
$ 97 .75
 inc GST
$85.00  +GST
$97.75

LUMI LDT63-C024 Dual Monitor Economical Spring-Assisted Monitor Arm suits 17"-32" monitors

Ease of Use!
  • Brand: LUMI
  • MPN: LDT63-C024
  • Part #: LUI1005
  • UPC:
5
PB Tech price
$ 85 .00 $ 97 .75
 +GST  inc GST


Click & Collect: Available from 13 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$85.00  +GST
$97.75
  • Brand: LUMI
  • MPN: LDT63-C024
  • Part #: LUI1005
  • UPC:

Mounts Supported

2

Min Screen Size Supported

17 inches

Max Screen Size Supported

32 inches

Max Weight Supported

9kg

Max Rotation

180 Degrees

Colour

Silver

What PB Tech customers are saying about this product...

See More Reviews

"Build quality is good. Cable routing is fairly minimal and probably wouldn't accommodate large or numerous cables. As far as I can tell, the tension is not adjustable - that's a bi ...view more"

AN
By: AlbertN5 20/05/25

"Love the products and so satisfy with my purchase."

G
By: Guest 02/09/24

"Good build quality was really easy to set up handles both of my 27" monitors no problem.

Only con I can think of is the cable management solution won't fit a lot of cables or very ...view more"

DS
By: DantonS 30/08/24
Verified Owner

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the LUMI LDT63-C024 Dual Monitor Economical Spring...
LUMI LDT63-C024 Dual Monitor Economical Spring-Assisted Monitor Arm suits 17"-32" monitors
Total:
$ 127 .60
 +GST
$ 146 .74
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

Collect from 19 stores by 10:00am tomorrow
Ships tomorrow

$42.60  +GST

$48.99

Features

https://www.lumi.cn/en/lumi-ergo/monitor-arms/spring-assisted-monitor-arm/ldt63-c024

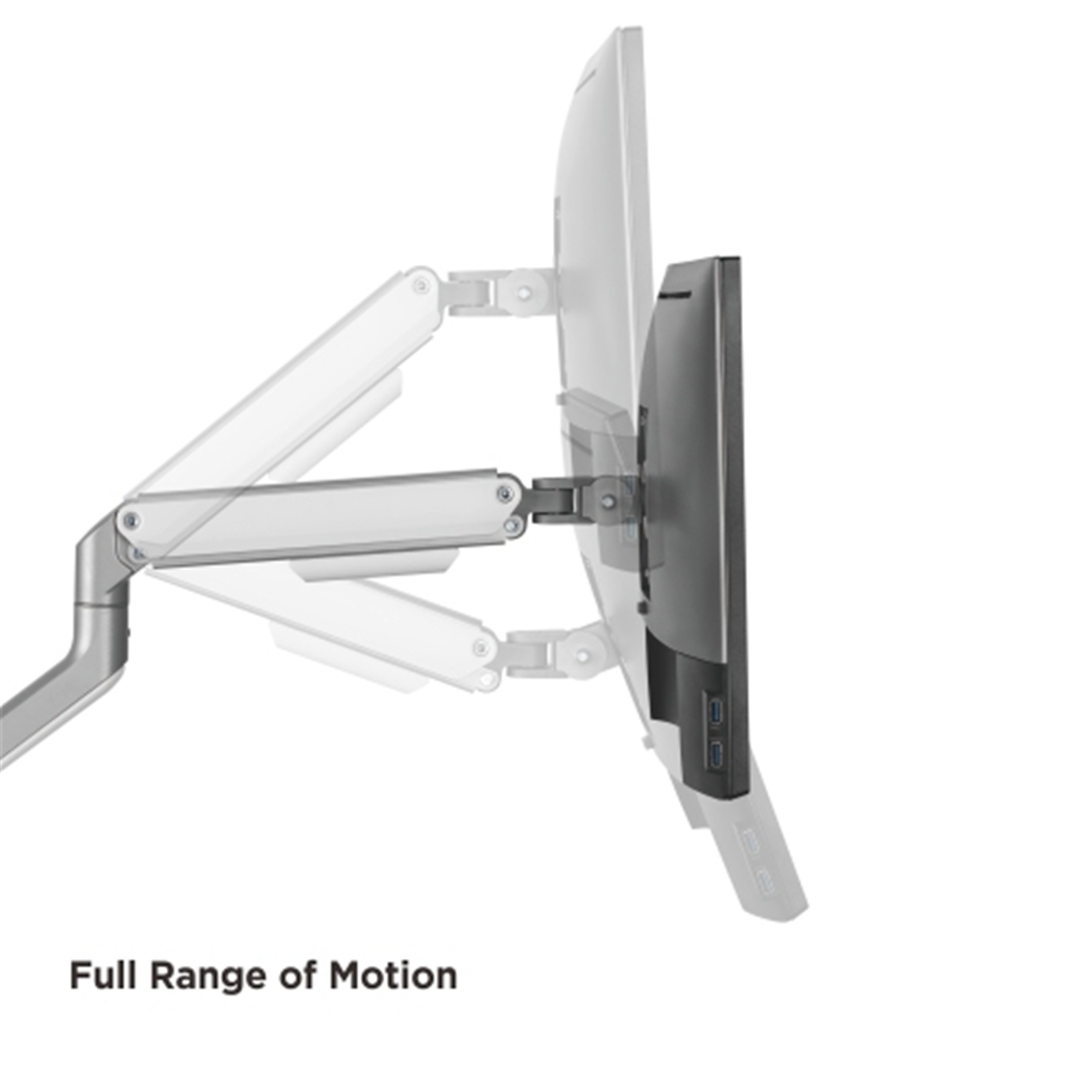

Spring-Assisted Mechanism

Allows to easily move up and down



Ease of Use

Self-adjusting counterbalance for most any monitors

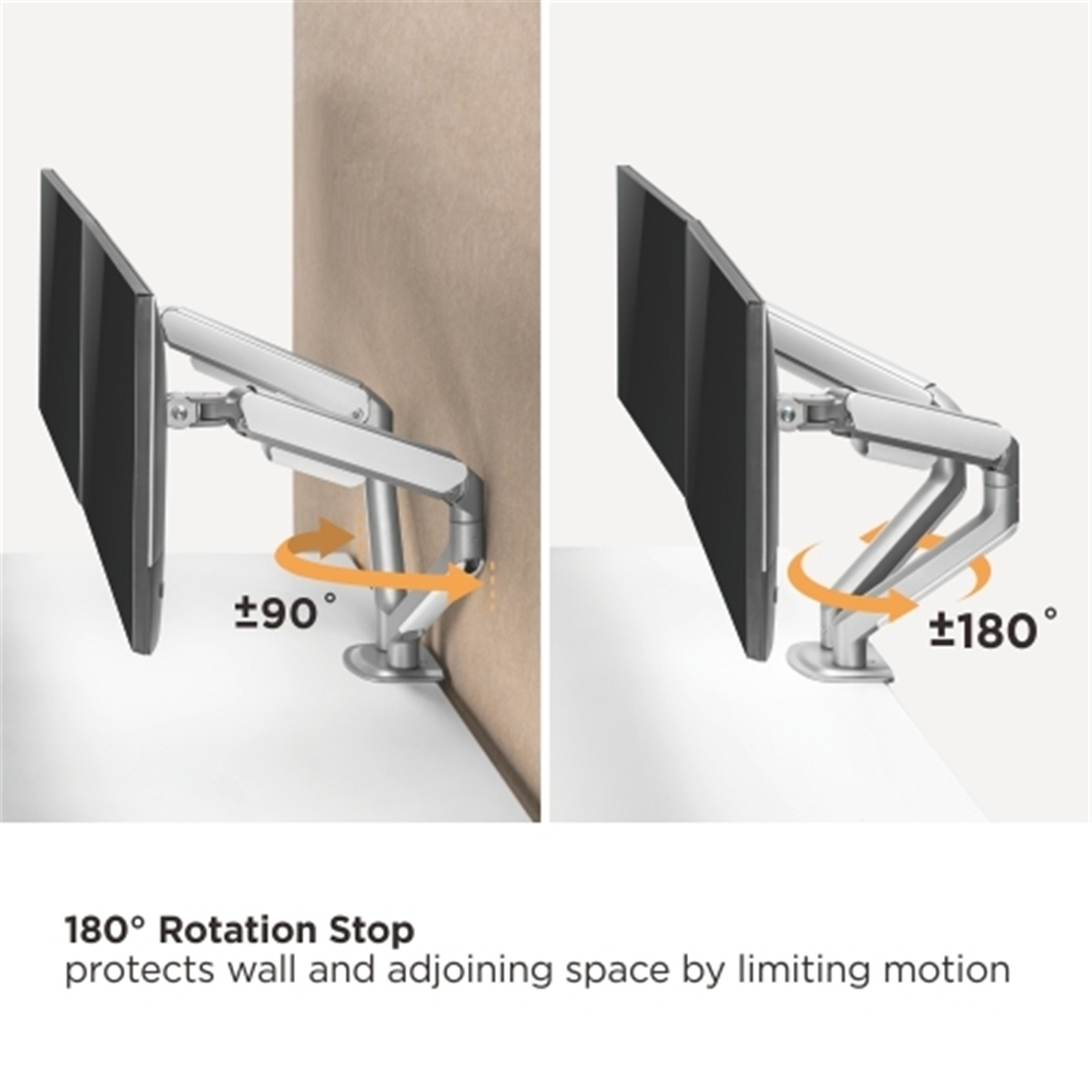

180° Rotation Stop

Prevents monitor arm from swinging into screens or walls



Keyhole Pattern

Allows for easy installation



Two Mounting Options

Both desk clamp and grommet are included

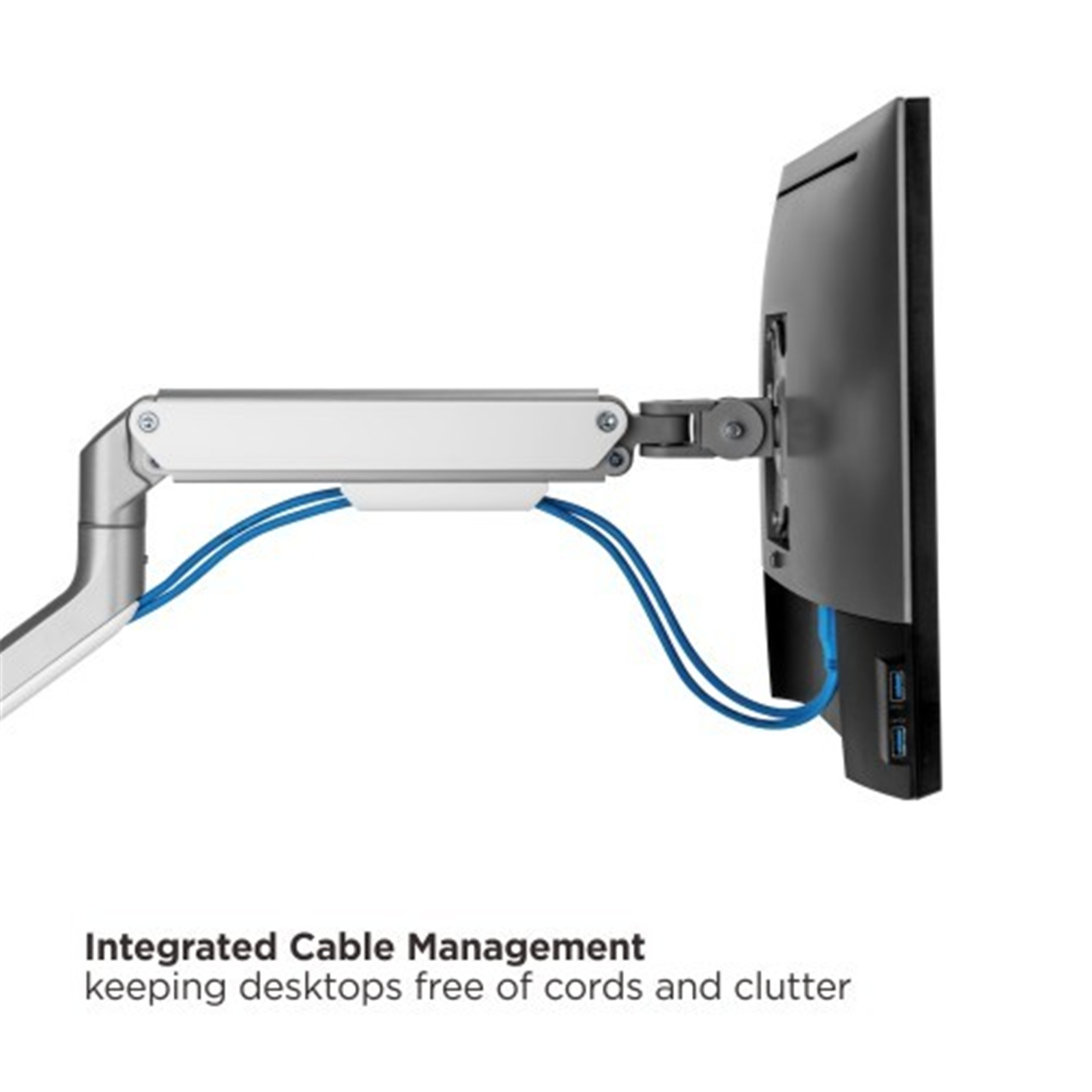

Built-in Cable Management

For an organized and neat workspace

Reduced Package Size

Relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)

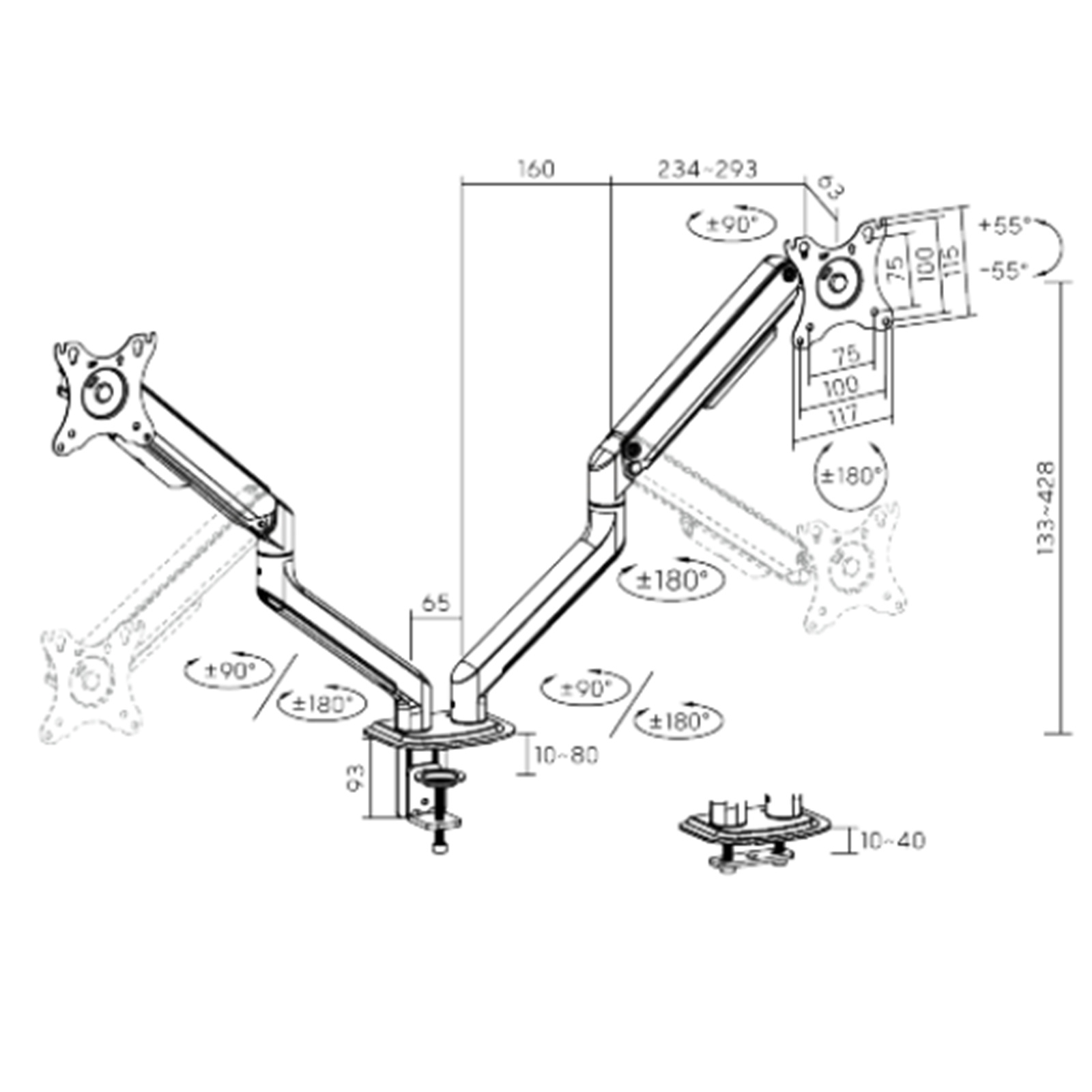

Specifications

Material

Aluminum,Steel,Plastic

Surface Finish

Powder Coating

Color

Space Grey & Wood,Space Grey,Matte Silver

Fit Screen Size

17"-32"

Weight Capacity (per screen)

2~9kg

Weight Capacity for Curved Screen (per screen)

N/A

Weight Capacity (CPU Holder)

N/A

VESA Compatible

75x75,100x100

Tilt Range

+55°~-55°

Swivel Range

+90°~-90°

Screen Rotation

+180°~-180°

Installation

Clamp,Grommet

Suggested Desktop Thickness

Clamp:10~80mm Grommet:10~40mm

Cable Management

Yes

Manufacturer Part No:
LDT63-C024
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
4.4 kg
PB Part No:
LUI1005
Product Model:
LDT63-C024
Warranty: 12 months *
