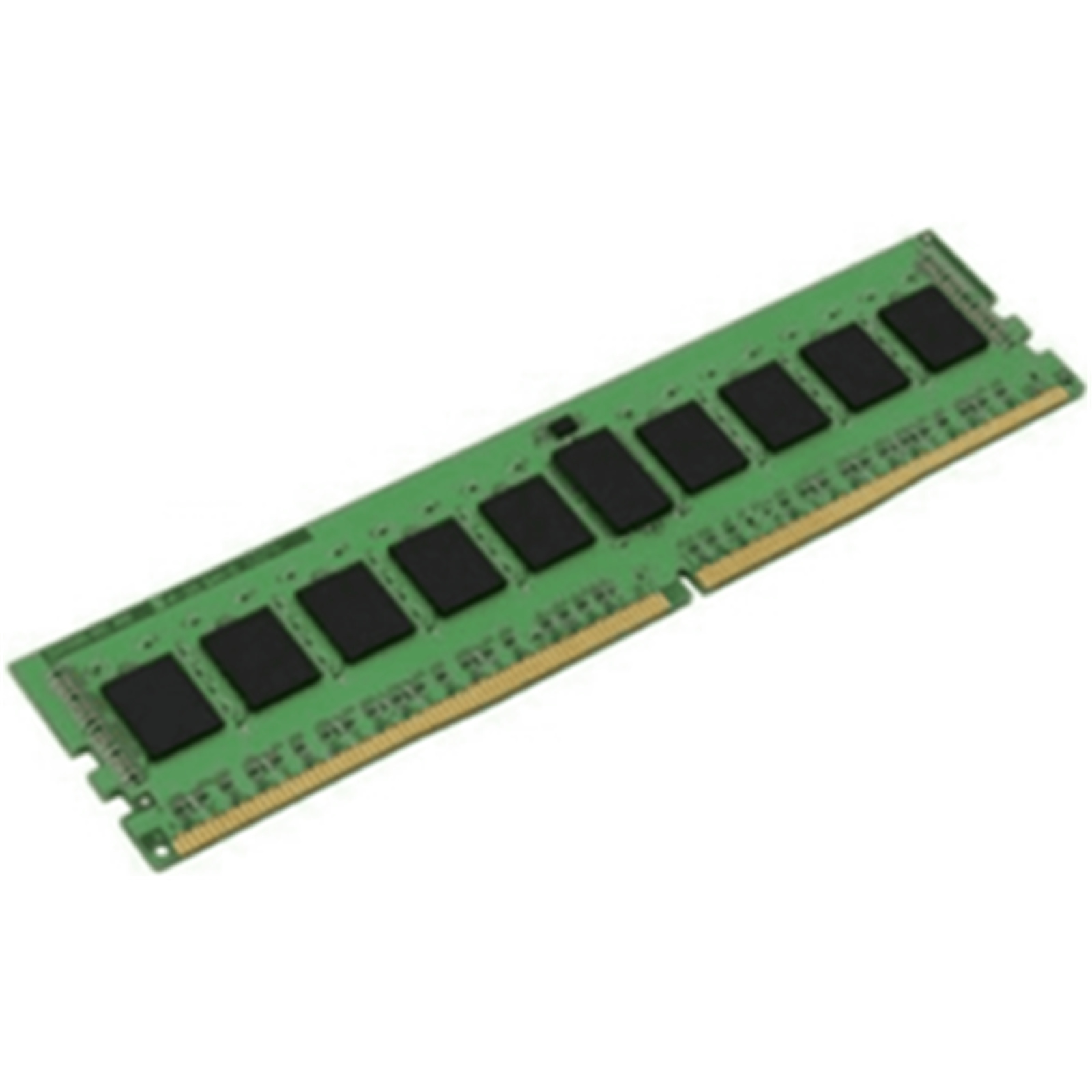

Kingston 8GB DDR4 Desktop RAM
3200Mhz - Non-ECC - CL22 - DIMM
Kingston 8GB DDR4 Desktop RAM
3200Mhz - Non-ECC - CL22 - DIMM
- Brand: Kingston
- MPN: KVR32N22S8/8
- Part #: MEMKIN1001791
- UPC: 740617296068
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"Well packaged and easy to install. Working perfectly with my existing memory chip."
"In it goes, works well, good value."
"Great plug in play. No issues once installed.. Sons games now run better"
COMBO DEALS: Buy Together and SAVE!







Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...
$105.00 +GST
$120.75


Transcend ESD310C 128GB Portable External SSD USB-C & USB-A - Read up to 1050MB/s
$47.00 +GST
$54.05


ADATA UV128 USB Flash Drive - 32GB - Black / Blue USB 3.2
$5.69 +GST
$6.54


Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50 +GST
$7.48
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Desktop RAM





Kingston 8GB DDR4 Desktop RAM 3200Mhz - Non-ECC - CL22 - DIMM
- Brand: Kingston
- MPN: KVR32N22S8/8
- Part #: MEMKIN1001791
- UPC:740617296068

Product URL: https://www.pbtech.co.nz/product/MEMKIN1001791/Kingston-8GB-DDR4-Desktop-RAM-3200Mhz---Non-ECC?qr=similar-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 4 | |
Auckland - Glenfield | 1 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 2 | |
Auckland - Newmarket | 4 | |
Auckland - Westgate | 9 | |
Auckland - Penrose | 1 | |
Auckland - Henderson (Express) | 1 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 2 | |
Tauranga | 3 | |
New Plymouth | 2 | |
Palmerston North | 3 | |
Petone | 0 | |
Wellington | 2 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
8GB DDR4 3200MT/s Non-ECC Unbuffered DIMM
DDR4 3200MT/s Non-ECC Unbuffered DIMM CL22 1RX8 1.2V 288-pin 8Gbit
This document describes ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers. SPECIFICATIONS
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board 12 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23" (31.25mm)
- RoHS Compliant and Halogen-Free
Specifications
CL(IDD)
22 cycles
Row Cycle Time (tRCmin) Refresh to Active/Refresh Command Time (tRFCmin)
45.75ns(min.)
Row Active Time (tRASmin) UL Rating
32ns(min.)
UL Rating
94 V-0
Operating Temperature
0°C to +85°C
Storage Temperature
-55° C to +100° C
