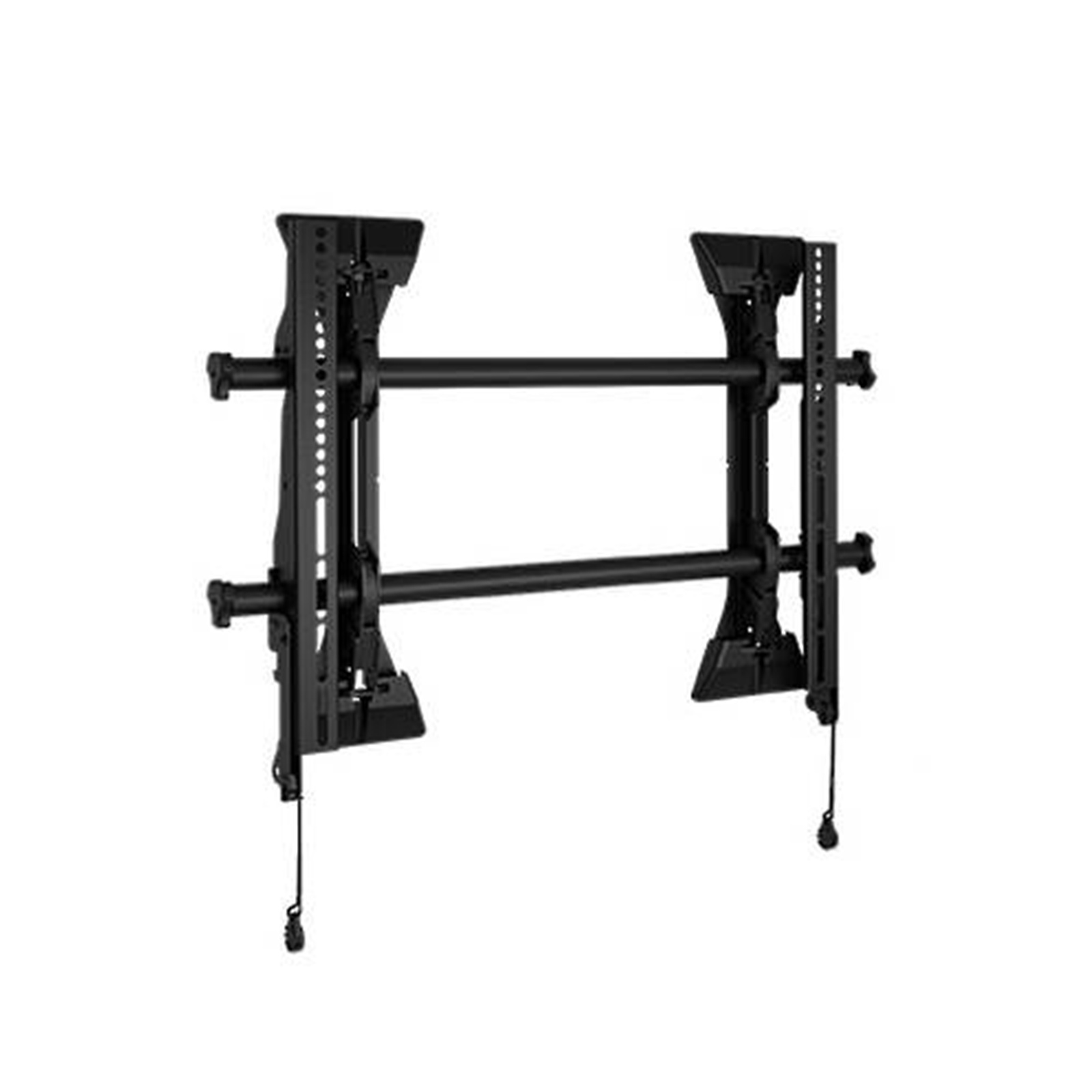

Chief MSM1U Medium Micro-Adjustable Fixed TV Mounts
Chief MSM1U Medium Micro-Adjustable Fixed TV Mounts
- Brand: Chief
- MPN: MSM1U
- Part #: MOACHI1196
- UPC: 841872163284
- Brand: Chief
- MPN: MSM1U
- Part #: MOACHI1196
- UPC: 841872163284
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Fixed Wall TV Mounts





Chief MSM1U Medium Micro-Adjustable Fixed TV Mounts
- Brand: Chief
- MPN: MSM1U
- Part #: MOACHI1196
- UPC:841872163284

Product URL: https://www.pbtech.co.nz/product/MOACHI1196/Chief-MSM1U-Medium-Micro-Adjustable-Fixed-TV-Mount?qr=similar-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 5 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
https://www.legrandav.com/Products/Mounts/Display-TV-Mounts/Fusion-Wall-Fixed-Series/MSM1U
Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired, Fusion® fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Features:
- Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
- Centerless Shift provides post-installation lateral shift for limitless centering
- Set screws keep the mount rigid, stable and secure throughout the life of the installation
- ClickConnect offers an audible click when the screen safely engages with the mount
- Built-in cable stand provides easy access under the screen
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Multiple installation options for various stud distances
- Exclusive nesting spacers can be stacked to achieve any depth
- Quick-Store Cords use magnets to easily store and access pull cords
- Improved cable management with new end caps
- Integrated Security
- Ships with a custom hardware kit that can be hung from mount rails if installing in stages
- Easy Open box with less waste to throw away
Product Specifications:
- Certifications: TUV, UL Listed, OSHPD Approved
- Colour: Black
- Lateral Shift: 12.9" (328 mm)
- Mounting Pattern Compatibility (Universal Versions):100 x 100 mm - 642 x 400 mm
- Orientation: Landscape
- Overall Dimensions (H x W x D): 18.3 x 25.8 x 2" (464 x 654 x 51 mm)
- Shipping Weight: 3.6 kg (8 lbs)
- Solution Type: Universal
- Typical Screen Sizes: 32 - 65"
- Wall Stud Compatibility In: 16" - 24" (406 mm - 610 mm)
- Weight Capacity: 125 lbs (56.7 kg)
- Application: Wall
Specifications
Certifications
UL Listed, OSHPD Approved, TÜV Certified
Color
Black
Lateral Shift
12.9" (327 mm)
Manual Height Adjustment
1" (25 mm)
Mounting Pattern Compatibility (Universal Versions)
100 x 100 mm - 642 x 400 mm
Overall Dimensions (H x W x D)
18.25 x 25.75 x 2" (464 x 654 x 51 mm)
Shipping Weight
8 kg
Solution Type
Universal
Typical Screen Sizes
32 - 65"
Wall Stud Compatibility In
16" - 24" (406 mm - 610 mm)
Weight Capacity
125 lbs (56.7 kg)
Orientation
Landscape
