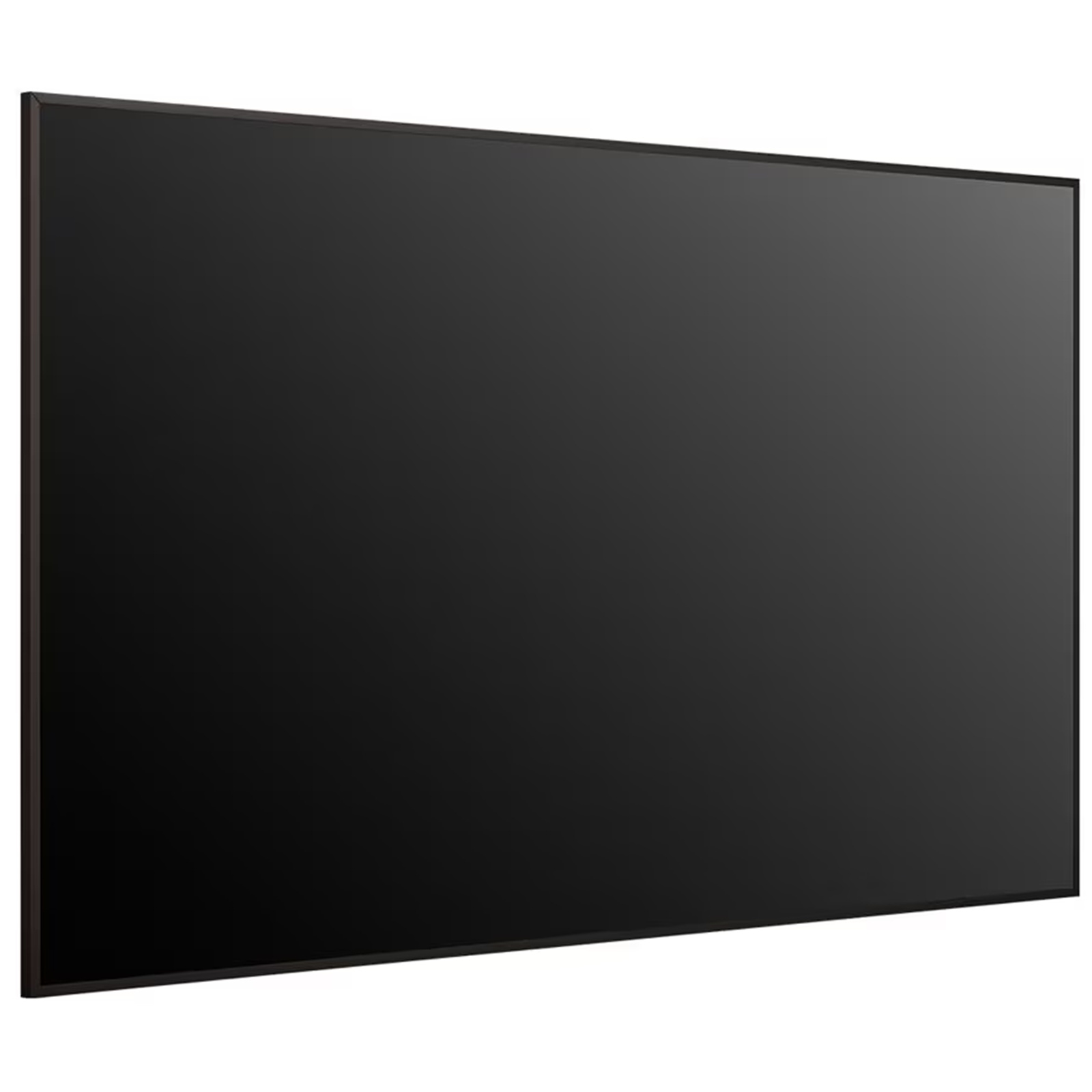

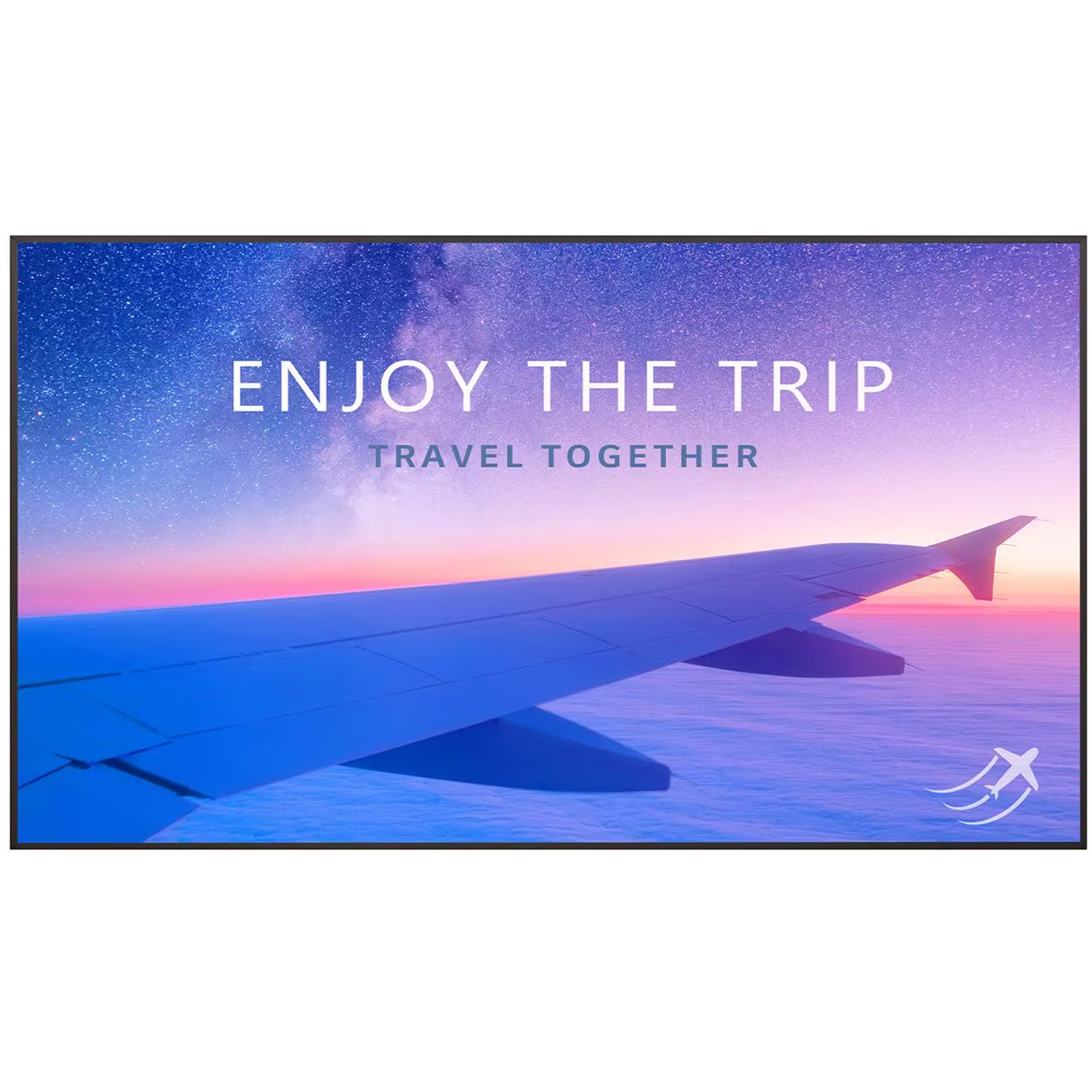

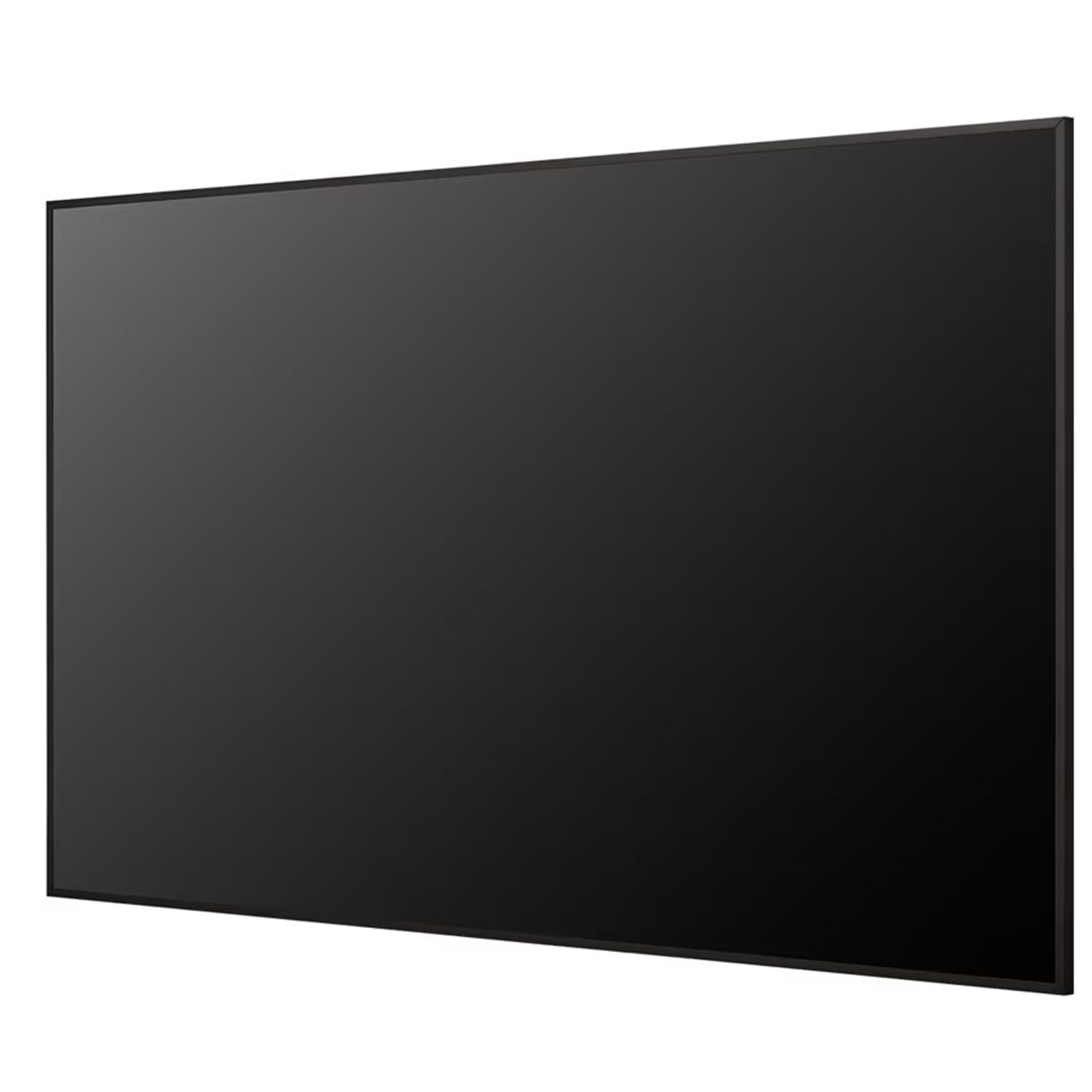

LG 75UH7N-M 75" UHD High Brighness Display , 700nit , 24x7 - Landscape & Portrait with Auto Screen Rotation, SoC With WebOS 6.0, 600x400mm VESA
Out of stock
LG 75UH7N-M 75" UHD High Brighness Display , 700nit , 24x7 - Landscape & Portrait with Auto Screen Rotation, SoC With WebOS 6.0, 600x400mm VESA
- Brand: LG
- MPN: 75UH7N-M
- Part #: MONLGS37525
- UPC:
- Brand: LG
- MPN: 75UH7N-M
- Part #: MONLGS37525
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Large UHD Signage Display with LG webOS Platform and Advanced Security
* All images in this page are for illustrative purposes only.
High Brightness
The UH7N-M display, with a great brightness of 700 nits, clearly delivers content even in bright stores.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.
* 75-inch model supports 60Hz

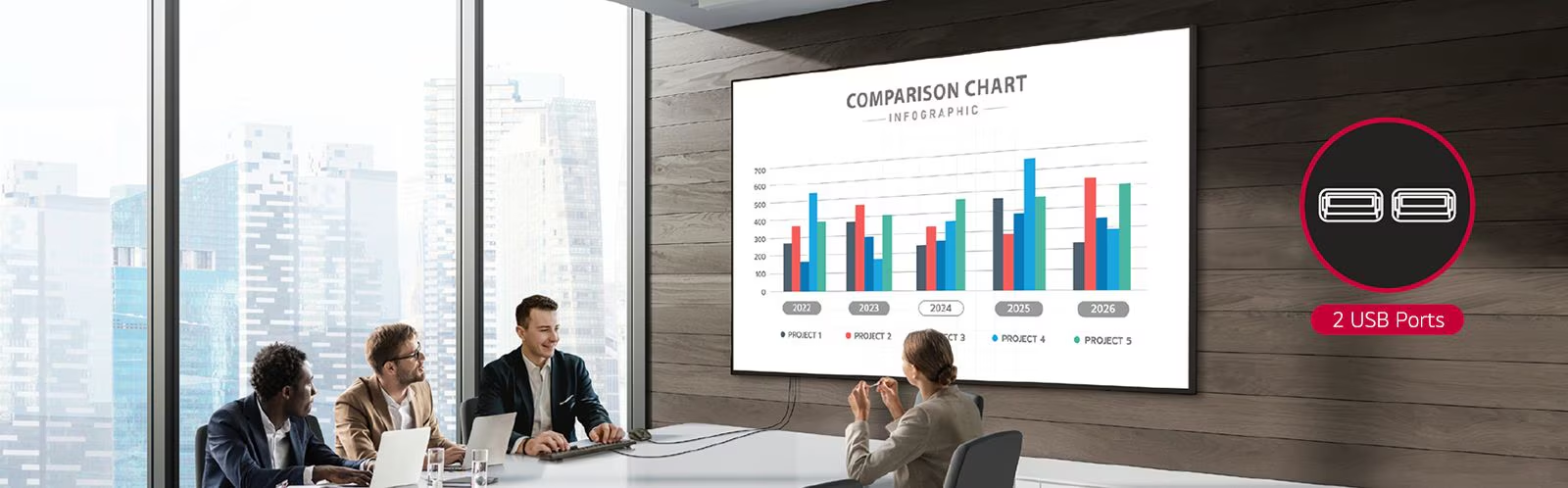

Versatile Operation with Multi-USB
With support for two USB ports, UH7N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

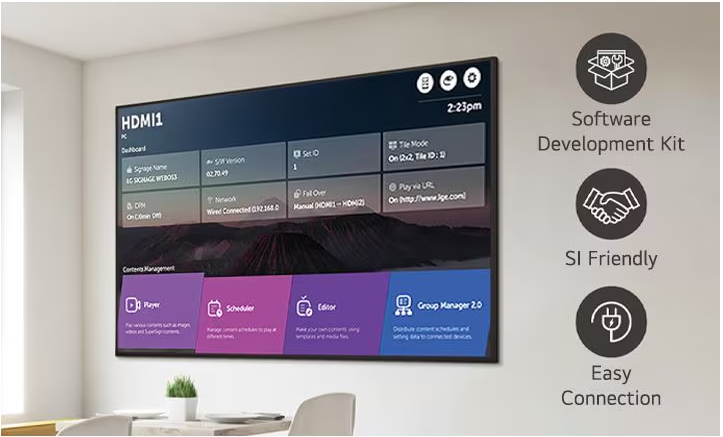

Convenient webOS Platform
The UH7N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH7N-M is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.

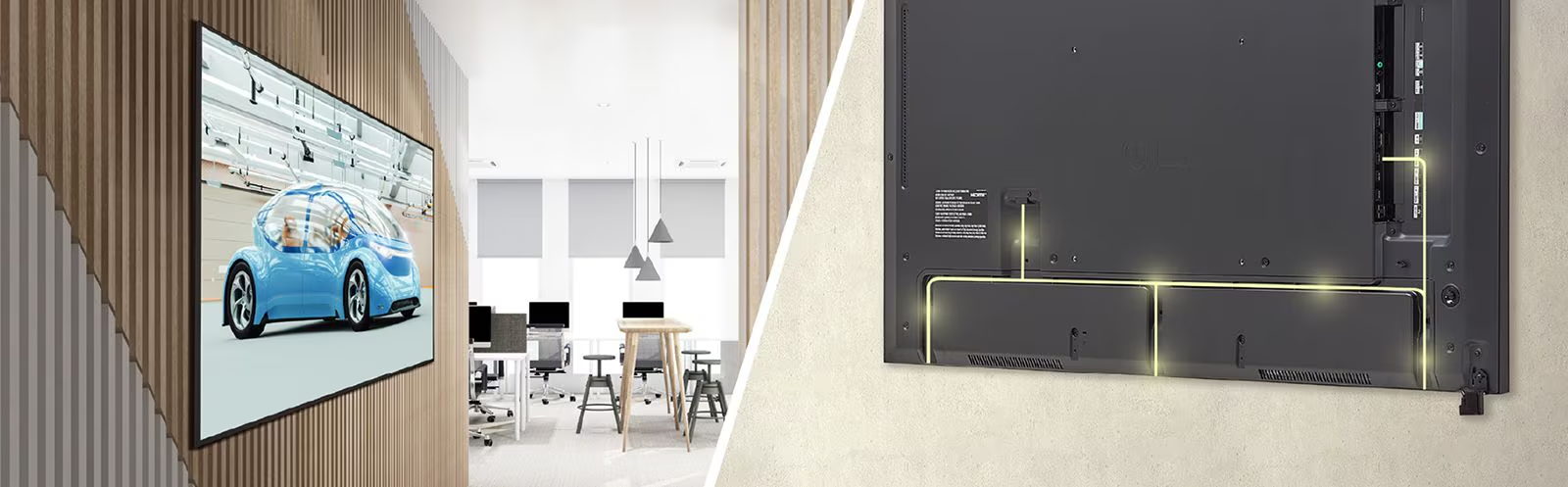

Design for Space Utilization
Designed with thin bezels and simple cable management, the UH7N-M saves space.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Enhanced Security Features
The UH7N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Standalone Displays
Samsung QM32C 32" Full HD Digital Signage Display -- 400Nit, ...
LG 110UM5K-B 110" UHD Digital Signage Display - 16x7 , 500nit , ...
LG UR640S 75" 4K Commercial TV
Samsung QB43C 43" UHD Digital Signage Display - 16x7, 350Nit
Samsung QM55B-T 55" UHD Touch Screen
LG 75UH7N-M 75" UHD High Brighness Display , 700nit , 24x7 - Landscape & Portrait with Auto Screen Rotation, SoC With WebOS 6.0, 600x400mm VESA
- Brand: LG
- MPN: 75UH7N-M
- Part #: MONLGS37525
Product URL: https://www.pbtech.co.nz/product/MONLGS37525/imglib/dd/icon_stock_close.png
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Large UHD Signage Display with LG webOS Platform and Advanced Security
* All images in this page are for illustrative purposes only.
High Brightness
The UH7N-M display, with a great brightness of 700 nits, clearly delivers content even in bright stores.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
Eye-catching Large Screen
A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.
* 75-inch model supports 60Hz
Versatile Operation with Multi-USB
With support for two USB ports, UH7N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.
High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Convenient webOS Platform
The UH7N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Durability that Provides Reliability
Optimized for business environments, the UH7N-M is guarded against the potential impact of salt, dust, iron powder and humidity through the implementation of conformal coating on the power board. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.
Design for Space Utilization
Designed with thin bezels and simple cable management, the UH7N-M saves space.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.
Enhanced Security Features
The UH7N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, guarding important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Specifications
Panel
Screen Size
75"
Panel Technology
ADS
Back Light Type
Edge
Aspect Ratio
16 : 9
Native Resolution
3,840 x 2,160 (4K UHD)
Refresh Rate
60 Hz
Brightness (Typ.)
700 nit
Contrast Ratio
1,200 : 1
Dynamic CR
1,000,000 : 1
Color gamut
BT709 95%
Viewing Angle (H x V)
178 × 178
Color Depth
1.07G (8bits + FRC)
Response Time
8m (G to G)
Surface Treatment (Haze)
25 %
Life Time (Min.)
50,000 Hrs
Operation Hours (Hours / Days)
24 / 7
Portrait / Landscape
Yes / Yes
Mechanical Specification
Bezel Color
Black
Bezel Width
12.9mm (Even)
Weight (Head)
35.7 kg
Packed Weight
44 kg
Monitor Dimensions (W × H × D)
1,679.5 × 958.7 × 29.7 mm (without IR, Handle)

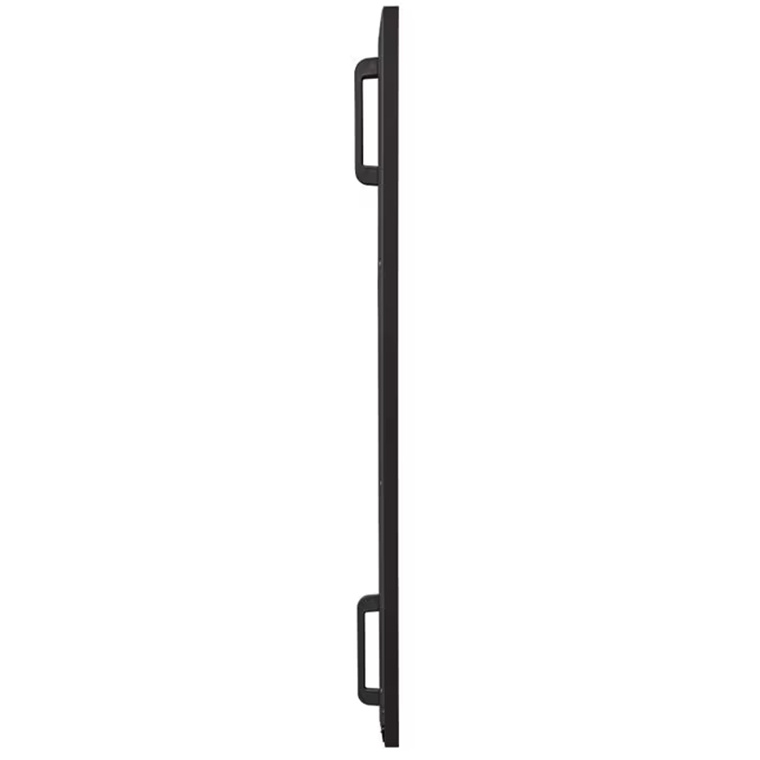

Handle
Yes

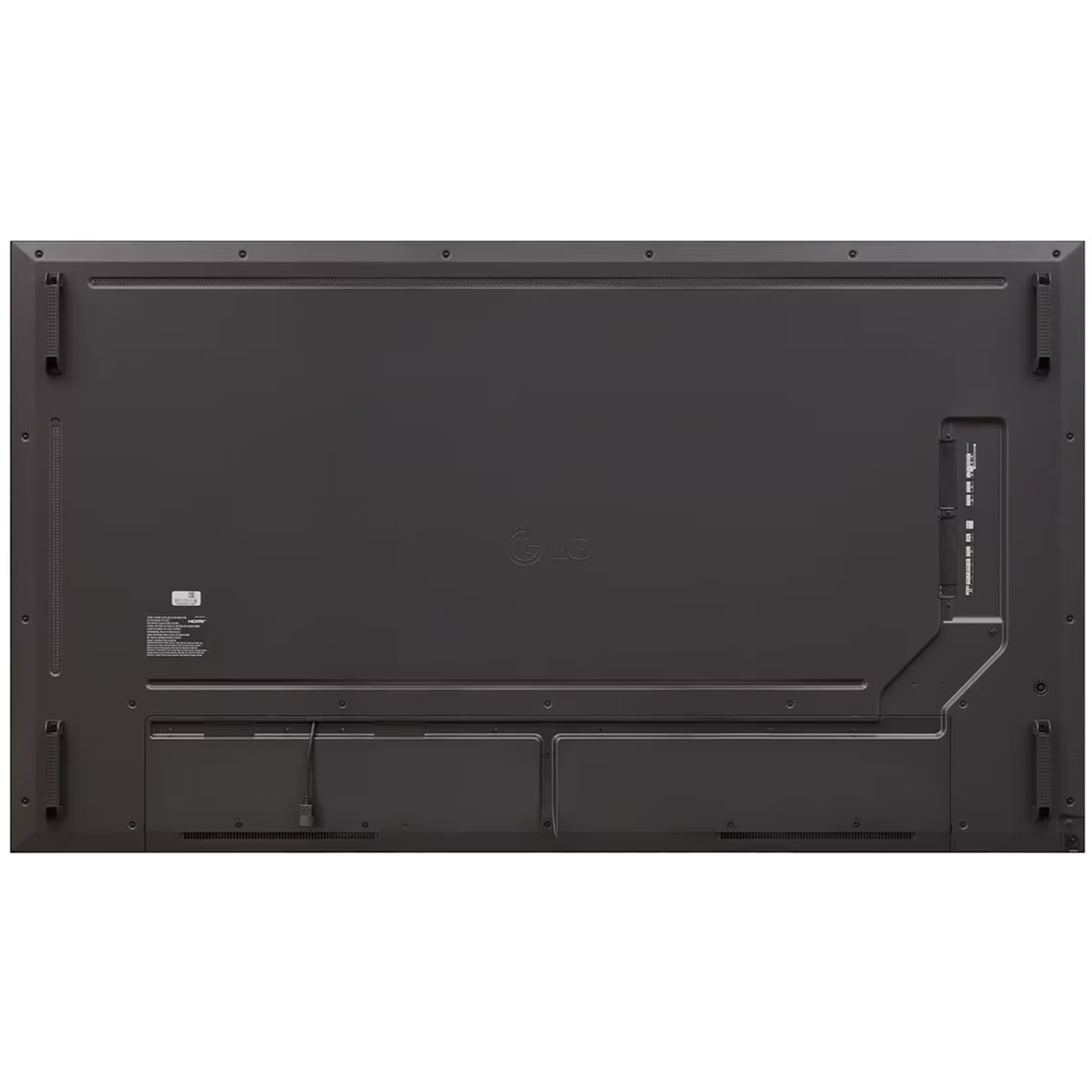

VESA™ Standard Mount Interface
600 × 400 mm
Key Feature
Key Feature
Internal Memory (eMMC) 16 GB, Wi-Fi & Bluetooth, Temperature Sensor, Auto Brightness Sensor (External IR), Acceleration (Gyro) Sensor, Local Key Operation, webOS 6.0, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Booting Logo Image, No Signal Image, RS-232C Sync, Local Network Sync, PIP, PBP (4), Screen Share, Video Tag (4), Play via URL, Screen Rotation, External Input Rotation, Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, Cisco Certification (TBD), Crestron Connected®, Smart Energy Saving, PM Mode, Wake on LAN, Network Ready, BEACON, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
Environment Conditions
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power
Power Supply
AC 100-240 V ~, 50/60 Hz
Power Type
Built-In Power
Power Consumption
Typ./Max.
160 W (TBD) / 247W (TBD)
Smart Energy Saving (70%)
112 W (TBD)
DPM
0.5 W
Power off
0.5 W
BTU (British Thermal Unit)
546 BTU/Hr (Typ.), 843 BTU/Hr (Max) (TBD)
Standard (Certification)
Certification
BS476 Part7 : Class 1 (case top / back cover)
EN13501-1 : Class A1 (case top) / Class A2 (back cover)
Safety
CB / NRTL
EMC
FCC Class "B" / CE / KC
ePEAT (US Only)
Yes (Carbon "Measured" (TBD))
ErP / Energy Star
No / Yes
Software Compatibility
Software Compatibility
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare

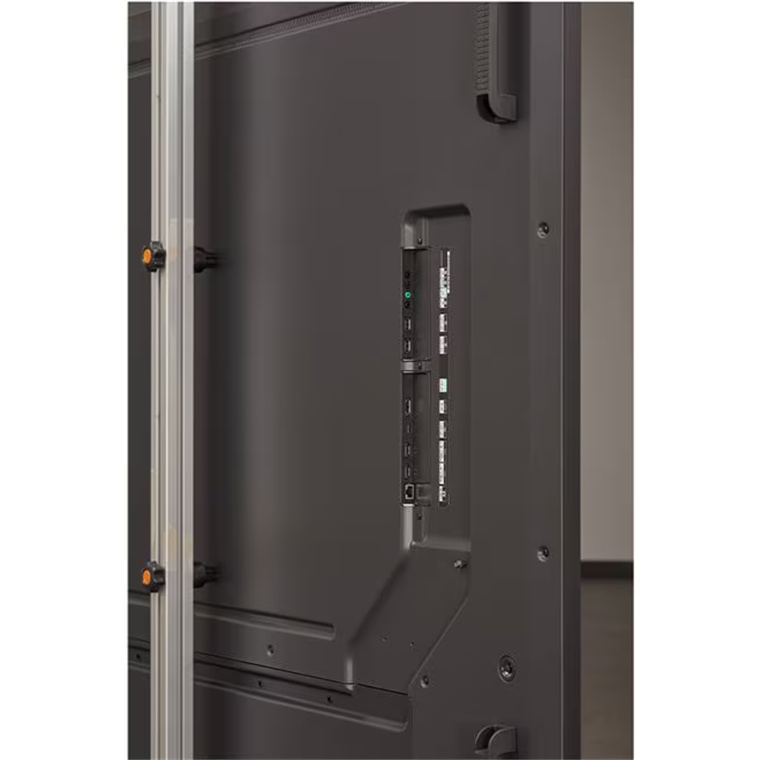

Connectivity
Input
HDMI In (2, 3,840 × 2,160 @ 60 Hz, HDCP 2.2/1.4), DP In (USB-C (DP Alternate Mode) Shared, 3,840 × 2,160 @ 60 Hz, HDCP 2.2/1.3), RS-232C In (4 Pin Phone-jack), RJ45 (LAN) In, IR In, USB In USB2.0 Type A(2), USB2.0 Type C ((1), without PD funtion)
Output
Audio Out, RS-232C Out (4 Pin Phone-jack)
Sound
Speaker
10 W × 2 (Built-in)
Language
Language
English, French, German, Spanish, Italian, Korean , Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Türkçe, Arabic
Accessory
Basic
Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender, USB-C Cable, Cable Holder (2 ea), AC Cord Holder (1 ea)
Optional
Slim Wall Mount (WB21LM A/B), Normal Wall Mount (OLW480 A/B) Wall Mount Adapter (AM-B330S)
Special Feature
IP Rating
IP5X
Conformal Coating (Power Board)
Yes (Partial space coating)
