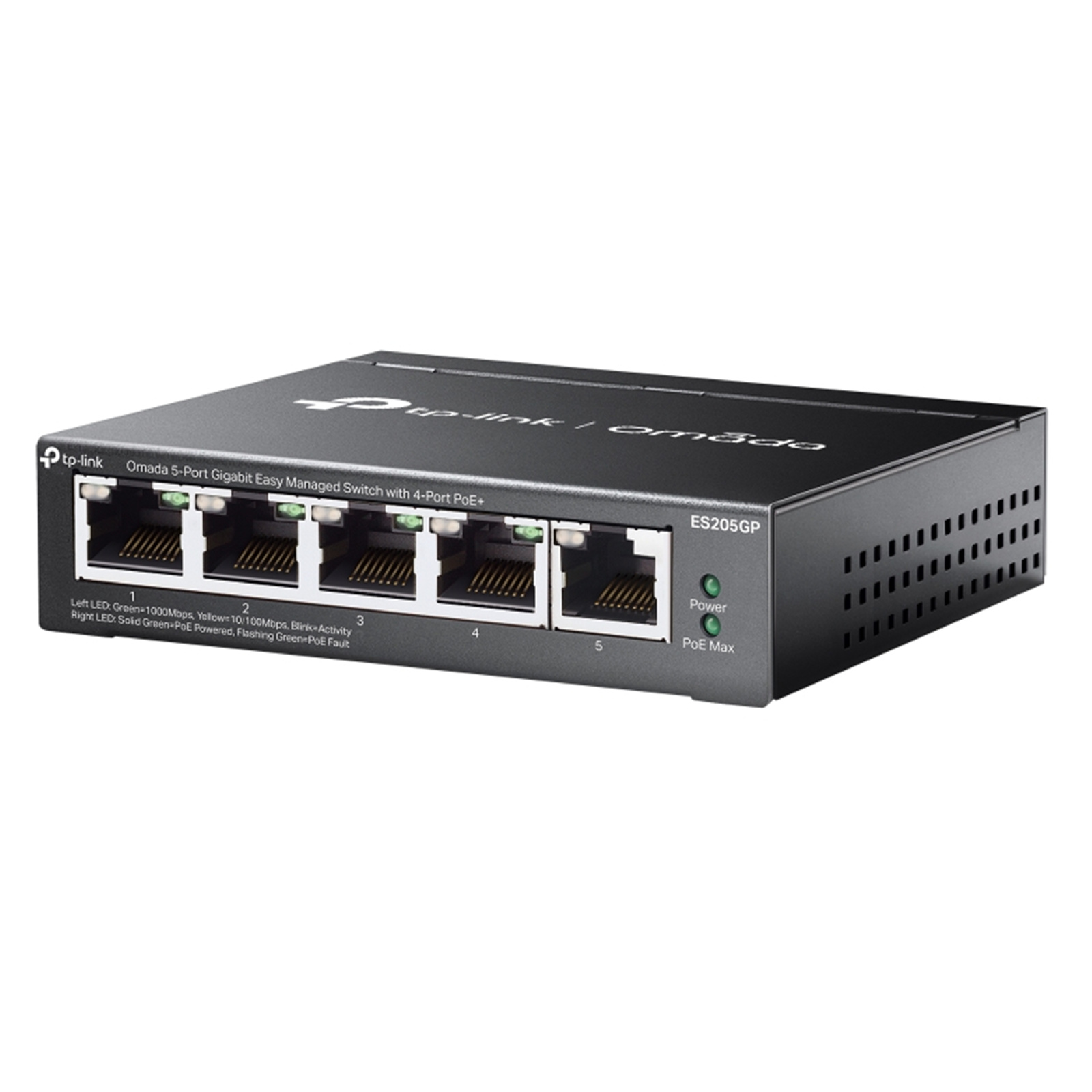

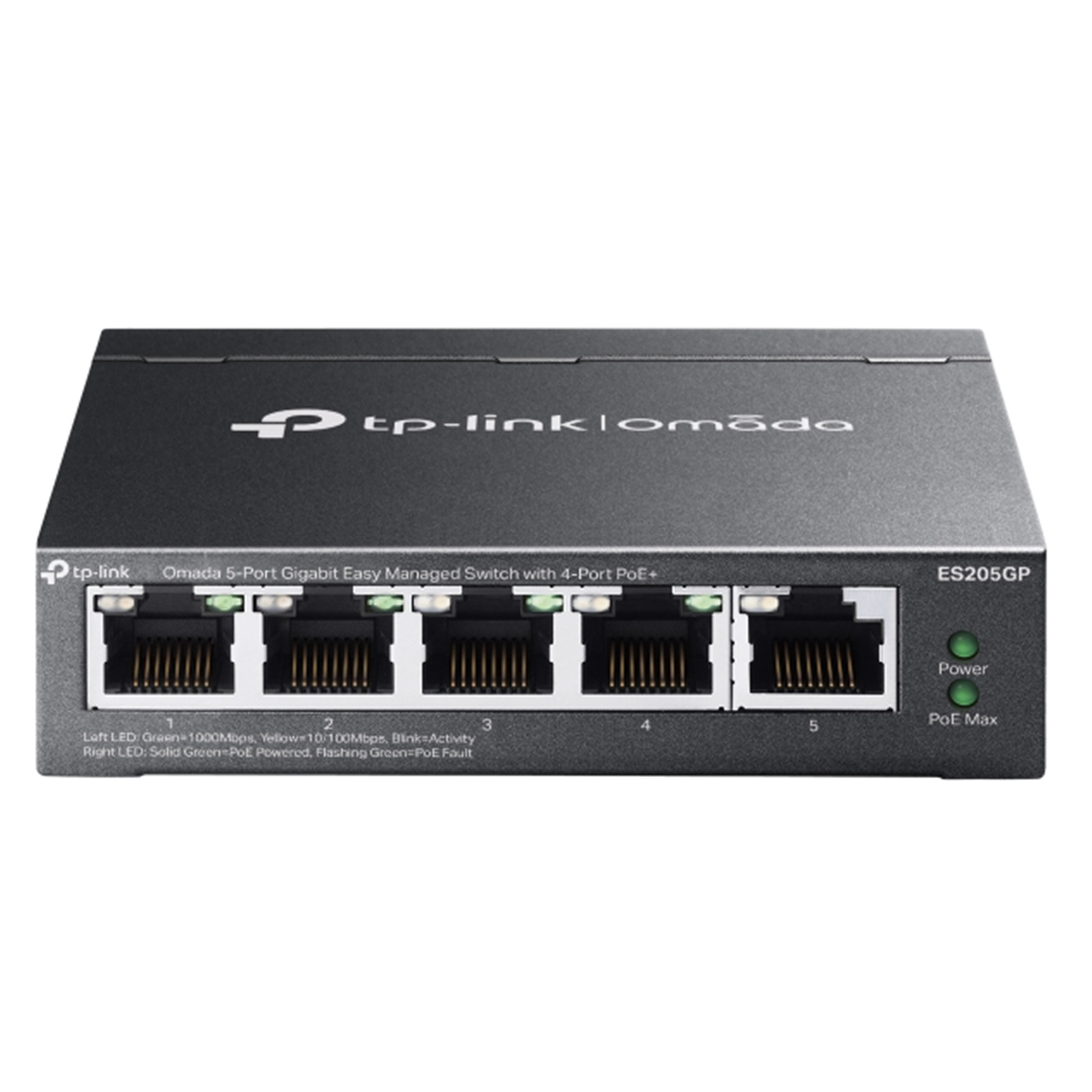

TP-Link Omada ES205GP 5-Port Gigabit Easy Managed PoE Switch (65W) - 1GbE PoE+ x4

  • Brand: TP-Link
  • MPN: ES205GP
  • Part #: NETTPL2051
  • UPC:
PB Tech price
$ 86 .09 $ 99 .00
 +GST  inc GST


Click & Collect: Available from 7 stores.
Select your store to check availability
Delivery: Order now and it ships on 16 Sep When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$86.09  +GST
$99.00
  • Brand: TP-Link
  • MPN: ES205GP
  • Part #: NETTPL2051
  • UPC:

10 Gigabit

No

Form Factor

Desktop

10 Gigabit Ports

0 Ports

Management Level

Managed L2

Number of Ports

5 Ports

PoE

Yes

PoE Ports

5 Ports

PoE Budget

115 Watts

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the TP-Link Omada ES205GP 5-Port Gigabit Easy Managed PoE Switch (65W) -...
TP-Link Omada ES205GP 5-Port Gigabit Easy Managed PoE Switch (65W) - 1GbE PoE+ x4
Total:
$ 92 .29
 +GST
$ 106 .13
Buy together and save $0.69 $0.79
Dynamix A-RJ45-C6N Cat6 Rated RJ45 8C Joiner,  2-Way (2x RJ45 Sockets)
Dynamix A-RJ45-C6N Cat6 Rated RJ45 8C Joiner,  2-Way (2x RJ45 Sockets)

$6.20  +GST

$7.13

You save 10% You save 10%

Features

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

- 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Abundant Functions for Reliable Surveillance Networking

Multiple Application Scenarios

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Specifications

HARDWARE FEATURES

Interface

- 5× 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at PoE+ and 802.3af PoE)
- Auto-Negotiation/Auto MDI/MDIX

Fan Quantity

Fanless

Installation

- Desktop
- Wall Mount

Physical Security Lock

Yes

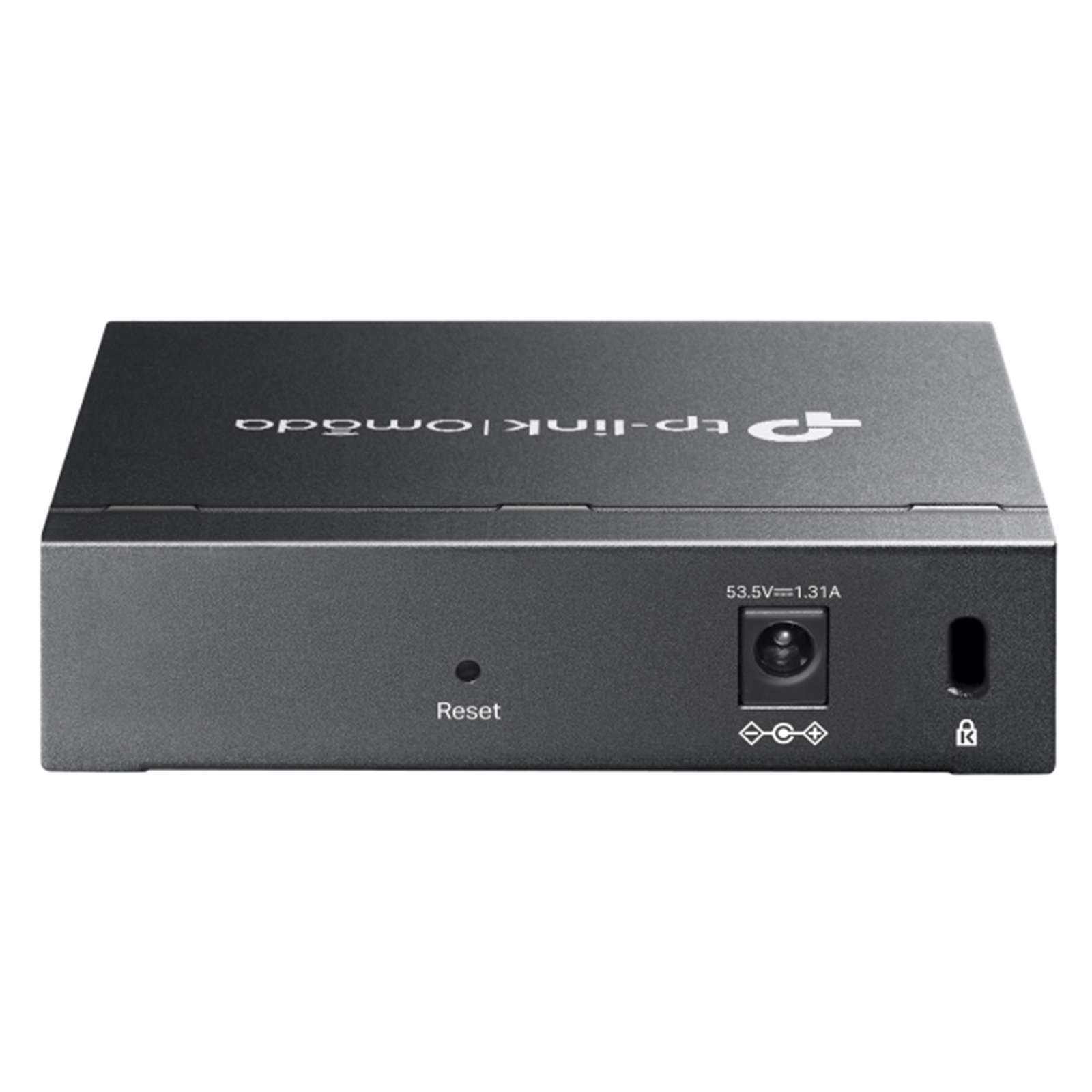

Power Supply

DC Power Adapter (Output: 53.5 VDC/ 1.31 A)

PoE Ports (RJ45)

- Standard: 802.3af PoE and 802.3at PoE+ compliant
- PoE Ports: 4 ports
- PoE Budget: 65 W available for all PoE+ ports, 30W max per port
- PoE Auto Recovery‡
- Up to 250m PoE transmission distance**

Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

PERFORMANCE

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

8K

Packet Buffer Memory

4 Mbit

Jumbo Frame

15 KB

SOFTWARE FEATURES

Quality of Service

- Port-based/802.1p/DSCP QoS
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rating Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?

L2 Features

- Static Link Aggregation
- Loop Prevention / Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP

L2 Multicast

- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave

VLAN

- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

Transmission Method

Store-And-Forward

MANAGEMENT

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller

Management Features

- Web-based GUI
- DHCP Client
- Cable Diagnostics
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Unified Configuration†

OTHERS

Certification

FCC, CE, RoHS

Package Contents

- ES205GP
- Power Adapter
- Installation Guide
- Rubber Feet

Environment

- Operating Temperature: 0?~40? (32?~104?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

Manufacturer Part No:
ES205GP
Brand:
Product Type:
5-Port Gigabit Easy Managed PoE Switch (65W)
UPC
-
Product Family:
Omada
Shipping Weight:
0.75 kg
PB Part No:
NETTPL2051
Product Model:
ES205GP
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
