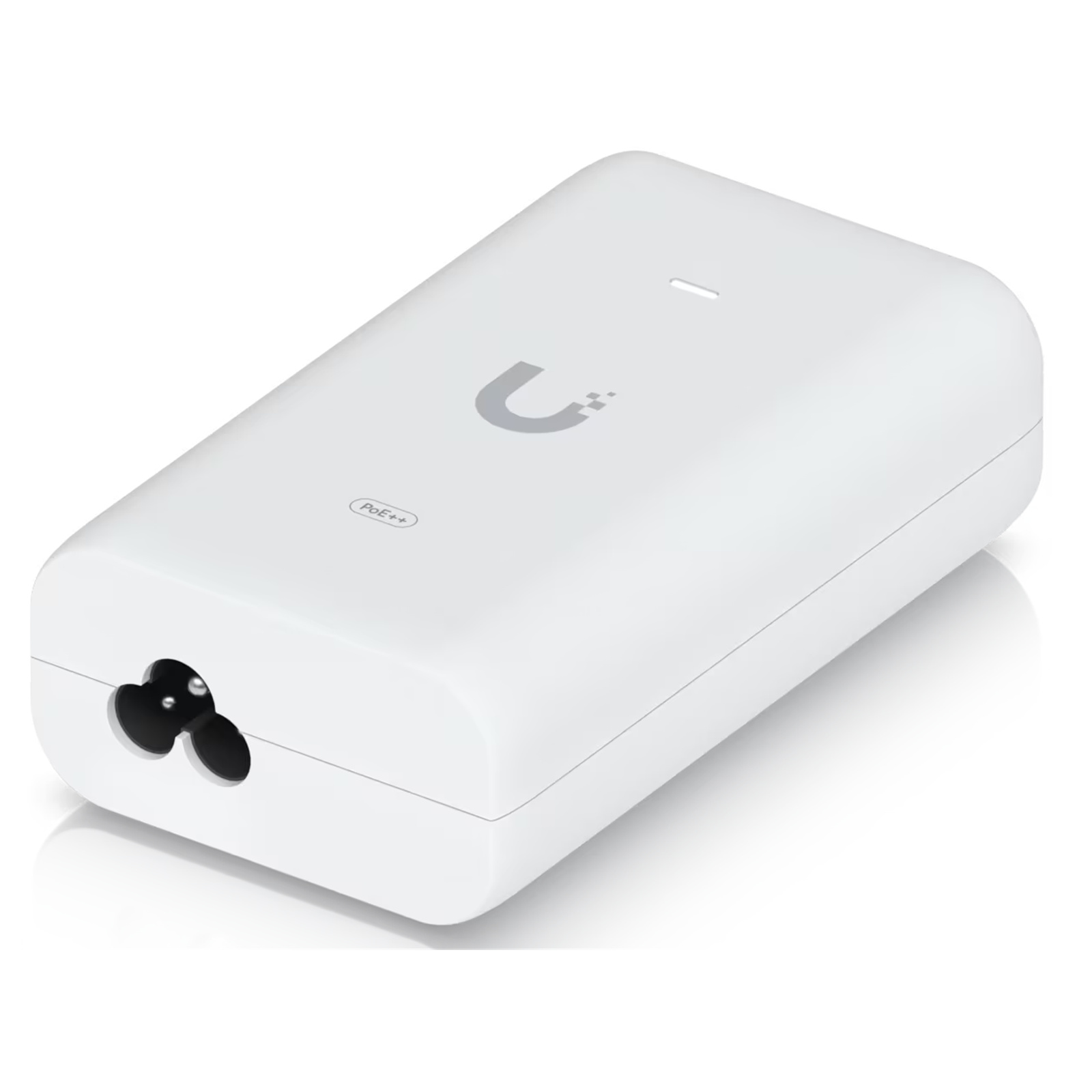

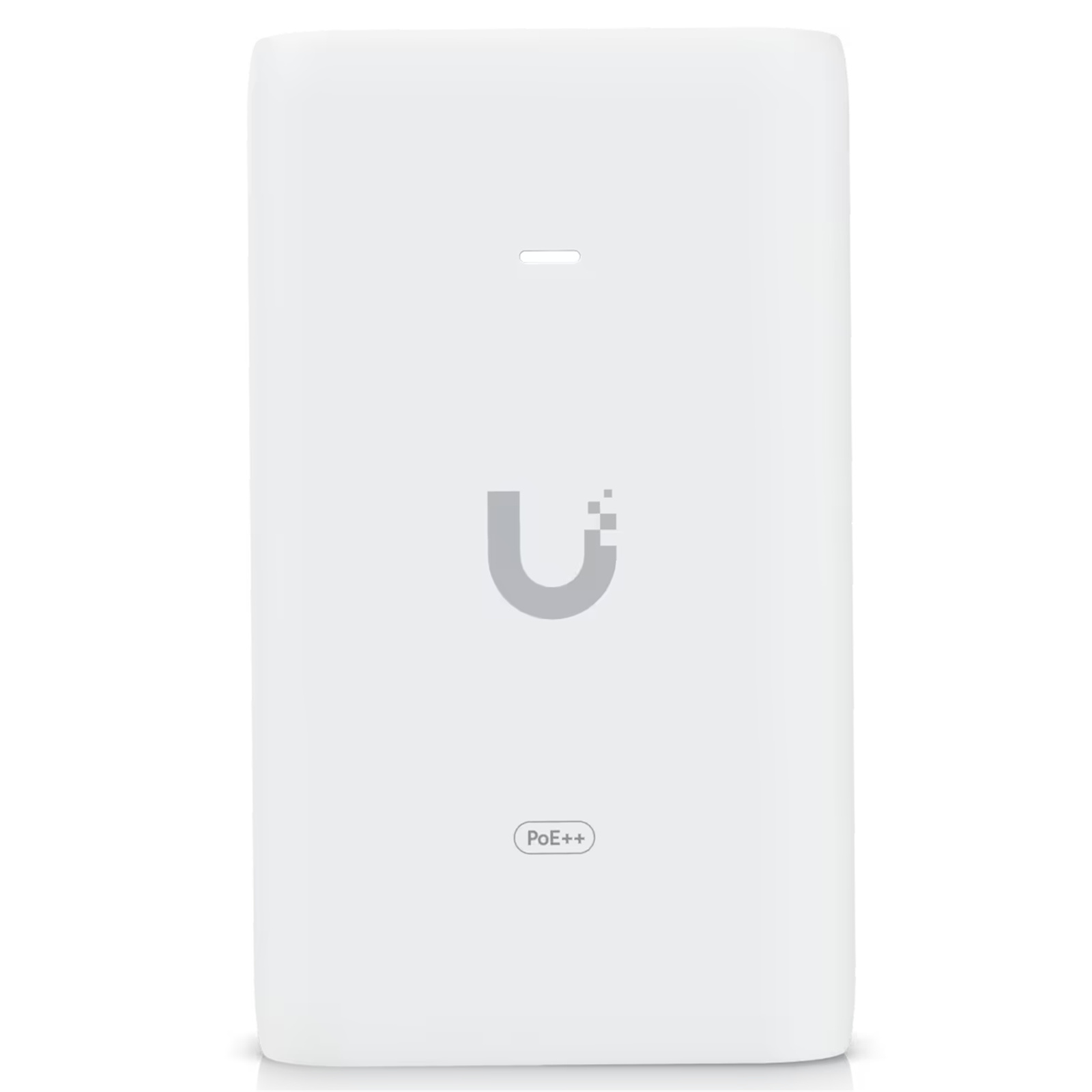

Ubiquiti Unifi UACC-PoE++-10G 60W 10GbE PoE++ Adapter (54V DC / 1.12A)
Ubiquiti Unifi UACC-PoE++-10G 60W 10GbE PoE++ Adapter (54V DC / 1.12A)
- Brand: Ubiquiti
- MPN: UACC-PoE++-10G
- Part #: NETUBI8801
- UPC: 810084699515
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"Just make sure you do not exceed its energy stats"
"Purchased this to power my Ubiquity Flex 2.5G 8 PoE 10Gb switch. It works fine and also powers a U6-LR and a small Flex Switch of the PoE ports of the switch.
There are much more e ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular POE Splitters / Injectors





Ubiquiti Unifi UACC-PoE++-10G 60W 10GbE PoE++ Adapter (54V DC / 1.12A)
- Brand: Ubiquiti
- MPN: UACC-PoE++-10G
- Part #: NETUBI8801
- UPC:810084699515

Product URL: https://www.pbtech.co.nz/product/NETUBI8801/Ubiquiti-Unifi-UACC-PoE-10G-60W-10GbE-PoE-Adapter?qr=popular_related_products
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 2 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 5+ | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
- Delivers up to 60W of PoE++
- Surge, peak pulse, and overcurrent protection
- Contains RJ45 data input, AC cable with earth ground, and PoE++ output
- LED indicator for status monitoring
Specifications
Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output voltage
54V DC @ 1.12A
LAN activity indicator
No
Gigabit LAN port
Yes, up to 10 GbE
Remote reset capability
No
Reset button
No
Rated voltage
100-240V AC @ 50/60Hz
Input current
1.5A max.
Inrush current
<150A peak @ 230V AC
Efficiency
>88%
Output ripple
1% max.
Switching frequency
65 kHz
Line regulation
= 2%
Load regulation
= 5%
2-pair powering
No
4-pair powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / PoE
RJ45 shielded socket
Surge protection
Difference and common mode
Clamping protection
11V data, 60V power
Max. surge discharge
1500A (8/20 µs) power
Peak pulse current
36A (10/1000 µs) data
Shunt capacitance
<5 pF data
Response time
<1 ns
Max. PoE+ wattage per port by PSE
60W
Ambient operating temperature
0 to 40° C (32 to 104° F)
Storage temperature
-30 to 70°C (-22 to 158° F)
Ambient operating humidity
10 to 95% noncondensing
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
NDAA Compliant
Yes
