Supermicro 740W 1U Redundant Power Supply
Platinum - Single Output
Supermicro 740W 1U Redundant Power Supply
Platinum - Single Output
- Brand: Supermicro
- MPN: PWS-741P-1R
- Part #: PSUSPM74101
- UPC: 672042090778
- Brand: Supermicro
- MPN: PWS-741P-1R
- Part #: PSUSPM74101
- UPC: 672042090778
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Server Power Supplies





Supermicro 740W 1U Redundant Power Supply Platinum - Single Output
- Brand: Supermicro
- MPN: PWS-741P-1R
- Part #: PSUSPM74101
- UPC:672042090778

Product URL: https://www.pbtech.co.nz/product/PSUSPM74101/Supermicro-740W-1U-Redundant-Power-Supply-Platinum?qr=similar-no-stock
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 1 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Supermicro 1U 740 W Platinum
- Power supply ( internal )
- 80 PLUS Platinum
- AC 120/230 V
- 740 Watt
- PFC
- 1U

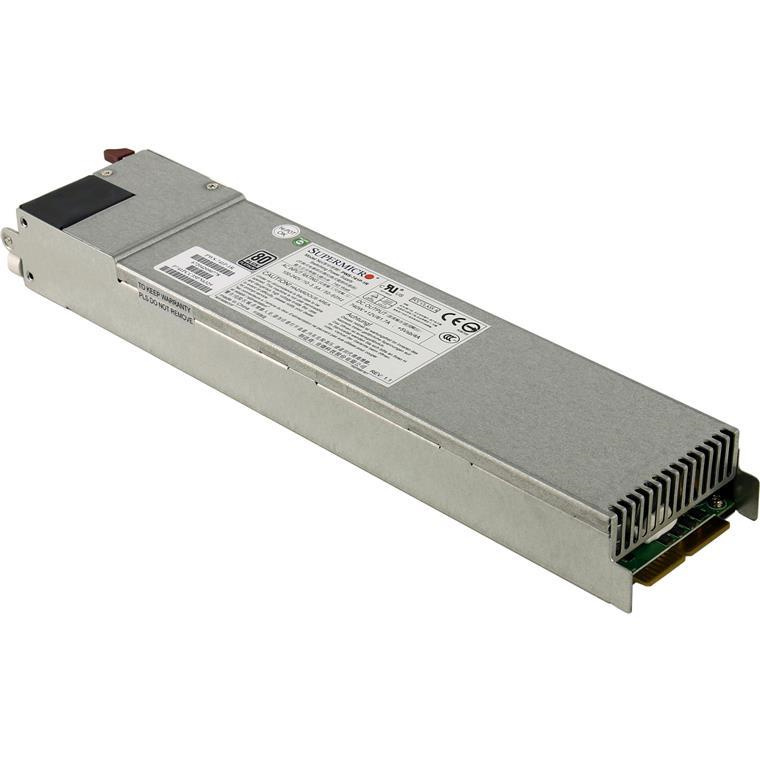

The Supermicro PWS-741P-1R is an 80 Plus Platinum level redundant power supply capable of supplying 740W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Specifications
Total Power Output
740W
Type
Module
Type of Power Supply
Power Supply
Form Factor
1U
Dimension (W x H x L)
76 x 40.4 x 336mm
+5V
N/A
+12V
61.7A
+3.3V
N/A
5V Standby
4A
Input Voltage Range
100-240Vac
Input Frequency Range
50-60Hz
Input Current Range
10-3.5A
Output Type
Gold Finger (19 Pair Connector)
8Pin / 4Pin (12V) Connector
N/A
PFC
Yes
Voltage / Current
Yes
Energy Efficiency
94% Peak
80 Plus Certification
80 Plus Platinum
Validated Systems
AS-2013S-C0R, SYS-2027R-WRF, SYS-6027B-URF, SYS-6027R-3RF4+, SYS-6027R-72RF, SYS-6027R-72RFT, SYS-6027R-72RFT+, SYS-6027R-73DARF, SYS-6027R-N3RF, SYS-6027R-TDARF, SYS-6027R-TRF, SYS-6027R-WRF, SYS-6028R-TR, SYS-6028R-TRT, SYS-6028R-WTR, SYS-6028R-WTRT
Validated Chassis
CSE-823MTQC-R740LPB, CSE-823MTQC-R740WB, CSE-825TQ-R740UB
