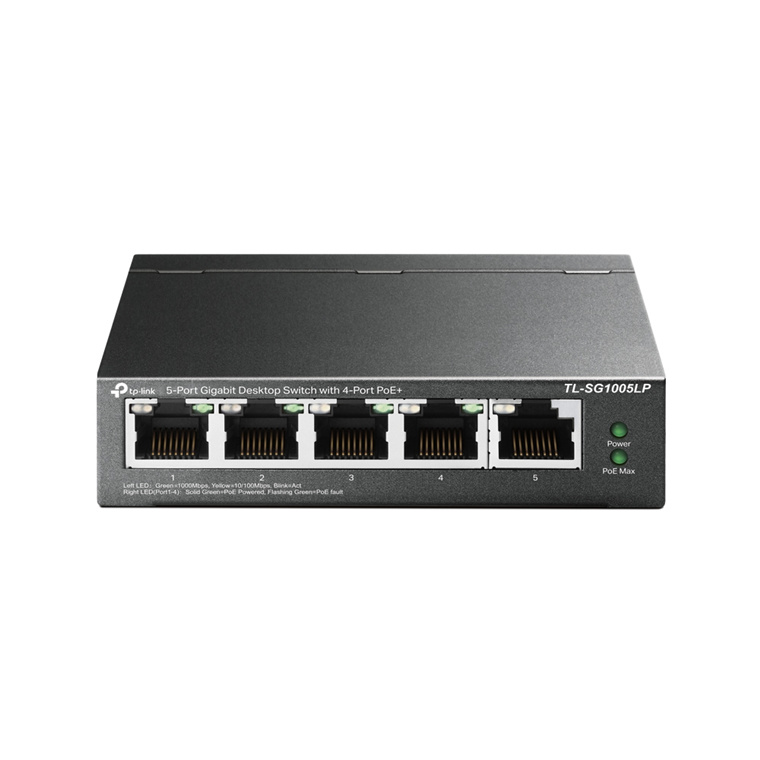

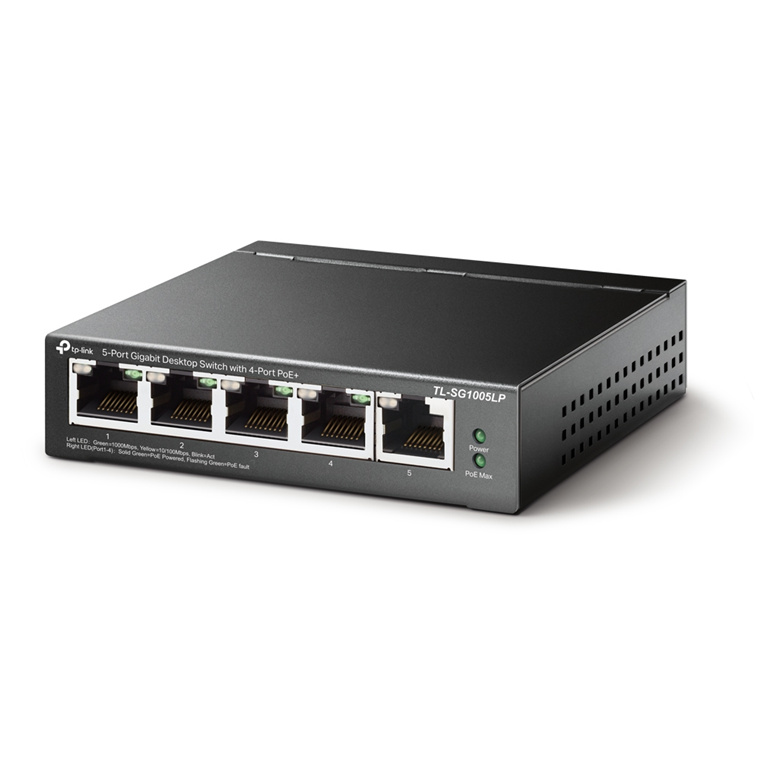

TP-Link TL-SG1005LP 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ (Max 40W)

PB Tech price
PB Tech price
$ 53 .28
 +GST
$ 61 .27
 inc GST
$53.28  +GST
$61.27

TP-Link TL-SG1005LP 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ (Max 40W)

  • Brand: TP-Link
  • MPN: TL-SG1005LP
  • Part #: SWHTPL10050
  • UPC:
PB Tech price
$ 53 .28 $ 61 .27
 +GST  inc GST
Tax free price $56.48*
*Price includes surcharge


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$53.28  +GST
$61.27
  • Brand: TP-Link
  • MPN: TL-SG1005LP
  • Part #: SWHTPL10050
  • UPC:

Form Factor

Desktop

10 Gigabit Ports

0 Ports

10 Gigabit

No

Management Level

Not Specified

Number of Ports

5 Ports

PoE

Yes

PoE Ports

Not Specified

PoE Budget

40 Watts

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the TP-Link TL-SG1005LP 5-Port Gigabit Desktop PoE...
TP-Link TL-SG1005LP 5-Port Gigabit Desktop PoE Switch with 4-Port PoE+ (Max 40W)
Total:
$ 143 .60
 +GST
$ 165 .14
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable

$63.91  +GST

$73.50

TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

Collect from 18 stores by 10:00am tomorrow
Ships tomorrow

$26.41  +GST

$30.37

Features

Professional 5-Port Gigabit Switch with 4 PoE+ Ports

Plug and Play, with PoE power supply which meets the needs of diverse devices.



Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget* for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

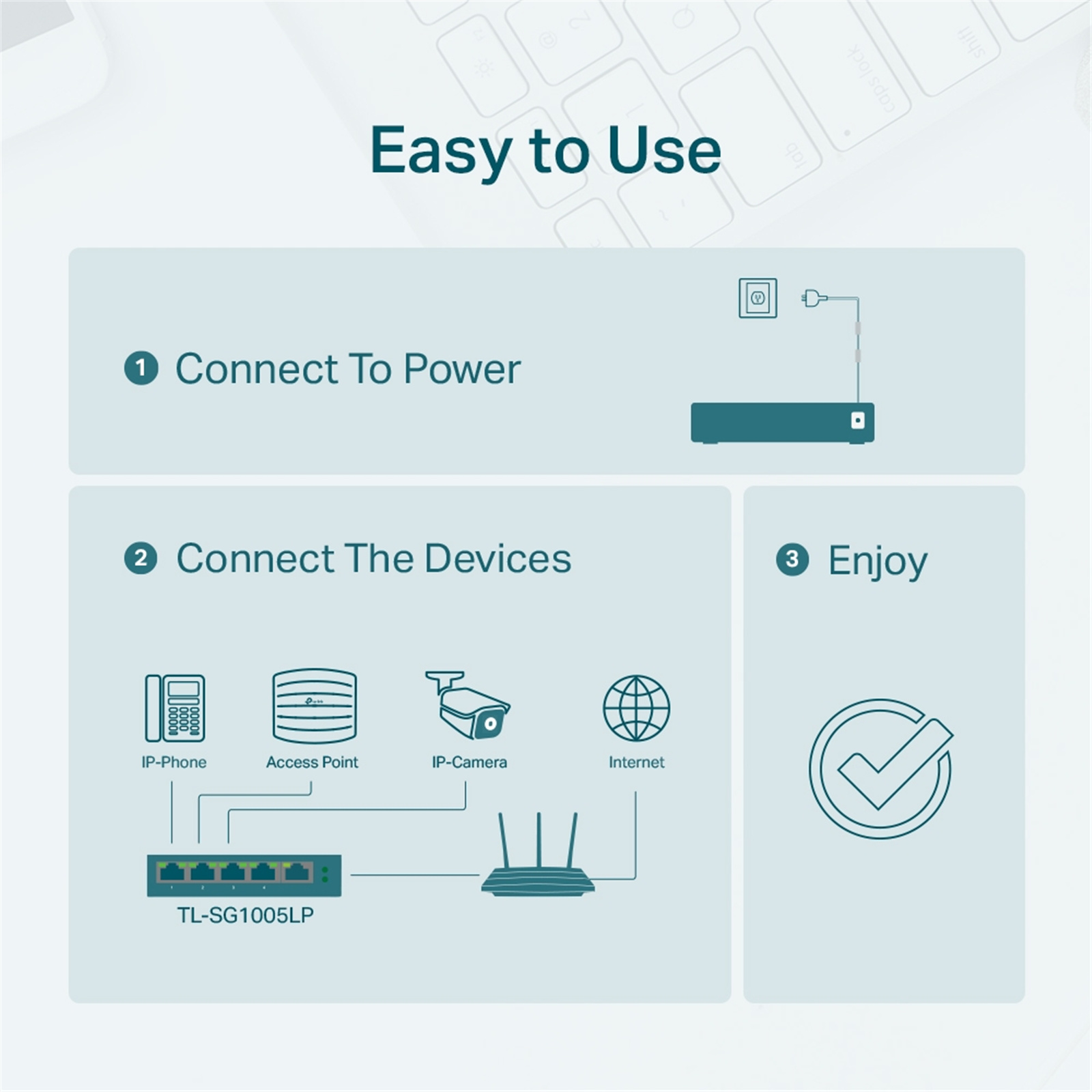

Plug and Play, No Configuration Required



Intelligent Power Management

When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Specifications

HARDWARE FEATURES

Interface

5× 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 53.5 VDC / 0.81 A)

Packet Forwarding Rate

7.44 Mpps

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Ports 1-4
Power Supply: 40 W

Mac Address Table

2K

Jumbo Frame

16 KB

Switching Capacity

10 Gbps

Dimensions ( W x D x H )

3.9×3.9×1.0 in (99.8×98×25 mm)

Max Power Consumption

4.12 W (220/50 Hz. no PD connected)
47.5 W (220/50 Hz. with 40 W PD connected)

Max Heat Dissipation

14.05 BTU/h (no PD connected)
161.98 BTU/h (with 40 W PD connected)

SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping

Transfer Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG1005LP
Power Adapter
Installation Guide

Environment

Operating Temperature: 0-40 C (32-104 F);
Storage Temperature: -40-70 C (-40-158 F)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:
TL-SG1005LP
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.75 kg
PB Part No:
SWHTPL10050
Product Model:
TL-SG1005LP
Warranty: 36 months *
