TP-Link TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++ (Max 123W)
Out of stock
TP-Link TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++ (Max 123W)
- Brand: TP-Link
- MPN: TL-SG105PP-M2
- Part #: SWHTPL1052
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...

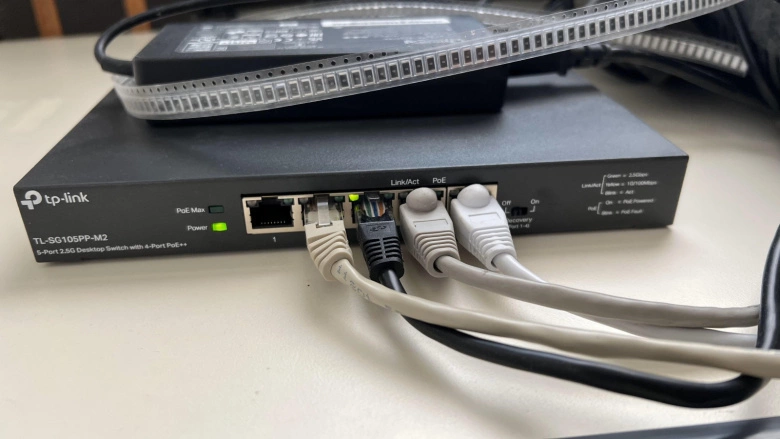

See More Reviews"Purchased to hook to Intel NUCs which have 2.5Gbps ethernet. ...view more"

Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Switches





TP-Link TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++ (Max 123W)
- Brand: TP-Link
- MPN: TL-SG105PP-M2
- Part #: SWHTPL1052

Product URL: https://www.pbtech.co.nz/product/SWHTPL1052/TP-Link-TL-SG105PP-M2-5-Port-25G-Desktop-Switch-wi?is-review=1&qr=similar-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
TL-SG105PP-M2
5-Port 2.5G Desktop Switch with 4-Port PoE++
- 5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- With four PoE++ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt type3 compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 60 W for each PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Specifications
HARDWARE FEATURES
Interface
- 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
18.6 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at/bt type3 compliant
- PoE++ Ports: Ports 1-4
- Power Supply: 123 W
Mac Address Table
4K
Switching Capacity
25 Gbps
Dimensions ( W x D x H )
8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption
- 7.57 W (220/50 Hz. no PD connected)
- 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation
- 25.81BTU/h (220 V/50 Hz with no PD connected)
- 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- PoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- TL-SG105PP-M2
- Power Adapter
- Installation Guide
- Rubber Feet
Environment
- Operating Temperature: 0-40 ? (32-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
