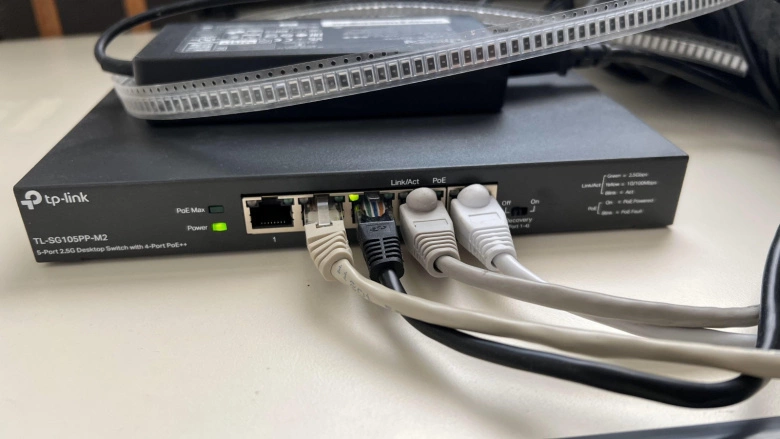

See More Reviews"Purchased to hook to Intel NUCs which have 2.5Gbps ethernet. ...view more"

COMBO DEALS: Buy Together and SAVE!





TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
$73.04 +GST
$84.00


TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
$27.26 +GST
$31.35
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Switches





TP-Link TL-SG105PP-M2 5-Port 2.5G Desktop Switch with 4-Port PoE++ (Max 123W)
- Brand: TP-Link
- MPN: TL-SG105PP-M2
- Part #: SWHTPL1052

Product URL: https://www.pbtech.co.nz/product/SWHTPL1052/TP-Link-TL-SG105PP-M2-5-Port-25G-Desktop-Switch-wi?qr=similar-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 1 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

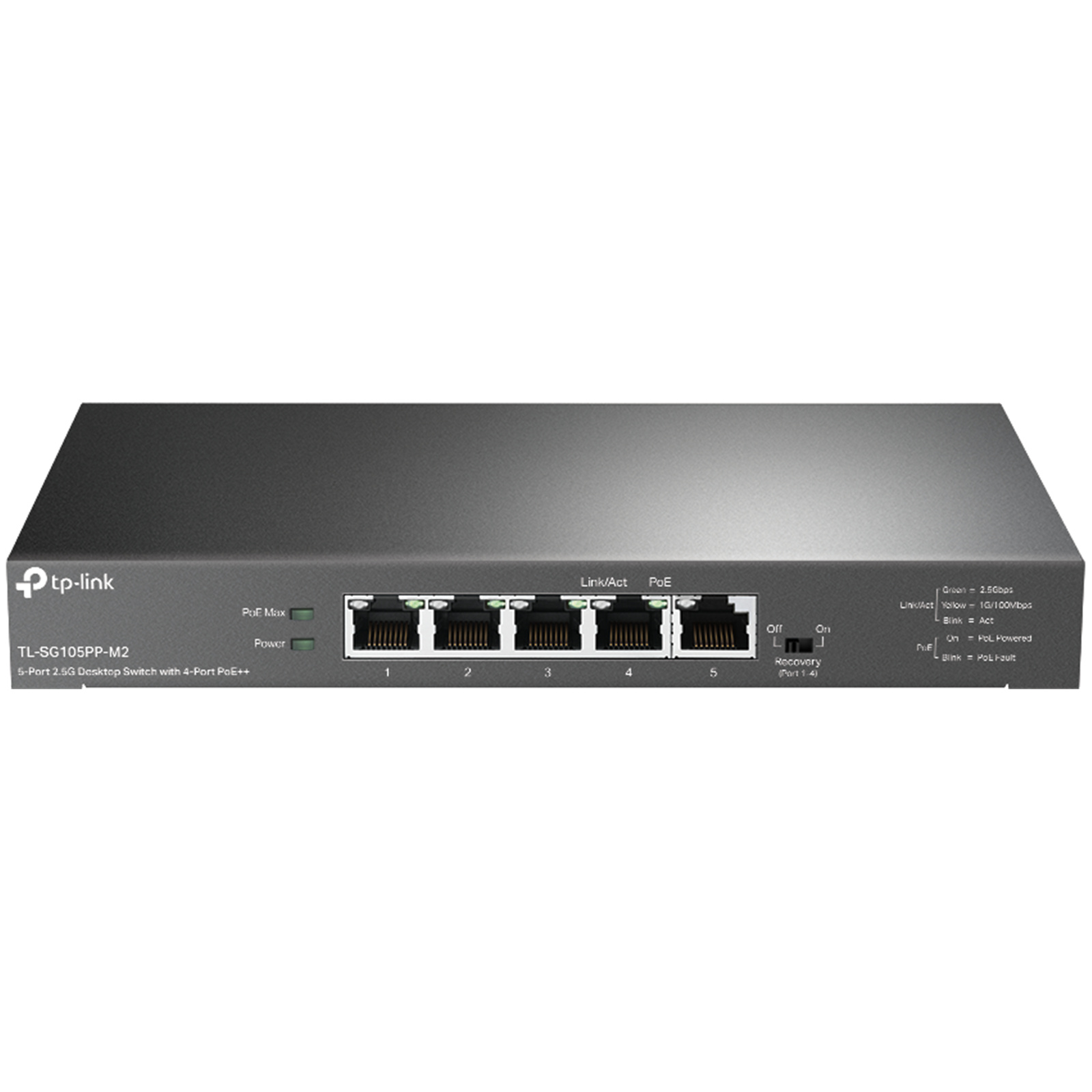

TL-SG105PP-M2
5-Port 2.5G Desktop Switch with 4-Port PoE++
- 5x 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- With four PoE++ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt type3 compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 60 W for each PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
Specifications
HARDWARE FEATURES
Interface
- 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 2.43 A)
Packet Forwarding Rate
18.6 Mpps
PoE Ports (RJ45)
- Standard: 802.3 af/at/bt type3 compliant
- PoE++ Ports: Ports 1-4
- Power Supply: 123 W
Mac Address Table
4K
Switching Capacity
25 Gbps
Dimensions ( W x D x H )
8.2×4.9×1.0 in (209×126×26 mm)
Max Power Consumption
- 7.57 W (220/50 Hz. no PD connected)
- 143.37 W (220/50 Hz. with 123 W PD connected)
Max Heat Dissipation
- 25.81BTU/h (220 V/50 Hz with no PD connected)
- 488.89 BTU/h (220 V/50 Hz with 123W PD connected)
SOFTWARE FEATURES
Advanced Features
- Compatible With IEEE 802.3af/at/bt type3 Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
- PoE Auto Recovery (Ports 1-4)
Transfer Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
- TL-SG105PP-M2
- Power Adapter
- Installation Guide
- Rubber Feet
Environment
- Operating Temperature: 0-40 ? (32-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
