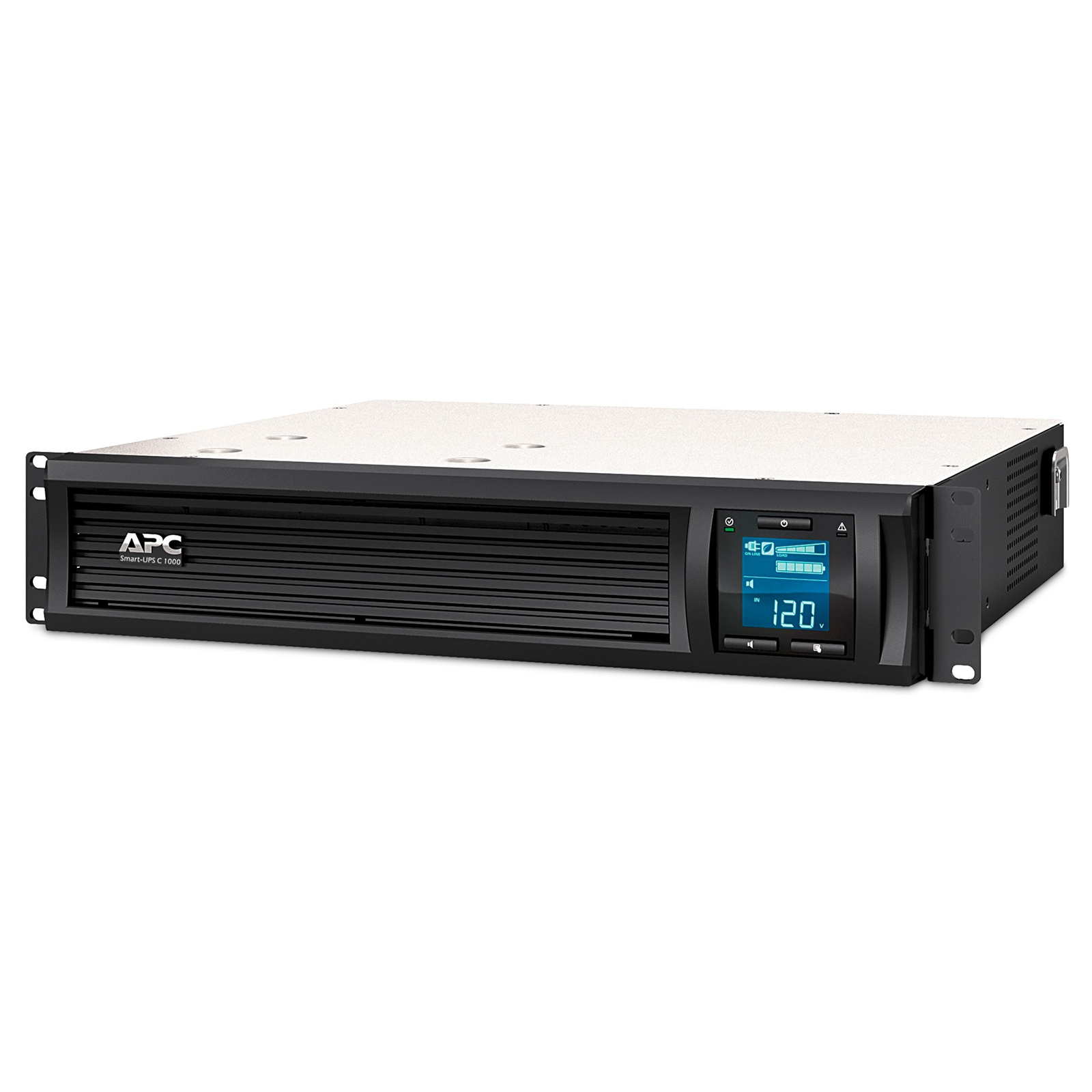

APC Smart UPS C 1000VA 2U Rack mountable LCD 230V with SmartConnect, 2 years repair or replace
APC Smart UPS C 1000VA 2U Rack mountable LCD 230V with SmartConnect, 2 years repair or replace
- Brand: APC
- MPN: SMC1000I-2UC
- Part #: UPSAPC4172362
- UPC: 731304332930
- Brand: APC
- MPN: SMC1000I-2UC
- Part #: UPSAPC4172362
- UPC: 731304332930
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular UPS - Line Interactive





APC Smart UPS C 1000VA 2U Rack mountable LCD 230V with SmartConnect, 2 years repair or replace
- Brand: APC
- MPN: SMC1000I-2UC
- Part #: UPSAPC4172362
- UPC:731304332930

Product URL: https://www.pbtech.co.nz/product/UPSAPC4172362/APC-Smart-UPS-C-1000VA-2U-Rack-mountable-LCD-230V?qr=similar-w
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 1 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, USB cable
Cold-start capable
Provides temporary battery power when the utility power is out.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utility costs, generates less heat.
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
SmartConnect
Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
Output
Output power capacity
600Watts / 1.0kVA
Max Configurable Power (Watts)
600Watts / 1.0kVA
Nominal Output Voltage
230V
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Other Output Voltages
220, 240
Topology
Line Interactive
Waveform type
Sine wave

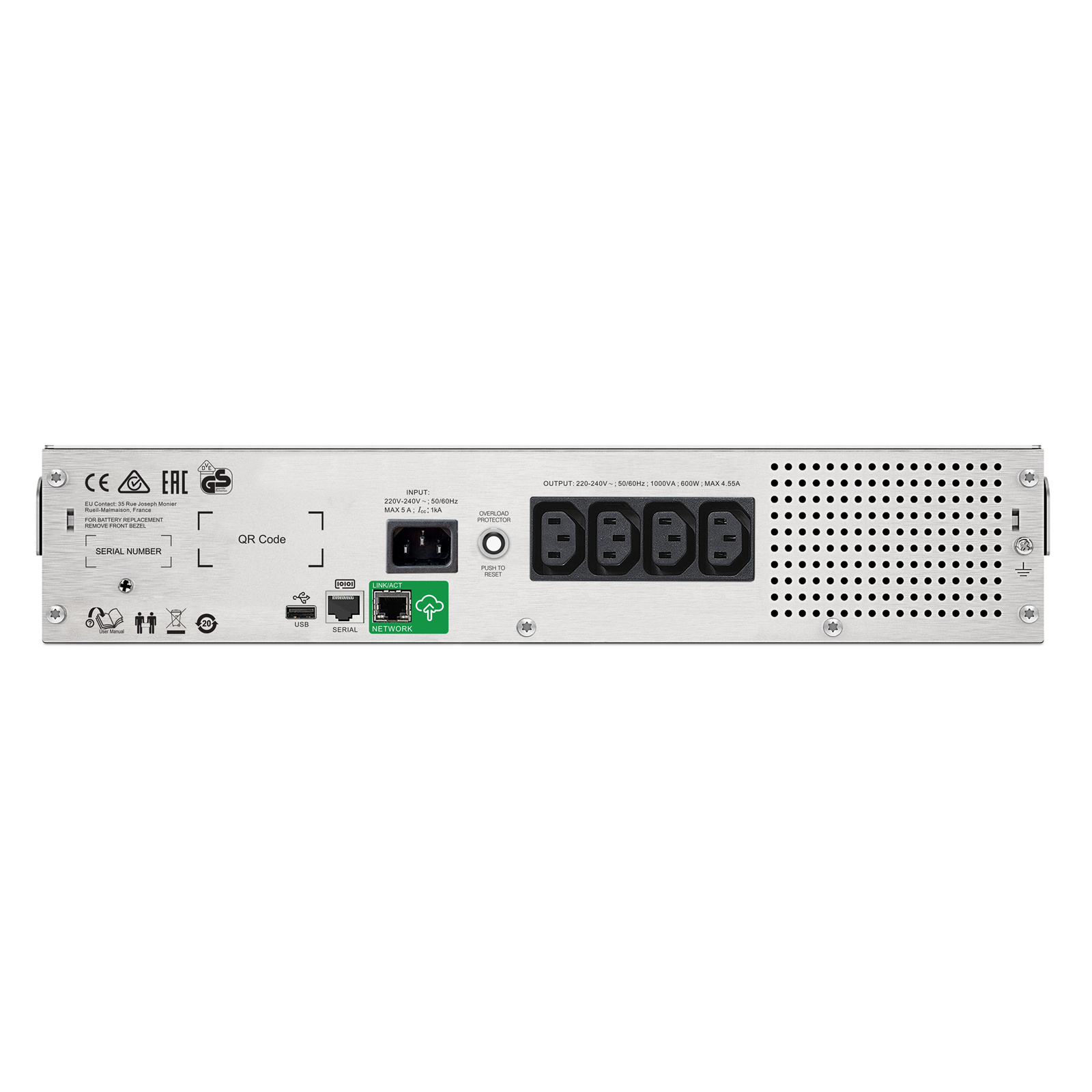

Output Connections
(4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Transfer Time
6ms typical : 10ms maximum
Input
Nominal Input Voltage
230V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
180 - 287V
Input voltage adjustable range for mains operation
170 - 300V
Number of Power Cords
1
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
3hour(s)
Replacement Battery
APC Replacement Battery Cartridge # 124
Expected Battery Life (years)
4 - 6
RBC Quantity
1
Runtime
Full load (600 Watts) - 9.2 mins
Half load (300 Watts) - 22.5 mins
Communications & Management
Interface Port(s)
RJ-45 Serial, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)
--
Surge Protection and Filtering
Surge energy rating
459Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height
86MM, 8.6CM
Maximum Width
432MM, 43.2CM
Maximum Depth
406MM, 40.6CM
Rack Height
2U
Net Weight
20.52KG
Shipping weight
22.33KG
Shipping Height
241MM, 24.1CM
Shipping Width
546MM, 54.6CM
Shipping Depth
584MM, 58.4CM
Color
Black
Units per Pallet
16.0
Environmental
Operating Temperature
0 - 40 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-3000meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000meters
Audible noise at 1 meter from surface of unit
42.0dBA
Online thermal dissipation
46.0BTU/hr
Conformance
Approvals
C-tick, CE, GOST, UL 1778, VDE
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
REACH
REACH: Contains No SVHCs
Other Environmental Compliance
China RoHS
