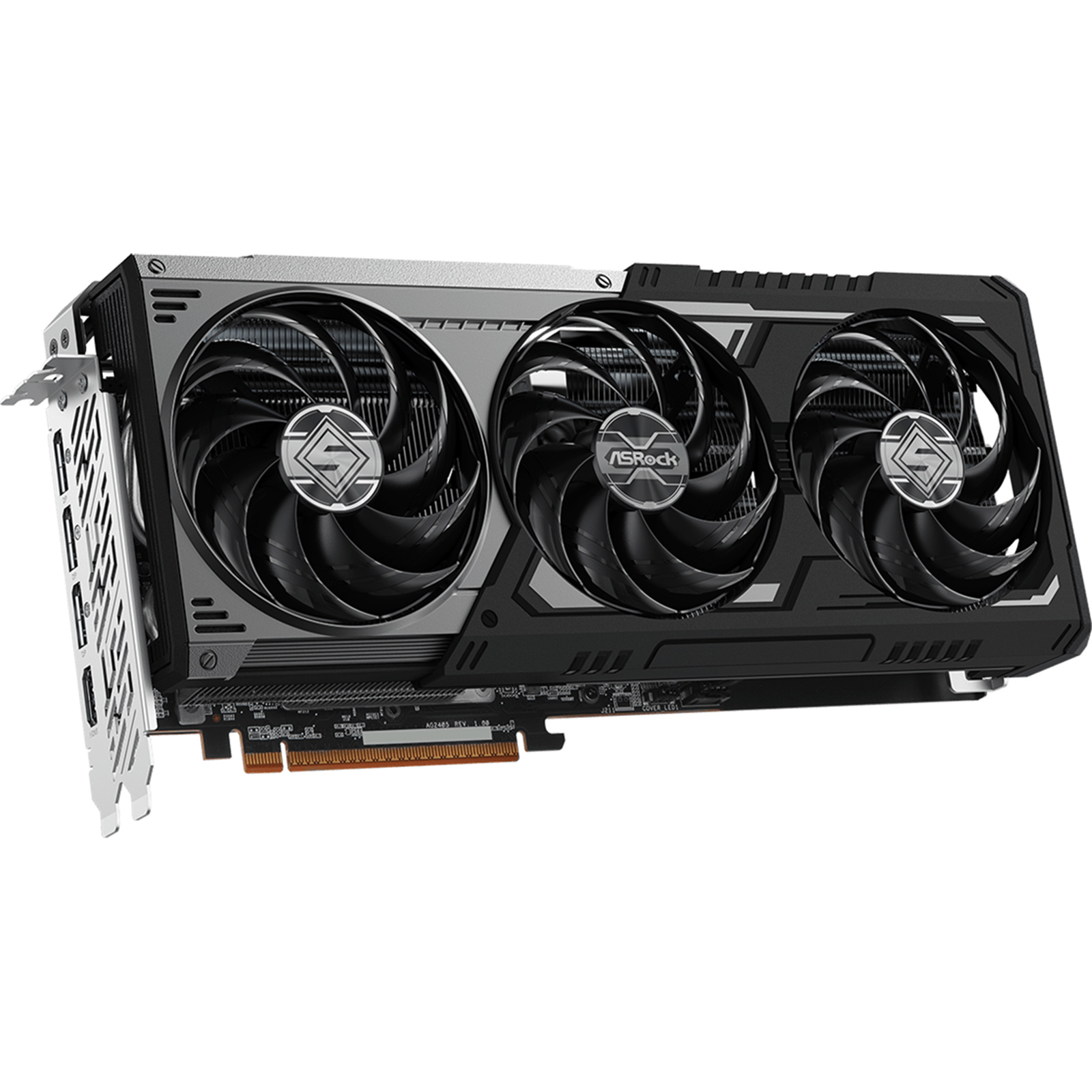

ASRock AMD Radeon RX 9070 XT Steel Legend Dark 16GB GDDR6 Graphics Card
PCIE 5.0 - 2.9 Slot - 2x 8 Pin Power - Minimum 800W PSU
ASRock AMD Radeon RX 9070 XT Steel Legend Dark 16GB GDDR6 Graphics Card
PCIE 5.0 - 2.9 Slot - 2x 8 Pin Power - Minimum 800W PSU
- Brand: ASRock
- MPN: RX9070XT SLD 16G
- Part #: VGAASR190713
- UPC:
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"this card performs well but i think it is currently overpric ...view more"
"Upgraded from GTX evga 1080 so much power runs cool 45 to 50 Celsius for the price can't bid it."
COMBO DEALS: Buy Together and SAVE!
Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB...
$56.52 +GST
$65.00
Cruxtec DisplayPort Cable - 2m V1.4 - Full Ultra HD - 8K/60Hz & 4K/144Hz
$16.16 +GST
$18.58
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write -...
$184.20 +GST
$211.83
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready - 12VHPWR 12+4-Pin - Full Modular...
$167.20 +GST
$192.28
Features
AMD Radeon™ RX 9070 XT Steel Legend Dark 16GB
Clock: GPU / Memory
- Boost Clock*: Up to 2970 MHz / 20 Gbps
- Game Clock**: 2400 MHz / 20 Gbps
Key Specification
- AMD Radeon™ RX 9070 XT GPU
- 16GB GDDR6 on 256-Bit Memory Bus
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 5.0 Support
- 2x 8-pin Power Connectors
- 3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
Key Features
- Polychrome SYNC
- Triple Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Reinforced Metal Frame
- Air Deflecting Fin
- Ultra-fit Heatpipe
- Super Alloy Graphics Card
Polychrome SYNC - Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.

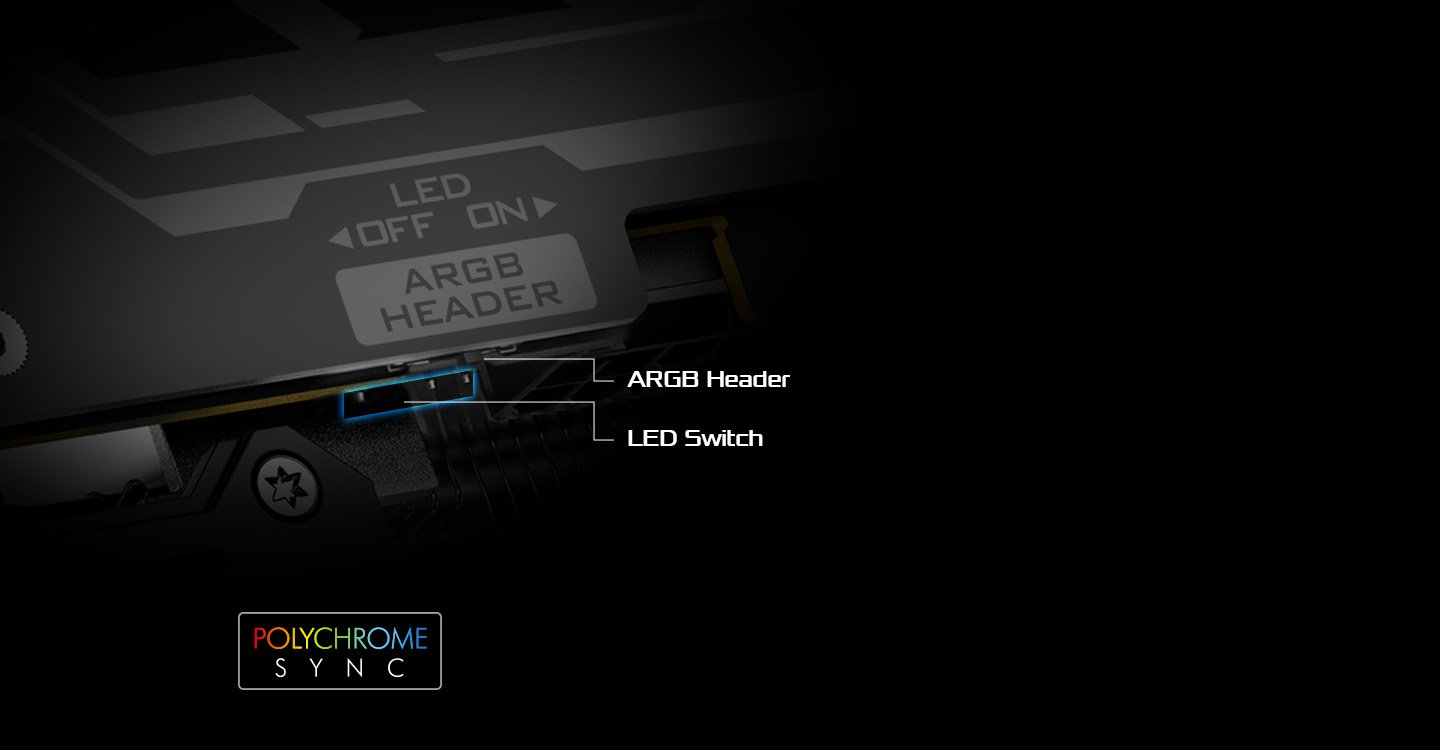

LED Switch & ARGB Header
LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.

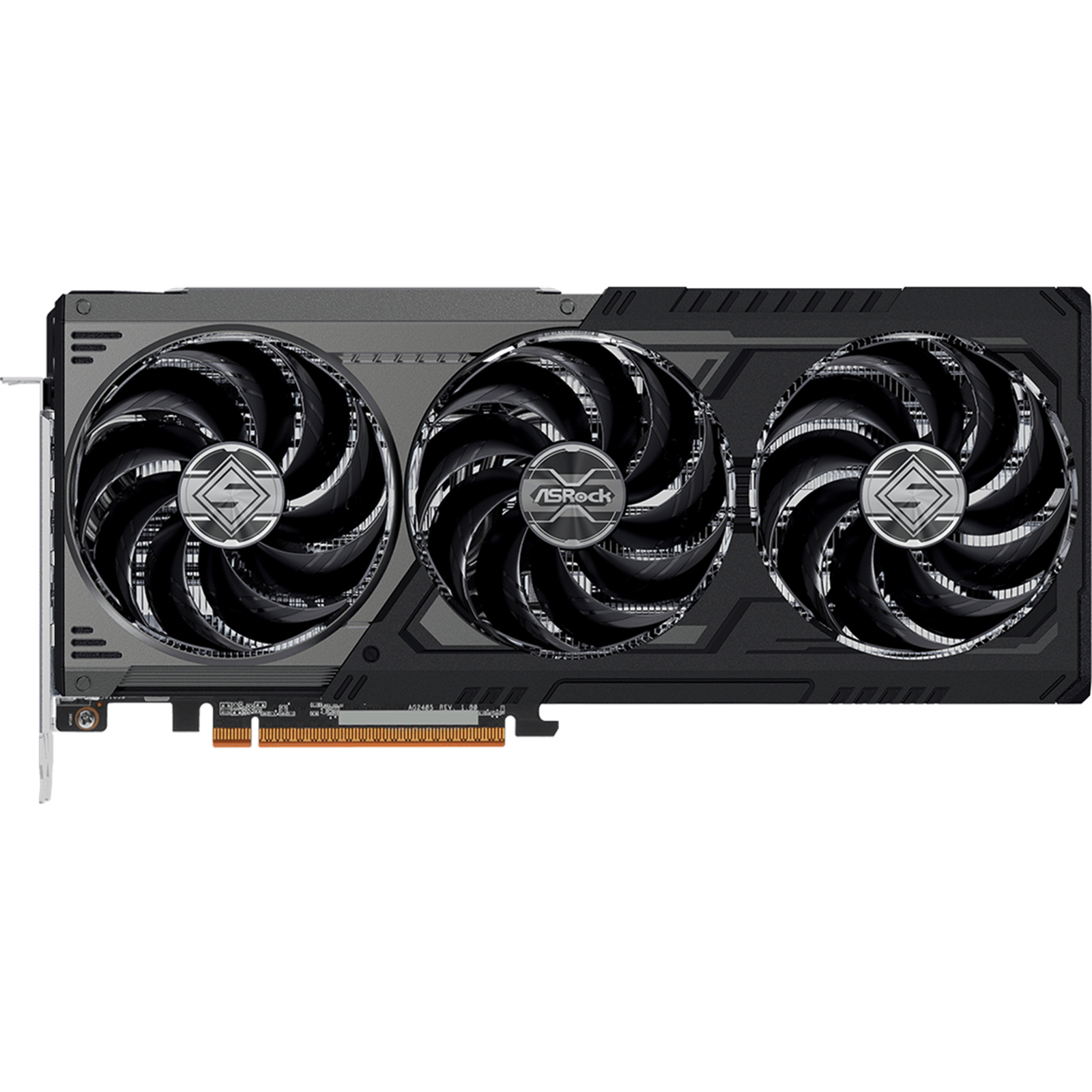

Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.

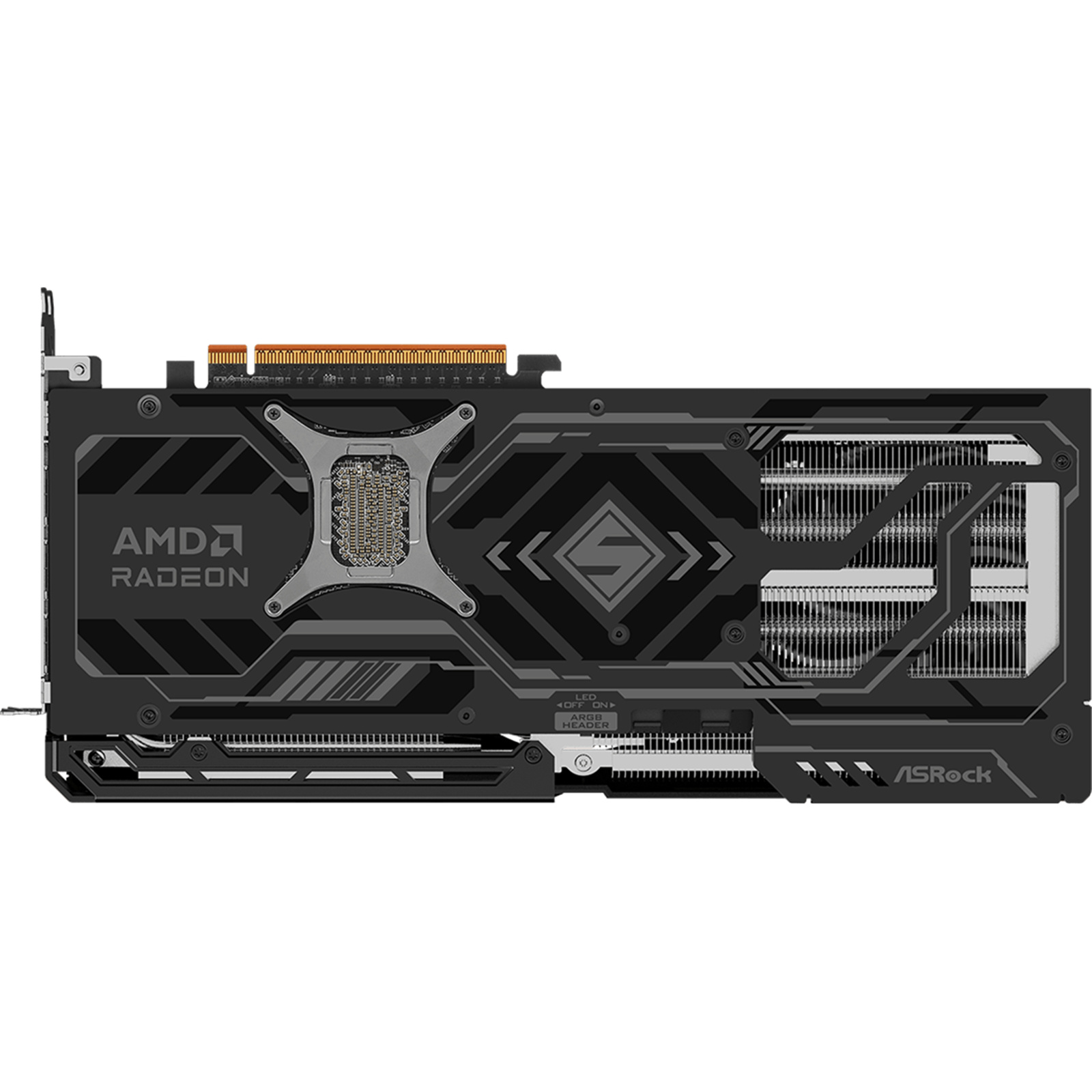

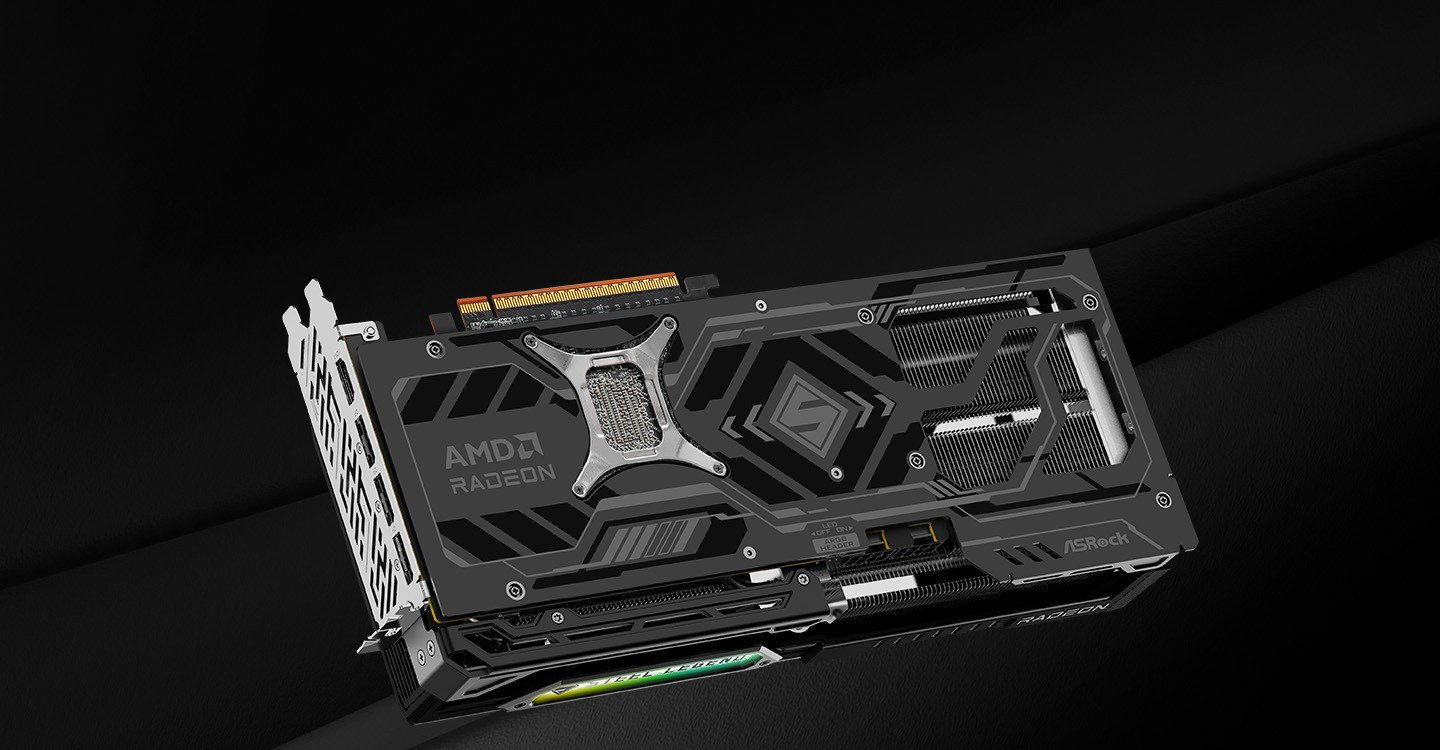

Stylish Metal Backplate - Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Reinforced Metal Frame - Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.

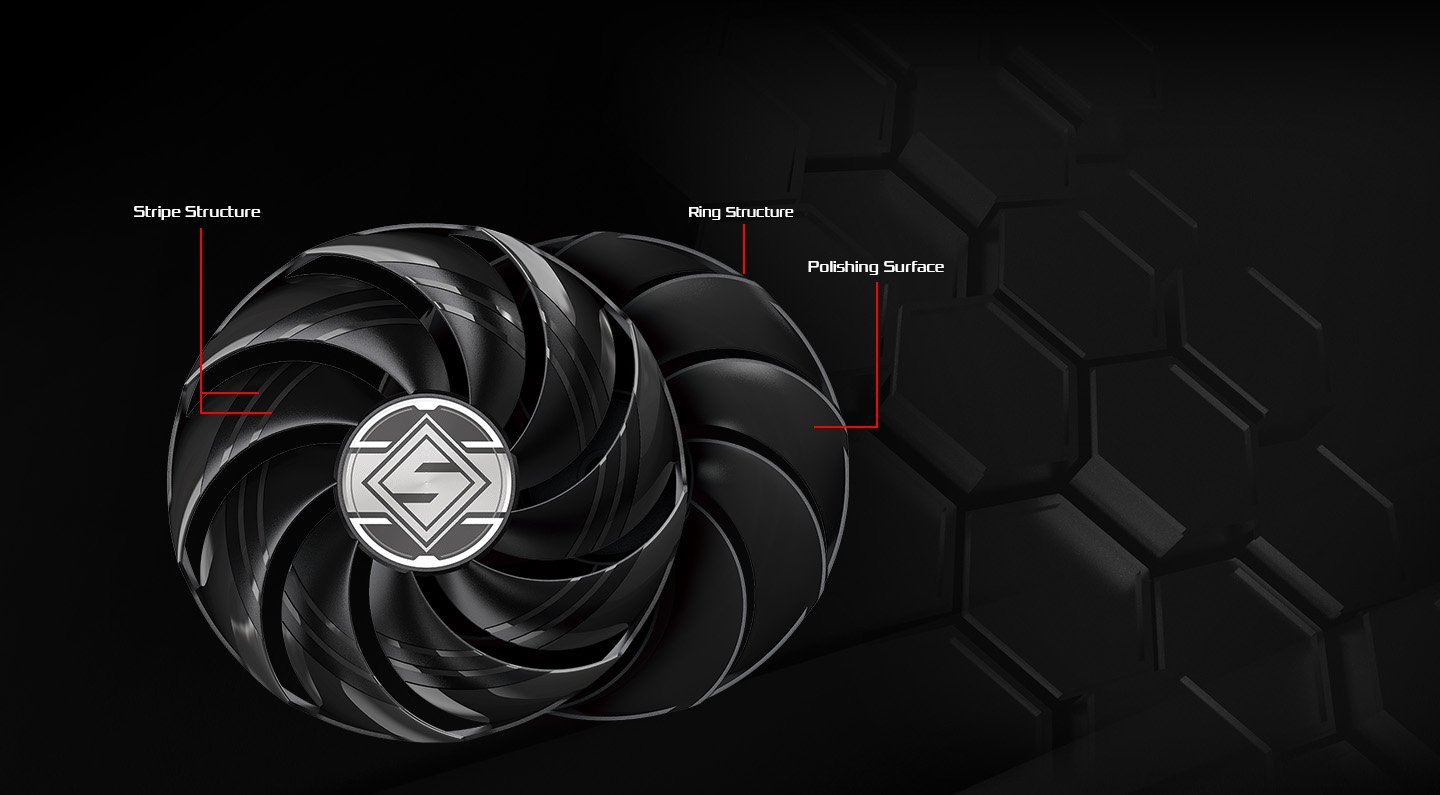

Striped Ring Fan - Designed For Enhanced Airflow
ASRock's all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

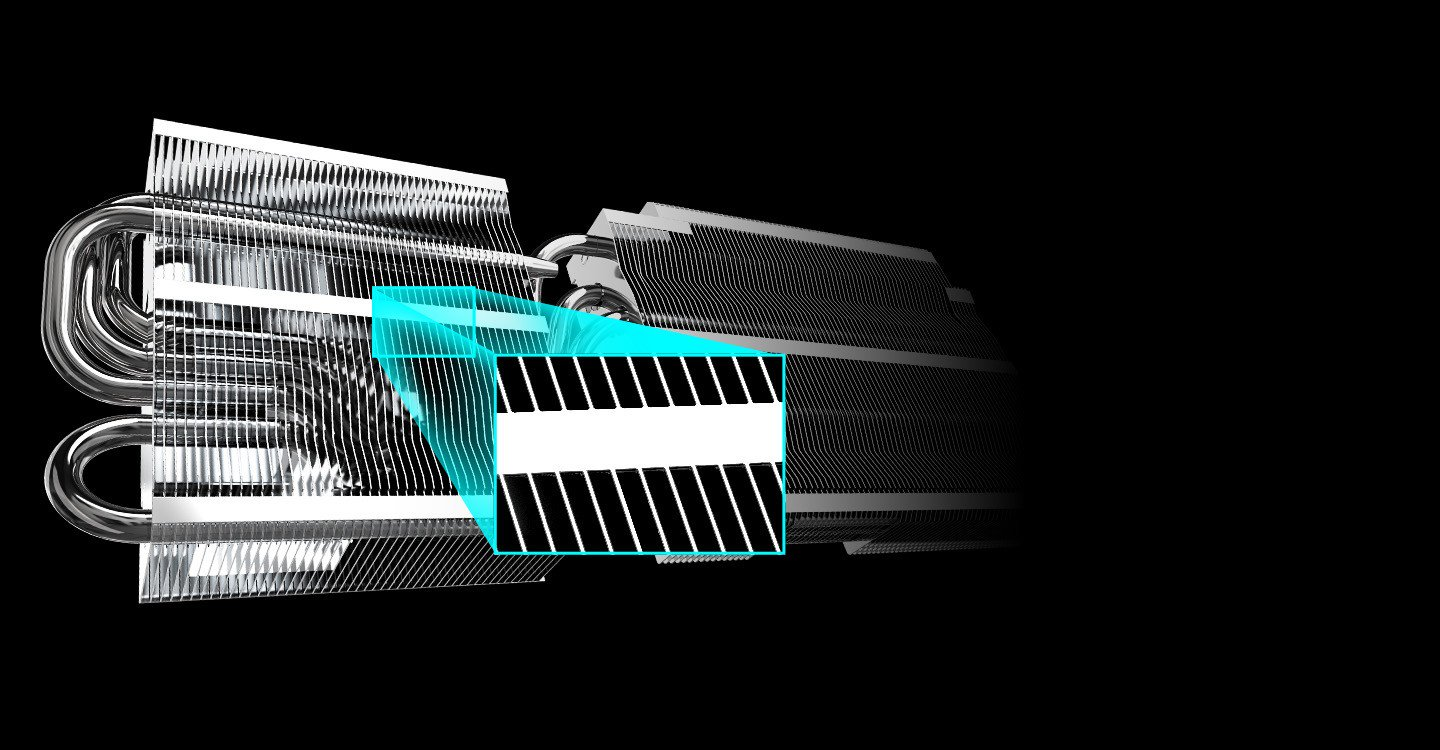

Air Deflecting Fin - Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

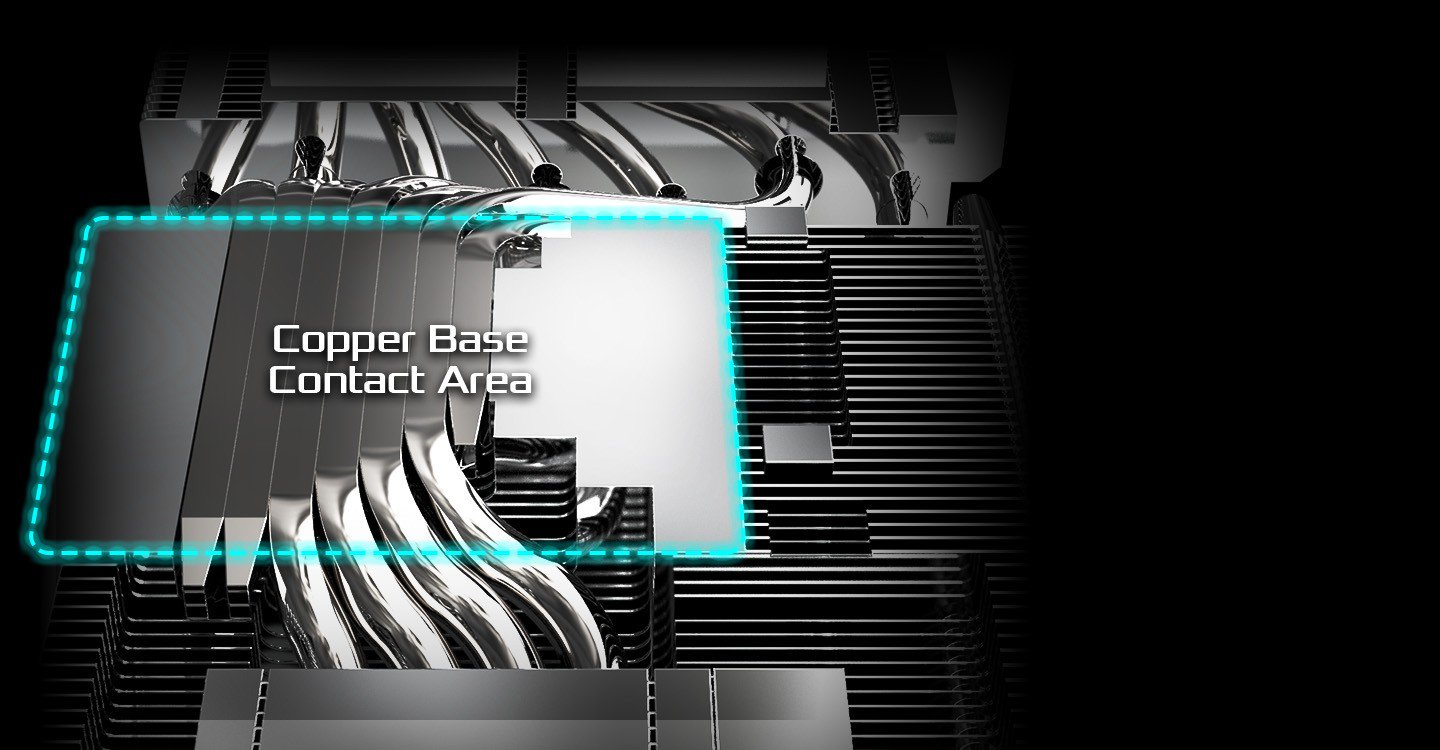

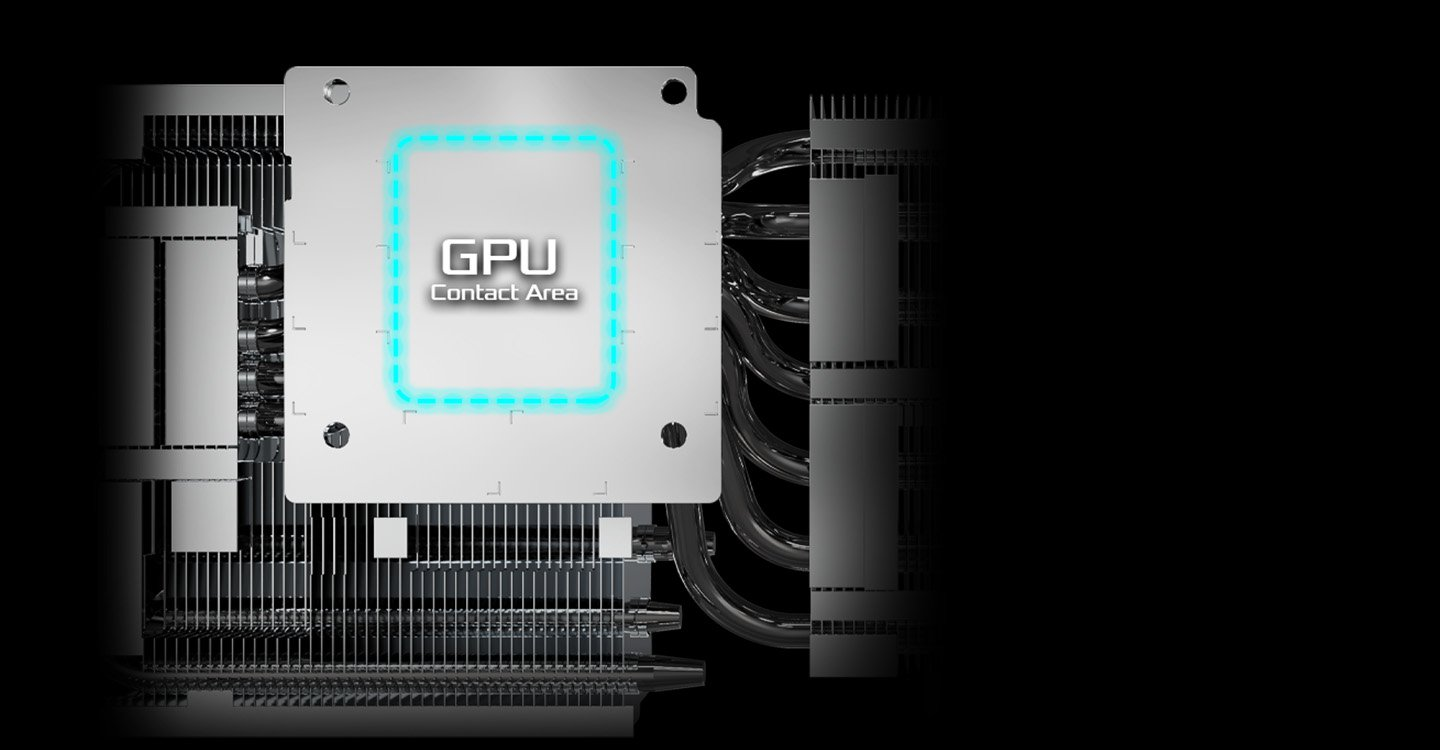

Nickel-plated Copper Base - Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Honeywell PTM7950 - Phase-change Thermal Pad
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.

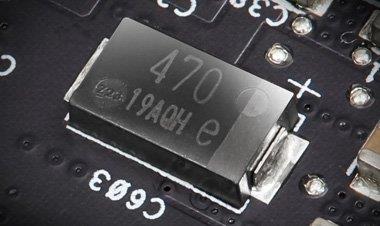

SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.

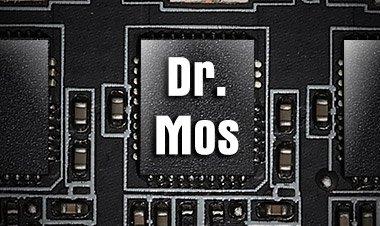

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

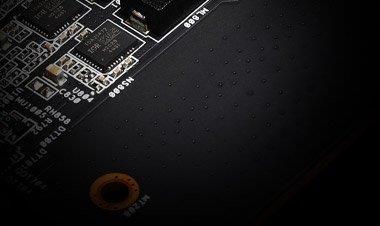

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.

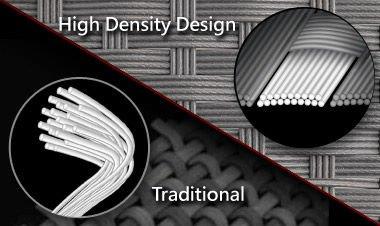

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.

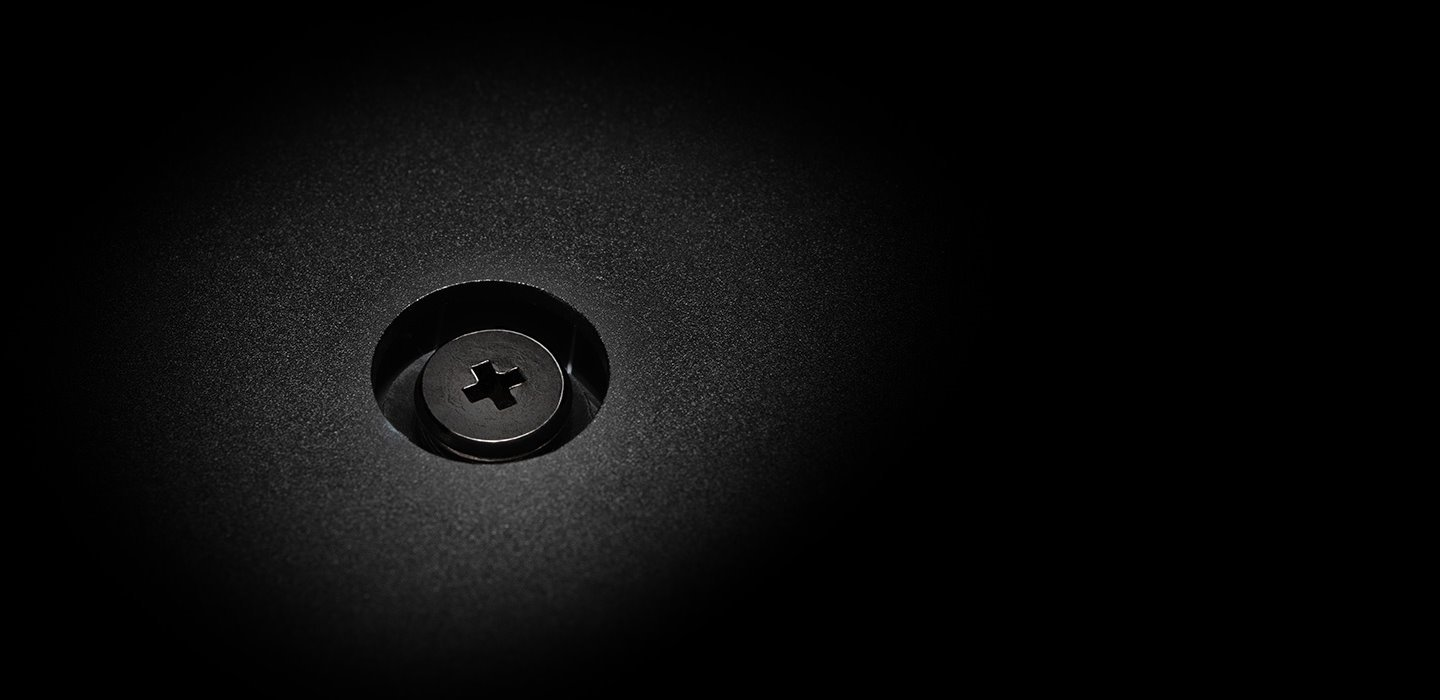

Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
ALL YOU NEED FOR ULTRA FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
FUTURE READY TECH WITH AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
Specifications
Reviews
Do you own this product?
Bloody Mary she's a beast
Upgraded from GTX evga 1080 so much power runs cool 45 to 50 Celsius for the price can't bid it.
good graphics card but missing some features of nvidia graphics card
this card performs well but i think it is currently overpriced for what it is if it sold for msrp it would be ok (600usd or 1000nzd) not a 40% markup
i have had a problem with a specific game "ratchet and clank rift apart" if the vram goes above the limit of the card it just crashes instead of running slow
eg 10gb without raytracing then enable ray tracing and it just crashes with a out of vram error and if you disable the launcher you can't change it back
this would be much better if amd had a feature to automatically optimize video settings for games
this is a 3 slot card and the extra width interfers with the usb 3.0 socket on the ...view more
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular AMD Radeon Desktop Graphics Cards
Powercolor Hellhound AMD Radeon RX 9070 XT 16GB GDDR6 Graphics...
ASRock AMD Radeon RX 9060 XT Challenger 16GB GDDR6 Graphics Card...
Sapphire PURE AMD Radeon RX 9070 XT Gaming OC 16GB GDDR6 Graphics...
ASRock AMD Radeon RX 9060 XT Steel Legend 16GB GDDR6 Graphics...
Powercolor Red Devil Spectral White AMD Radeon RX 9070 XT 16GB...
ASRock AMD Radeon RX 9070 XT Steel Legend Dark 16GB GDDR6 Graphics Card PCIE 5.0 - 2.9 Slot - 2x 8 Pin Power - Minimum 800W PSU
- Brand: ASRock
- MPN: RX9070XT SLD 16G
- Part #: VGAASR190713
Product URL: https://www.pbtech.co.nz/product/VGAASR190713/ASRock-AMD-Radeon-RX-9070-XT-Steel-Legend-Dark-16G?qr=similar-w
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 1 | |
| Auckland - Westgate | 3 | |
| Auckland - Penrose | 3 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 1 | |
| Auckland - Manukau | 2 | |
| Hamilton | 0 | |
| Tauranga | 1 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 2 | |
| Auckland - Head Office | 3 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 2 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 1 |
Features
AMD Radeon™ RX 9070 XT Steel Legend Dark 16GB
Clock: GPU / Memory
- Boost Clock*: Up to 2970 MHz / 20 Gbps
- Game Clock**: 2400 MHz / 20 Gbps
Key Specification
- AMD Radeon™ RX 9070 XT GPU
- 16GB GDDR6 on 256-Bit Memory Bus
- AMD RDNA™ 4 Architecture
- 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
- Microsoft® DirectX® 12 Ultimate
- PCI® Express 5.0 Support
- 2x 8-pin Power Connectors
- 3x DisplayPort™ 2.1a, 1x HDMI™ 2.1b
Key Features
- Polychrome SYNC
- Triple Fan Design
- Stylish Metal Backplate
- Striped Ring Fan
- Reinforced Metal Frame
- Air Deflecting Fin
- Ultra-fit Heatpipe
- Super Alloy Graphics Card
Polychrome SYNC - Create your own unique colorful light effects.
With the integrated ARGB LEDs, you can create your own unique colorful light effects which can also be switched on and off. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.
LED Switch & ARGB Header
LED Switch
You can quickly and easily switch on/off the ARGB LEDs that are equipped with not only your graphics card but also the connected ARGB devices.
ARGB Header
With the ARGB Header, it can connect extra ARGB strips/devices to make the lighting effects more rich and vivid.
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate - Solid, Fancy, Cool.
Designed to avoid PCB bending. The fancy outlook makes the graphic card more legendary in visual. It also helps to enhance cooling with the premium thermal pads equipped backside.
Reinforced Metal Frame - Be solid. No sag.
Enhances the structure to prevent the PCB from being bent.
Striped Ring Fan - Designed For Enhanced Airflow
ASRock's all new Striped Ring Fan get more lateral intake and to provide better airflow through the cooling array.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Air Deflecting Fin - Guide Airflow to Go Through Regularly & Quickly.
Guide the airflow to go more regularly and quickly to enhance the cooling efficiency by the V-shaped cutting fins and the V-shaped air vents.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base - Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Honeywell PTM7950 - Phase-change Thermal Pad
Honeywell PTM7950 phase-change thermal pad can effectively fill the gaps between the GPU and the thermal module, enabling the graphics card to provide excellent heat dissipation, reliability and longevity under high loads.
SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current, thus providing improved thermal result and superior performance.
Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end graphics card.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
ALL YOU NEED FOR ULTRA FAST GAMING
Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon RX 9000 Series Graphics Cards are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
INSTANT PERFORMANCE FOR EVERY MOVE
Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.
FUTURE READY TECH WITH AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
Specifications
Graphics Engine
AMD Radeon™ RX 9070 XT
Bus Standard
PCI® Express 5.0 x16
DirectX
12 Ultimate
OpenGL
4.6
Memory
16GB GDDR6
Engine Clock
Boost Clock: Up to 2970 MHz*
Game Clock: 2400 MHz**
*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
4096
Memory Clock
20 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
3x DisplayPort 2.1a
1x HDMI 2.1b
HDCP
Yes
Multi-view
4
Recommended PSU
800W
Power Connector
2x 8-pin
Accessories
1x Quick Installation Guide
Dimensions
298 x 131 x 58 mm, 2.9-slot
Net Weight
1155 g
