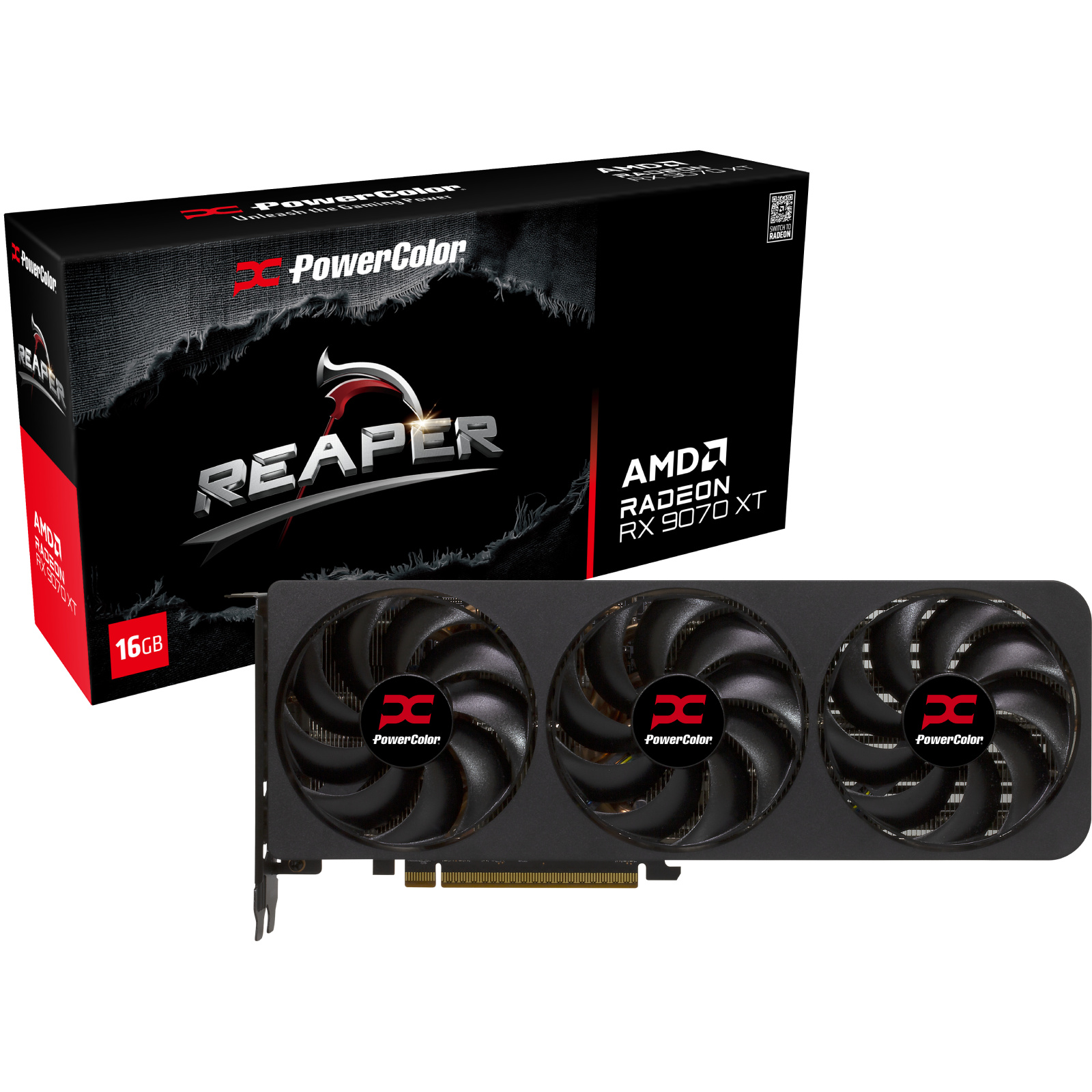

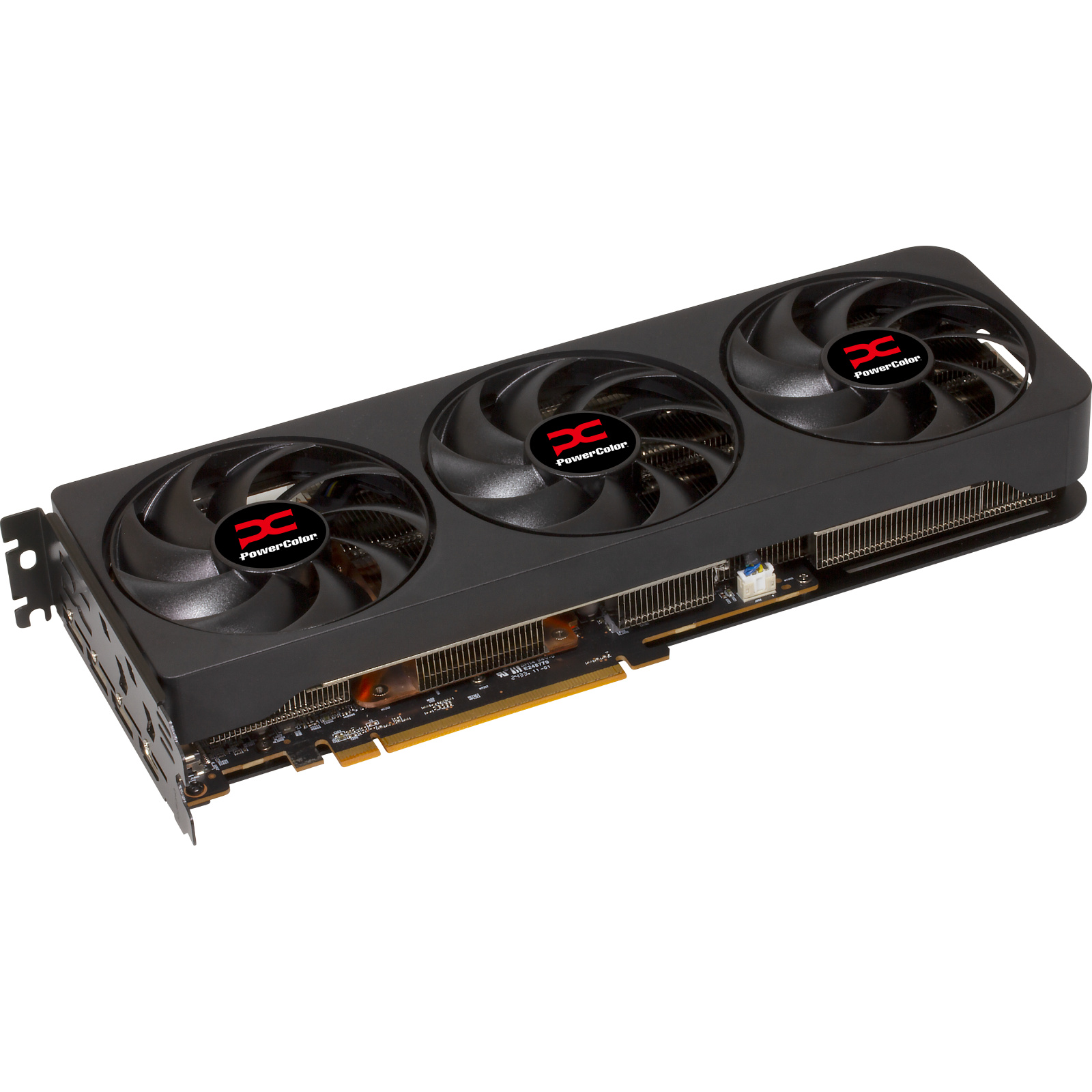

Powercolor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 Graphics Card

PCIE 5.0 - 2 Slot - 2x 8 Pin Power - Minimum 750W PSU

PB Tech price
PB Tech price
$ 1,249 .00
 +GST
$ 1,436 .35
 inc GST
$1,249.00  +GST
$1,436.35

Powercolor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 Graphics Card

PCIE 5.0 - 2 Slot - 2x 8 Pin Power - Minimum 750W PSU

Very powerful!
  • Brand: Powercolor
  • MPN: RX9070XT 16GB-A
  • Part #: VGAPOW290720
  • UPC:
PB Tech price
$ 1,249 .00 $ 1,436 .35
 +GST  inc GST
Tax free price $1,323.94*
*Price includes surcharge


Click & Collect: Available from 2 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$1,249.00  +GST
$1,436.35

Finance from $13.40 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: Powercolor
  • MPN: RX9070XT 16GB-A
  • Part #: VGAPOW290720
  • UPC:

Product Model

RX 9070 XT

Memory Size

16GB

Base Clock Speed

Not Specified

Boost Clock Speed

2970MHz

Max Displays

4

Length

304mm

DisplayPorts

3

Mini DisplayPorts

None

What PB Tech customers are saying about this product...

See More Reviews

"Great card - glad I bought it when it first released!"

G
By: Guest 07/06/25

"Massive upgrade from my 3080 10G, the Living Skyrim 4 modpack at 3840x1600 finally running smooth as butter."

DR
By: DanielR334 05/05/25
Verified Owner

"A much smaller card than you mostly find nowdays. Despite the smaller size the temperatures are still good, and the power colour cards all come with ptm7950 pre applied.
Runs the g ...view more"

JG
By: JacobG4 22/04/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Powercolor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 Graphics Card PCIE...
Powercolor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 Graphics Card PCIE 5.0 - 2 Slot - 2x 8 Pin Power - Minimum 750W PSU
Total:
$ 1,597 .51
 +GST
$ 1,837 .14
Buy together and save $11.66 $13.41
MSI MAG 750W Power Supply 80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 7 Year Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP
MSI MAG 750W Power Supply 80 Plus Gold - Native 16 Pin Connector Design - Full Modular Design - 7 Year Warranty - Industrial Level Protection with OVP / OCP / OPP / OTP / SCP / UVP
$154.67 $177.87

$152.35  +GST

$175.20

Cruxtec DisplayPort Cable - 2m V1.4 - Full Ultra HD - 8K/60Hz & 4K/144Hz
Cruxtec DisplayPort Cable - 2m V1.4 - Full Ultra HD - 8K/60Hz & 4K/144Hz
$17.50 $20.12

$16.16  +GST

$18.58

You save 7% You save 7%
Corsair RS120 ARGB Black 120mm ARGB Fan 3x Pack with daisy-chained 4-pin PWM and +5V ARGB motherboard control
Corsair RS120 ARGB Black 120mm ARGB Fan 3x Pack with daisy-chained 4-pin PWM and +5V ARGB motherboard control
$79.00 $90.85

$75.00  +GST

$86.25

You save 5% You save 5%
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
$109.00 $125.35

$105.00  +GST

$120.75

You save $4 You save $4

Features

Relentless by Design: The Reaper Series

The PowerColor Reaper Series is built for gamers who demand reliable performance and unwavering endurance. With its sturdy cooling architecture and precision engineering, the Reaper is designed to handle the rigors of intense gaming sessions without compromise. Crafted with a singular focus on delivering consistent results, it stands as a steadfast ally for those ready to conquer every challenge. The Reaper Series is gaming, pure and simple-nothing more, nothing less.



Master the Game with Reaper Series

The PowerColor Reaper Series is designed to deliver reliable, consistent performance for gamers. Featuring high-quality Japanese dual ball bearings and high-efficiency ring blade fans, its robust triple-fan design ensures optimal airflow and durability. The copper base provides direct contact with the GPU and VRAM, maximizing cooling efficiency during demanding gameplay. The Reaper Series is built for those who value enduring performance in every battle.

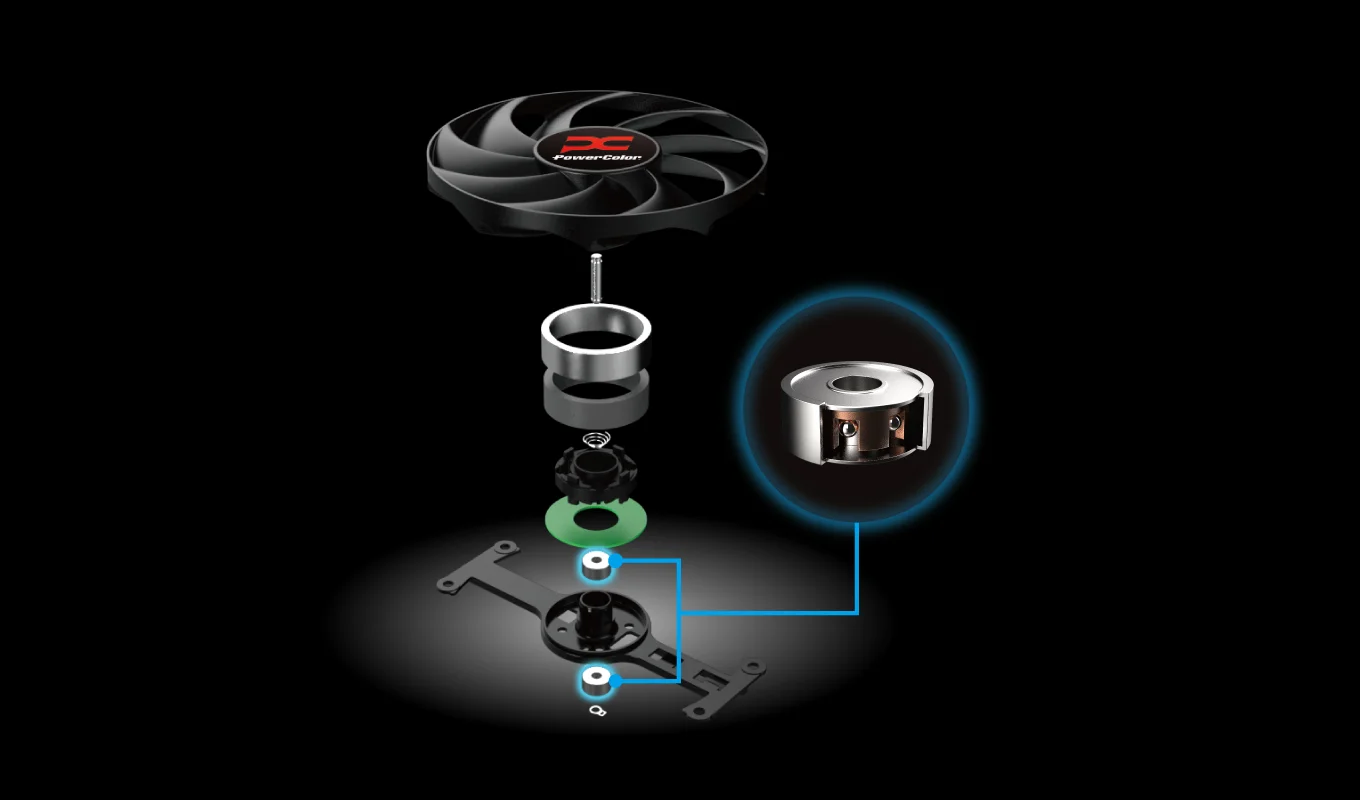

High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.



Intelligent Fan Controller

Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60? and shut down below 50?. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

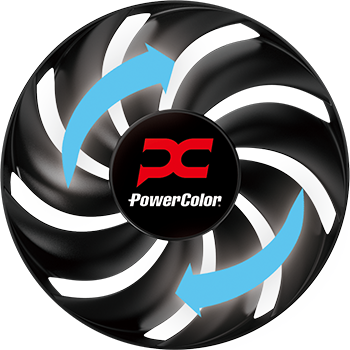

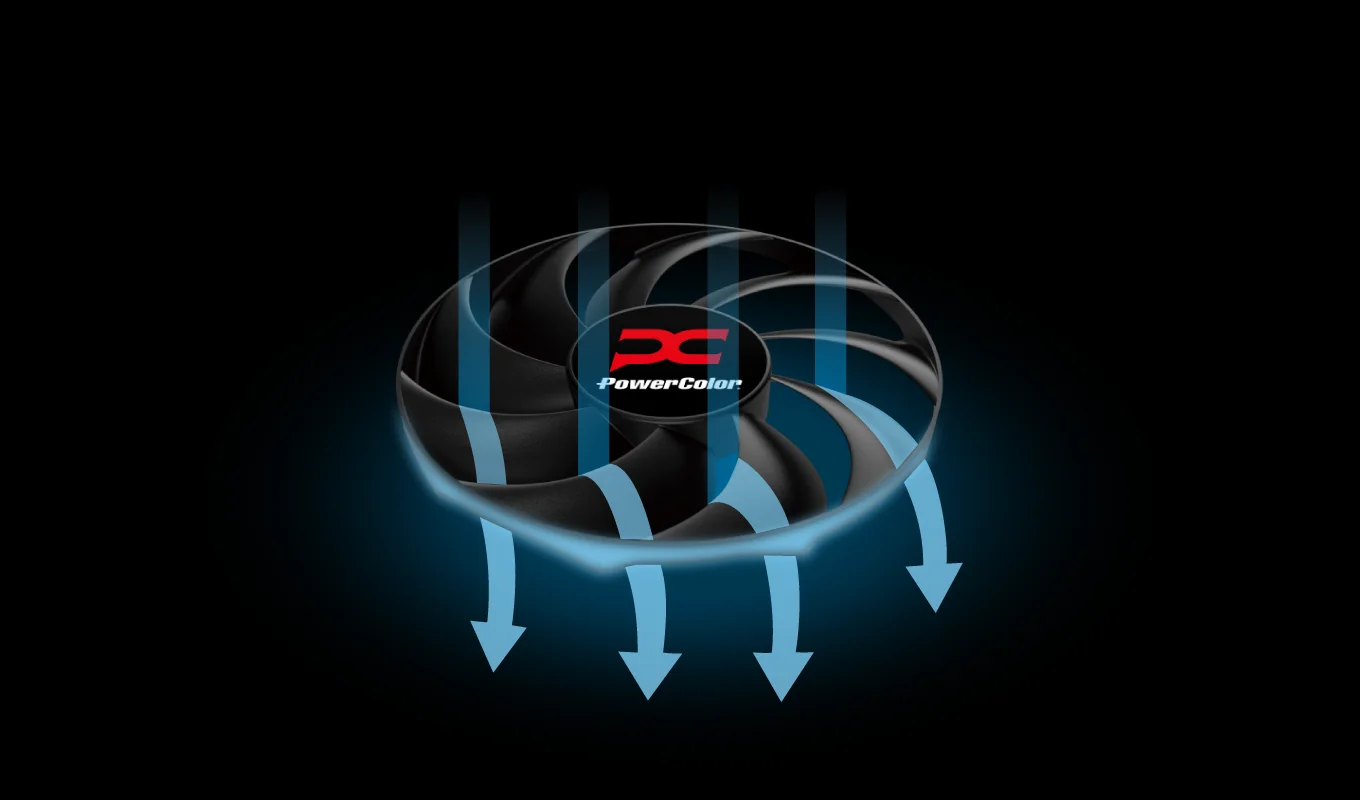

High-Efficiency Ring Blade Fans

Designed for passionate gamers, delivering the coolest experience. Exclusive ring blade design with up to 9 blades improves fan speed while maintaining low noise levels. It enhances air pressure and airflow, achieving optimal cooling performance.

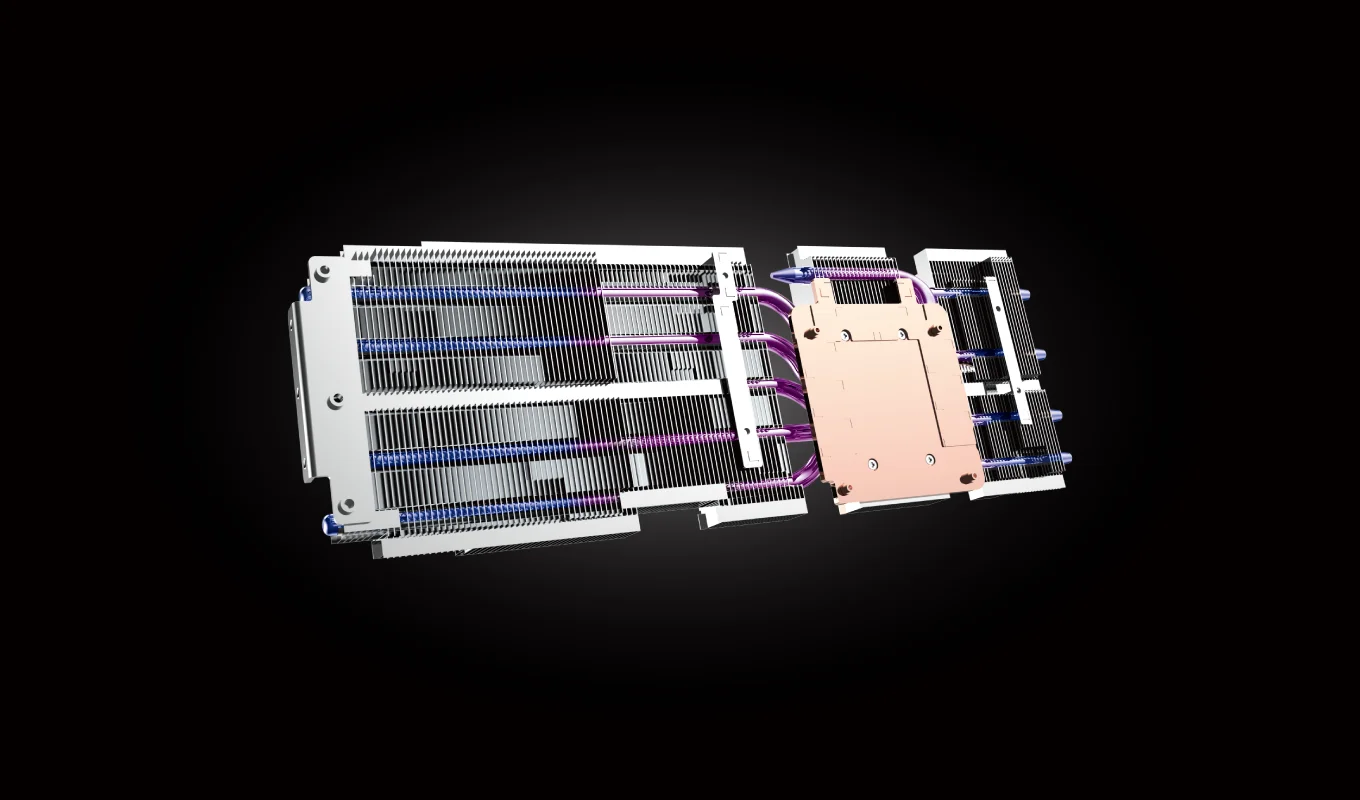

Copper Base Direct Touch

A smooth copper base directly contacts the GPU to enhance exceptional heat transfer, and improves heat dissipation from the VRAMs to keep the card in the optimum cooling condition.

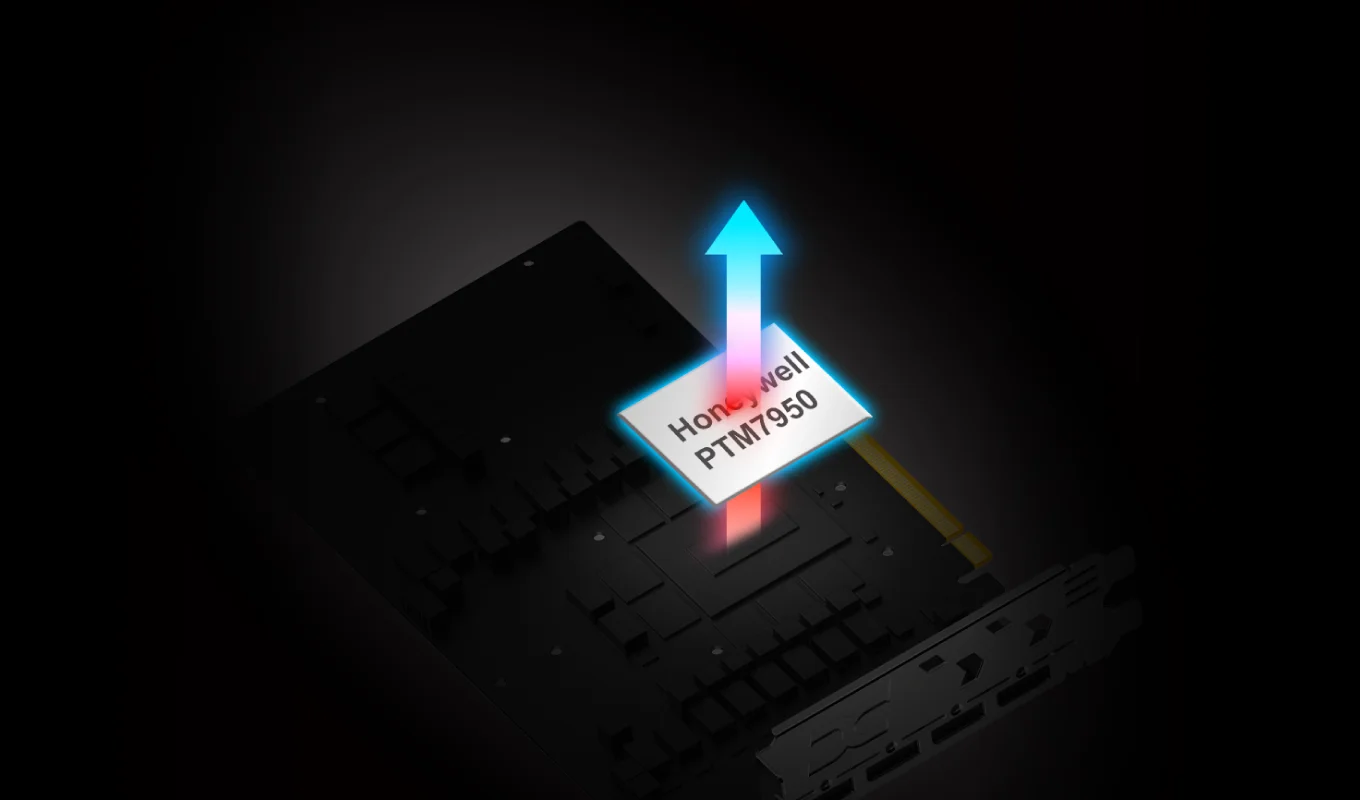

High-Thermal Conductivity Honeywell PTM7950

The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.



ALL YOU NEED FOR ULTRA-FAST GAMING

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon™ RX 9000 Series Graphics are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.



SUPERPOWERED VISUALS ENHANCED WITH AI

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.



INSTANT PERFORMANCE FOR EVERY MOVE

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.



FUTURE READY TECH WITH AI

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support, and up to 16GB of video memory to experience AAA games in all their visual glory, now and for years to come.

Specifications

Graphics Engine

AMD Radeon™ RX 9070 XT

Model Name

RX9070XT 16G-A

Series

Reaper

Stream Processor

4096 Units

Video Memory

16GB GDDR6

Memory Speed

20.0 Gbps

Memory Interface

256-bit

Engine Clock(STD/Silent)

up to 2400MHz(Game)[1]
up to 2970MHz(Boost)[2]

Bus Standard

PCIE 5.0 x16

Standard Display Connectors

1 x HDMI 2.1,3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)

DirectX® Support

12

OpenGL

4.6

AMD Eyefinity Technology

Support

AMD Stream Technology

Support

AMD Smart Access Memory

Support

Maximum Resolution

DisplayPort 7680×4320
HDMI 7680×4320

Board Dimensions

289mm*111mm*41mm
304mm*127mm*42mm(with bracket)

Slot

2

Minimum System Power requirement (W)

750W[3]

Extension Power Connector

Two 8-pin PCI Express Power connectors

Remark

[1]Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
[2]Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
[3]Recommended power supply for AMD Radeon RX 9070 XT graphics card is minimum 750W or greater power supply with 12V output > 75A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.

Manufacturer Part No:
RX9070XT 16GB-A
Brand:
Product Type:
Graphics Card
UPC
-
Product Family:
Reaper AMD Radeon
Shipping Weight:
1.3 kg
PB Part No:
VGAPOW290720
Product Model:
RX 9070 XT
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.7 out of 5 Stars Based on 17 reviews
5 Stars
13
4 Stars
3
3 Stars
1
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

The gods have not forsaken us...

This wholesome card right here comes in a reasonable size. I wouldn't call it small, but given manufacturers have gone bananas these days, making GPU's the size of a stack of bricks, well, this is "small" by comparison.

TG
By: TenshiG 12/03/25
Verified Owner
5 out of 6 users found this review helpful
Did you find it helpful?

I'm impressed by this card and the help at PBTECH

Well I was lucky to get this card at 3am - was going for the Sapphire Pulse but this was my second choice...mn they sold out fast.
Much smaller than I expected (looking for a 2-2.5 slot replacement for my RX 5700XT), no flashy bells and whistles but does the job really really well...once I got around the linux trickery of a kernel upgrade, Mesa upgrade and firmware upgrade.
Big thanks to Alastair at PBTECH Penrose for helping sort out my web refund at 5pm the day before launch before so I could get this card. It was a long shot but he worked his magic somehow...big ups.

TE
By: TomE7 10/03/25
Verified Owner
5 out of 6 users found this review helpful
Did you find it helpful?

Very quiet and low temps

Nice and compact card being only 2 slots. Runs surprisingly cool, 50-60C GPU (70-80C hot spot). The cooler is definitely good enough :)

CK
By: CoreyK1 11/03/25
Verified Owner
4 out of 5 users found this review helpful
Did you find it helpful?

Team Red for the Win !

I really wanted a 5080 & had planned to buy one on release.......then the announcements were made & pricing set. Long story short, on average, the 5080 is 22% extra performance for 72% extra cost, no wonder the 5080's are just sitting on shop shelves gathering dust.. As for this card - I love it. Runs cool, underclocks beautifully & handles 4K without issue (for the titles I want to play). Can't recommend it enough.

BS
By: BasilS1 21/04/25
Verified Owner
2 out of 2 users found this review helpful
Did you find it helpful?

Solid, but with minor complaints

Can't complain about the performance. And love that it's two slot.
Unlike another reviewer, I don't find the fans loud. Maybe I have better cooling in my case?
It does however make an audible tick sound every time the fans spin up. And since fans only run over a certain temp, if you're sitting around that threshold, you'll hear this ticking sound as the fans spin up then stop.
It does have coil whine when running max graphics, even with capped FPS. But it sounds like every 9070 suffers from that.

TM
By: TimM9554 01/04/25
Verified Owner
2 out of 3 users found this review helpful
Did you find it helpful?

Great small form factor card

A much smaller card than you mostly find nowdays. Despite the smaller size the temperatures are still good, and the power colour cards all come with ptm7950 pre applied.
Runs the games about 20-25% faster than the older RTX 3090 I had before this that I managed to sell for the same price as this 9070xt.
Have played a couple VR games at high resolution with it and it handles it not problem.

JG
By: JacobG4 22/04/25
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Super impressive little card.

I was so glad to see a 2 slot card come out for the 9070XT, This replaced my RX6800 in my Ghost S1, and it runs great. Performance is pretty close the to 7900XTX in most games, and even better in games that have ray tracing. The fans can get pretty noisey, but limiting them to 50% seems to be a sweet spot. This is basically a reference card (same clock speeds etc) and it's very easy to recommend if you need something that is two slots wide.

JO
By: Jonwatso 22/04/25
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

No Frills Performance

I was lucky to get this on release for a 'reasonable' price. Nice and compact and runs good temps. No flashy lights or cooler design.

LR
By: LoganR6 18/04/25
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Nice upgrade to my 3060ti

Definitely would encourage everyone to wait until prices settle down if you can help it. Otherwise would definitely encourage the AMD cards considering Nvidia's current hubris

TJ
By: TomJ69 17/04/25
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Great card, great performance, simple compact build let down by cheap noisy fans.

I like the look, very simple and plain. I hate RGB stuff so no complaints there. Its very good size considering it has three fans but the problem is, it has a smaller than average heat sink so it heats up fast, conversely it cools down fast too when the fans spin. Unfortunately any fan speed above 50 percent is getting very loud and i also have the beginnings of some piercing coil whine. So playing games its a constant loop of Fans spinning up then cooling rapidly then turning off, then back on again 5 mins later or less . It performs great in most applications with good power draw and with under volting can idle very cool but again...view more

BK
By: BradK23 30/03/25
Verified Owner
2 out of 4 users found this review helpful
Did you find it helpful?

Pretty cool

Have had no issues so far and it runs everything smoothly :)
It is a bit beyond necessary for me but I expect it will last a long time so should be a good deal

EL
By: EdenL82 31/03/25
Verified Owner
1 out of 2 users found this review helpful
Did you find it helpful?

Awesome

Great card - glad I bought it when it first released!

G
By: Guest 07/06/25
0 out of 0 users found this review helpful
Did you find it helpful?

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Powercolor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 Graphics Card PCIE 5.0 - 2 Slot - 2x 8 Pin Power - Minimum 750W PSU

Very powerful!
  • Brand: Powercolor
  • MPN: RX9070XT 16GB-A
  • Part #: VGAPOW290720
PB Tech price $1,249.00 Excluding GST PB Tech price $1,436.35 Including GST

Date Created: 01:18, 25-09-2025
Product URL: https://www.pbtech.co.nz/product/VGAPOW290720/Powercolor-Reaper-AMD-Radeon-RX-9070-XT-16GB-GDDR6?qr=similar-w
Branch New Stock On Display
Auckland - Albany 0
Auckland - Glenfield 0
Auckland - Queen Street 0
Auckland - Auckland Uni 0
Auckland - Newmarket 0
Auckland - Westgate 2
Auckland - Penrose 0
Auckland - Henderson (Express) 0
Auckland - St Lukes 2
Auckland - Manukau 0
Hamilton 0
Tauranga 0
New Plymouth 0
Palmerston North 0
Petone 0
Wellington 0
Auckland - Head Office 30+
Auckland - East Tamaki Warehouse 0
Christchurch - Hornby 0
Christchurch - Christchurch Central 0
Dunedin 0

Features

Relentless by Design: The Reaper Series

The PowerColor Reaper Series is built for gamers who demand reliable performance and unwavering endurance. With its sturdy cooling architecture and precision engineering, the Reaper is designed to handle the rigors of intense gaming sessions without compromise. Crafted with a singular focus on delivering consistent results, it stands as a steadfast ally for those ready to conquer every challenge. The Reaper Series is gaming, pure and simple-nothing more, nothing less.



Master the Game with Reaper Series

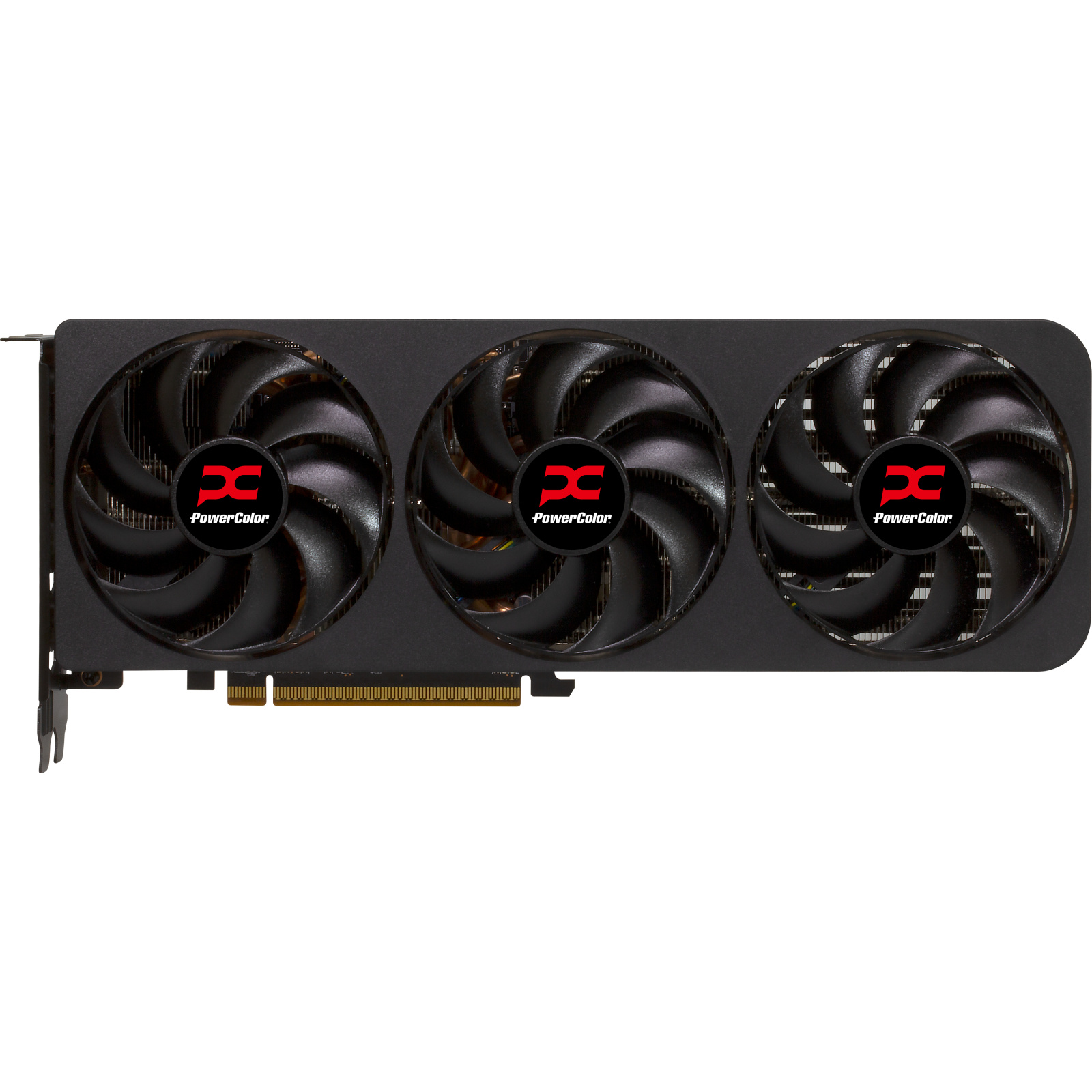

The PowerColor Reaper Series is designed to deliver reliable, consistent performance for gamers. Featuring high-quality Japanese dual ball bearings and high-efficiency ring blade fans, its robust triple-fan design ensures optimal airflow and durability. The copper base provides direct contact with the GPU and VRAM, maximizing cooling efficiency during demanding gameplay. The Reaper Series is built for those who value enduring performance in every battle.



High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.



Intelligent Fan Controller

Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60? and shut down below 50?. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.



High-Efficiency Ring Blade Fans

Designed for passionate gamers, delivering the coolest experience. Exclusive ring blade design with up to 9 blades improves fan speed while maintaining low noise levels. It enhances air pressure and airflow, achieving optimal cooling performance.



Copper Base Direct Touch

A smooth copper base directly contacts the GPU to enhance exceptional heat transfer, and improves heat dissipation from the VRAMs to keep the card in the optimum cooling condition.



High-Thermal Conductivity Honeywell PTM7950

The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.



ALL YOU NEED FOR ULTRA-FAST GAMING

Speed, performance, and visuals work together for smooth frames and total immersion. The ultra-fast Radeon™ RX 9000 Series Graphics are powered by unified AMD RDNA™ 4 compute units with enhanced raytracing capabilities for an ultra-immersive experience across all key gaming resolutions. Activate AMD HYPR-RX to instantly enable all supported performance boosting and latency reducing technologies across thousands of your favorite games. Enjoy high-quality, AI-powered upscaling with AMD FidelityFX™ Super Resolution 4, delivering an immersive gaming experience now and for years to come.



SUPERPOWERED VISUALS ENHANCED WITH AI

Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.



INSTANT PERFORMANCE FOR EVERY MOVE

Take the instant performance of AMD Radeon™ to an even higher level with the superpower of AMD Software. Enable AMD HYPR-RX in one click to unleash the true potential of your Radeon™ GPU, leveraging the combined forces of AMD Radeon™ Super Resolution, AMD Fluid Motion Frames 2, AMD Radeon™ Anti-Lag and AMD Radeon™ Boost. UX with dependable drivers and day zero game support will ensure game optimizations are ready to go to deliver high frame rates, sharper visuals, and low latency for thousands of gaming experiences that await.



FUTURE READY TECH WITH AI

AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support, and up to 16GB of video memory to experience AAA games in all their visual glory, now and for years to come.

Specifications

Graphics Engine

AMD Radeon™ RX 9070 XT

Model Name

RX9070XT 16G-A

Series

Reaper

Stream Processor

4096 Units

Video Memory

16GB GDDR6

Memory Speed

20.0 Gbps

Memory Interface

256-bit

Engine Clock(STD/Silent)

up to 2400MHz(Game)[1]
up to 2970MHz(Boost)[2]

Bus Standard

PCIE 5.0 x16

Standard Display Connectors

1 x HDMI 2.1,3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)

DirectX® Support

12

OpenGL

4.6

AMD Eyefinity Technology

Support

AMD Stream Technology

Support

AMD Smart Access Memory

Support

Maximum Resolution

DisplayPort 7680×4320
HDMI 7680×4320

Board Dimensions

289mm*111mm*41mm
304mm*127mm*42mm(with bracket)

Slot

2

Minimum System Power requirement (W)

750W[3]

Extension Power Connector

Two 8-pin PCI Express Power connectors

Remark

[1]Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
[2]Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.
[3]Recommended power supply for AMD Radeon RX 9070 XT graphics card is minimum 750W or greater power supply with 12V output > 75A. Minimum recommended system power supply wattage is based on a PC configured with an AMD Ryzen 9 7950X processor plus typical power requirements of other system components. Your system requirements may differ.

Date Created: 01:18, 25-09-2025
Product URL: https://www.pbtech.co.nz/product/VGAPOW290720/Powercolor-Reaper-AMD-Radeon-RX-9070-XT-16GB-GDDR6?qr=similar-w
