ASUS IoT PE100A 4G/16GB NXP i.MX 8M ARM Cortex-A53 core, 1*M.2 2230 802.11 a/b/g/n/ac + BT4.2 (-40 to 85)
ASUS IoT PE100A 4G/16GB NXP i.MX 8M ARM Cortex-A53 core, 1*M.2 2230 802.11 a/b/g/n/ac + BT4.2 (-40 to 85)
- Brand: ASUS IoT
- MPN: 90AE0021-M000N0
- Part #: WKSASUPE100APA
- UPC: 195553726788
.png "Featured in: ASUS Price SMASH"){kind=icon}
- Brand: ASUS IoT
- MPN: 90AE0021-M000N0
- Part #: WKSASUPE100APA
- UPC: 195553726788
Features
PE100A - Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- 16G on board eMMC and Micro-SD card for storage capacity
- Support Windows 10 IoT Core and Linux Ubuntu/Yocto/Android OS
- Wide Temperature Range: -20~60°C

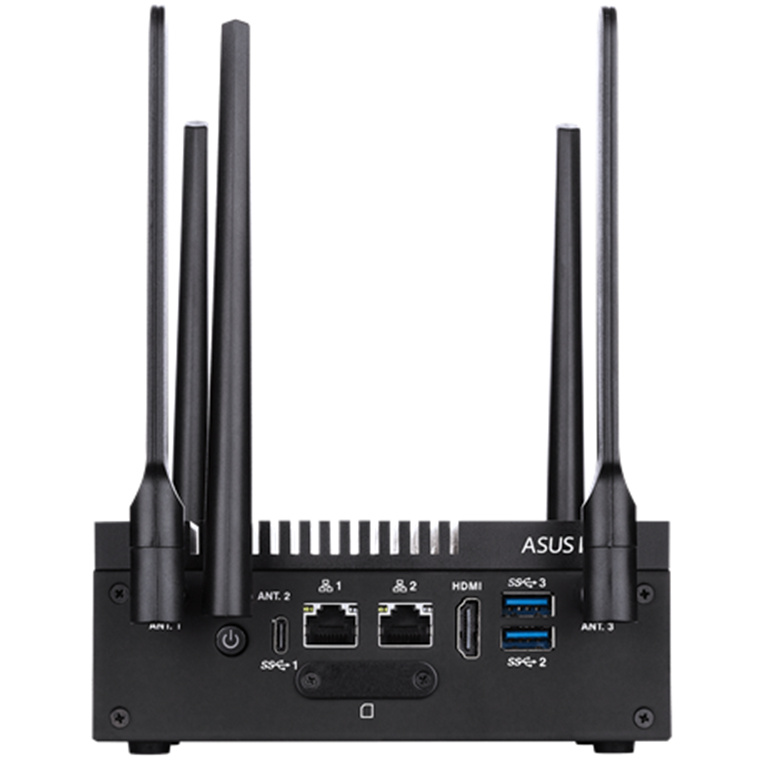

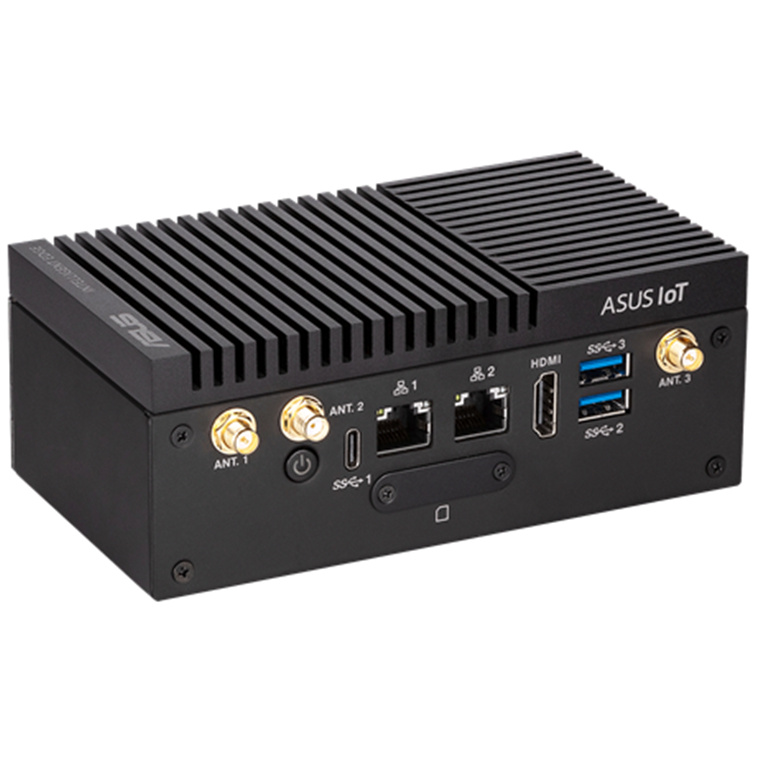

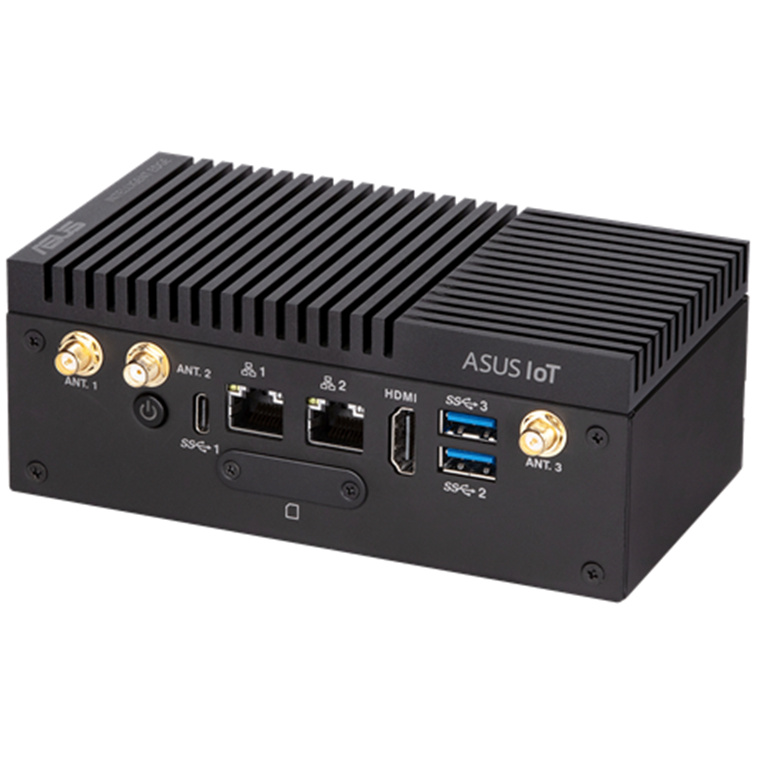

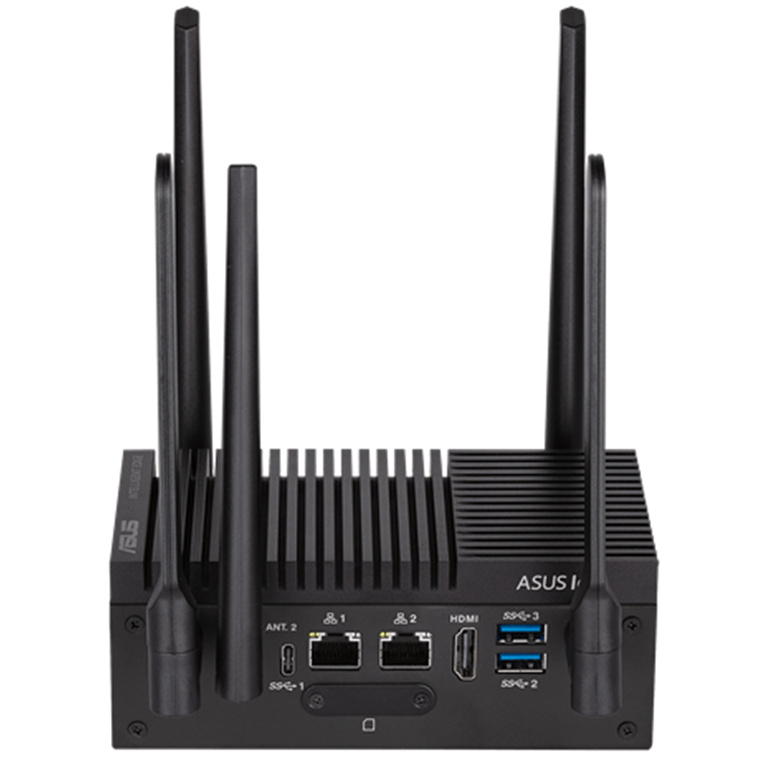

PE100A is an edge computer based on a Pico-ITX motherboard that's optimized for TCO, supported by a secondary I/O board for extra functionality. It's powered by an NXP® i.MX 8M system-on-a-chip (SoC) processor that's based on the Arm® Cortex-A53 architecture with up to 1.3 GHz and delivers efficient performance with low power consumption. PE100A also features 4 GB LPDDR4 onboard memory and 16GB onboard eMMC, and includes two Ethernet ports, three USB ports and one HDMI on the front side. Two COM ports, with RS232/RS485/CAN bus, and one digital DI/DO are also available as optional interfaces at the rear. Inside, PE100A's mainboard also supports an M.2 E-key connector and micro SD card connector, while the I/O board offers Mini PCIe®/mSATA and a Nano-SIM socket interface.
The new computer is also engineered with a wide range of power inputs (12~24V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Computers
MINIX Mini PC NGC NR660 AMD Ryzen 6600H/16GB DDR5/512GBSSD/ Win...
MINIX Mini PC NGC NR774 AMD Ryzen 8745HS/32GB DDR5/1TB SSD/ Win...
MINIX Mini PC J51-C8 MAX Intel N5105 8G/512GB Win 11 pro(64-bit),...
ASUS IoT PE100A 4G/16GB NXP i.MX 8M ARM Cortex-A53 core, 1*M.2...
MINIX SF16T 16" Portable Monitor with touch panel
ASUS IoT PE100A 4G/16GB NXP i.MX 8M ARM Cortex-A53 core, 1*M.2 2230 802.11 a/b/g/n/ac + BT4.2 (-40 to 85)
- Brand: ASUS IoT
- MPN: 90AE0021-M000N0
- Part #: WKSASUPE100APA
- UPC:195553726788
Product URL: https://www.pbtech.co.nz/product/WKSASUPE100APA/ASUS-IoT-PE100A-4G16GB-NXP-iMX-8M-ARM-Cortex-A53-c?qr=popular_related_products
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 1 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
PE100A - Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- Intelligent Edge computer with NXP® i.MX 8M low power consumption and scalable processor
- 16G on board eMMC and Micro-SD card for storage capacity
- Support Windows 10 IoT Core and Linux Ubuntu/Yocto/Android OS
- Wide Temperature Range: -20~60°C
PE100A is an edge computer based on a Pico-ITX motherboard that's optimized for TCO, supported by a secondary I/O board for extra functionality. It's powered by an NXP® i.MX 8M system-on-a-chip (SoC) processor that's based on the Arm® Cortex-A53 architecture with up to 1.3 GHz and delivers efficient performance with low power consumption. PE100A also features 4 GB LPDDR4 onboard memory and 16GB onboard eMMC, and includes two Ethernet ports, three USB ports and one HDMI on the front side. Two COM ports, with RS232/RS485/CAN bus, and one digital DI/DO are also available as optional interfaces at the rear. Inside, PE100A's mainboard also supports an M.2 E-key connector and micro SD card connector, while the I/O board offers Mini PCIe®/mSATA and a Nano-SIM socket interface.
The new computer is also engineered with a wide range of power inputs (12~24V), operating temperatures (-20°~60°) to serve as an edge-to-cloud gateway device for data aggregation, processing and forwarding. The TCO-optimized SBC is ideal for embedded automation solutions and diverse smaller-scale IoT applications. ASUS Edge computer also secure for 24/7 stability and reliability, combined with our world-class after-sales service and guaranteed long-term availability to make sure your investment for the duration of the product lifecycle is maximized.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
Processor System
CPU
NXP® i.MX 8M ARM Cortex-A53 core
MAX.SPEED
1.3 GHz
L2 Cache
1MB
Chipset
Integrated
Memory
Technology
LPDDR4
Max.
4GB on board memory
Display
HDMI
1, , Supports HDMI 2.0 up to 3840 x 2160 @ 60 Hz
Expansion Slot
Mini PCIe
1 (support mSATA)
M.2
1 x M.2 2230 E Key for BT/WiFi module (cooperate with Google Edge TPU Module)
SIM
1 x Full/Half Length Mini PCIe slot with an on-board Nano-SIM socket
Others
1 x Micro-SD Card connector
Ethernet
Speed
10/100/1000Mbps
Controller
1 x Realtek® RTL8211, 1 x Intel I211-AT
Connector
2 x RJ-45
Storage
eMMC
1 x 16GB onboard eMMC

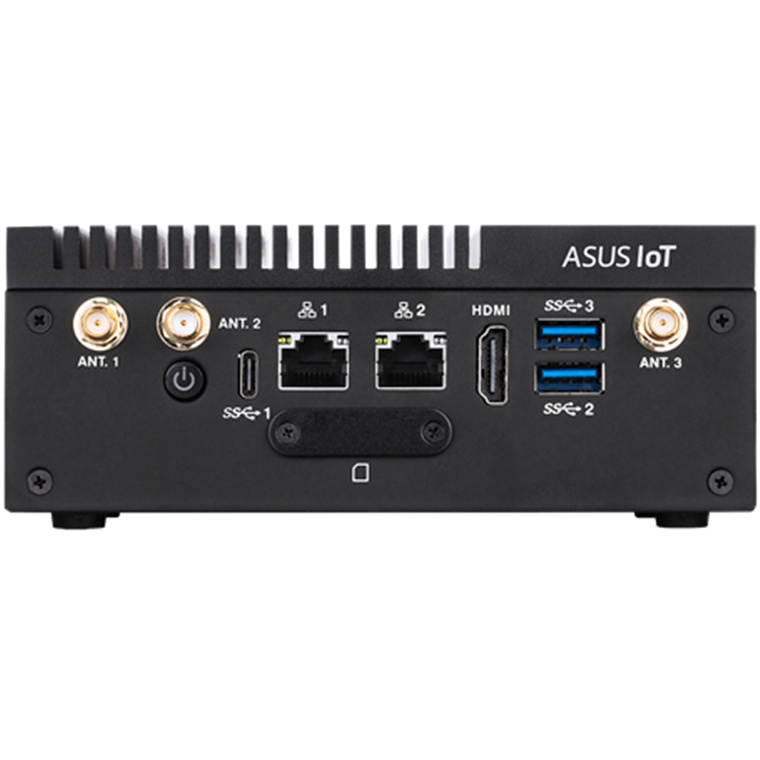

Front I/O
HDMI
1
USB3.2 Gen1
2 @ type A, 5V/2A
1 @ type C OTG, 5V/1.5A
Ethernet
2

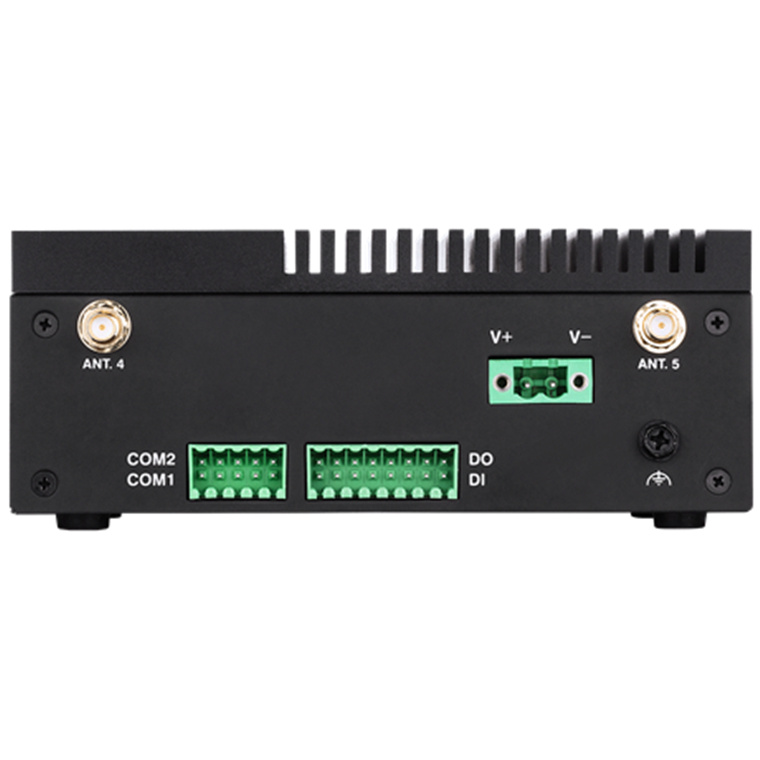

Rear I/O
Terminal Block
1 x COM terminal
(Support 2 x COM headers; 1 x RS-232/422/485, 1 x RS-232/CANBus)
1 x DIO terminal (4*DI, 4*DO)
Power Connector
DC Power input
Watchdog Timer
S/W
Setup by software
Security
TPM Module (Option)
TPM 2.0 power by Nuvoton NCPT 750
Crypto Module
Cloud security power by Microchip ATECC608A/NXP SE050 (Optional)
Manageability
Manageability
WOL
Power
Power Type
DC power input
Voltage
12-24V DC input
Operating System
Microsoft Windows
Windows 10 IoT Core
Linux
Linux Yocto/Ubuntu
Android
Android 11
Environment
Operating Temperature
-20~60°C
Non-Operating Temperature
-40~85°C
Relative Humidity
10 ~ 95%
Dimension
Mounting
Wall-Mount, DIN-Rail (Optional)
Weight
0.775 KG
Form Factor
145(w)x78(L)x55.5(H)mm
