StarTech.com PEX1PCI1 PCI Express to PCI Adapter Card

PB Tech price
PB Tech price
$ 80 .00
 +GST
$ 92 .00
 inc GST
$80.00  +GST
$92.00

StarTech.com PEX1PCI1 PCI Express to PCI Adapter Card

  • Brand: StarTech.com
  • MPN: PEX1PCI1
  • Part #: ADPSTT1601014
  • UPC: 065030834629
1
PB Tech price
$ 80 .00 $ 92 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$80.00  +GST
$92.00
  • Brand: StarTech.com
  • MPN: PEX1PCI1
  • Part #: ADPSTT1601014
  • UPC: 065030834629

What PB Tech customers are saying about this product...

See More Reviews

"So the most important thing to remember is if you plan on using this to install a full height old school PCI card you will have to cut out part of your case and wrangle some method ...view more"

By: Ploppy 21/03/21
Verified Owner

Features

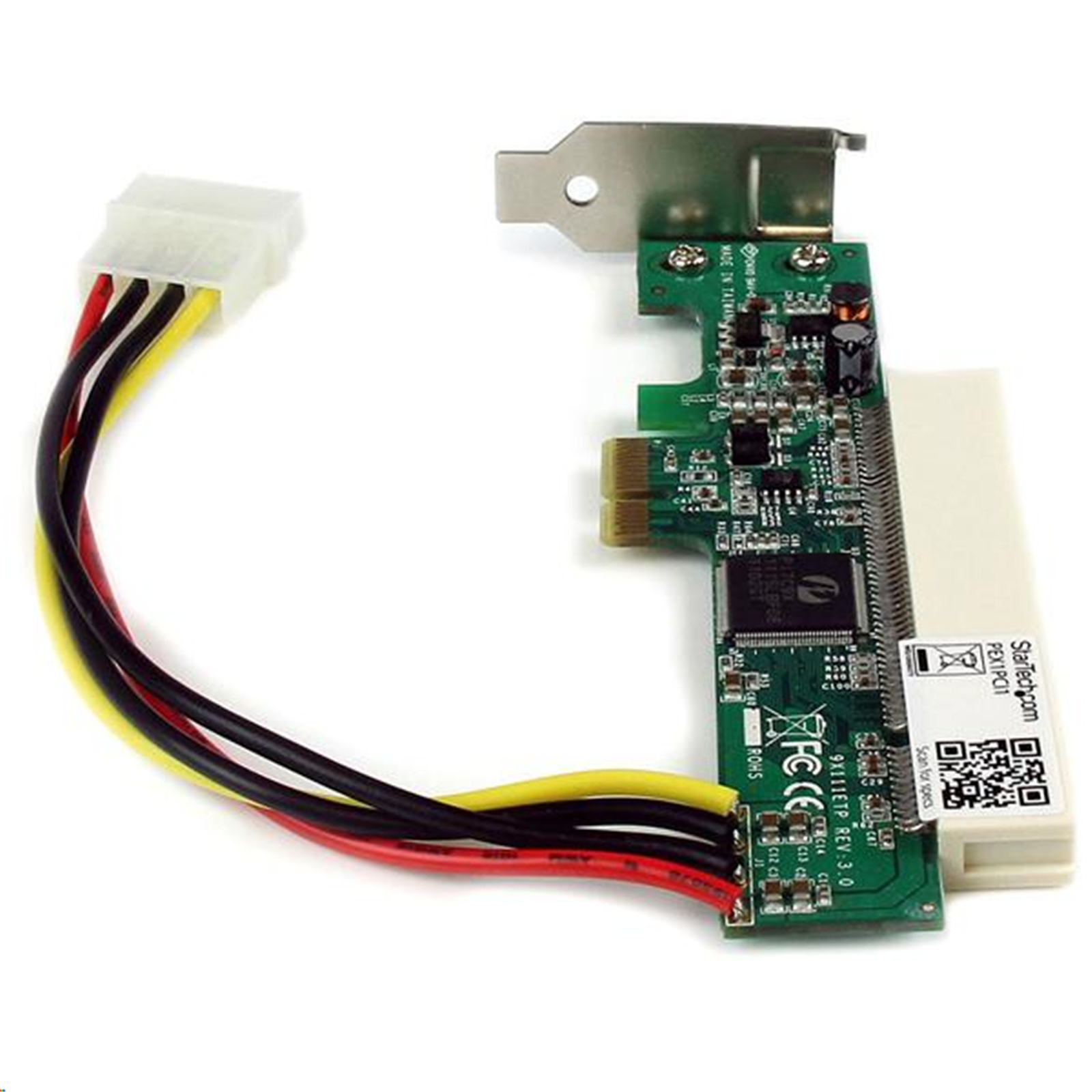

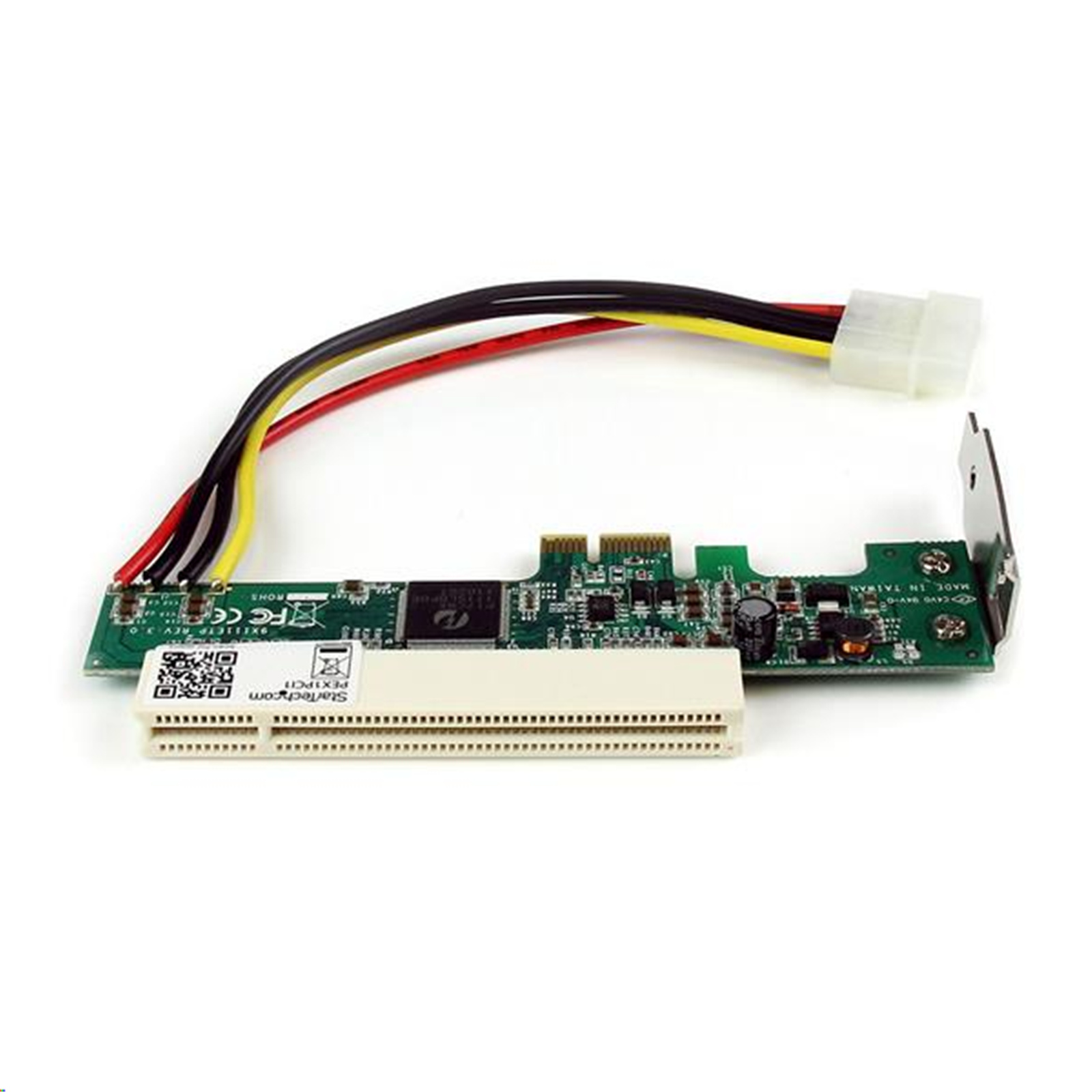

PCI Express to PCI Adapter Card

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots. A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V). The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems. To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.


The StarTech.com Advantage

- The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
- Backed by a StarTech.com 2-year warranty and free lifetime technical support

Specifications

Hardware

Bus Type
PCI Express
Card Type
Standard Profile
Chipset ID
Pericom - PI7C9X111SL
Interface
PCI / PCI-X (5 / 3.3V)

Connector(s)

Connector Type(s)
1 - PCI Express x1 Male
Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male
1 - PCI (5V, 32-bit) Slot Female

OS Compatibility
OS Independent; No additional drivers or software required

Included in Package
1 - PCI Express to PCI Card
1 - Spare Full Profile Bracket
1 - Instruction Manual
Manufacturer Part No:
PEX1PCI1
Brand:
Product Type:
-
UPC
065030834629
Product Family:
-
Shipping Weight:
0.174 kg
PB Part No:
ADPSTT1601014
Product Model:
PEX1PCI1
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 1 review
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Pretty Happy Really

So the most important thing to remember is if you plan on using this to install a full height old school PCI card you will have to cut out part of your case and wrangle some method to secure it because it raises the usual height of your PCI card by a few centimetres. I did this in a really ugly way, grabbed some pliers and bent and ripped a big section of the case out so I could fit my Delta 1010LT PCI audio interface into my 3900XT/ROG STRIX X570-F/Coolermaster Silencio S600 machine. My motherboard has no PCI slot only PCI-E so I had to use the Delta 1010 in my old rig with a 7700k which obviously only has four cores for multitrack recording...view more

By: Ploppy 21/03/21
Verified Owner
1 out of 1 user found this review helpful
