Features

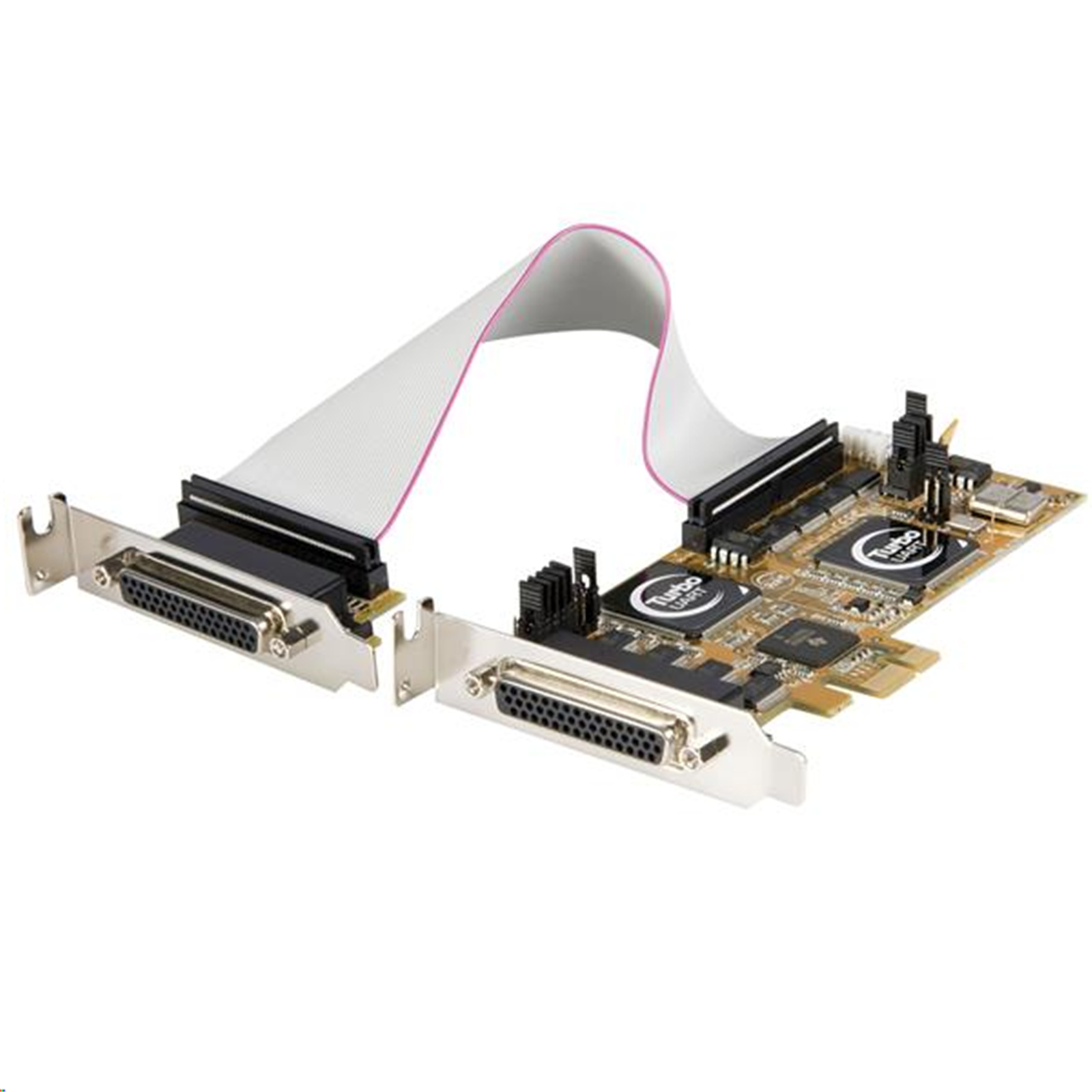

8 Port PCI Express Low Profile Serial Adapter Card

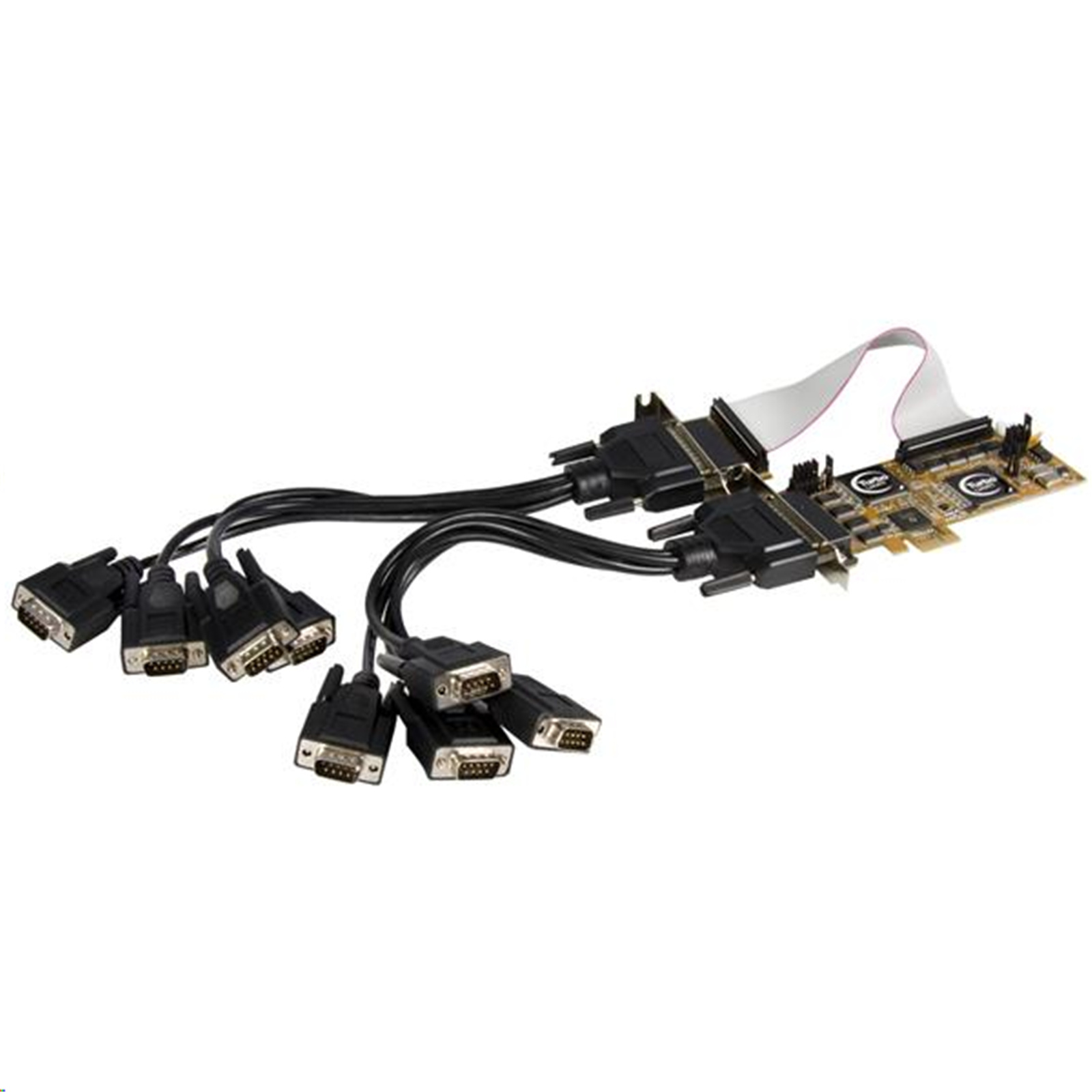

The PEX8S950LP 8 Port PCI Express Low Profile Serial Adapter Card with dongle cables included offers 8 RS 232 Serial connections via a single PCI Express slot, with data rates up to 921Kbps. Perfect for use with a broad variety of serial peripherals including printers, scanners, industrial controls and more. A complete 8 port RS232 Serial card solution, the adapter includes 2 breakout cables - each with 4 DB9 connectors for a total of 8 ports. The perfect choice for adding several additional ports when space is at a premium, the serial adapter card is designed to fit in small/micro form factor computer cases. Plus, this versatile card also includes 2 standard profile brackets for compatibility with full size cases. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Includes 2 breakout cables, helping to avoid crowded connections
- Pre-configured with low profile brackets and ships complete with 2 standard profile brackets for compatibility with almost any computer case
- Easy to install and use with full step-by-step instructions for hassle-free integration into your system
Specifications
Bus Type
PCI Express
Card Type
Low Profile (SP bracket incl.)
Chipset ID
PLX/Oxford - OXmPCI952-LQAG
Interface
Serial
Port Style
Dongle (Included)
Ports
8
Performance
Data Bits
5, 6, 7, 8, 9
FIFO
128 Bytes
Flow Control
RTS/CTS, XON/XOFF
Max Baud Rate
921.6 Kbps
Parity
None, Even, Odd, 1, 0
Serial Protocol
RS-232
Stop Bits
1, 1.5, 2
Connector(s)
Connector Type(s)
1 - PCI Express x1 Male
External Ports
8 - DB-9 (9 pin, D-Sub) Male
Software
OS Compatibility
Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Linux 2.4.x to 4.4.x LTS Versions only

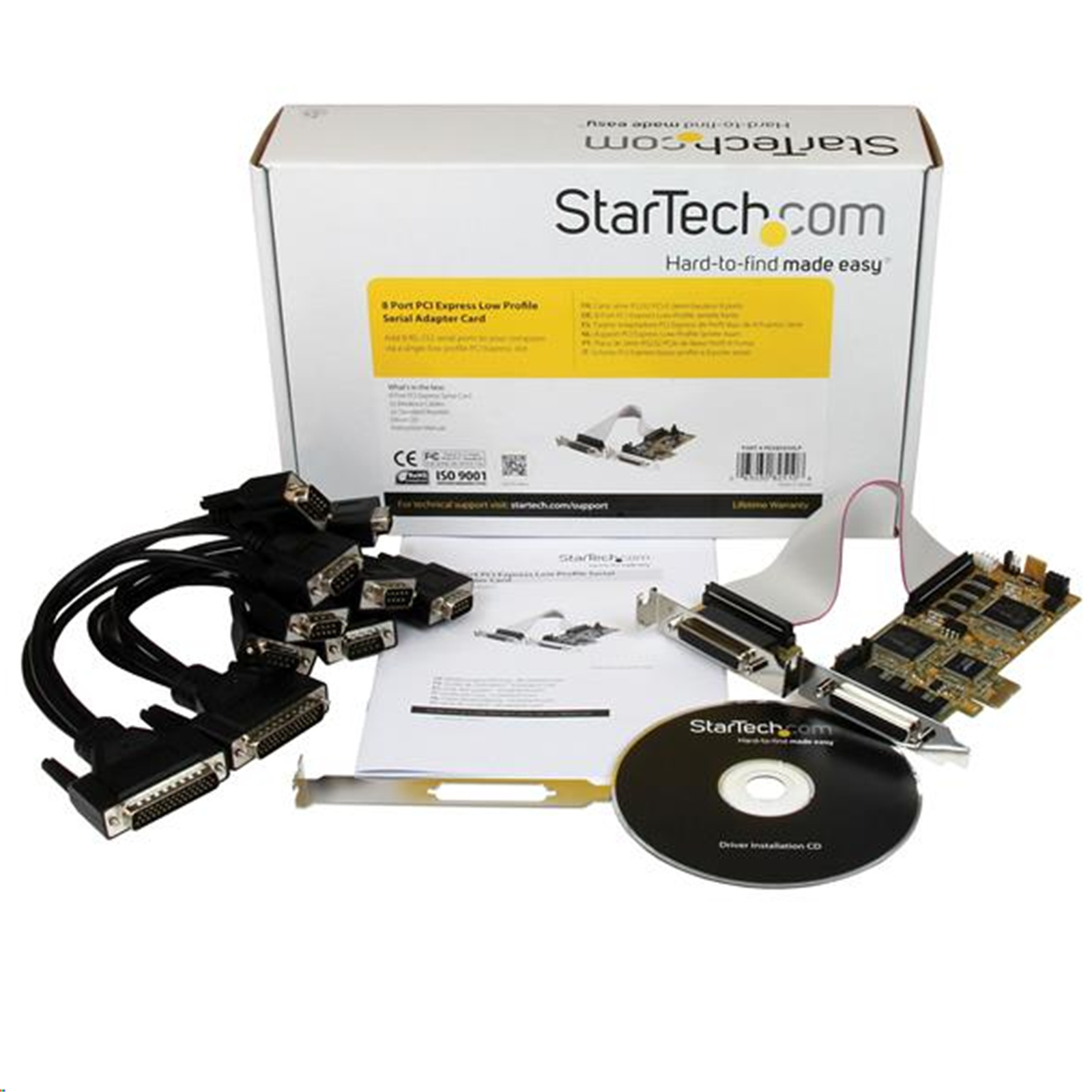

Included in Package
1 - 8 Port PCI Express Serial Card
2 - Breakout Cables
2 - Standard Brackets
1 - Driver CD
1 - Instruction Manual
