StarTech.com PEX2S5531P 2S1P PCIe Parallel Serial Combo Card

PB Tech price
PB Tech price
$ 78 .26
 +GST
$ 90 .00
 inc GST
$78.26  +GST
$90.00

StarTech.com PEX2S5531P 2S1P PCIe Parallel Serial Combo Card

  • Brand: StarTech.com
  • MPN: PEX2S5531P
  • Part #: ADPSTT1618157
  • UPC: 065030841764
PB Tech price
$ 78 .26 $ 90 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 07 Oct When will I receive it?
$78.26  +GST
$90.00

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the StarTech.com PEX2S5531P 2S1P PCIe Parallel Serial Combo Card
StarTech.com PEX2S5531P 2S1P PCIe Parallel Serial Combo Card
Total:
$ 175 .64
 +GST
$ 201 .99
Buy together and save $8.68 $9.98
Crucial 8GB DDR4 Desktop RAM 3200 Mhz - Unbuffered - DIMM - 288pin - DDR4 Platform ONLY
Crucial 8GB DDR4 Desktop RAM 3200 Mhz - Unbuffered - DIMM - 288pin - DDR4 Platform ONLY
$49.00 $56.35

$47.00  +GST

$54.05

You save 4% You save 4%
Cruxtec DisplayPort to VGA Adapter -  (1920*1080/60Hz)
Cruxtec DisplayPort to VGA Adapter -  (1920*1080/60Hz)

Cruxtec DisplayPort to VGA Adapter - (1920*1080/60Hz)

Collect from 15 stores by 2:25pm today
Ships on 29 Sep
$22.06 $25.37

$18.38  +GST

$21.14

You save 16% You save 16%
LG GH24NSD1 Internal SATA DVD Writer , Black colour , OEM package
LG GH24NSD1 Internal SATA DVD Writer , Black colour , OEM package
$35.00 $40.25

$32.00  +GST

$36.80

You save 8% You save 8%

Features

2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART

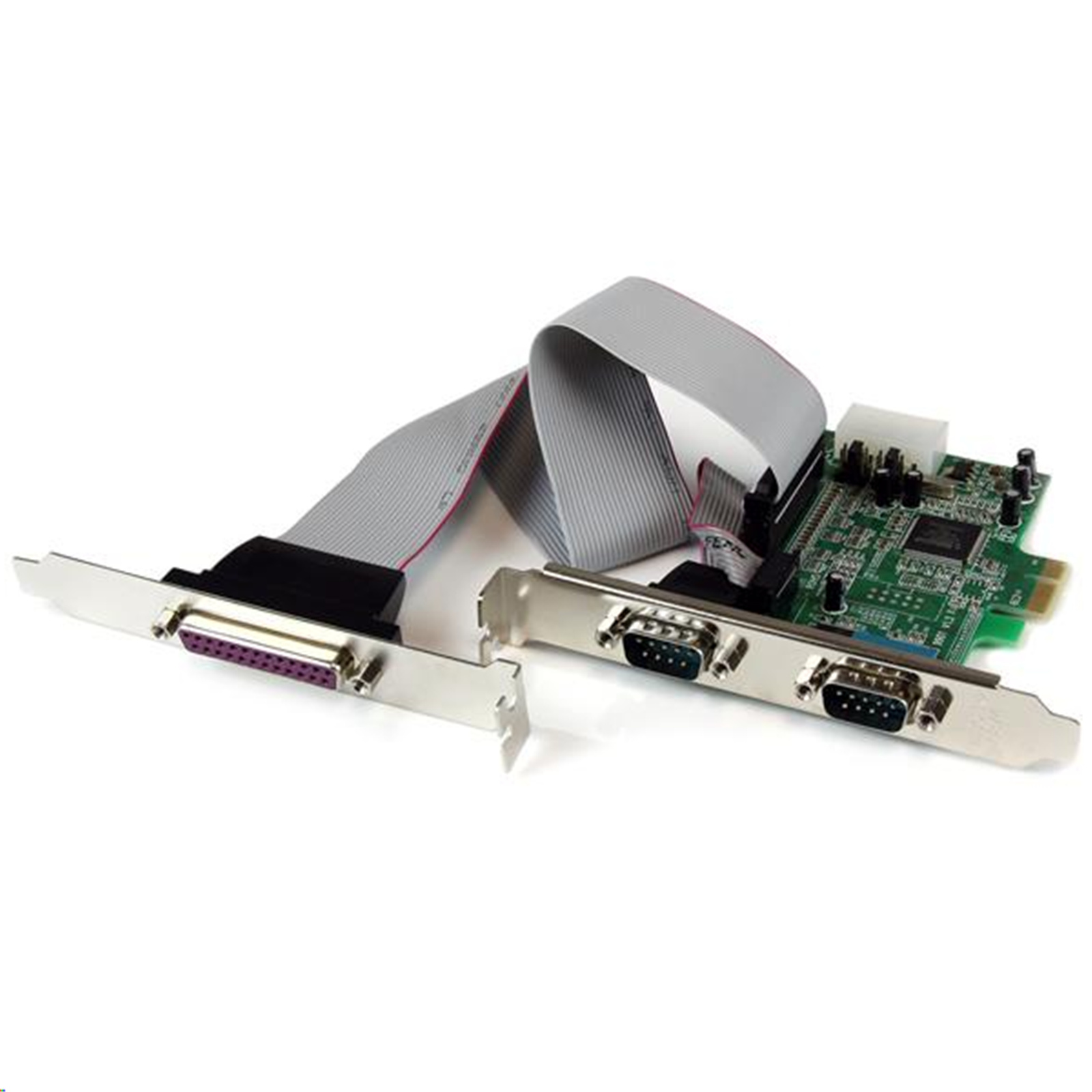

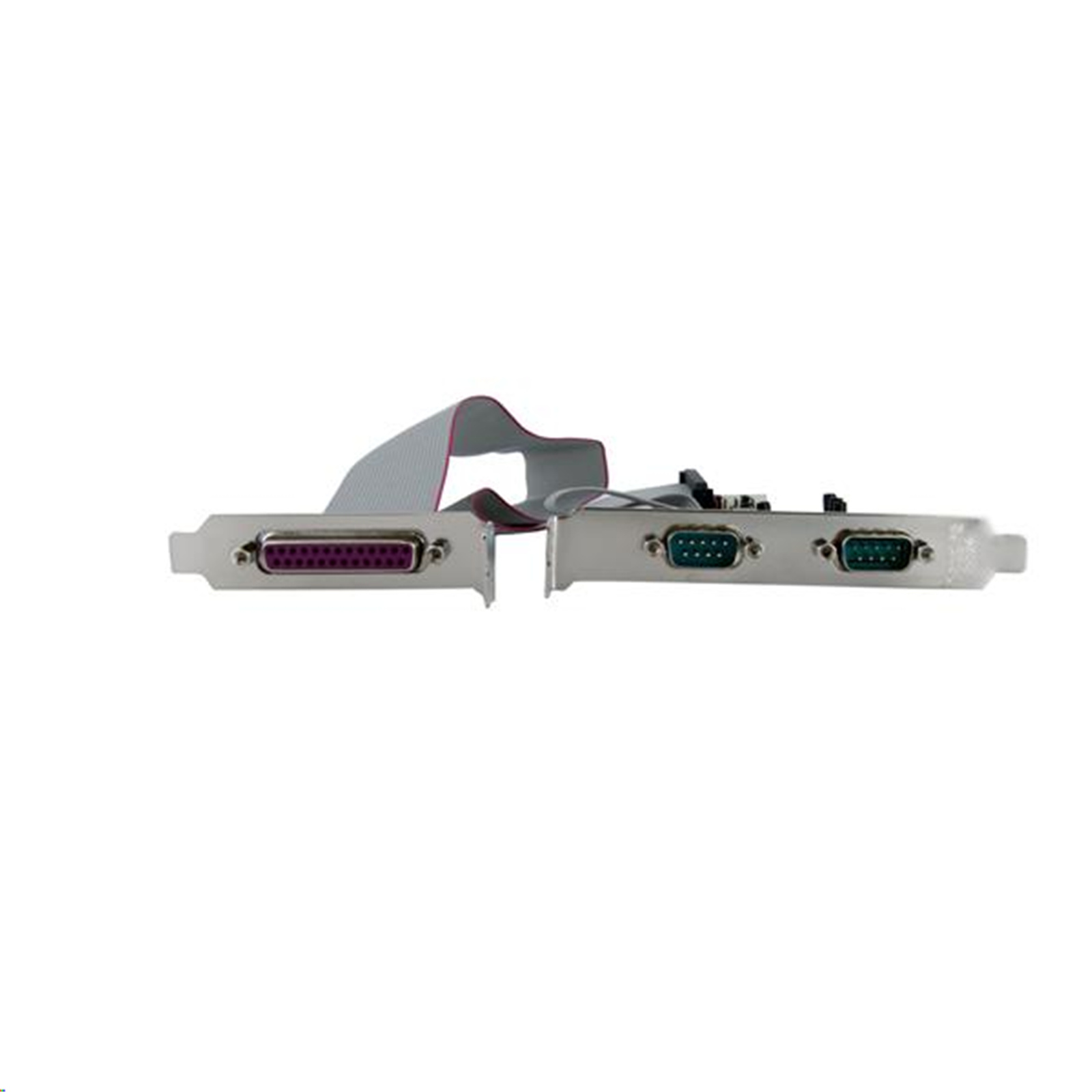

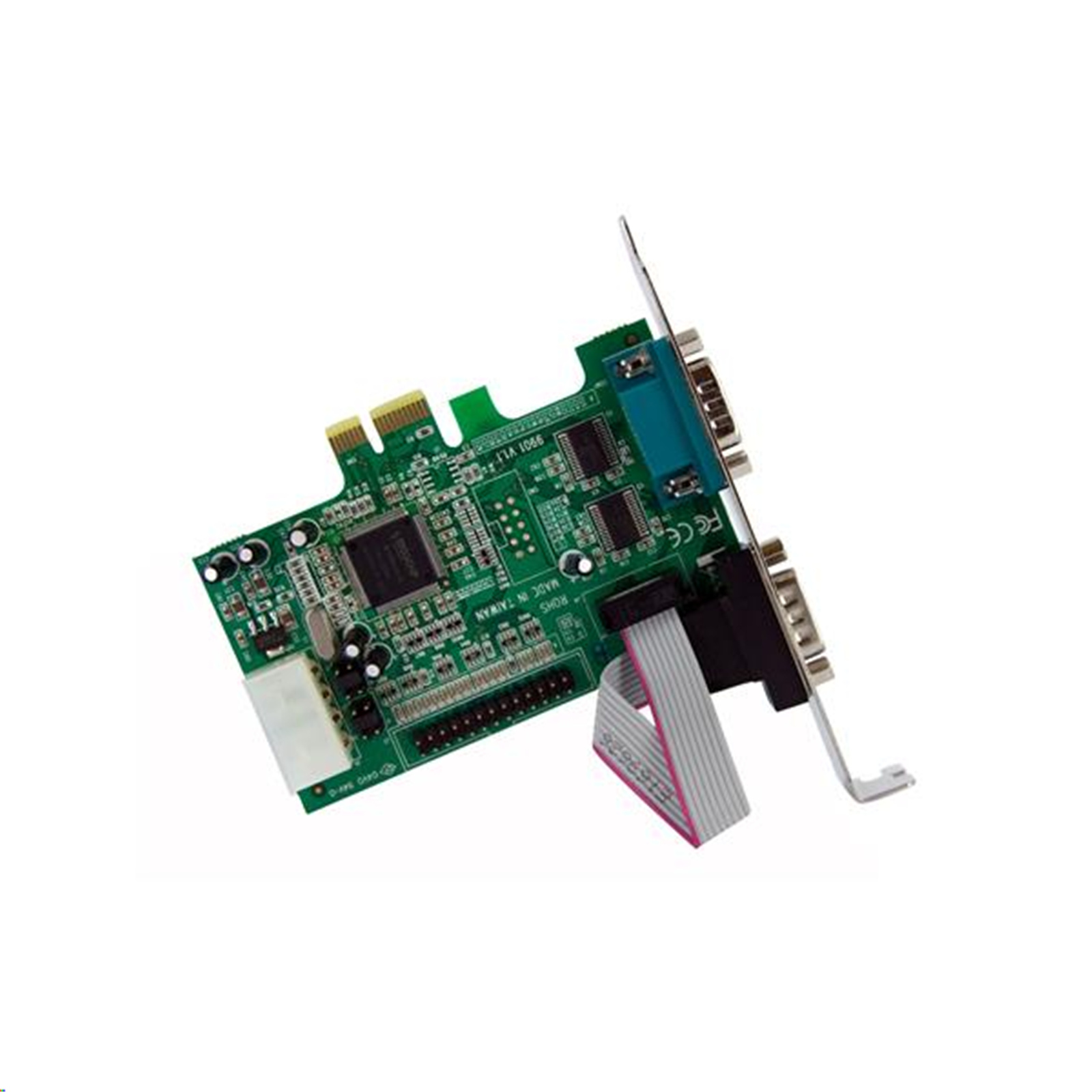

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor. This product is a replacement for our PEX2S5521P card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


The StarTech.com Advantage


- Native single-chip, single lane PCI Express chipset delivers true PCIe performance
- Standard and low profile/half-height bracket included to ensure fitment in any system
- Easy to install and use with full step-by-step instructions saving time and hassle

Specifications

Hardware

Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
ASIX/MosChip - MCS9901CV-CC
Industry Standards
IEEE 1284
PCI Express base specifications revision 1.0a
Interface
Parallel
Serial
Port Style
Integrated on Card
Ports
2

Performance


FIFO
128 Bytes
Max Baud Rate
460.8 Kbps
Maximum Data Transfer Rate
RS-232 - 460.8Kbps
Parallel - 1.5Mbps
Serial Protocol
RS-232
Supported Protocols
EPP, ECP, SPP, PS/2

Connector(s)


Connector Type(s)
1 - PCI Express x1 Male
External Ports
1 - DB-25 (25 pin, D-Sub) Female
2 - DB-9 (9 pin, D-Sub) Male
Internal Ports
1 - LP4 (4 pin, Molex Large Drive Power) Male

Software

OS Compatibility
Windows® DOS, 95, 98SE, 2000, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, XP Embedded, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS X® 10.4 to 10.9
Linux 3.5.x to 4.4.x LTS Versions only

Included in Package
1 - 2 Port PCI-Express Serial Card
1 - Parallel port (with ribbon cable)
3 - Low Profile Brackets
1 - Driver CD
1 - Instruction Manual
Manufacturer Part No:
PEX2S5531P
Brand:
Product Type:
-
UPC
065030841764
Product Family:
-
Shipping Weight:
0.6 kg
PB Part No:
ADPSTT1618157
Product Model:
PEX2S5531P
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
