Features

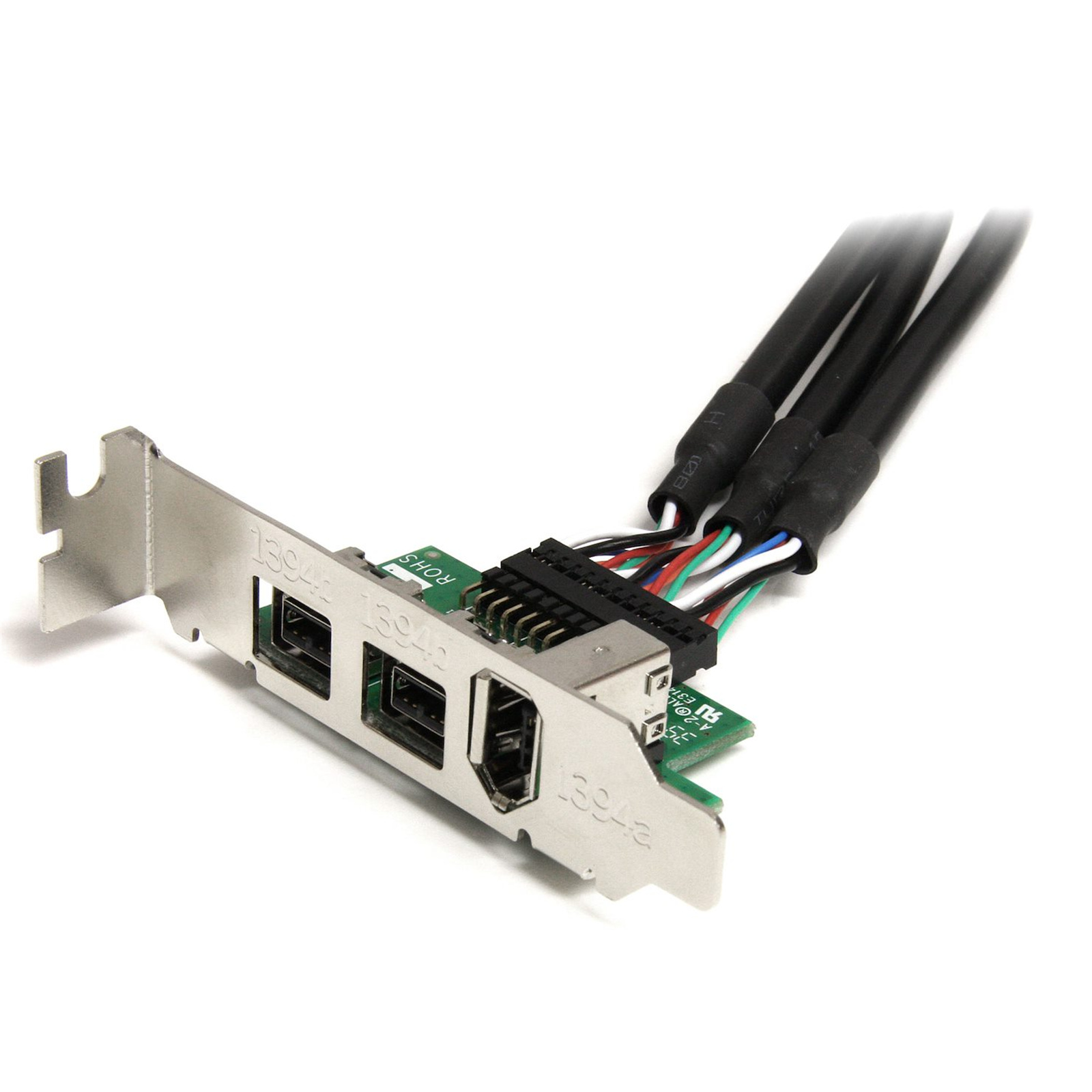

Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot
- 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps
- 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps
- Compliant with PCI Express Mini Card specification 1.2
- Optional external power support for high-powered FireWire devices
- Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- Plug-and-Play and hot-swap compatible

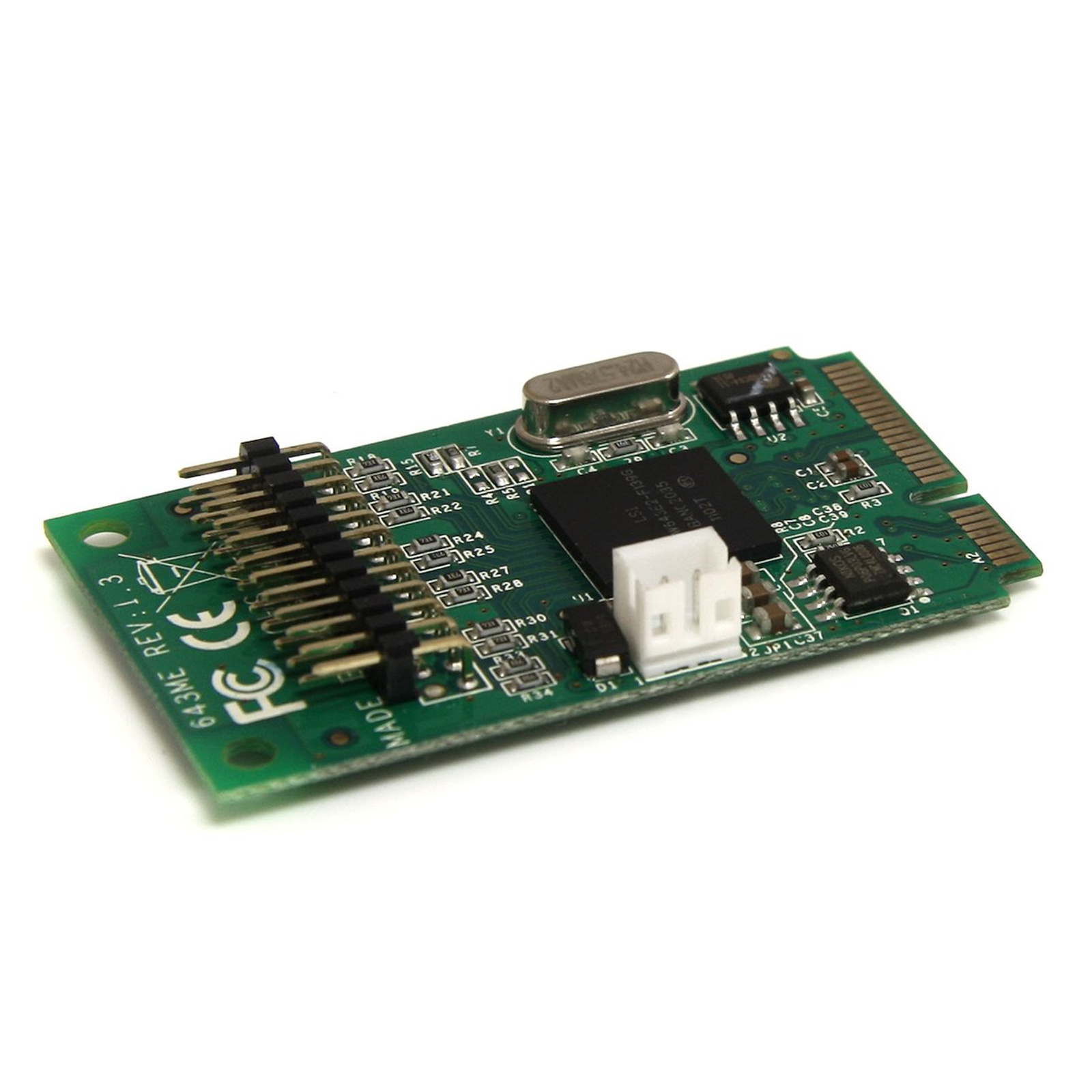

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- System builders creating a small form factor HTPC with external FireWire storage or A/V equipment
- Custom embedded systems with no room for full or even low profile PCI Express cards
Specifications
Connector(s)
Connector Type(s)
1 - Mini PCI Express x1 (52 pin)
Internal Ports
1 - LP4 (4 pin; Large Drive Power)

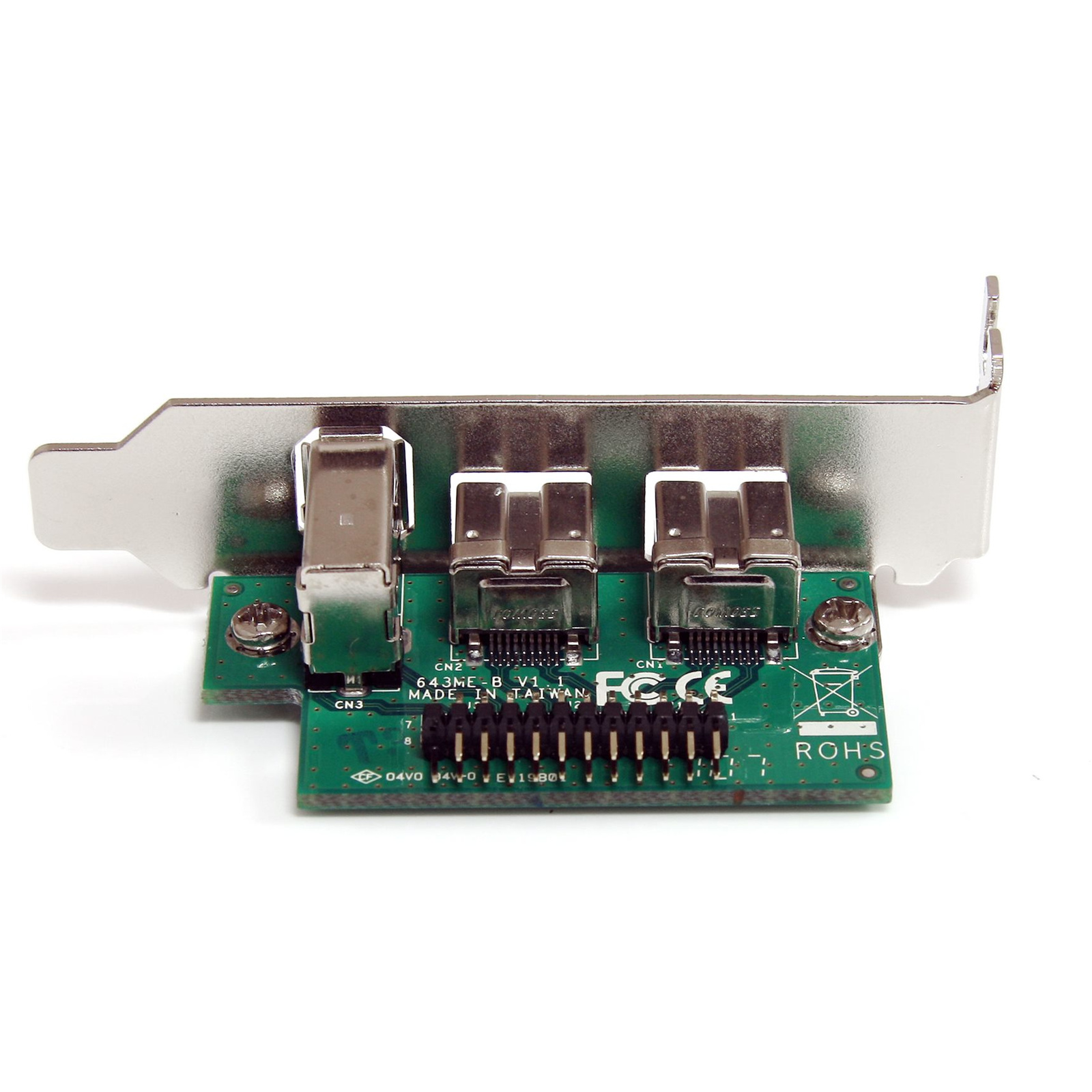

External Ports
1 - FireWire 400 (6 pin, IEEE 1394a)
2 - FireWire 800 (9 pin, IEEE 1394b)
Environmental
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-54°C to 150°C (-65°F to 302°F)
Hardware
Ports
3
Interface
FireWire 400 (1394a)
FireWire 800 (1394b)
Bus Type
Mini PCI Express
Card Type
Low Profile
Industry Standards
IEEE-1394/1394A/1394B
OHCI
PCI Express 1.1
Chipset ID
Texas Instruments - XIO2213B
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
6.7 in [17.0 cm]
Shipping (Package) Weight
6.6 oz [187.0 g]
Package Width
5.7 in [14.4 cm]
Package Quantity
1
Performance
Type and Rate
FireWire 800 IEEE-1394b - 800 Mbit/s
FireWire 400 IEEE-1394a - 400 Mbit/s
MTBF
172,480 hours
Physical Characteristics
Weight of Product
3.2 oz [91.0 g]
Colour
Green
Material
Steel
Product Length
2.0 in [50.0 mm]
Product Width
1.2 in [3.0 cm]
Product Height
0.2 in [0.4 cm]
Software
OS Compatibility
Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
Linux 3.5.x and up - LTS Versions only
Special Notes / Requirements
System and Cable Requirements
Available Mini PCI Express expansion slot (full length)
Note
Ensure computer case has an available expansion card slot

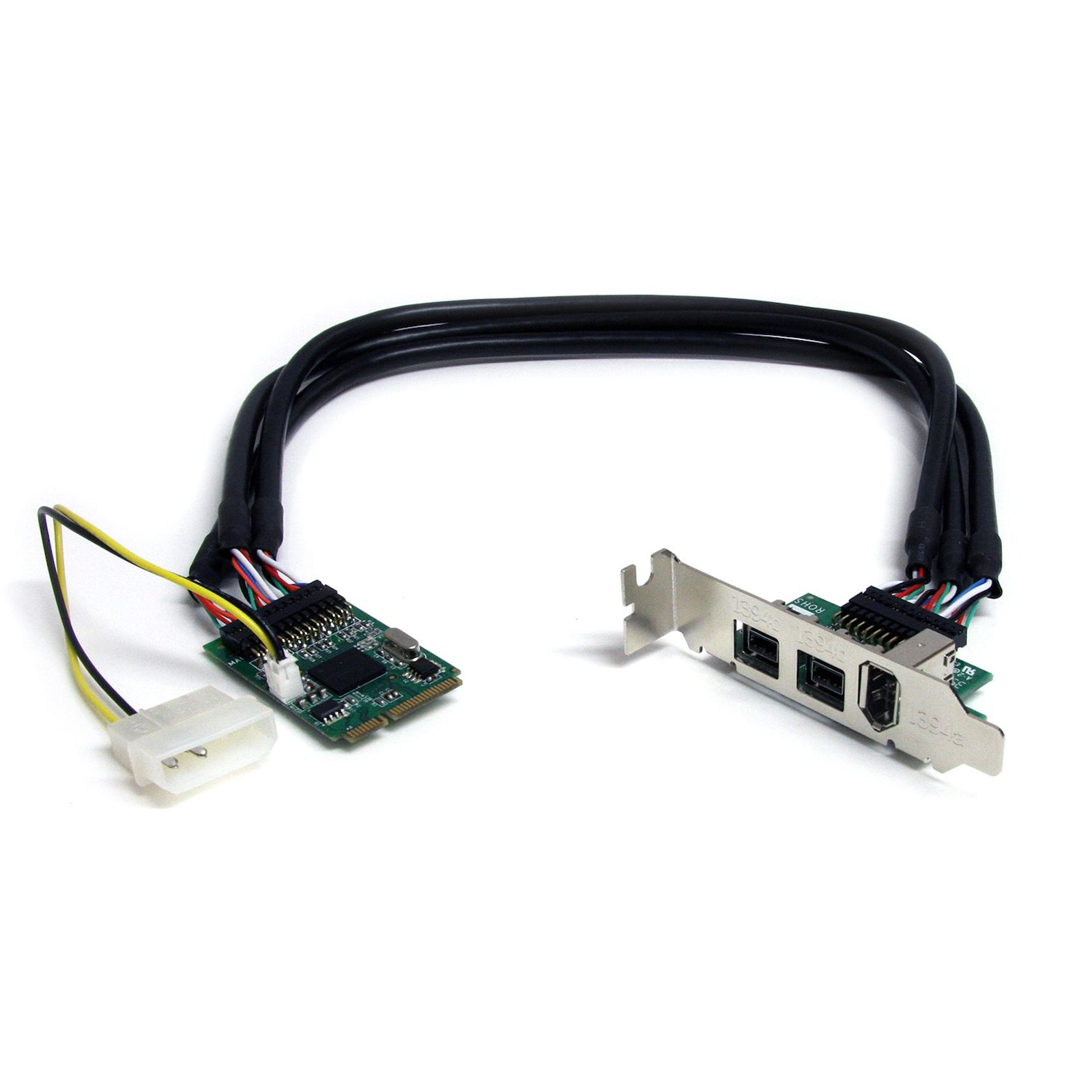

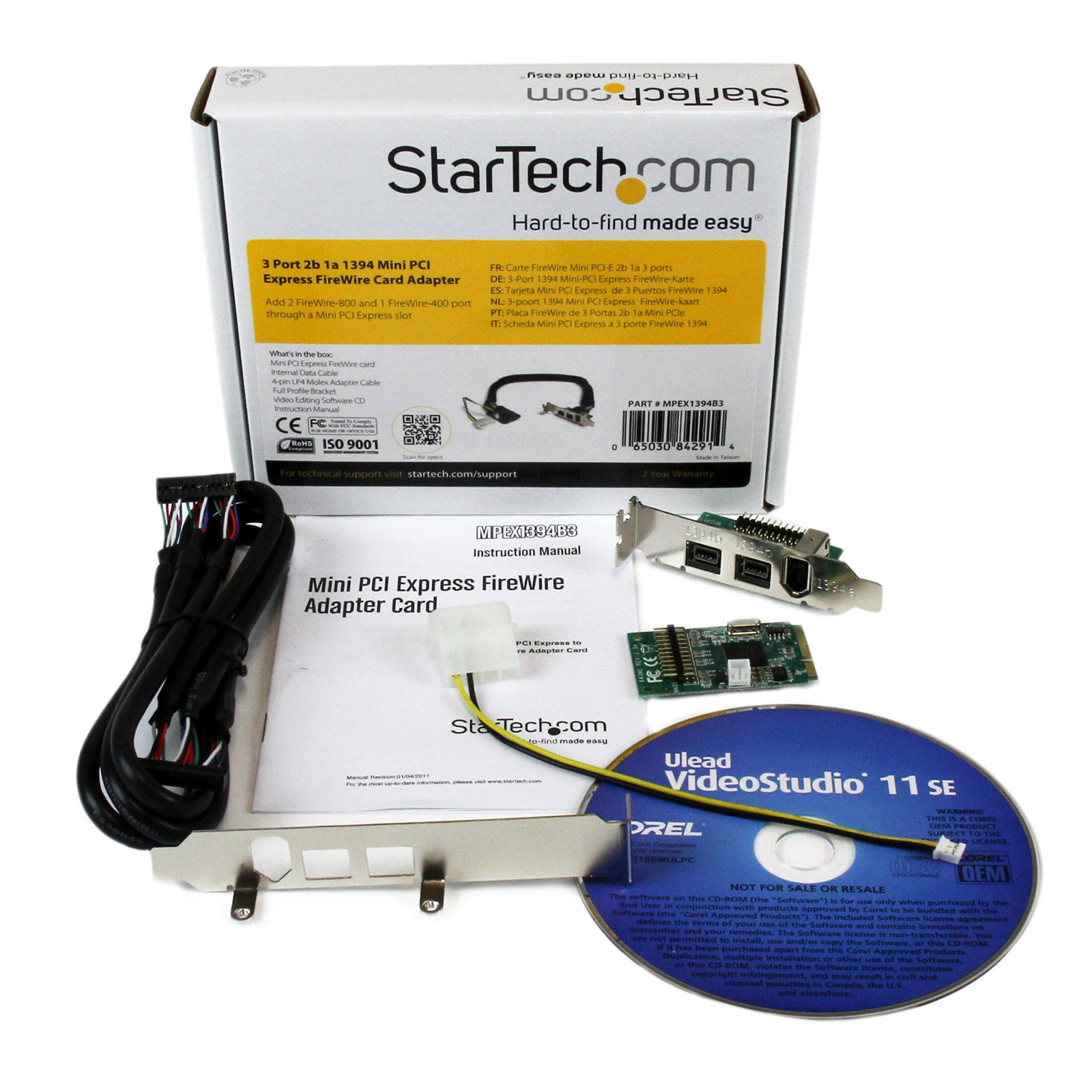

What's in the Box
Included in Package
1 - Mini PCI Express FireWire card
1 - Internal Data Cable

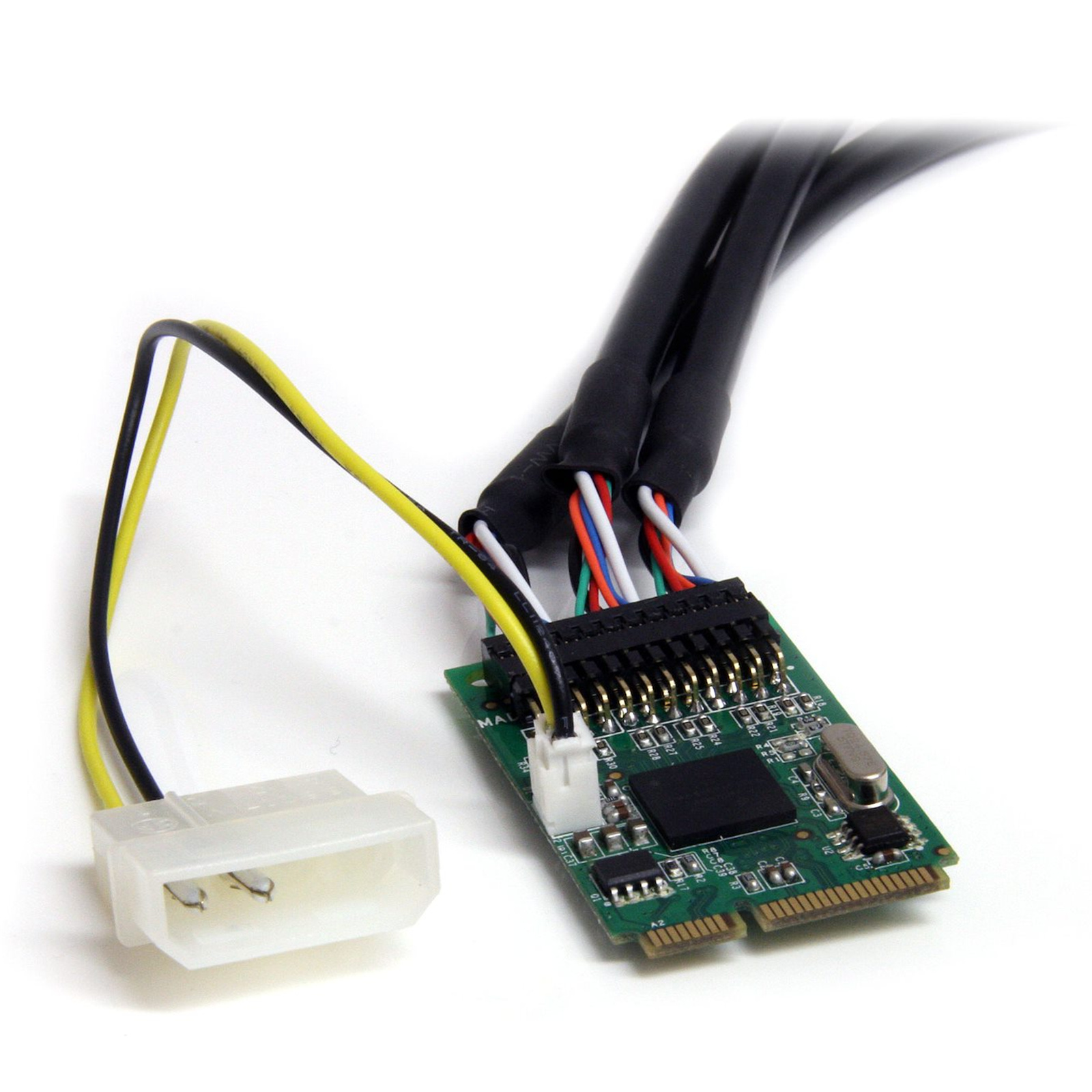

1 - 4-pin LP4 Molex Adapter Cable
1 - Full Profile Bracket
1 - Video Editing Software CD
1 - Instruction Manual
