StarTech.com PEX4M2E1 x4 PCI Express to M.2 PCIe SSD Adapter

Elevate your PC: Easy setup, versatile adaptor performance for your SSD storage!
  • Brand: StarTech.com
  • MPN: PEX4M2E1
  • Part #: ADPSTT3310261
  • UPC: 065030865043
9
PB Tech price
$ 47 .50 $ 54 .62
 +GST  inc GST
No store stock available.
Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 29 Jan When will I receive it?
$47.50  +GST
$54.62
Add To Compare
Stock Alerts

Four payments of $13.79 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

View All Finance Options
+ 4 More
Click or hover over image to enlarge
  • Brand: StarTech.com
  • MPN: PEX4M2E1
  • Part #: ADPSTT3310261
  • UPC: 065030865043
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"I disconnected the 2.5" SATA SSD in an older PC, a HP ProDes ...view more"

PM
By: PeterM84 23/04/24
Verified Owner

"This saved me as my mother board wouldn't except the 1TB SSD drive to use as an operating system as my motherboard was to old LOL so bought this and Am now using my SSD drive as st ...view more"

RH
By: RaymondH57 03/02/23
Verified Owner

"Purchased for an HP EliteDesk 800 G2 SFF to allow the use of an NVMe drive. Purchased a Samsung 970 Evo Plus 500GB SSD, and it worked perfectly. Can confirm this setup was able to ...view more"

JM
By: JamesM343 07/09/20
Verified Owner

Features

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.


Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.


Supports PCIe M.2 SSDs

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

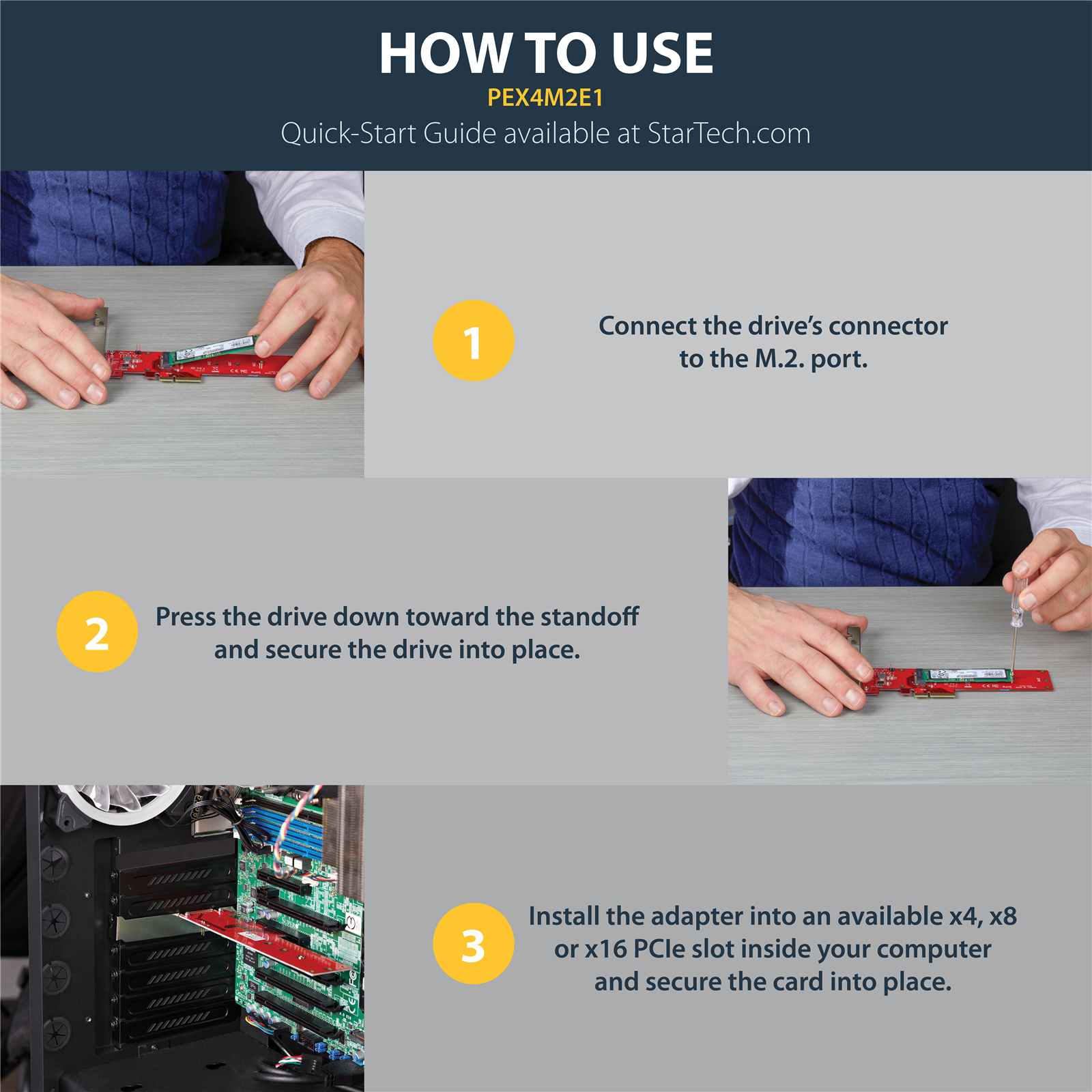

Easy to install

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers. The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

Hardware

Bus Type
PCI Express
Compatible Drive Types
M.2 (NGFF, M-Key, PCIe x4)
Drive Installation
Fixed
Drive Size
22m - M.2 NGFF
Interface
PCI Express
Number of Drives
1
Supported Drive Height(s)
2242
2260
2280
22110

Performance

Hot Swap Capability No

Connector(s)

Drive Connectors
1 - M.2 (NGFF, M-Key, PCIe x4)
Host Connectors
1 - PCI Express x4 Male

Software

OS Compatibility
OS independent; No software or drivers required

Indicators

LED Indicators
1 - Pin header on board for drive LED connection

Environmental

Humidity
15% ~ 90% RH
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)

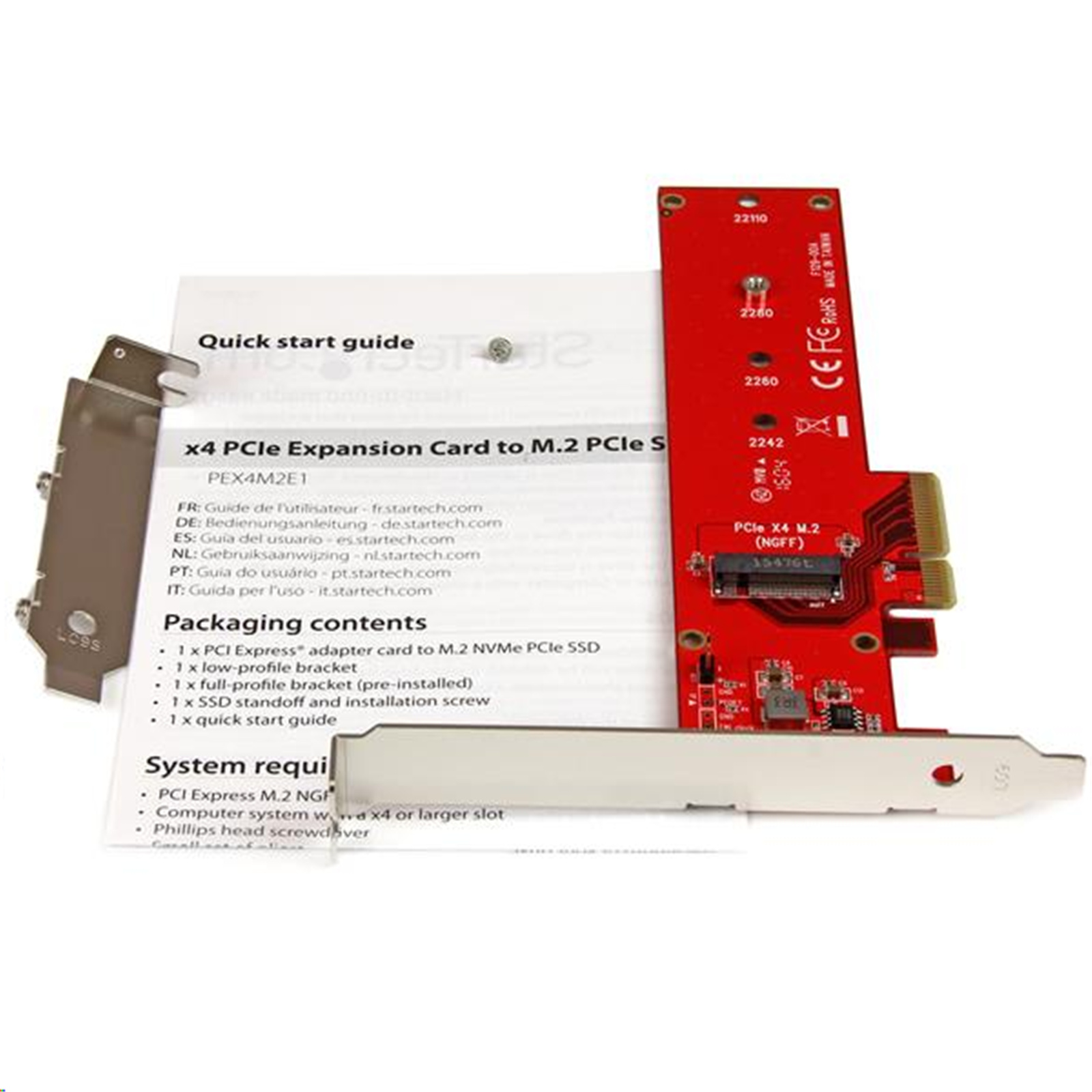

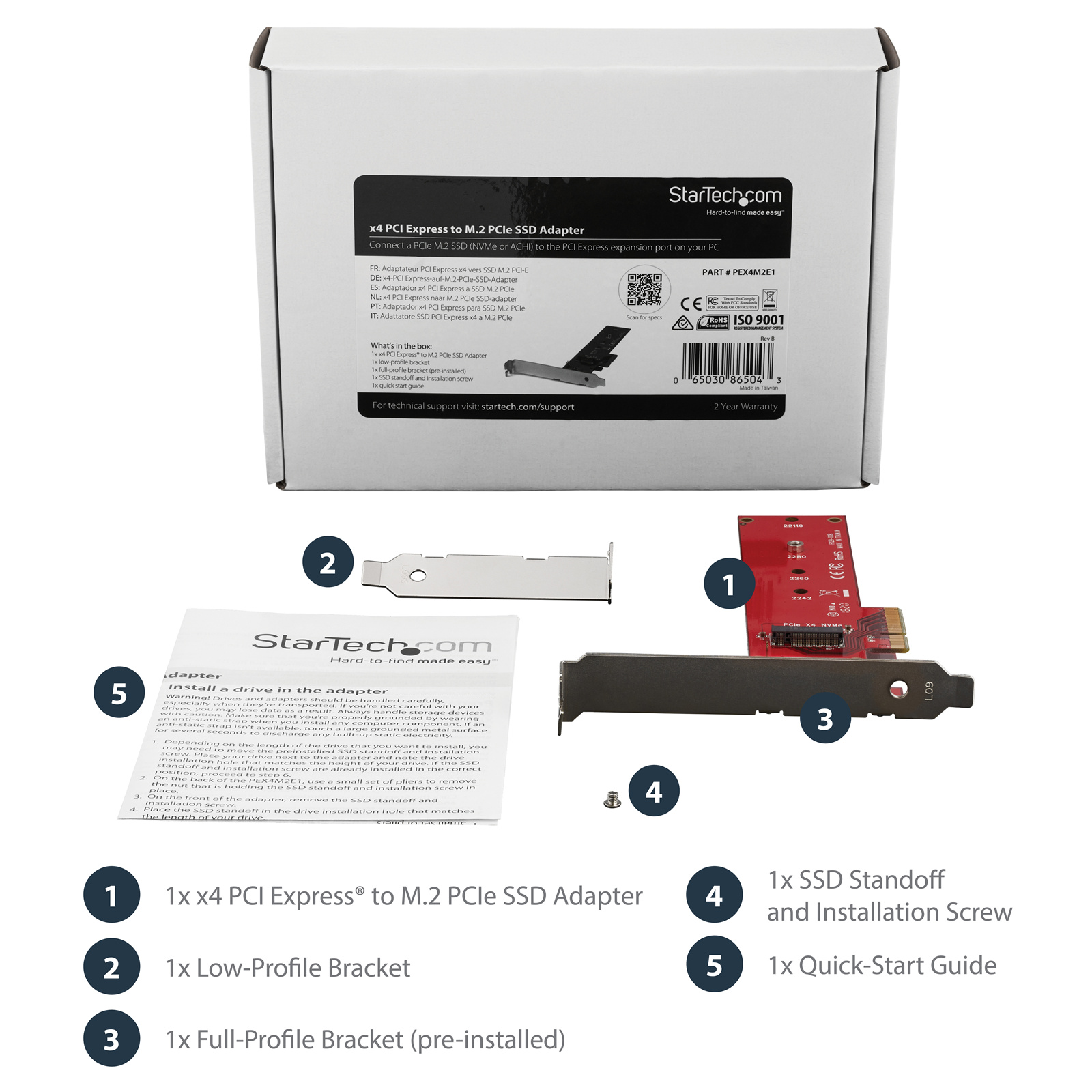

Included in Package
1 - x4 PCI Express® to M.2 PCIe SSD Adapter
1 - low-profile bracket
1 - full-profile bracket (pre-installed)
1 - SSD standoff and installation screw
1 - quick start guide
Manufacturer Part No:
PEX4M2E1
Brand:
StarTech.com
Product Type:
-
UPC
065030865043
Product Family:
-
Shipping Weight:
0.096 kg
PB Part No:
ADPSTT3310261
Product Model:
PEX4M2E1
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.9 out of 5 Stars Based on 9 reviews
5 Stars
8
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Works as described

I went through 2 Orico branded ones that didn't work with my MB before finally going back and getting this one on the staff recommendation. Worked straight away with no issues and my drive is performing perfectly!

DZ
By: dpDesignz 01/03/21
Verified Owner
3 out of 3 users found this review helpful
Did you find it helpful?

Simple way to add fast storage!

Purchased for an HP EliteDesk 800 G2 SFF to allow the use of an NVMe drive. Purchased a Samsung 970 Evo Plus 500GB SSD, and it worked perfectly. Can confirm this setup was able to be bootable too, which is great!

Simple setup, just plug and play.

JM
By: JamesM343 07/09/20
Verified Owner
3 out of 3 users found this review helpful
Did you find it helpful?

A Fantastic SSD drive Adaptor for the price

This saved me as my mother board wouldn't except the 1TB SSD drive to use as an operating system as my motherboard was to old LOL so bought this and Am now using my SSD drive as storage with wicked read and writes , so impressed by this little Adaptor it rocks.

RH
By: RaymondH57 03/02/23
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Good product and works on low profile PCs

Have got two of these and two more on order. These come with a second i/o bracket to fit into low profile PCs which I have used them in. A good quality product, very easy to set up and install, and works just as expected.

PD
By: PatrickD61 17/11/22
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Works fine

Not getting the speeds of my drive which I thought I would, not sure if this is related however system found it and install OS no issues, drive is working.

G
By: Guest 31/08/20
1 out of 1 user found this review helpful
Did you find it helpful?

A great purchase for older pc’s that cannot house a M2 NVme SSD card.

Worked a treat in my older pc, very happy, i now have super fast Load time with games and other programs

JV
By: JosV71 27/07/20
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Great adaptability

Perfect product for updating older motherboards lacking the new M2 slot, plugged straight in and worked instantly

G
By: Guest 09/04/20
1 out of 1 user found this review helpful
Did you find it helpful?

Well Worth It!

Great for adding that stupid fast games drive you always wanted. 10/10 If I had more PCI lanes I would buy this again!

TP
By: TerrenceP6 04/11/19
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Works great, my PC can boot from NVMe SSD installed on this card.

I disconnected the 2.5" SATA SSD in an older PC, a HP ProDesk G2 600, and installed this card with a new WD Blue SN580. Plugged in a bootable USB flash with Ubuntu and switched the PC on. The computer found the SSD and Ubuntu installed fine, no problem at all. Booting from the SSD works fine.

A benchmark showed about 3300 MB/s throughput, so this PCI-E card is much faster than any SSD connected via SATA.

Really happy that this StarTech card work flawlessly. I did a little research and looked for a card that just works without any fiddling, including boot. This StarTech card is maybe a little more expensive than no-name brand items, but Star...view more

PM
By: PeterM84 23/04/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
