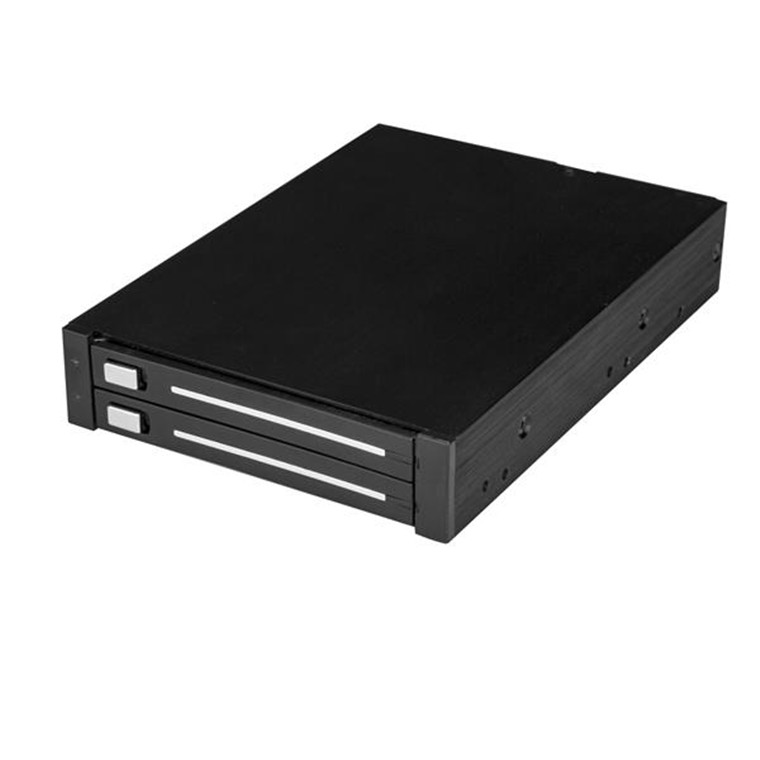

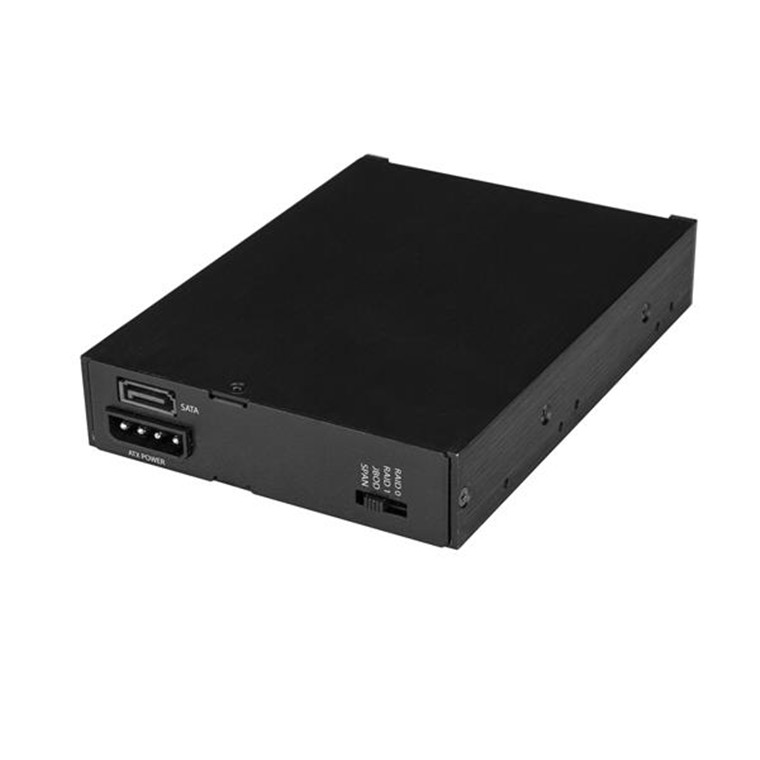

StarTech.com HSB225S3R 2-Bay 2.5 SATA SSD / HDD Rack for 3.5 Bay - Trayless - RAID
Out of stock
StarTech.com HSB225S3R 2-Bay 2.5 SATA SSD / HDD Rack for 3.5 Bay - Trayless - RAID
- Brand: StarTech.com
- MPN: HSB225S3R
- Part #: ADPSTT4018488
- UPC: 065030872454
- Brand: StarTech.com
- MPN: HSB225S3R
- Part #: ADPSTT4018488
- UPC: 065030872454
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Drive Enclosures / Docks





StarTech.com HSB225S3R 2-Bay 2.5 SATA SSD / HDD Rack for 3.5 Bay - Trayless - RAID
- Brand: StarTech.com
- MPN: HSB225S3R
- Part #: ADPSTT4018488
- UPC:065030872454

Product URL: https://www.pbtech.co.nz/product/ADPSTT4018488/StarTechcom-HSB225S3R-2-Bay-25-SATA-SSD--HDD-Rack
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
This HDD rack lets you install two 2.5" SATA hard drives or solid-state drives into a single 3.5" front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.
Increase performance and data redundancy
Configure and arrange your drives for increased drive capacity, performance, or data redundancy, with built-in RAID functionality. With multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.
Hot swap your SATA drives
This SATA backplane is trayless and hot-swappable, which makes it easy to install and remove your drives from your computer system when required, without having to open the case every time. It also provides a more convenient way to create backups for data recovery and archiving.
Designed for durability and trouble-free use
The removable hard-drive bay/backplane features durable aluminum construction for long-lasting performance. The SATA backplane also has LED indicators for power and hard drive activity, and drive status, which makes it easy to monitor the status of your hard drives and RAID array.
Specifications
ASMedia - ASM1092R
Compatible Drive Types
SATA
Drive Installation
Removable
Drive Size
2.5in
Fan(s)
No
Front Door Key Lock
No
Interface
SATA
Number of 2.5 inch bays
2
Number of Drives
2
Supported Drive Height(s)
5mm
7mm
9.5mm
Hot Swap Capability
Yes
Insertion Rating
50,000
Port Multiplier
Yes
RAID
Yes
S.M.A.R.T. Support
Yes
Supported RAID Modes
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
BIG (Spanning or Concatenation)
JBOD - (Just a Bunch of Disks)
TRIM Support
Yes
Type and Rate
SATA III (6 Gbps)
Drive Connectors
1 - 22 pin SATA Data + Power (7 + 15 pin) Receptacle
Host Connectors
1 - Molex (4 pin, PWM)
1 - 7 pin SATA Data Receptacle
LED Indicators
2 - Link/Activity/Error
