StarTech 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection

StarTech 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
PB Tech price: PB Tech price:
$614 78  +GST $707 00  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

StarTech 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection

StarTech 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial...

  • Brand: StarTech
  • MPN: ICUSB234858I
  • Part #: ADPSTT4196521
  • UPC:065030878579
PB Tech price: PB Tech price:
$614 78 $707 00
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 02/02/2021 When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $145.64 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $121.37 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Finance from $6.76 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Repayments shown above are indicitive only and may vary. Ts and Cs and lending criteria apply.
Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email finance@pbtech.co.nz to chat with our finance team.

*Ts and Cs and lending criteria apply.
Learn more about Q Card

Features

Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.

Applications

- Connect your RS232, RS422 and RS485 serial devices through your computer's USB port for easy access to barcode scanners, receipt printers and other serial devices
- Connect, monitor and control industrial/automotive sensors and equipment
- Program LED and digital signage boards with serial communication ports
- Connect a satellite receiver, serial modem, or PDA with serial sync

Specifications

HARDWARE

Bus Type

USB 2.0

Chipset ID

FTDI - FT4232H
Genesys Logic - GL825

Interface

Serial

Port Style

External Hub

Ports

8

PERFORMANCE

Buffer Size

2 KB

Data Bits

7, 8

Max Baud Rate

921.6 Kbps

Maximum Data Transfer Rate

921.6 Kbps

Parity

Odd, Even, Mark, Space, None

Serial Protocol

RS-232/422/485

Stop Bits

1, 2

Surge Protection

15 kV ESD Surge Protection

CONNECTOR(S)

External Ports

1 - USB Type-B (4 pin) USB 2.0 Female
8 - DB-9 (9 pin, D-Sub) Male
1 - USB Type-A (4 pin) USB 2.0 Female

SOFTWARE

OS Compatibility

Windows® 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.9 to 10.14
Linux 2.4.x to 4.11.x LTS Versions only

INDICATORS

LED Indicators

8 - Sets of 4 - port mode
8 - Port send
8 - Port receive
1 - Power

POWER

Input Current

1 A

Input Voltage

100 ~ 240 AC

Output Current

3.0 A

Output Voltage

12 DC

Plug Type

M

Power Consumption (In Watts)

36 W

Power Source

AC Adapter Included

ENVIRONMENTAL

Humidity

5~95% RH

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

PHYSICAL CHARACTERISTICS

Color

Black

Enclosure Type

Steel

Product Height

1 in [25 mm]

Product Length

8.6 in [219 mm]

Product Weight

24.3 oz [688 g]

Product Width

5 in [128 mm]

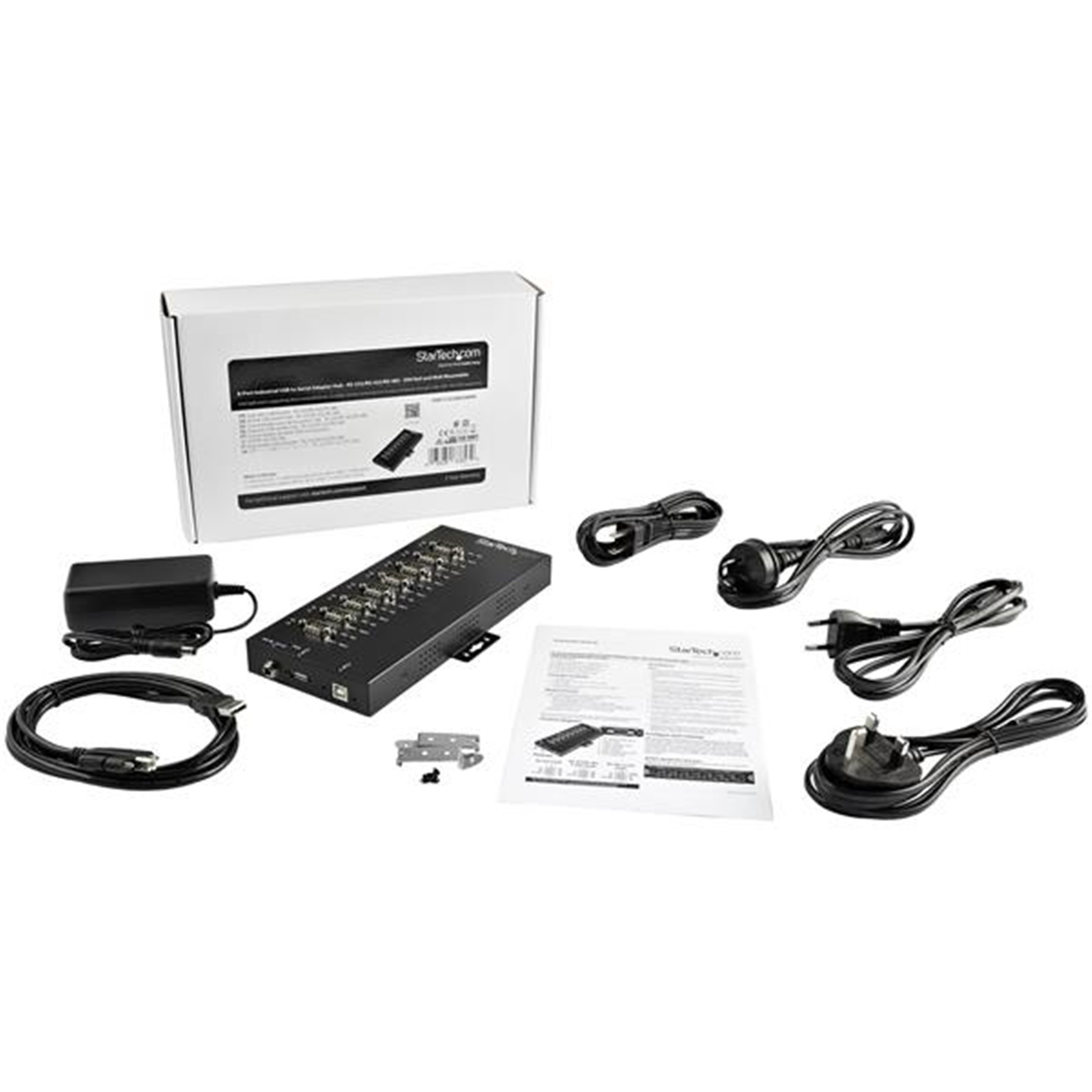

WHAT'S IN THE BOX

Included in Package

1 - USB serial hub
1 - 6 ft. [2 m] USB-B with screw lock to USB-A cable
1 - DIN rail kit
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - instruction manual

Manufacturer Part No: ICUSB234858I Brand: StarTech Product Type: -
UPC 065030878579 Product Family: - Shipping Weight: 1.162 kg
PB Part No: ADPSTT4196521 Product Model: -

Warranty: 12 months local warranty *
