StarTech.com PEX8M2E2 Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - RAID & JBOD - Mac & PC
StarTech.com PEX8M2E2 Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - RAID & JBOD - Mac & PC
- Brand: StarTech.com
- MPN: PEX8M2E2
- Part #: ADPSTT4688062
- UPC:
- Brand: StarTech.com
- MPN: PEX8M2E2
- Part #: ADPSTT4688062
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Drive Adapters & Converters
UGREEN CM302 M.2 NVME to PCI-E 3.0 X4 Express Card Adapter -...
UGREEN UG-30715 PCIe 4.0(16 ) to M.2 NVMe Expansion Card
Unitek Y-1039 USB 3.0 to SATA 6G Converter Super-Speed 5Gbps...
UGREEN UG-70504 M.2 NVME to PCI-E3.0 Express Card with M.2 SATA
StarTech.com PEX4M2E1 x4 PCI Express to M.2 PCIe SSD Adapter
StarTech.com PEX8M2E2 Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - RAID & JBOD - Mac & PC
- Brand: StarTech.com
- MPN: PEX8M2E2
- Part #: ADPSTT4688062
Product URL: https://www.pbtech.co.nz/product/ADPSTT4688062/StarTechcom-PEX8M2E2-Dual-M2-PCIe-SSD-Adapter-Card
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

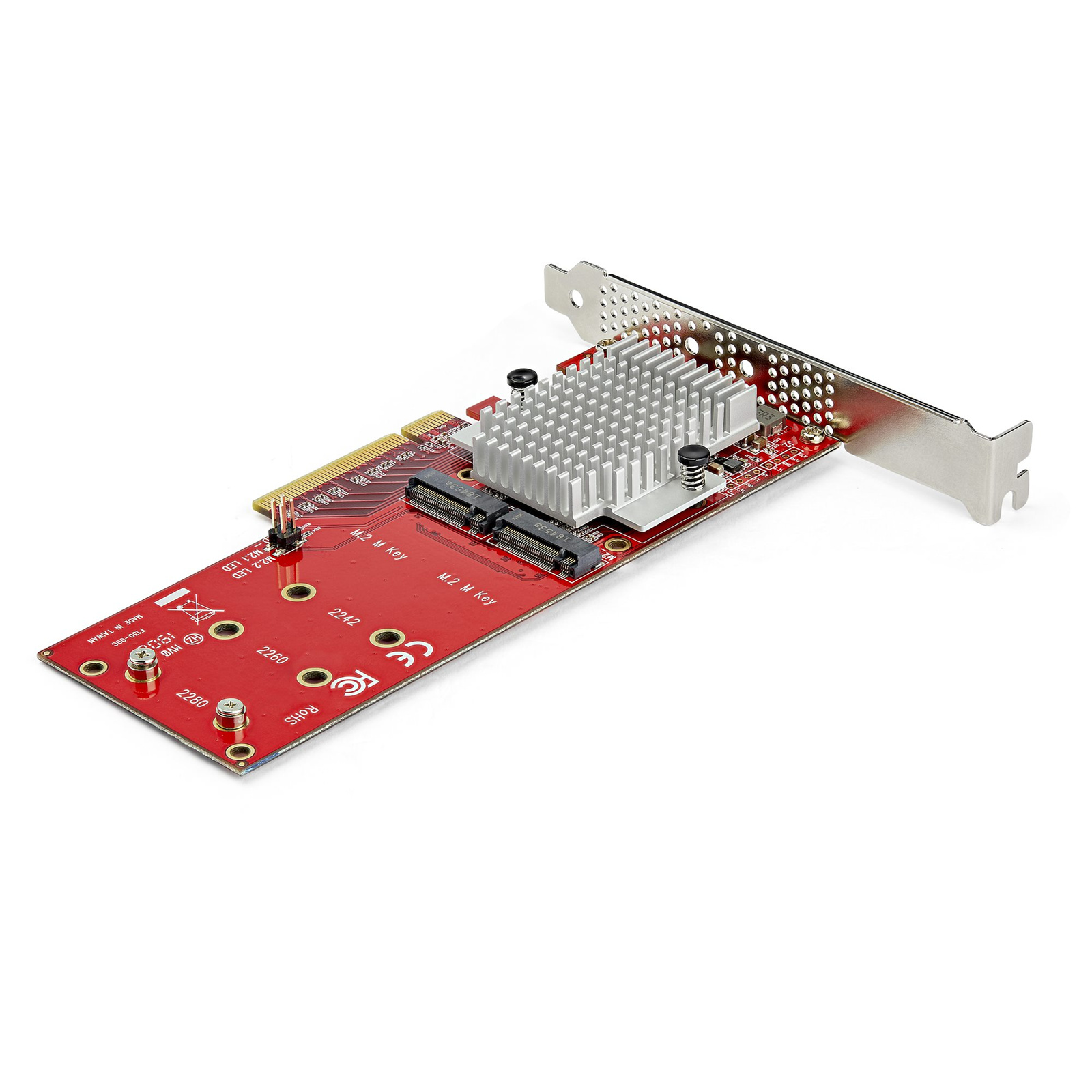

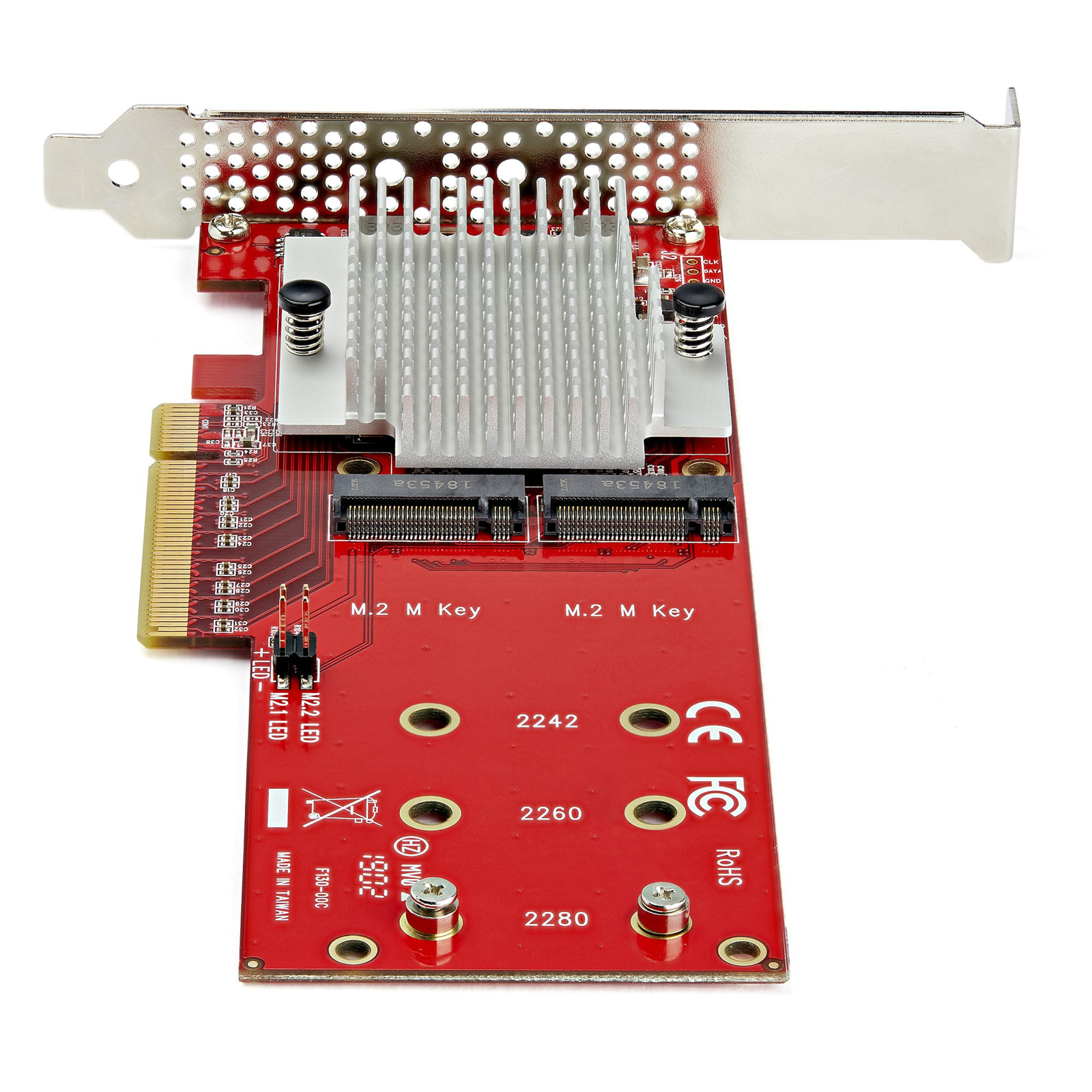

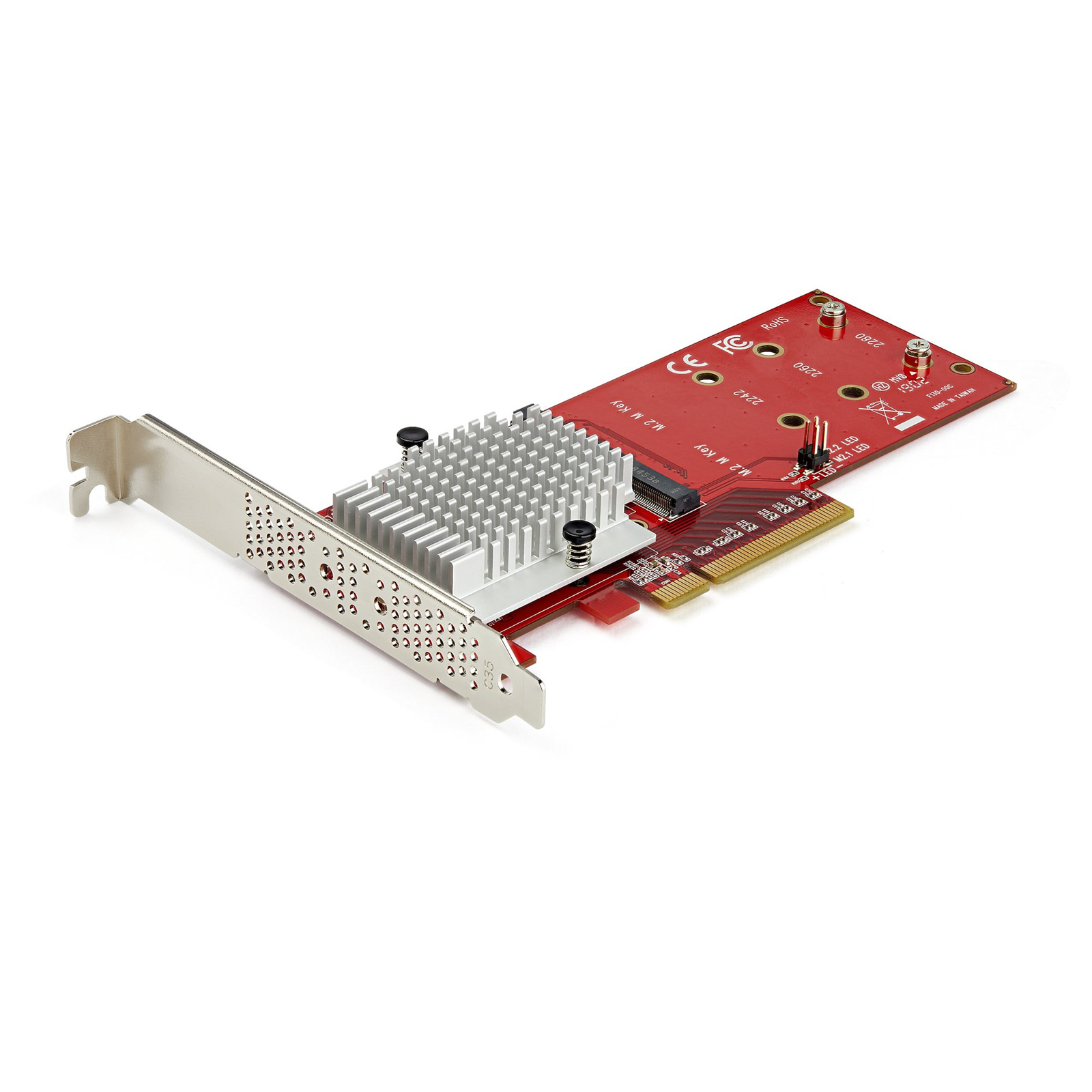

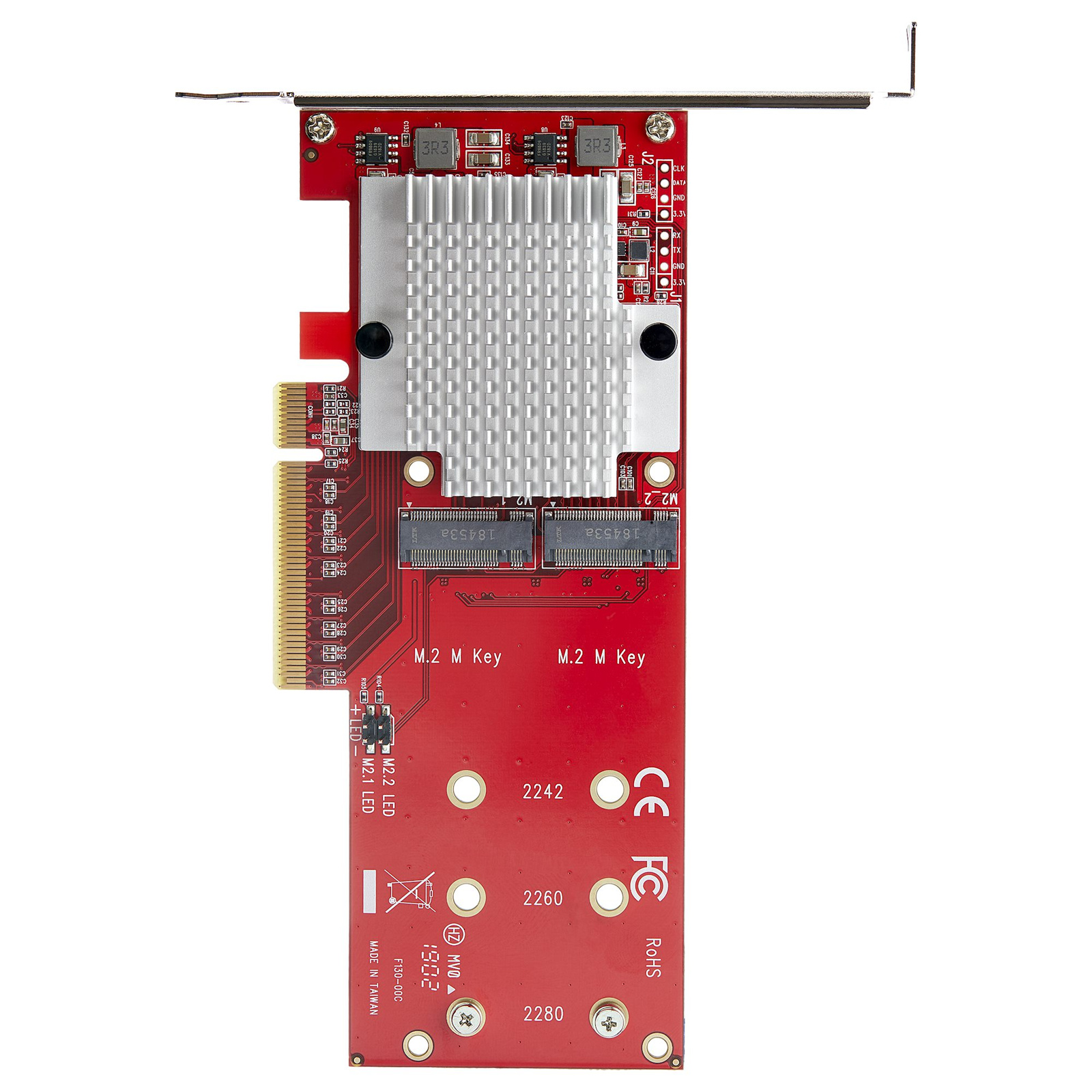

Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.
Boost System Performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.
Access two M.2 PCIe SSDs simultaneously
The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.
The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.
Wide System Compatibility
The adapterconnects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.
Supports a Wide Range of PCIe M.2 SSDs
The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.
Easy to Install
The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.

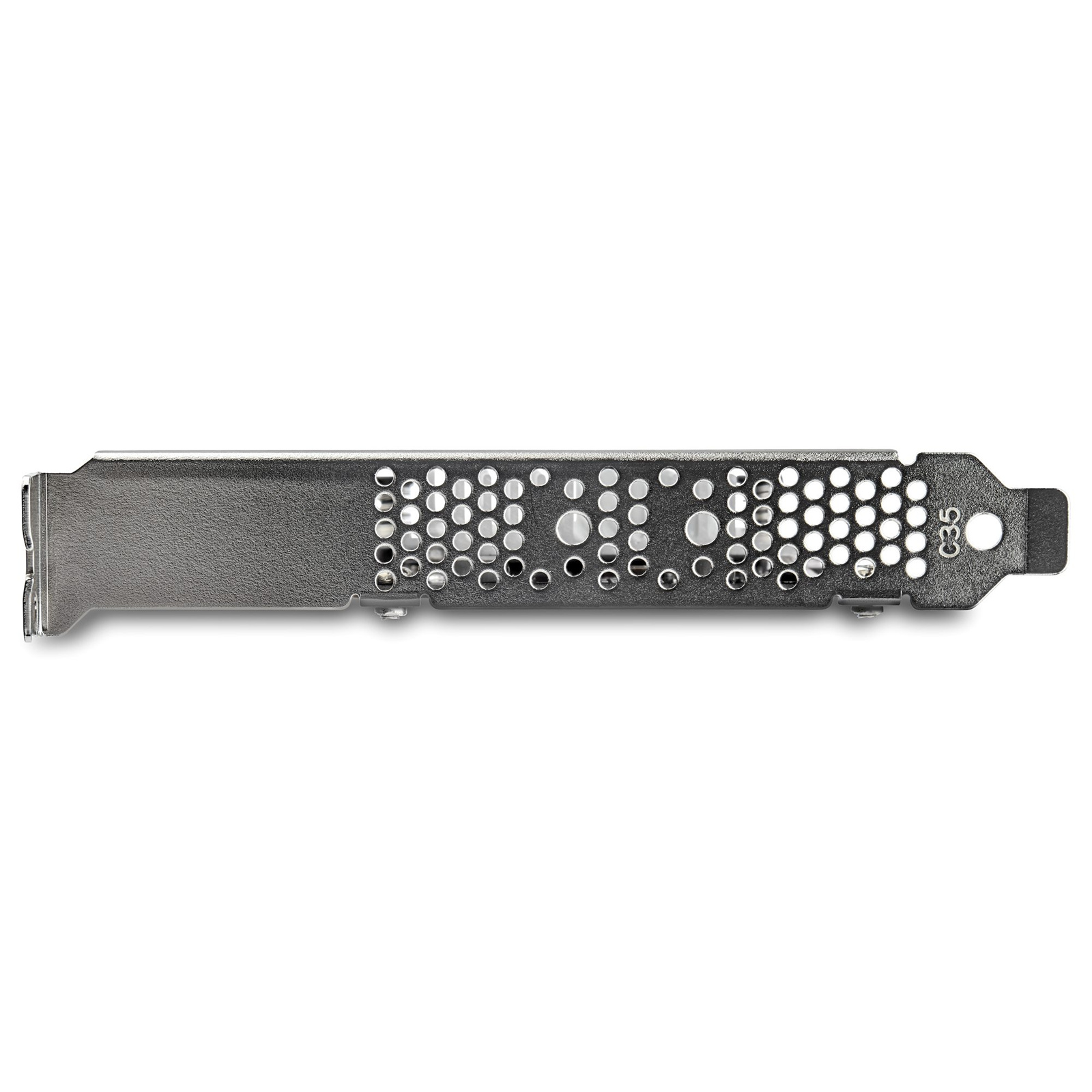

Vented Brackets
Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.
The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Connect two PCIe M.2 SSDs to your desktop computer or server to boost system speed and increase internal data storage
- Get ultra-fast data access, ideal for high-performance workstations
- Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage
Specifications
Compatibility
OS independent; No software or drivers required
Connector(s)
Drive Connectors:
2 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Host Connectors:
1 - PCI Express x8
Other Interface(s):
2 - IDC (2 pin, Motherboard Header)
Environmental
Operating Temperature:
0°C to 70°C (32°F to 158°F)
Storage Temperature:
-25°C to 70°C (-13°F to 158°F)
Humidity:
15% ~ 90% RH
Hardware
Supported Drive Height(s):
2242
2260
2280
Interface:
PCI Express x8
Bus Type:
PCI Express
Number of Drives:
2
Drive Size:
22m - M.2 NGFF
Compatible Drive Types:
M.2 (PCIe, AHCI, M-Key, NGFF)
M.2 (PCIe, AHCI, M-Key, NGFF)
Drive Installation:
Fixed
Chipset ID:
ASMedia - ASM2824
Packaging Information
Package Height:
1,6 in [40,0 mm]
Package Length:
8,5 in [217,0 mm]
Shipping (Package) Weight:
7,1 oz [201,0 g]
Package Width:
6,2 in [157,0 mm]
Performance
Type and Rate:
PCI Express 3.0 (8 Gbps)
Hardware Raid Supported:
No
Hot Swap Capability:
No
Insertion Rating:
60 cycles
MTBF:
3336103 hours
Physical Characteristics
Product Height:
2,7 in [6,9 cm]
Product Length:
6,3 in [15,9 cm]
Weight of Product:
3,1 oz [88 g]
Product Width:
0,6 in [1,6 cm]
Colour:
Red
Software
OS Compatibility:
OS independent; No software or drivers required
Special Notes / Requirements
Note:
NVMe SSDs require drivers provided by the manufacture of the drive or may be natively provided by the OS (Windows®? 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.

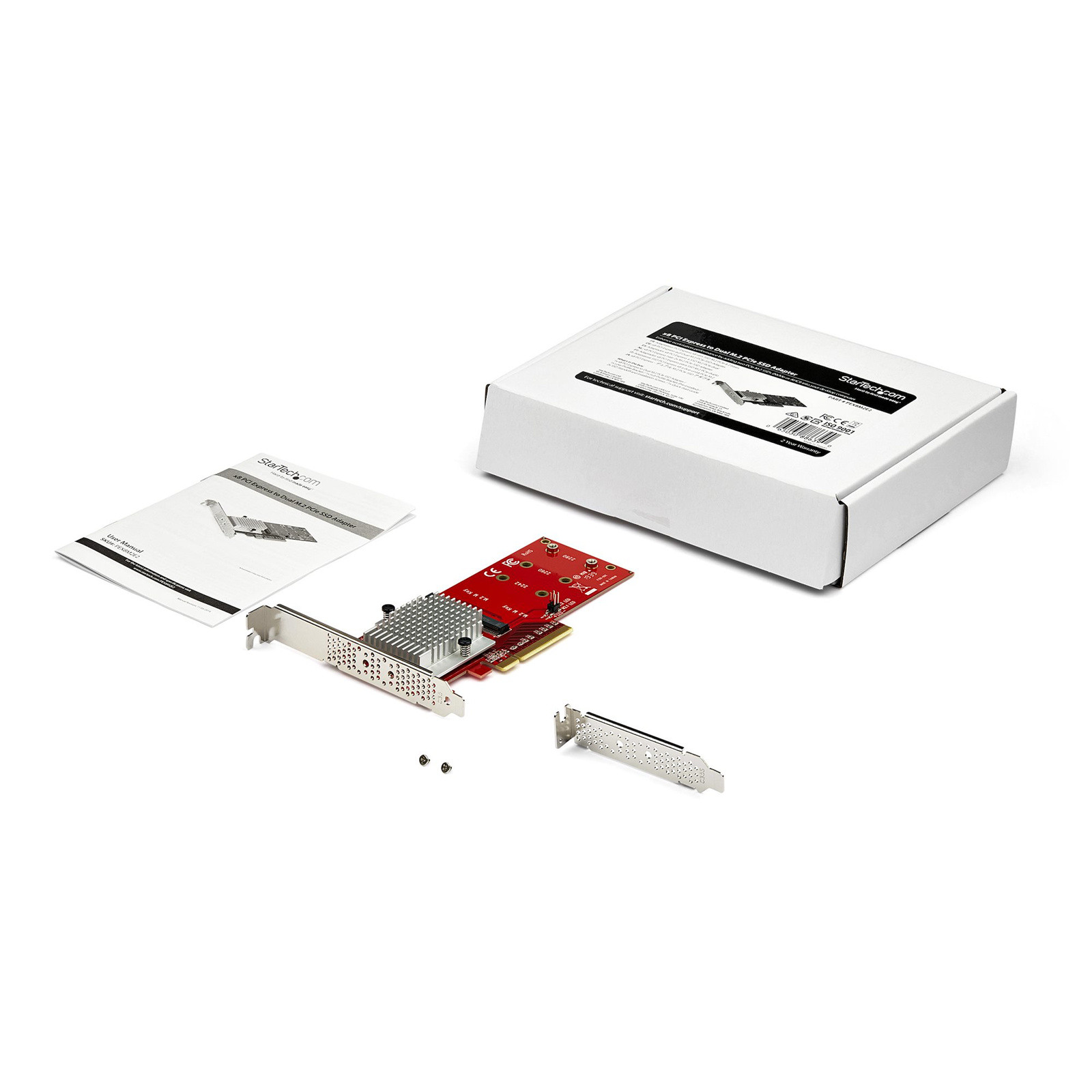

What's in the Box
Included in Package:
1 - x8 PCI Express to Dual M.2 PCIe SSD Adapter
1 - Low-Profile Bracket
1 - Full-Profile Bracket (Pre-installed)
2 - SSD Standoff and Installation Screws
1 - Quick-Start Guide
