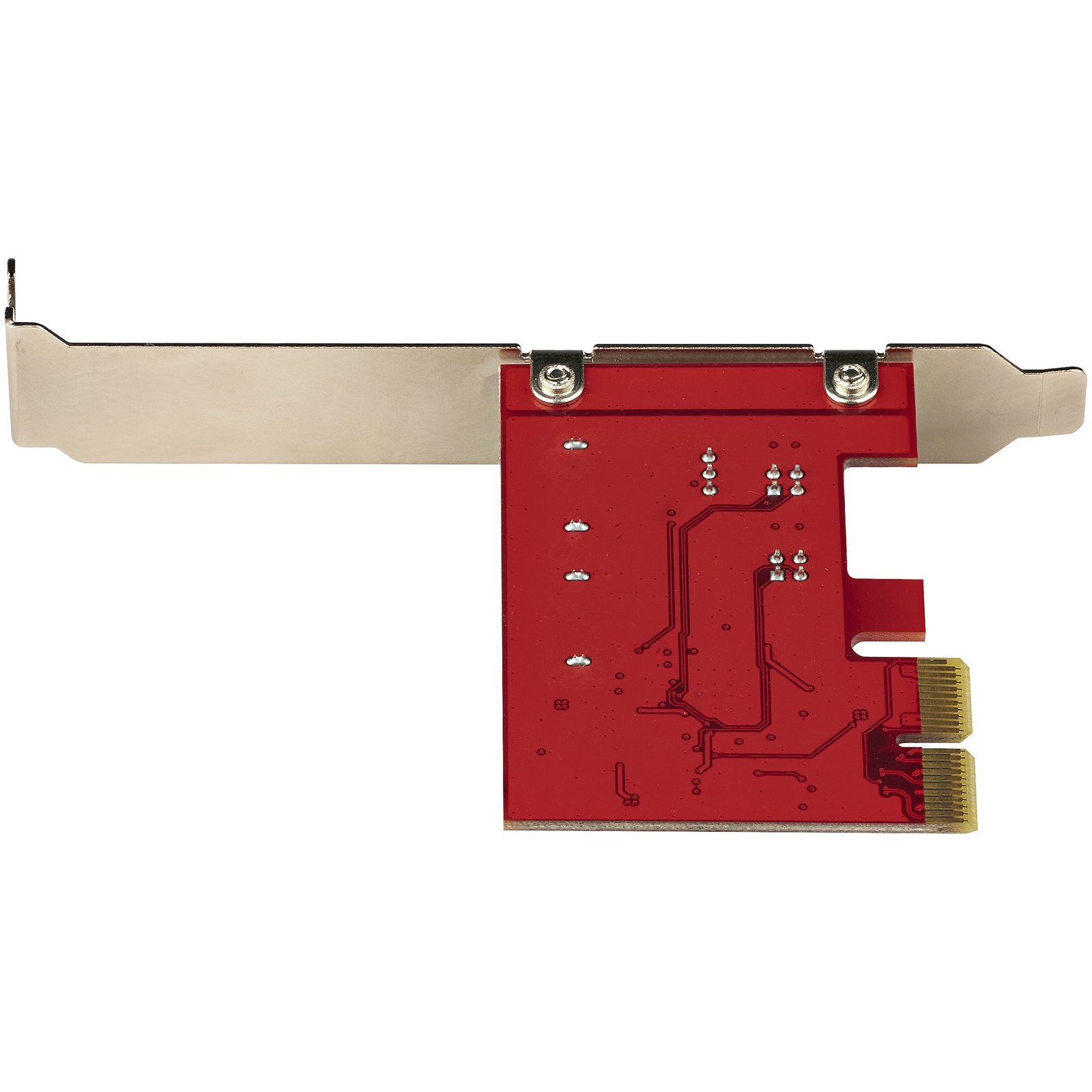

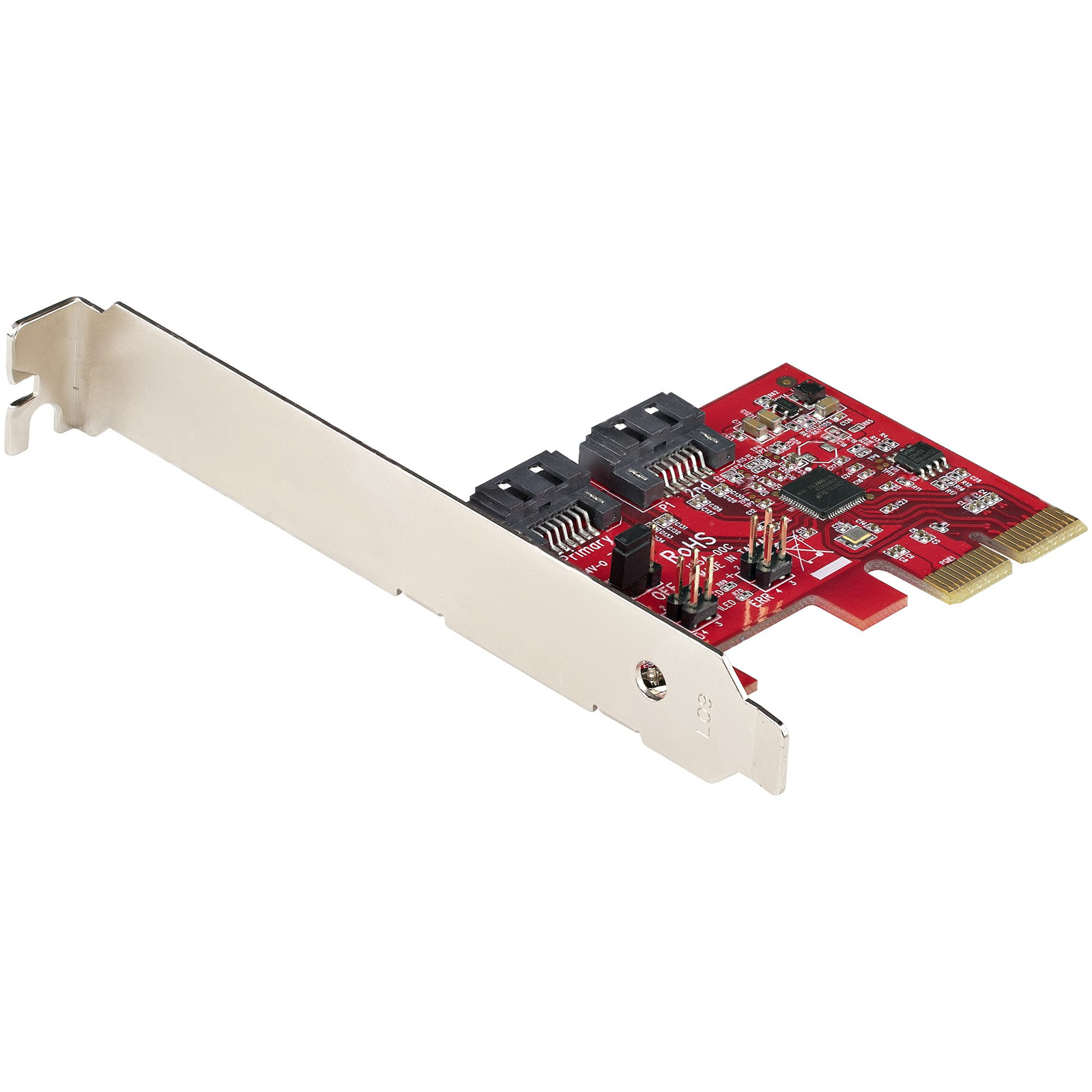

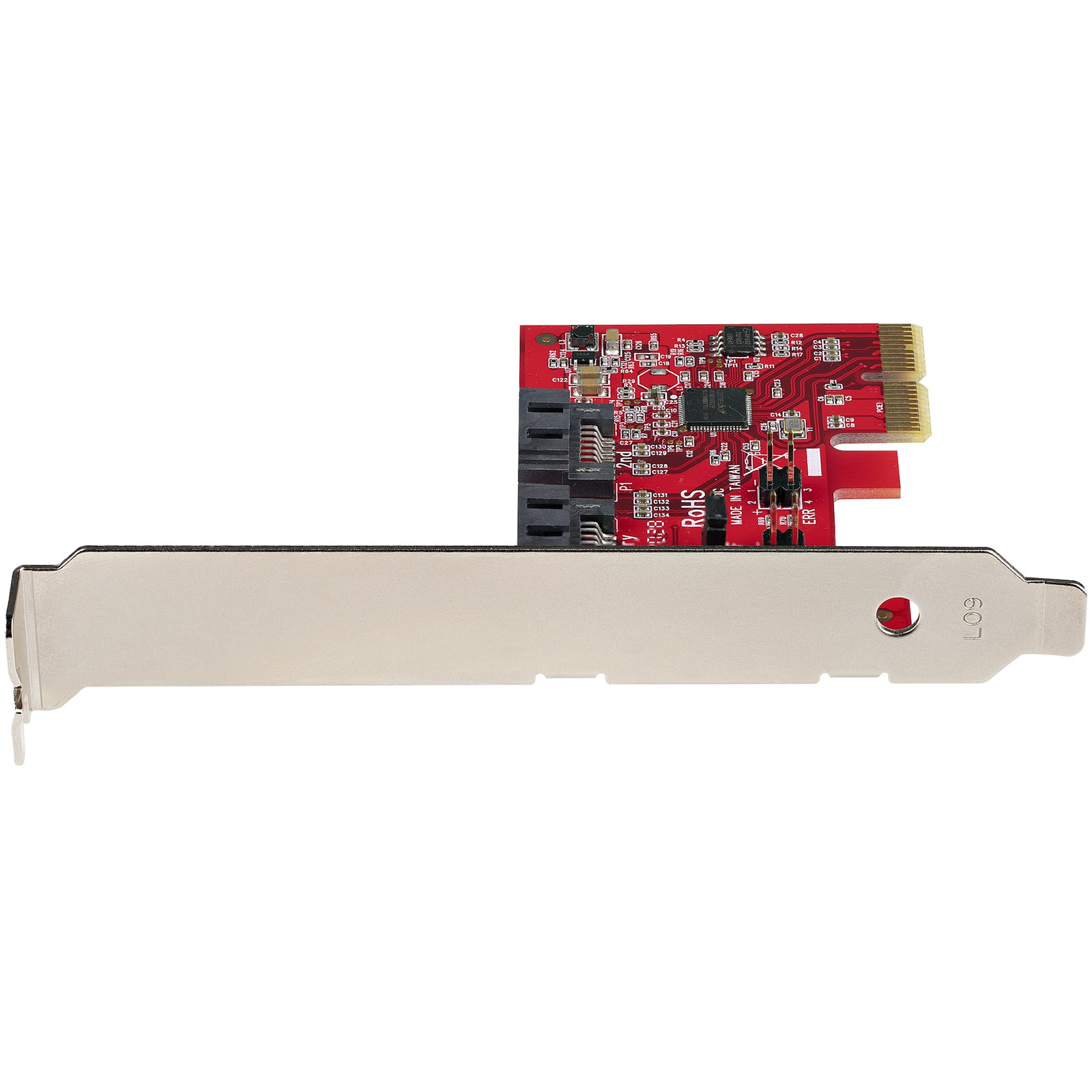

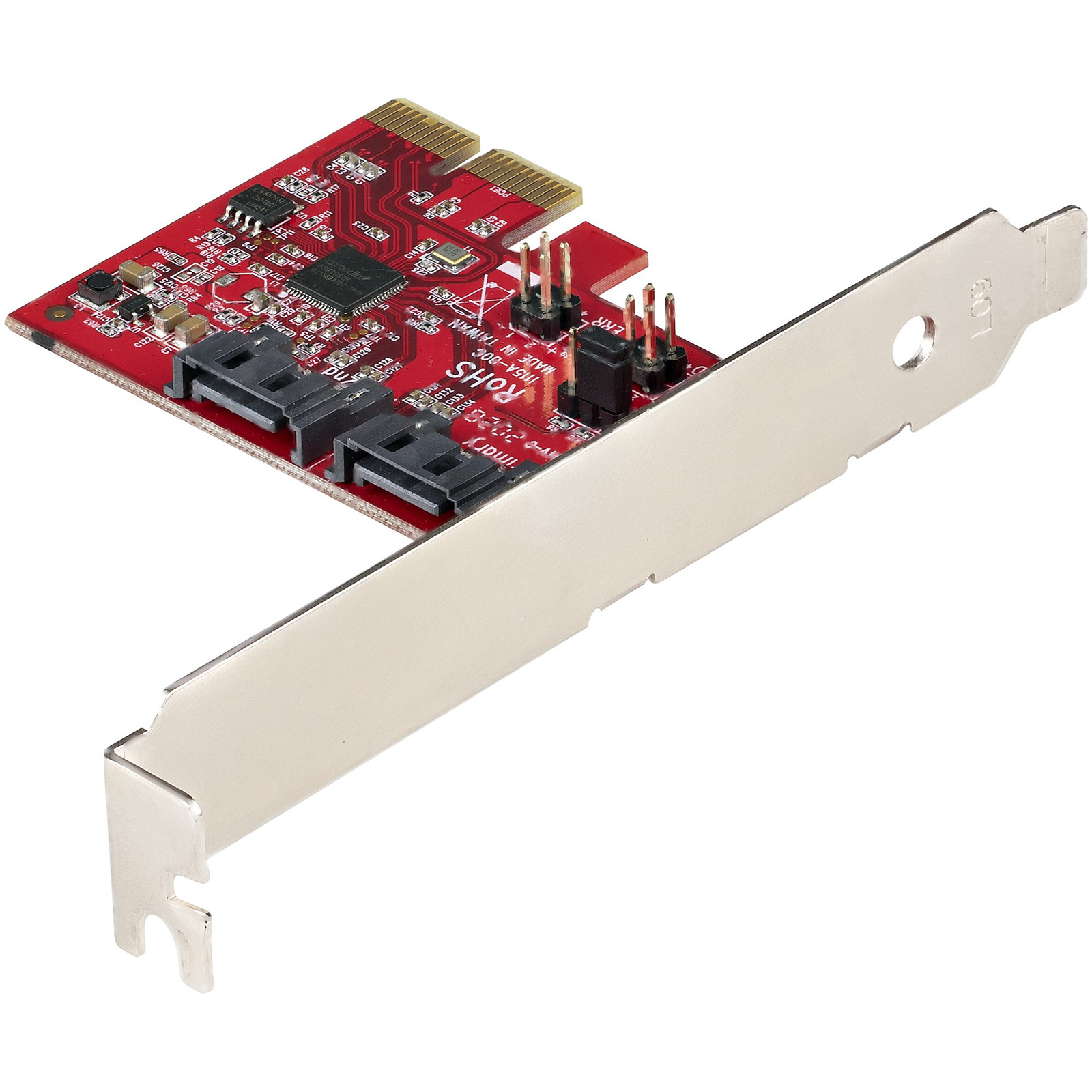

StarTech.com 2P6GR-PCIE-SATA-CARD SATA PCIe Card 2 Ports 6Gbps SATA RAID

PB Tech price
PB Tech price
$ 94 .78
 +GST
$ 109 .00
 inc GST
$94.78  +GST
$109.00

StarTech.com 2P6GR-PCIE-SATA-CARD SATA PCIe Card 2 Ports 6Gbps SATA RAID

  • Brand: StarTech.com
  • MPN: 2P6GR-PCIE-SATA-CARD
  • Part #: ADPSTT5386998
  • UPC: 065030893169
PB Tech price
$ 94 .78 $ 109 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$94.78  +GST
$109.00
  • Brand: StarTech.com
  • MPN: 2P6GR-PCIE-SATA-CARD
  • Part #: ADPSTT5386998
  • UPC: 065030893169

Features

This 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.

Versatile Hardware RAID Configurations

This RAID controller supports different hardware RAID configurations to meet your specific application:

RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity to the combined total of both drives.
RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.
SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.
JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.
ASM1062R to Deliver 2-Port SATA 6Gbps Performance
Featuring the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included

Specifications

Connector(s)

1 - Connector Type(s)

PCI Express x2

2 - Internal Ports

SATA (7 pin, Data)

Environmental

Operating Temperature

0°C to 85°C (32°F to 185°F)

Storage Temperature

-25°C to 85°C (-13°F to 185°F)

Humidity

20~80% RH

Hardware

Ports

2

Interface

SATA

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Industry Standards

Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express Base Specification Revision 2.0

Chipset ID

ASMedia - ASM1062R

Indicators

2 - LED Indicators

Header, for drive activity LEDs

Packaging Information

Package Width

5.6 in [14.2 cm]

Package Length

6.9 in [17.5 cm]

Package Height

1.2 in [3.0 cm]

Shipping (Package) Weight

3.9 oz [111.0 g]

Performance

Maximum Data Transfer Rate

6 Gbps

TRIM Support

Yes

4K Support

Yes

S.M.A.R.T. Support

Yes

Type and Rate

SATA III (6 Gbps)

Port Multiplier

Yes

Bootable

Yes

Hardware Raid Supported

Yes

Supported RAID Modes

RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
BIG (Spanning or Concatenation)
JBOD - (Just a Bunch of Disks)

ATAPI Support

Yes

Physical Characteristics

Color

Red

Product Width

0.7 in [1.8 cm]

Product Length

2.8 in [7.1 cm]

Weight of Product

1.2 oz [33.0 g]

Product Height

4.8 in [12.1 cm]

Software

OS Compatibility

Windows® 7, 8, 8.1, 10, 11
Windows Server® 2012 R2, 2016, 2019
macOS® 10.10 to 12
Linux 2.6.32 and up

What's in the Box

1 - Included in Package

SATA Controller Card
Full-Profile Bracket (Installed)
Low-Profile Bracket
Quick-Start Guide
