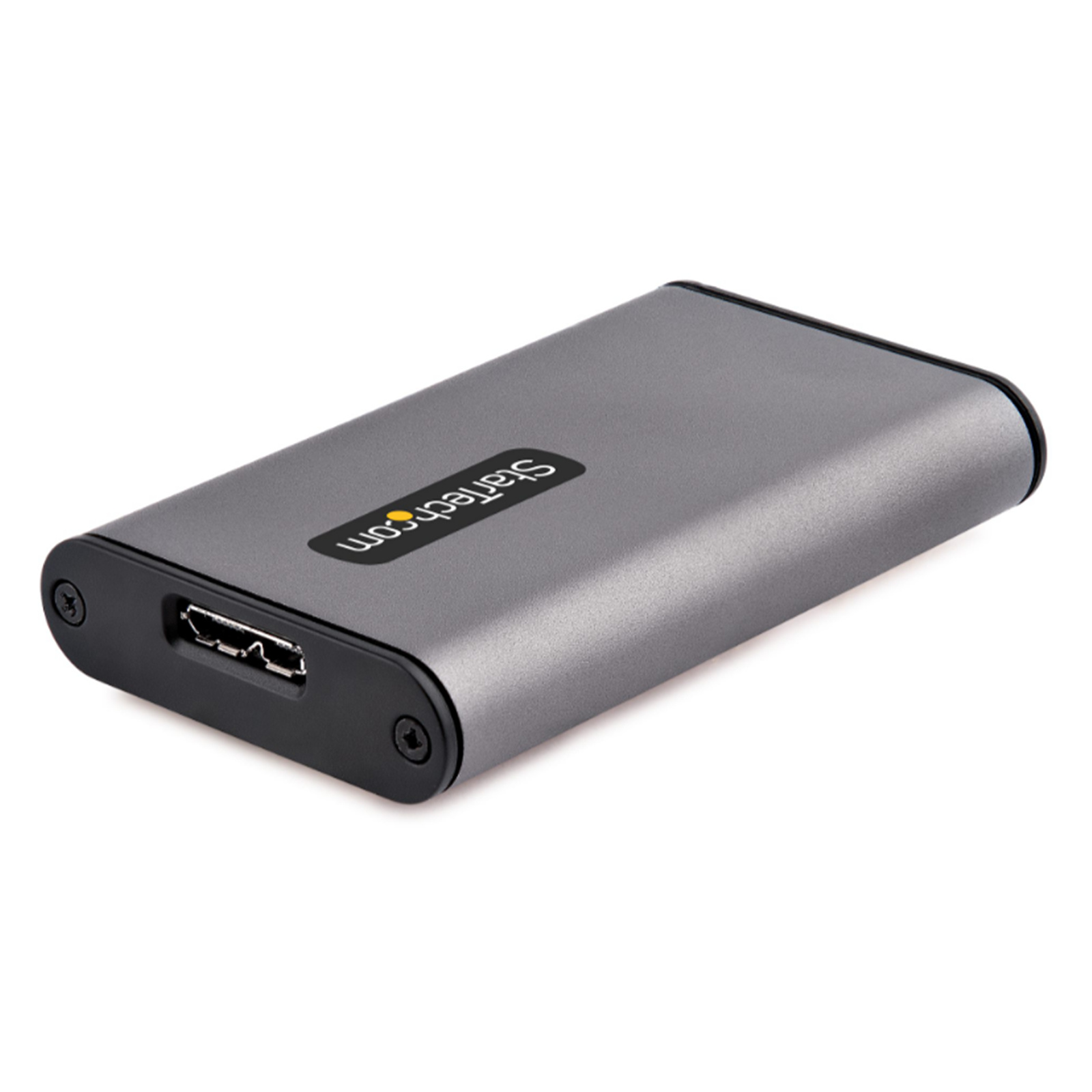

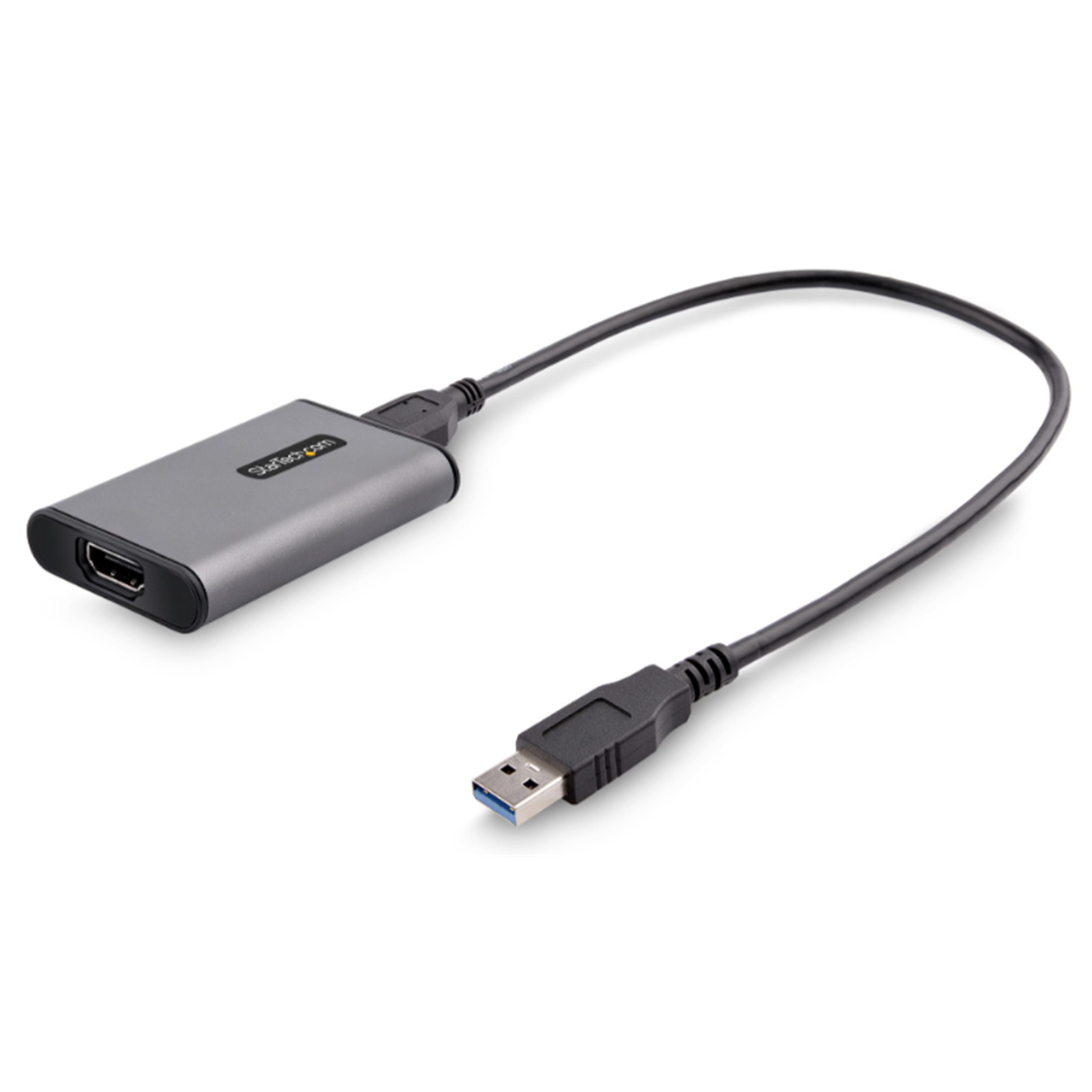

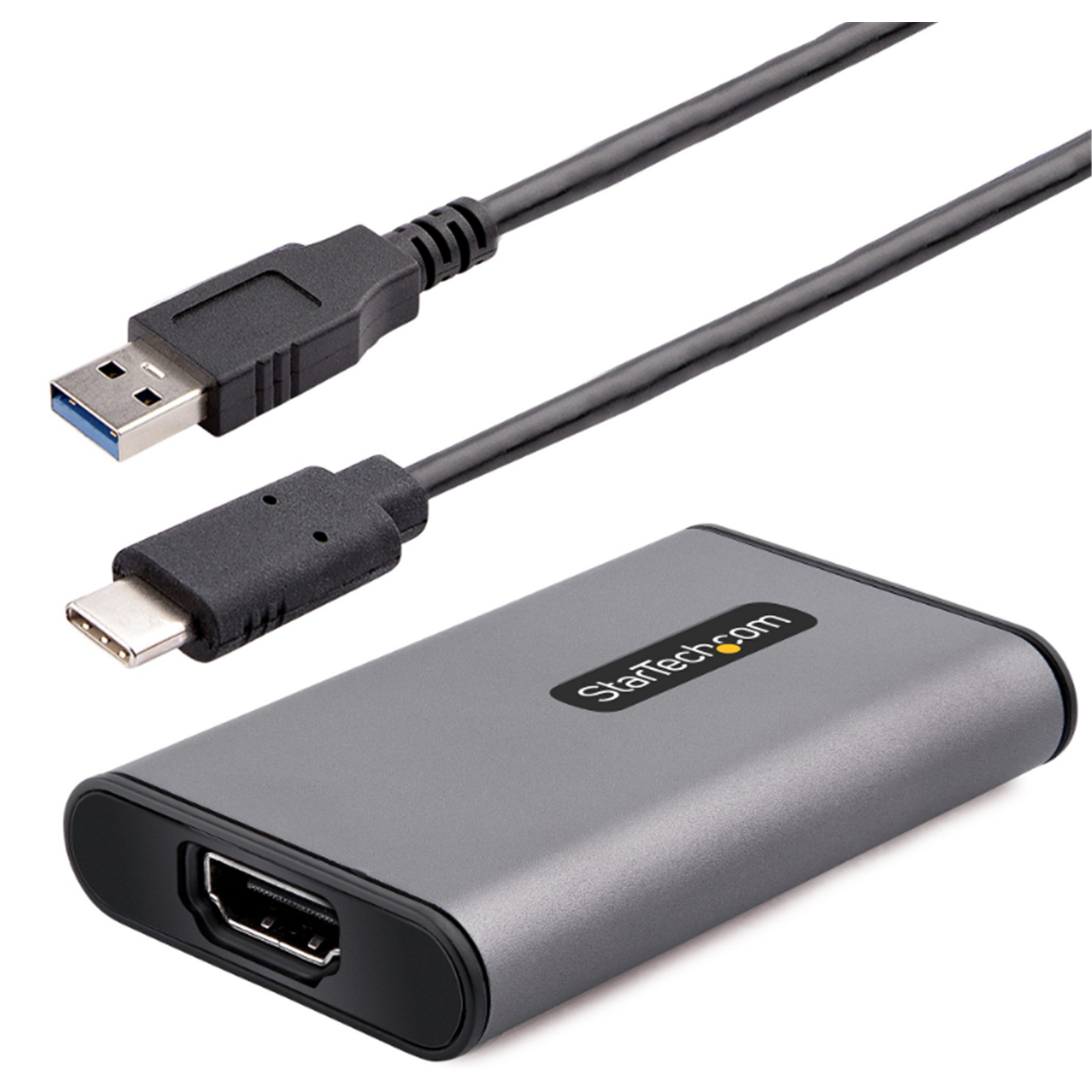

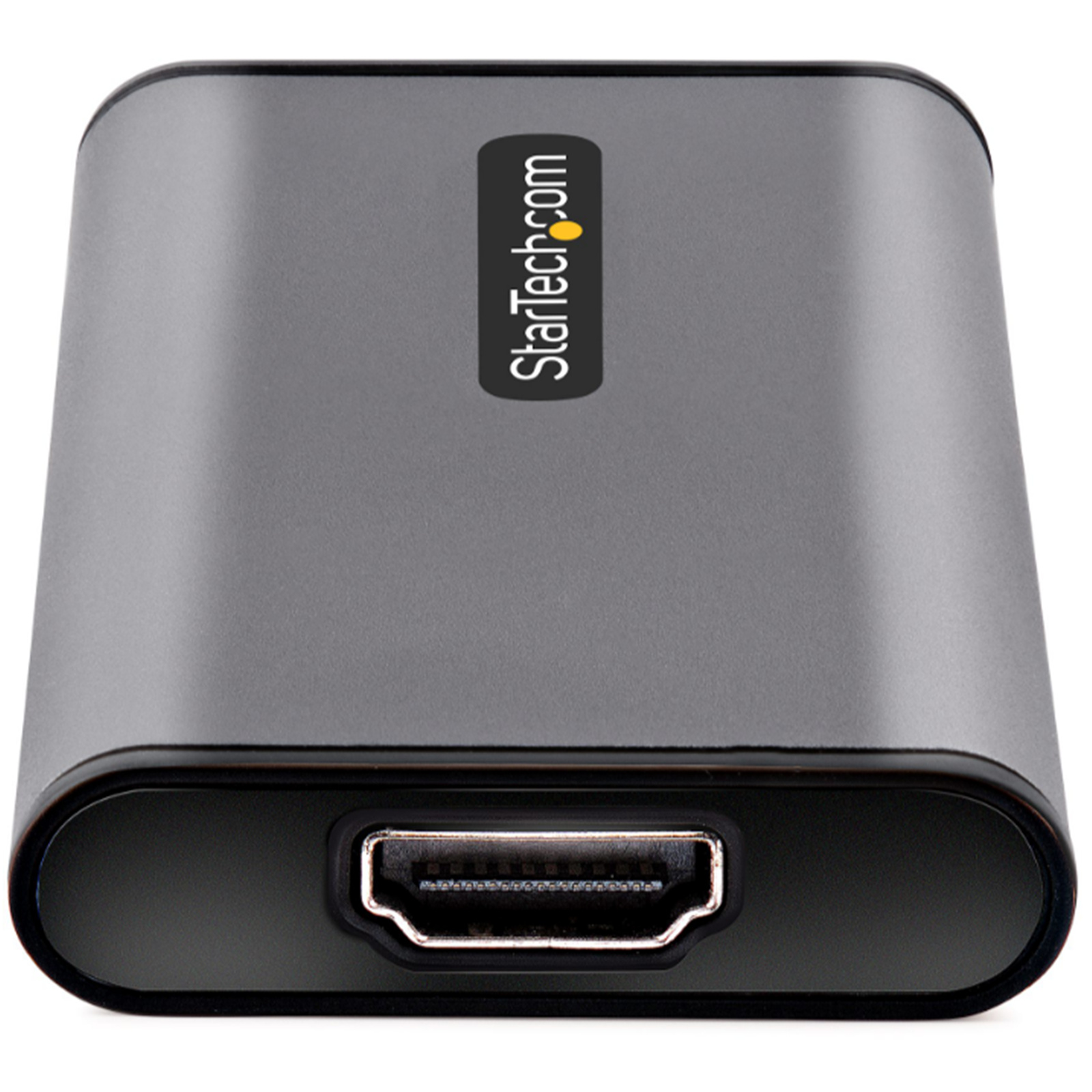

StarTech.com 4K30-HDMI-CAPTURE USB 3.0 4K HDMI Video Capture Device

PB Tech price
PB Tech price
$ 287 .83
 +GST
$ 331 .00
 inc GST

Out of stock

StarTech.com 4K30-HDMI-CAPTURE USB 3.0 4K HDMI Video Capture Device

  • Brand: StarTech.com
  • MPN: 4K30-HDMI-CAPTURE
  • Part #: ADPSTT5567226
  • UPC:
PB Tech price
$ 287 .83 $ 331 .00
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

This USB to HDMI video capture device enables HDMI A/V recording, at up to 4K 30Hz, to a USB-C or USB-A enabled computer.

Record 4K Video

The USB 3.2 Gen 1 (5Gbps) Capture Device enables recording of HDMI audio and video. Capture at up to 2160p 30fps, 1440p 60fps or 1080p 120fps with 16-bit PCM audio using third party software that supports DirectShow or QuickTime. Ideal for capturing the HDMI output of DSLR cameras, action cameras, webcams, and more.

USB Video Class

The capture device features USB Video Class (UVC), a video capture standard that's natively supported by Mac, Windows, and Ubuntu. USB bus-power and UVC facilitate plug and play installation. The included USB-A and USB-C cables let you connect to almost any host device running a supported operating system.

Capture or Stream

Record conference calls, presentations, security feeds, training videos, and more using third party software. Live stream content for community events, remote troubleshooting, or educational purposes on platforms supporting RTSP or RTMP communication protocols. The Capture Device works with Teams, Google Hangouts, Zoom, Adobe Connect, GoToMeeting, and more.

- PERFORMANCE: The HDMI Video Capture Device records up to 4K 30Hz HDMI | Captures up to 2160p 30fps, 1440p 60fps, or 1080p 120fps | 2ch 16 bit PCM audio support | 32KHz/44.1KHz/48KHz sampling rate | HDCP 1.4 compliant, does not capture protected content

- USB VIDEO CLASS: UVC ensures driverless, automatic install in Windows, macOS, and Ubuntu | The External USB Capture Card is compatible with DirectShow/QuickTime applications (OBS, Xsplit and VLC) | H.264/H.265 software encoding (MPEG4/MJPEG/YUY2)

- APPLICATIONS: Record conference calls, presentations, security feeds or training videos using 3rd party software | Live stream for education, corporate presentations, or houses of worship on platforms with RTSP/RTMP | Capture video camera, DSLR or webcams

- PORTABLE & BUS POWERED: Durable, compact, and lightweight aluminum video capture adapter | Ideal for media rooms, classrooms or recording studios| Connects directly to a laptop or desktop | 16inch (40cm) USB 3.2 Gen 1 USB-A and USB-C cables included

- COMPATIBILITY: This screen recorder works with Windows (7 & up), macOS (10.14 & up) and Ubuntu (20.04 & up) | Works w/ Thunderbolt 3 | Works with video editing and collaboration software such as Teams, Google Hangouts, Zoom, Adobe Connect, and GoToMeeting

Specifications

Connector(s)

Connector A

1 - HDMI

Connector B

1 - USB 3.2 USB Type Micro-B (10 pin, Gen 1, 5 Gbps)

Environmental

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

20 - 90%

Hardware

AV Input
HDMI
AV Output
USB
USB-C

Audio

Yes

Chipset ID

ITE - IT66021
ITE - IT9323

Performance

Maximum Digital Resolutions

3840 x 2160p @ 30fps

Audio Specifications

HDMI - 2 Channel Audio

Physical Characteristics

Color

Gray

Product Height

0.5 in [1.2 cm]

Product Length

2.9 in [7.3 cm]

Weight of Product

1.4 oz [41.0 g]

Product Width

1.7 in [4.4 cm]

Material

Aluminum

Cable Length

15.7 in [40 cm]

Power

Power Source

Bus Powered

Input Voltage

5

Input Current

300 mA

Power Consumption (In Watts)

1.5 W

Software

OS Compatibility

Windows 7, 8.1, 10, 11
macOS 10.14, 10.15, 11, 12
Ubuntu 20.04

Manufacturer Part No:
4K30-HDMI-CAPTURE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
ADPSTT5567226
Product Model:
4K30-HDMI-CAPTURE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
