Features
U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5" U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent
- ADD HIGH PERFORMANCE U.3 STORAGE: Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server, enabling ultra-fast data access; Supports SFF-TA-1001 drives up to 15mm in height; Not compatible with U.2 drives
- UNIVERSAL COMPATIBILITY: Backwards compatible with PCI Express 3.0 motherboards that have an available x4, x8, or x16 PCIe slot; U.3 Adapter works with all workstation and server operating systems such as Windows, Windows Server, and Linux
- PREVENT OVERHEATING: Vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while reducing potential thermal throttling
- HASSLE-FREE SETUP: Pre-installed full-profile bracket & included drive mounting screws enable the connection of a U.3 drive to a PCIe slot, without the need of a drive backplane or additional cables; The U.3 to PCIe Card requires no drivers or software
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this U.3 to PCI Express Adapter Card is backed for two years, including free lifetime 24/5 multi-lingual technical assistance

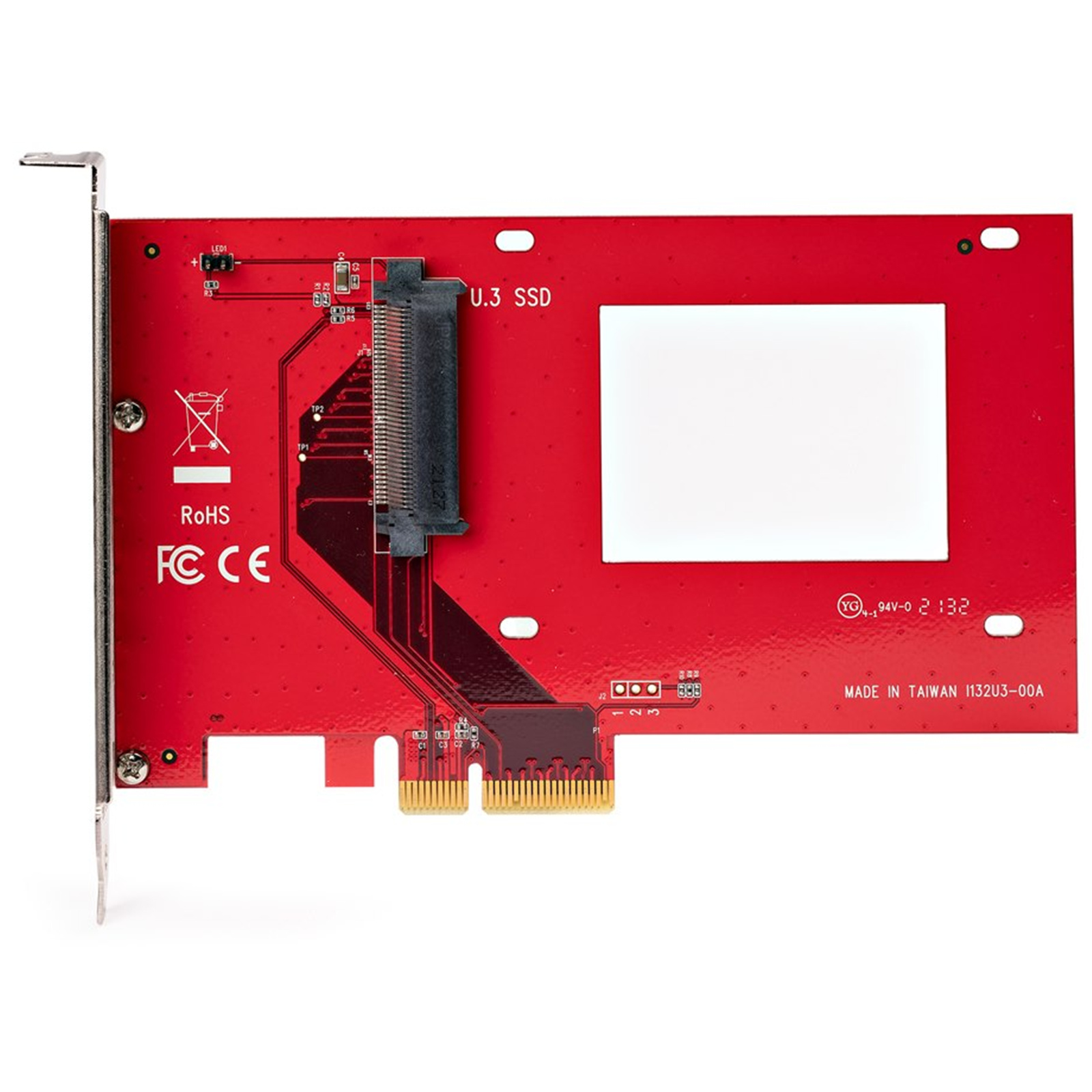

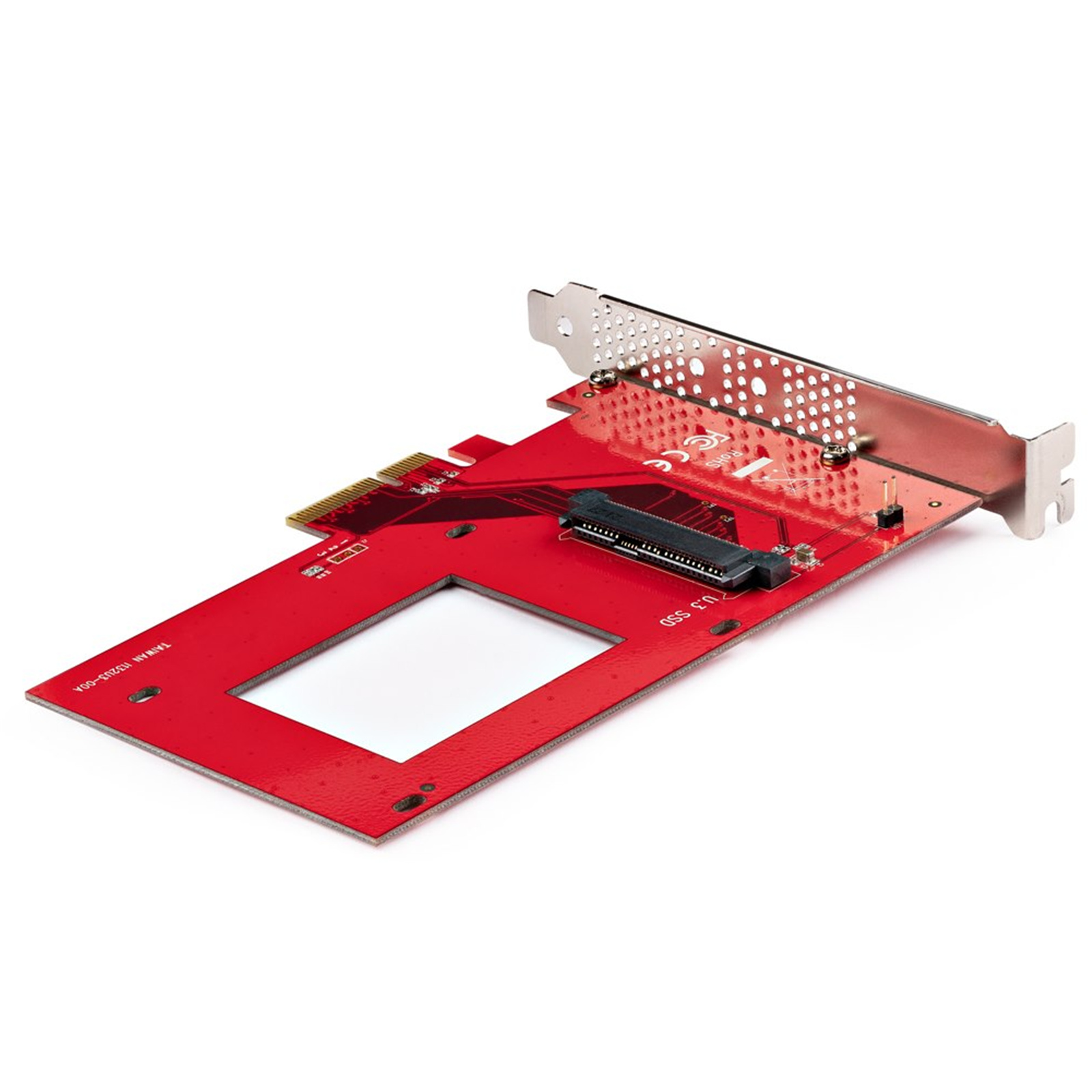

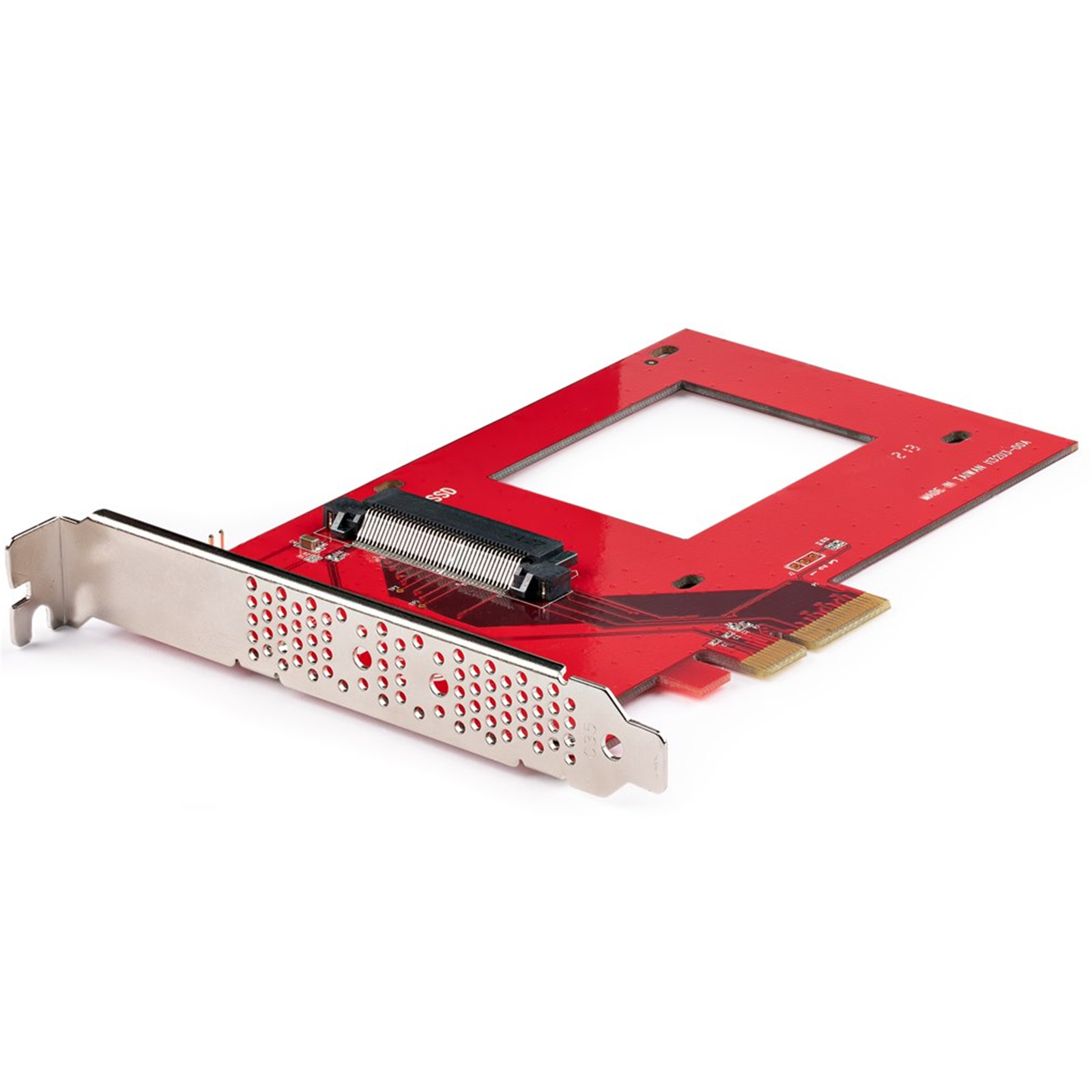

Add U.3 Capabilities to a Desktop or Server
Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.
Universal Compatibility
The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software and works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.
Optimal Airflow and Reliable Performance
The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.
Specifications
Connector(s)
Drive Connectors
1 - U.3 (PCIe, NVMe, SFF-TA-1001)
Host Connectors
1 - PCI Express x4
Other Interface(s)
1 - IDC (2 pin, Motherboard Header)
Environmental
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 80°C (-40°F to 176°F)
Humidity
20 ~ 80%
Hardware
Interface
PCI Express x4
Bus Type
PCI Express
Number of Drives
1
Drive Size
2.5in
Compatible Drive Types
U.3 (PCIe, NVMe, SFF-TA-1001)
Drive Installation
Fixed
Supported Drive Height(s)
15mm
12.5mm
9.5mm
7mm
5mm
Fan(s)
No
Indicators
LED Indicators
1 - Drive Power/Activity Terminal Header
(LEDs not included)
Packaging Information
Package Quantity
1
Package Length
5.9 in [15.1 cm]
Package Width
8.7 in [22.1 cm]
Package Height
1.2 in [3.0 cm]
Shipping (Package) Weight
5.3 oz [150.0 g]
Performance
Hardware Raid Supported
No
Hot Swap Capability
No
MTBF
21,693,912 Hours
Physical Characteristics
Color
Red
Product Length
6.1 in [15.4 cm]
Product Width
3.5 in [9.0 cm]
Product Height
0.1 in [0.2 cm]
Weight of Product
2.2 oz [62.0 g]
Material
UL94 - V0
Max Drive Height
0.6 in [15 mm]
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
Note
This product is compatible with U.3 drives only. U.2, SAS, and SATA drives are incompatible.
This product is backwards compatible with PCIe 3.0 slots, operating at reduced speeds.
NVMe SSDs may require additional drivers, provided by the manufacturer, or may be natively provided by the operating system (Windows®? 8 and later - Mac OS 10.10.3 and later). Earlier OS versions do not have native NVMe support.
What's in the Box
Included in Package
1 - U.3 to PCIe x4 Adapter
4 - Drive Mounting Screws
1 - Quick-Start Guide
