StarTech.com 1S1P PCIe Parallel Serial Combo Card

PB Tech price
PB Tech price
$ 76 .52
 +GST
$ 88 .00
 inc GST
$76.52  +GST
$88.00

StarTech.com 1S1P PCIe Parallel Serial Combo Card

  • Brand: StarTech.com
  • MPN: PEX1S1P952
  • Part #: ADPSTT690139
  • UPC: 065030842600
PB Tech price
$ 76 .52 $ 88 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 08 Oct When will I receive it?
$76.52  +GST
$88.00

Features

1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART

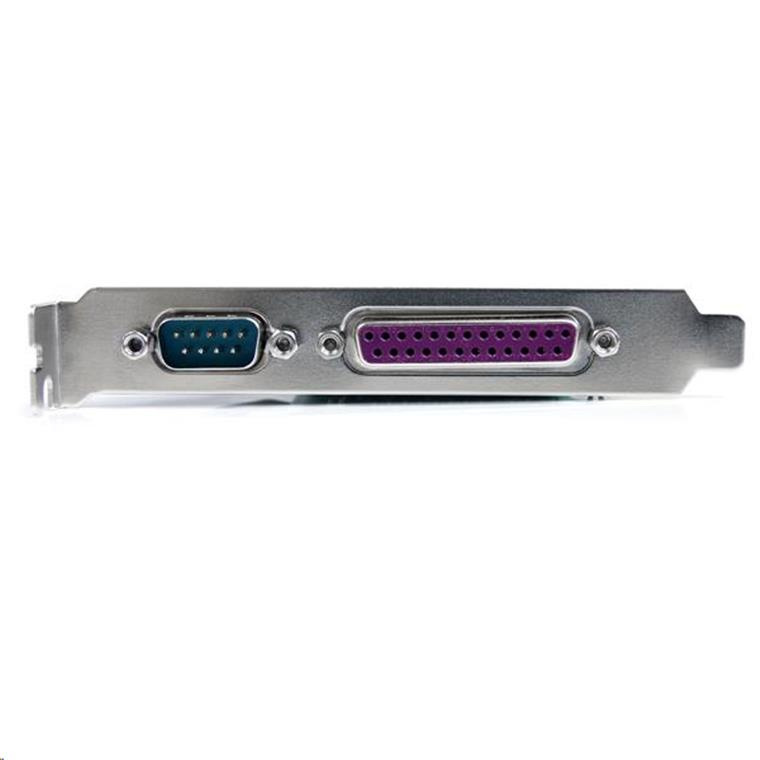

The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port. The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design. This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows® (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


The StarTech.com Advantage


Native single-chip, single lane PCI Express chipset delivers true PCIe performance, reducing load on the CPU by up to 48%
Standard and low profile/half-height bracket included to ensure fitment in any system
Selectable power output on pin 9 allows for compatibility with more serial devices and industrial applications

Specifications

Bus Type
PCI Express

Card Type
Standard Profile (LP bracket incl.)

Chipset ID
PLX/Oxford - OXPCIe952

Industry Standards
PCI Express base spec 1.1
PCI Power Management 1.2
IEEE 1284-compliant SPP/EPP/ECP

Interface
Parallel
Serial

Port Style
Integrated on Card

Ports
2

Data Bits
5, 6, 7, 8, 9

FIFO
128 Bytes

Flow Control
Automated in-Band, Xon/Xoff

Maximum Data Transfer Rate
1.5Mbps - Parallel
115.2Kbps - Serial

MTBF
87,600 Hours

Parity
Even, Odd, Mark, Space, None

Serial Protocol
RS-232

Stop Bits
1, 1.5, 2

Connector Type(s)
1 - PCI Express x1 Male

External Ports
1 - DB-25 (25 pin, D-Sub) Female
1 - DB-9 (9 pin, D-Sub) Male

Microsoft WHQL Certified
Yes

OS Compatibility
Windows® CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Linux 2.4.x to 4.4.x LTS Versions only

Power Consumption (In Watts)
0.2W

Humidity
5~85% RH

Operating Temperature
-10°C to 80°C (14°F to 176°F)

Storage Temperature
-20°C to 100°C (-4°F to 212°F)

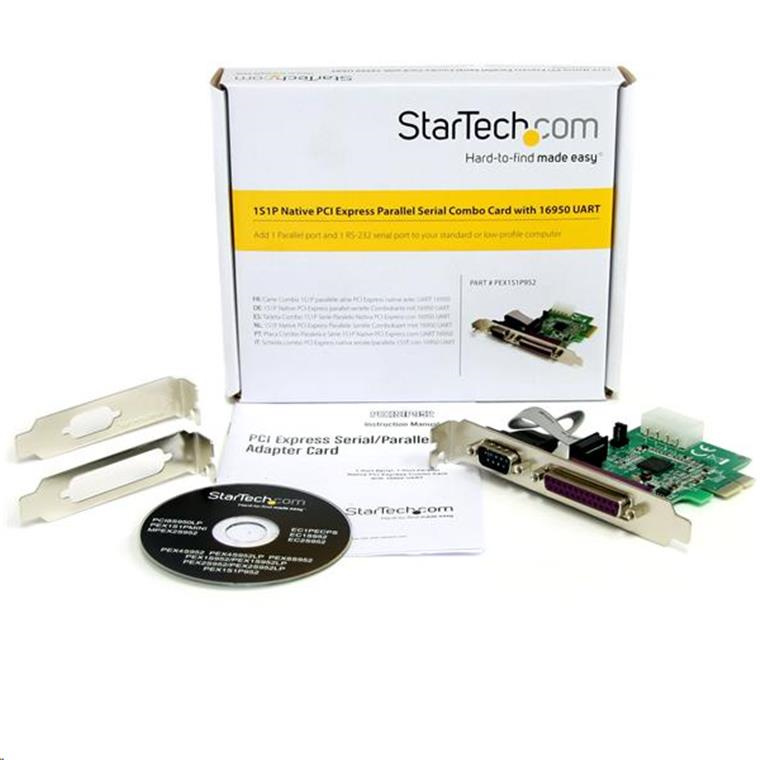

Included in Package
1 - 1S1P PCI-Express Serial Parallel Combo Card
2 - Low Profile Brackets
1 - Driver CD
1 - Instruction Manual
Manufacturer Part No:
PEX1S1P952
Brand:
Product Type:
-
UPC
065030842600
Product Family:
-
Shipping Weight:
0.182 kg
PB Part No:
ADPSTT690139
Product Model:
1S1P
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
