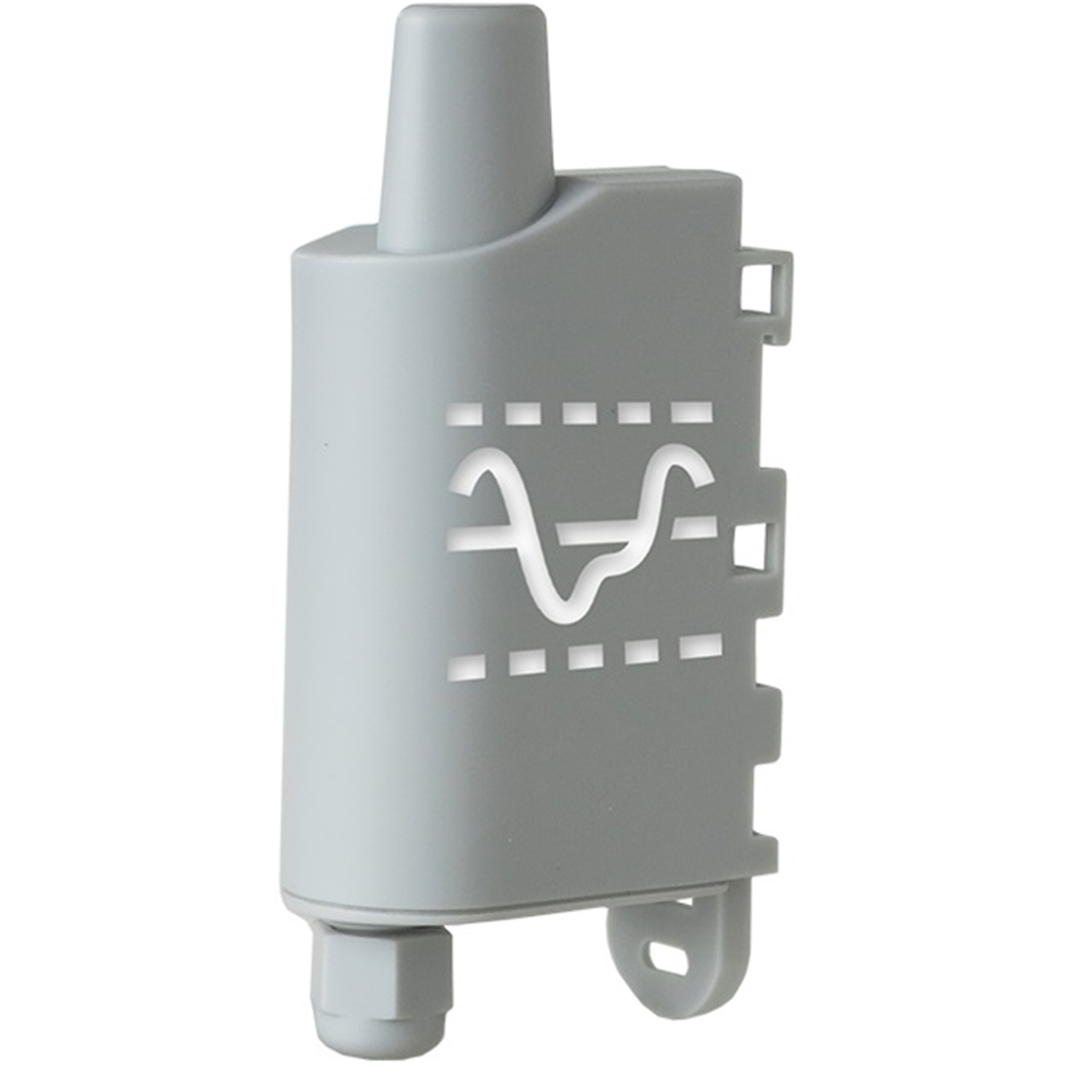

Adeunis ANALOG PWR LoRaWAN EU863-870, External power supply (not included)

PB Tech price
PB Tech price
$ 70 .43
 +GST
$ 80 .99
 inc GST
$70.43  +GST
$80.99

Adeunis ANALOG PWR LoRaWAN EU863-870, External power supply (not included)

  • Brand: Adeunis
  • MPN: ARF8200AA
  • Part #: ADU1013
  • UPC:
PB Tech price
$ 70 .43 $ 80 .99
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 25 Sep When will I receive it?
$70.43  +GST
$80.99

Features

The Adeunis ANALOG PWR is an Analog IoT sensor that supports external power supply (not included) for LoRaWAN EU863-870.

The Adeunis® LoRaWAN 863-870 ANALOG PWR is a ready-to-use radio transmitter enabling any type of 0-10V or 4-20mA sensor to be converted into a wireless communicating sensor. This product meets the needs of users who need to remotely monitor data of any kind (temperature, pressure, level, humidity, CO², speed, brightness, opening, etc.). The use of the LoRaWAN protocol allows you to integrate the LoRaWAN 863-870 ANALOG PWR into any network that is already deployed. Two sensors can be supported by a single LoRaWAN 863-870 ANALOG PWR transmitter. The product transmits the data from the sensors either periodically or in an event-related way based on top or bottom thresholds or on detection of a change of state on its digital inputs. The configuration of the transmitter is accessible by the user via a micro-USB port, allowing in particular a choice of modes of transmission, periodicity or type of interface (0-10V or 4-20mA). The LoRaWAN 863-870 ANALOG PWR is powered by an external power supply.

- Compatible with EU863-870 LoRaWAN™ networks
- 2 inputs 0-10V or 4-20mA
- Possibility of triggering measurement via 2 dedicated inputs
- Local and remote configuration
- Ready to use solution
- Low power consumption for optimal autonomy
- External power supply required (not included)

FEATURES OF THE ANALOG IoT SENSOR

MEASURE
Continuously monitor the values of 0-10V or 4-20 mA equipment or sensors (clamp ammeter,temperature, rain gauge, pressure, humidity, speed, etc.).

ALERT--AND/OR Trigger an alarm if:
high and/or low threshold(s) exceeded
event on one of the 2 dry contact inputs

Specifications

Product Code

ARF8200AA

Modes

Periodic or Event

Analog Inputs

2x 0-10V or 4-20mA

Dimensions

105 x 50 x 27 mm

Weight

70 g

Casing

IP67

Integrated Fastening System

DIN rail, tube, wall mount, flange

Operating Temperature Range

-25°C to + 70°C

Zone

LoRaWAN: EU863-870

Manufacturer Part No:
ARF8200AA
Brand:
Adeunis
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.9 kg
PB Part No:
ADU1013
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
