FiiO TINY A 3.5mm + USB-C Dual Port Ultra-Portable DAC & Headphone Amplifier - Black With Microphone Pass-Through - Listen & Charge Simultaneously - EQ & App Control - Hi-Res Audio Certified - For Android / Samsung / Windows / Mac & USB-C i

PB Tech price
PB Tech price
$ 39 .12
 +GST
$ 44 .99
 inc GST

Out of stock

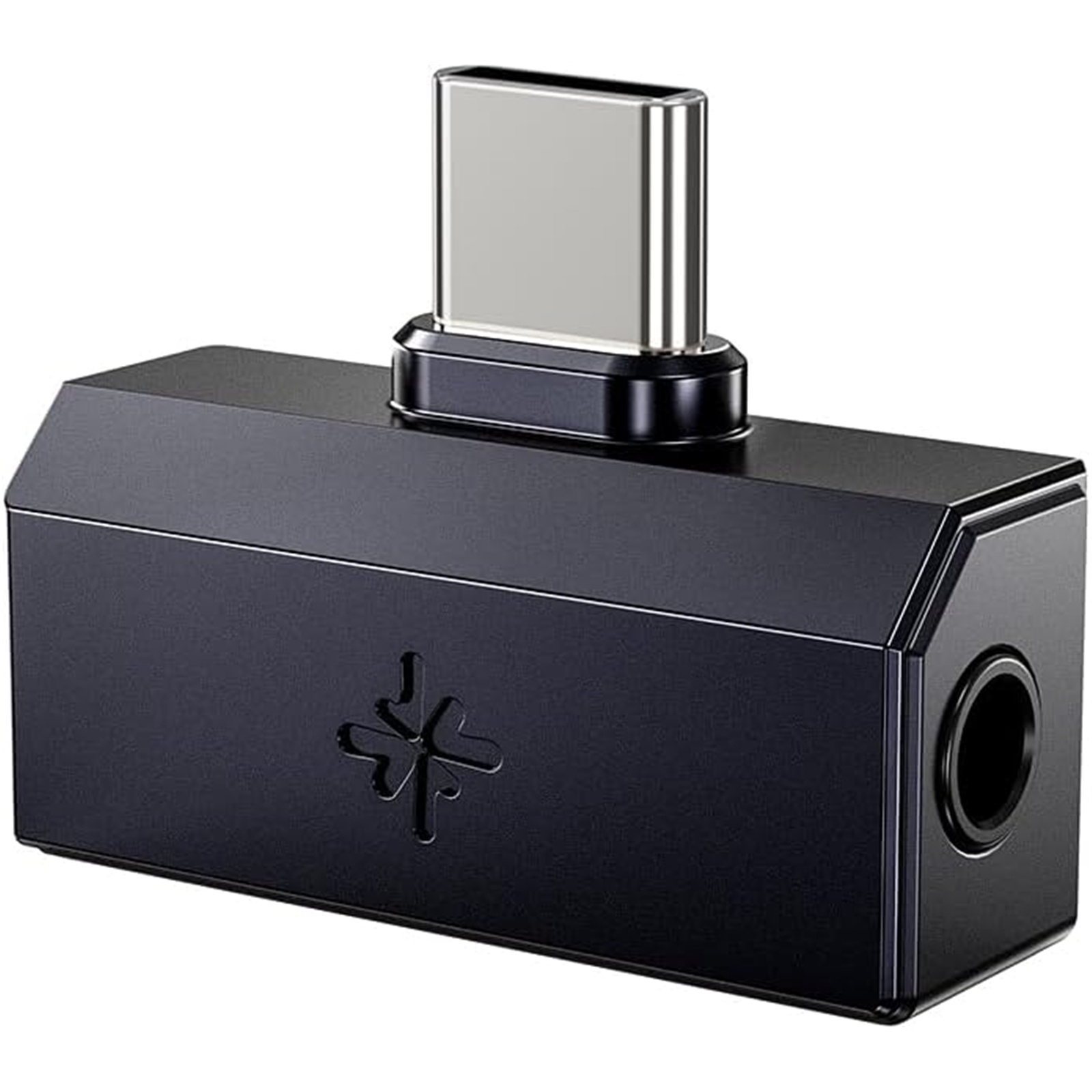

FiiO TINY A 3.5mm + USB-C Dual Port Ultra-Portable DAC & Headphone Amplifier - Black With Microphone Pass-Through - Listen & Charge Simultaneously - EQ & App Control - Hi-Res Audio Certified - For Android / Samsung / Windows / Mac & USB-C i

Add a compact & powerful headphone jack to your USB-C smartphone
  • Brand: FiiO
  • MPN: 5510342
  • Part #: AUDFIO5510342
  • UPC:
NEW ARRIVAL
PB Tech price
$ 39 .12 $ 44 .99
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: FiiO
  • MPN: 5510342
  • Part #: AUDFIO5510342
  • UPC:

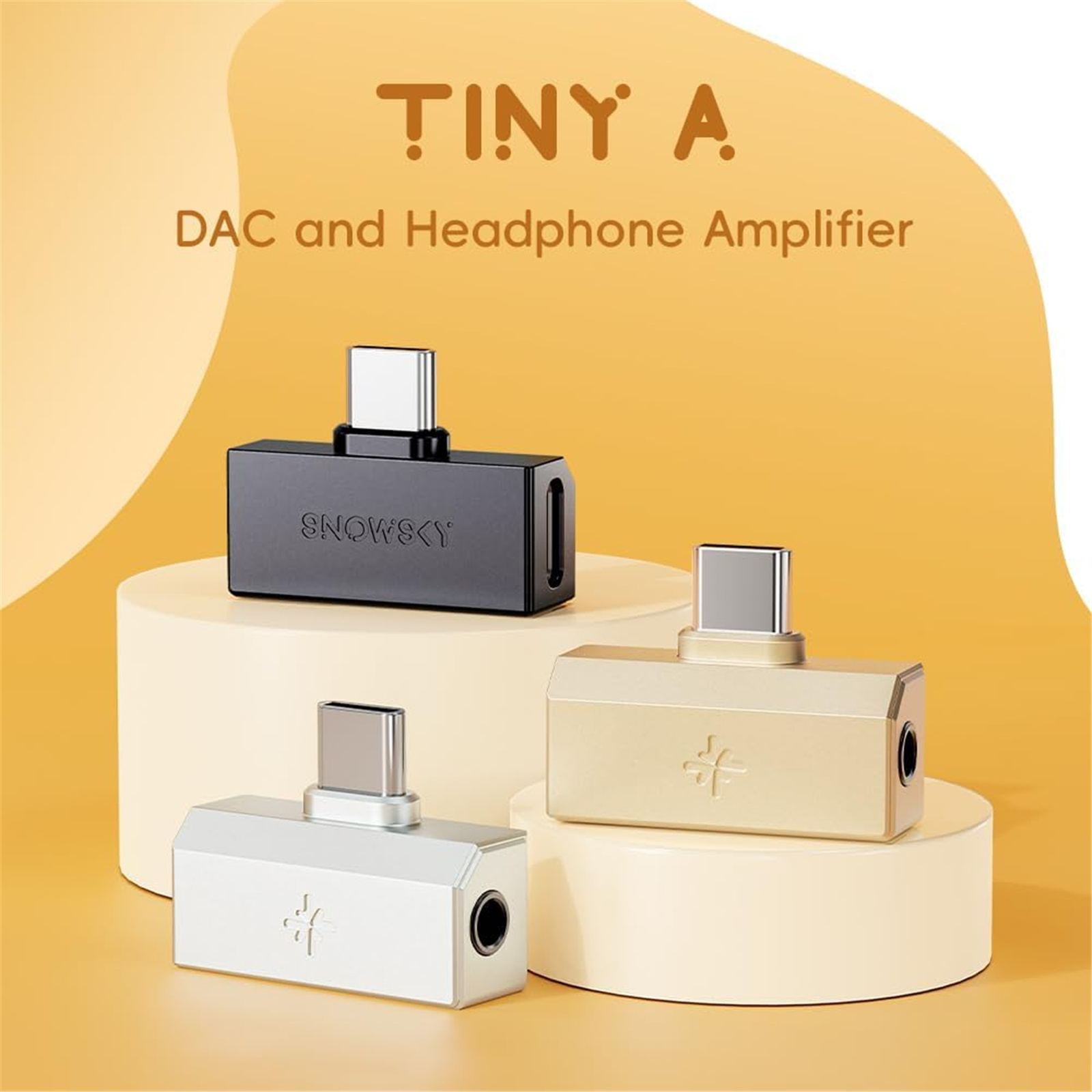

Colour

Black Gold Silver

Features

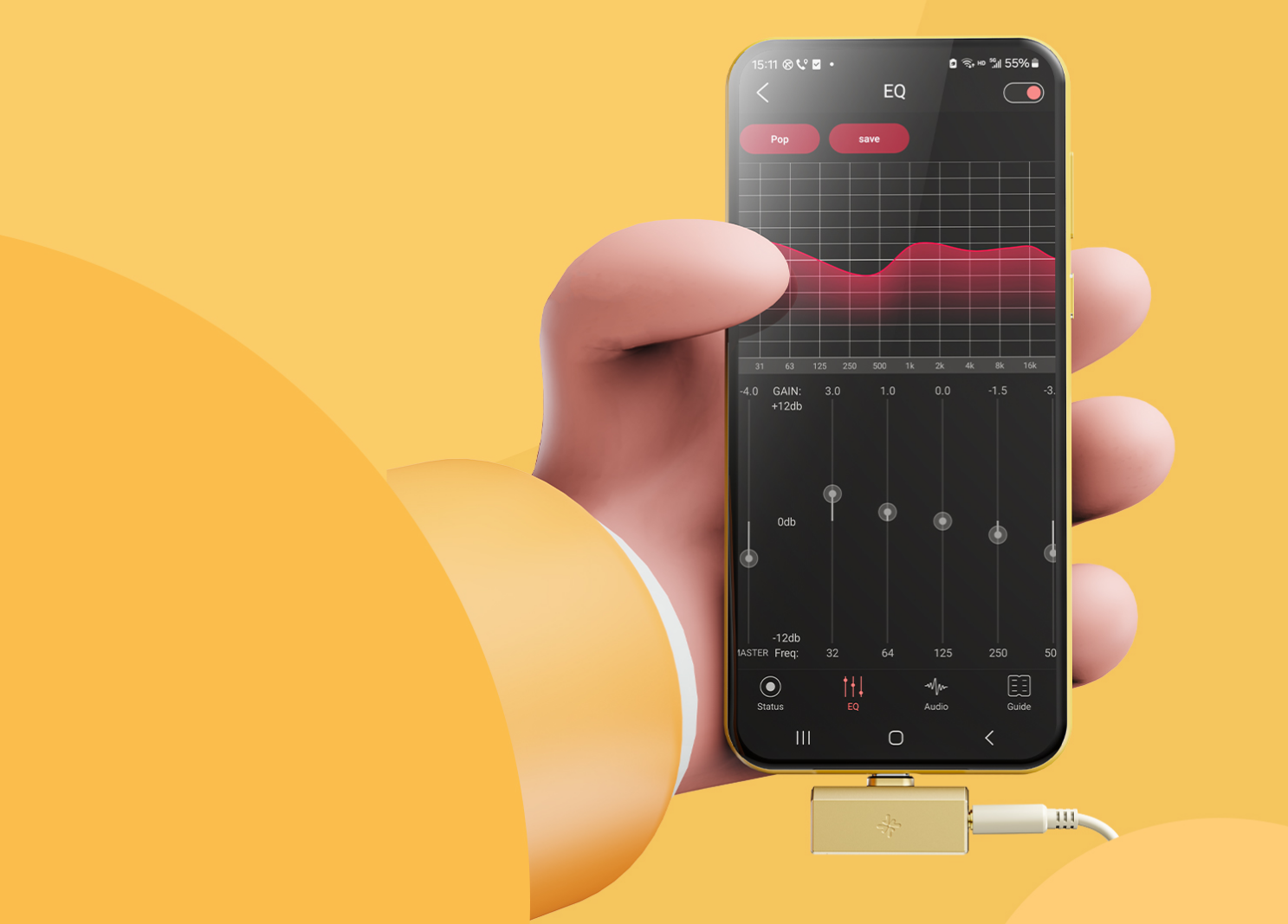

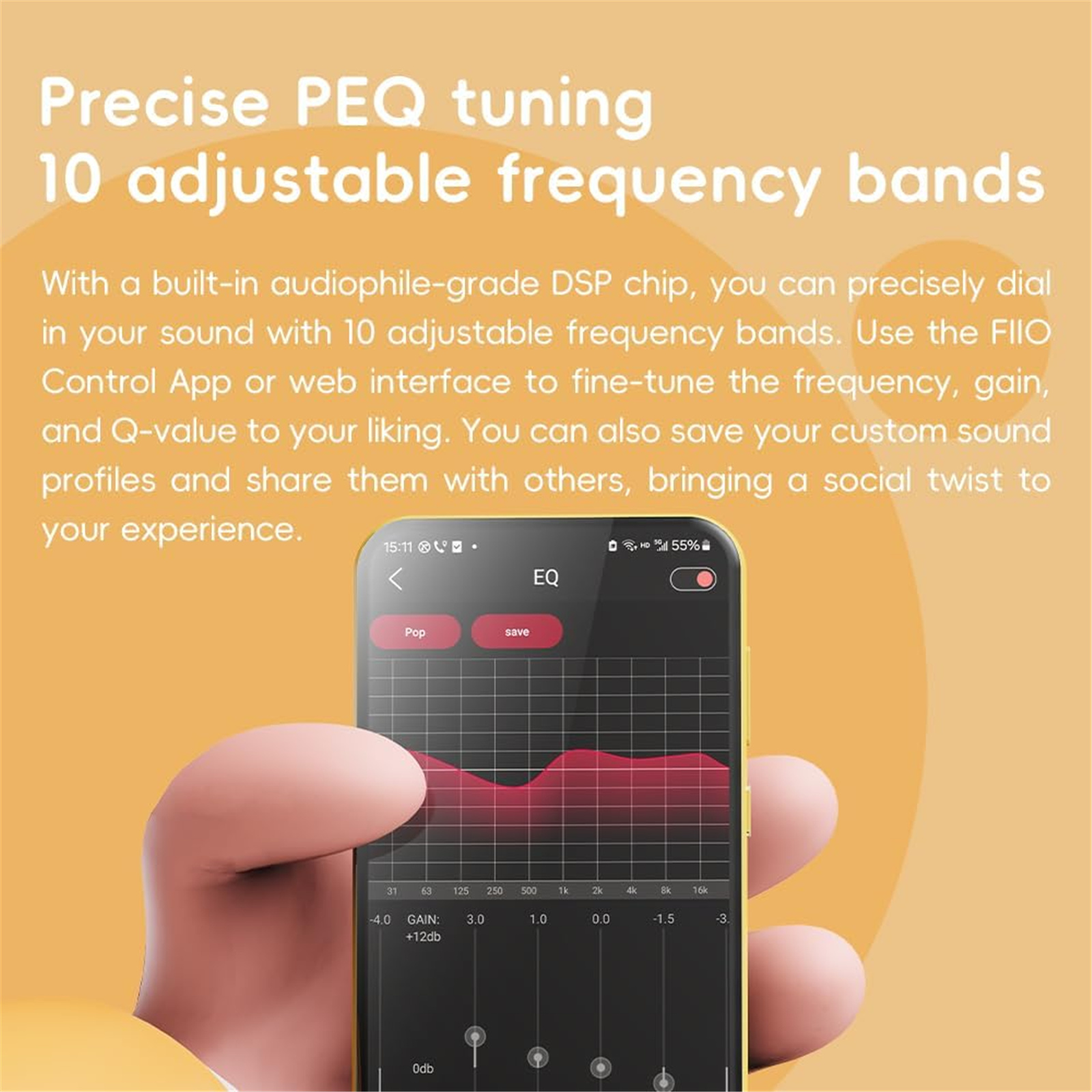

Precise PEQ tuning 10 adjustable3 frequency bands

With a built-in audiophile-grade DSP chip, you can precisely dial in your sound with 10 adjustable frequency bands. Use the FIIO Control app or web interface to fine-tune the frequency,gain,and Q-value to your liking. You can also save your custom sound profile and share them with others,bringiing a social twist to your experience.

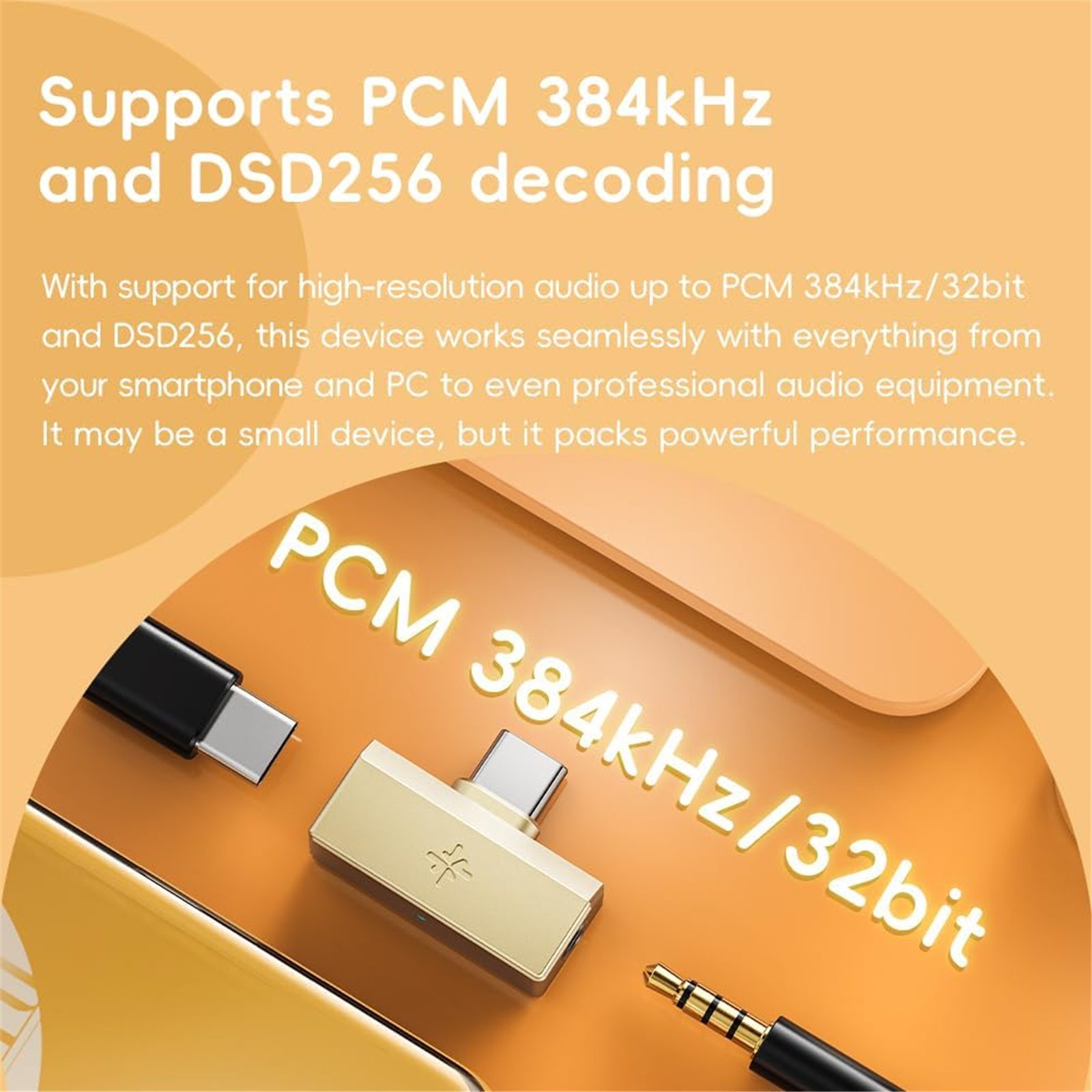

Support PCM 384kHz and DSD256 decoding

With support for high-resolution audio up to PCM 384kHz/32bit and DSD256, this device works seamlessly with everything from your smartphone and PC to even professional audio equipment. it may be a small device but it packs powerful performance.

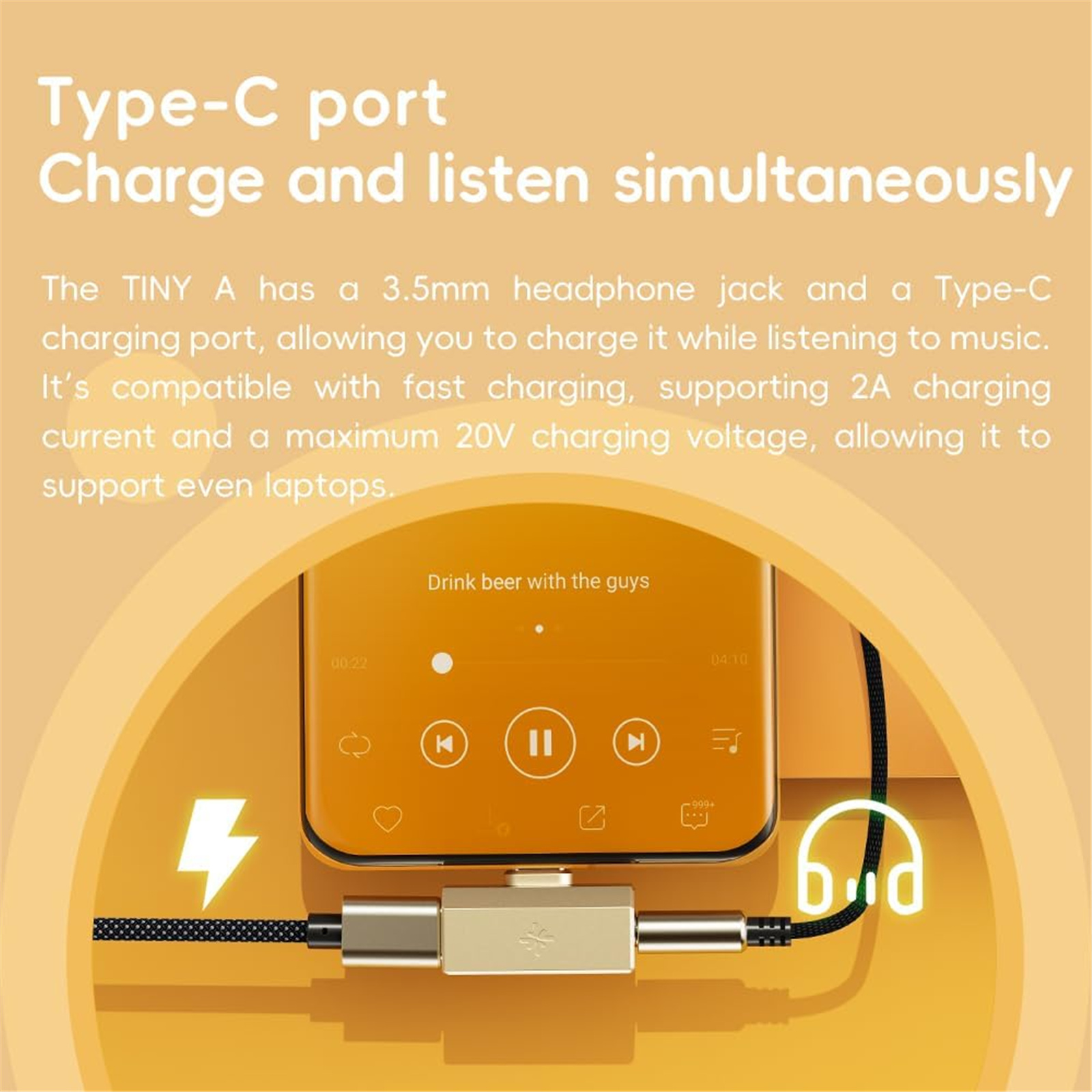

Type-C port Charge and listen simultaneously

The TINY A has a 3.5mm headphone jack and a Type-C charging port, allowing you to charge it while listening to music. It's compatible with fast charging, supporting 2A charging current and a maximum 20V charging voltage, allowing it to support even laptops.

Dual-port listening A new way to enjoy music together

The 3.5mm and 4.4mm ports on the left and right sides support simultaneous audio playback, allowing two pairs of headphones to be used at the same time. Say goodbye to sharing one pair of headphones and enjoy your favorite songs together with family and friends.

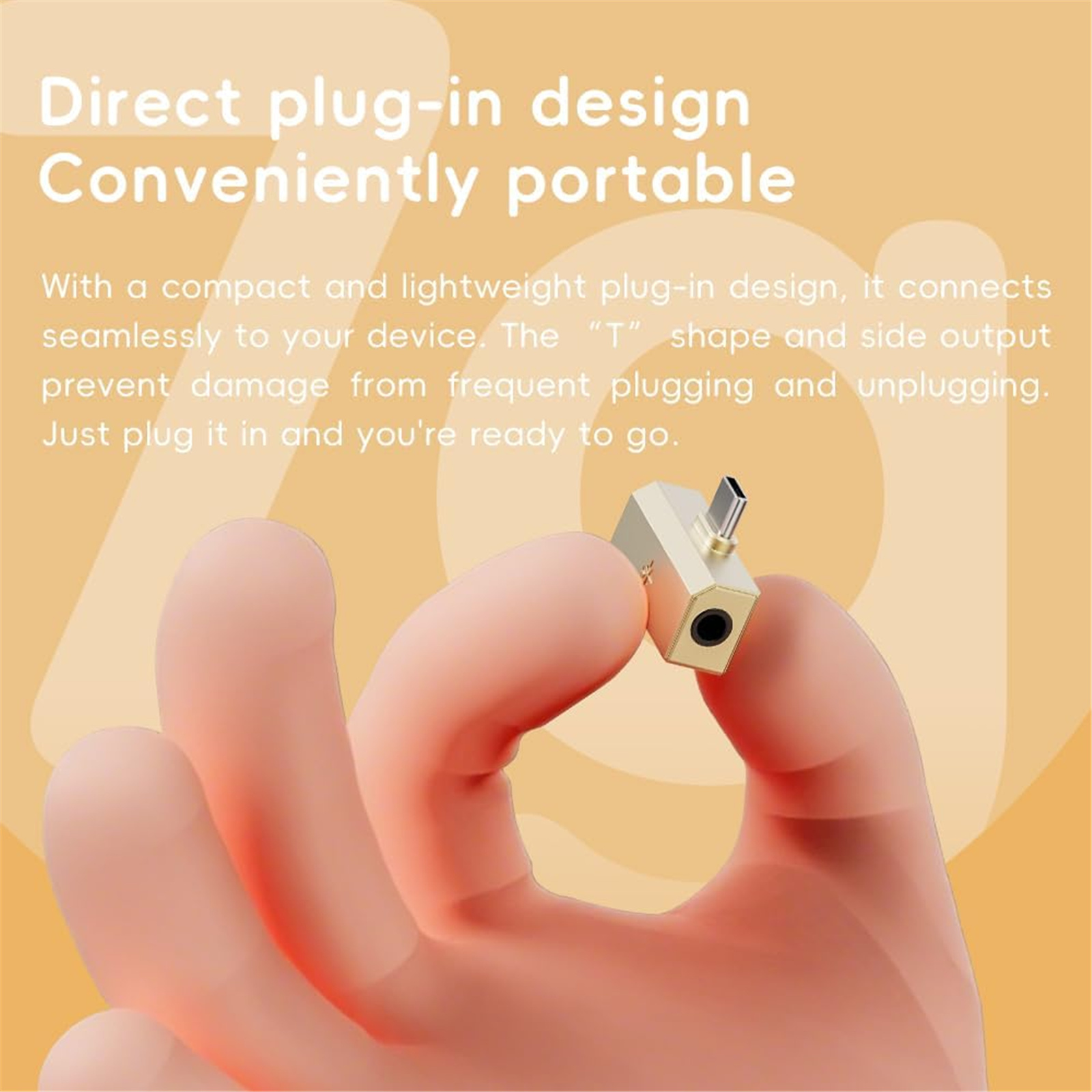

Direct plug-in design conveniently portable

With a compact and lightweight plug-in design, it connects seamlessly to your device. The "T" shape and side output prevent damage from frequent plugging and unplugging. Just plug it in and you're ready to go.

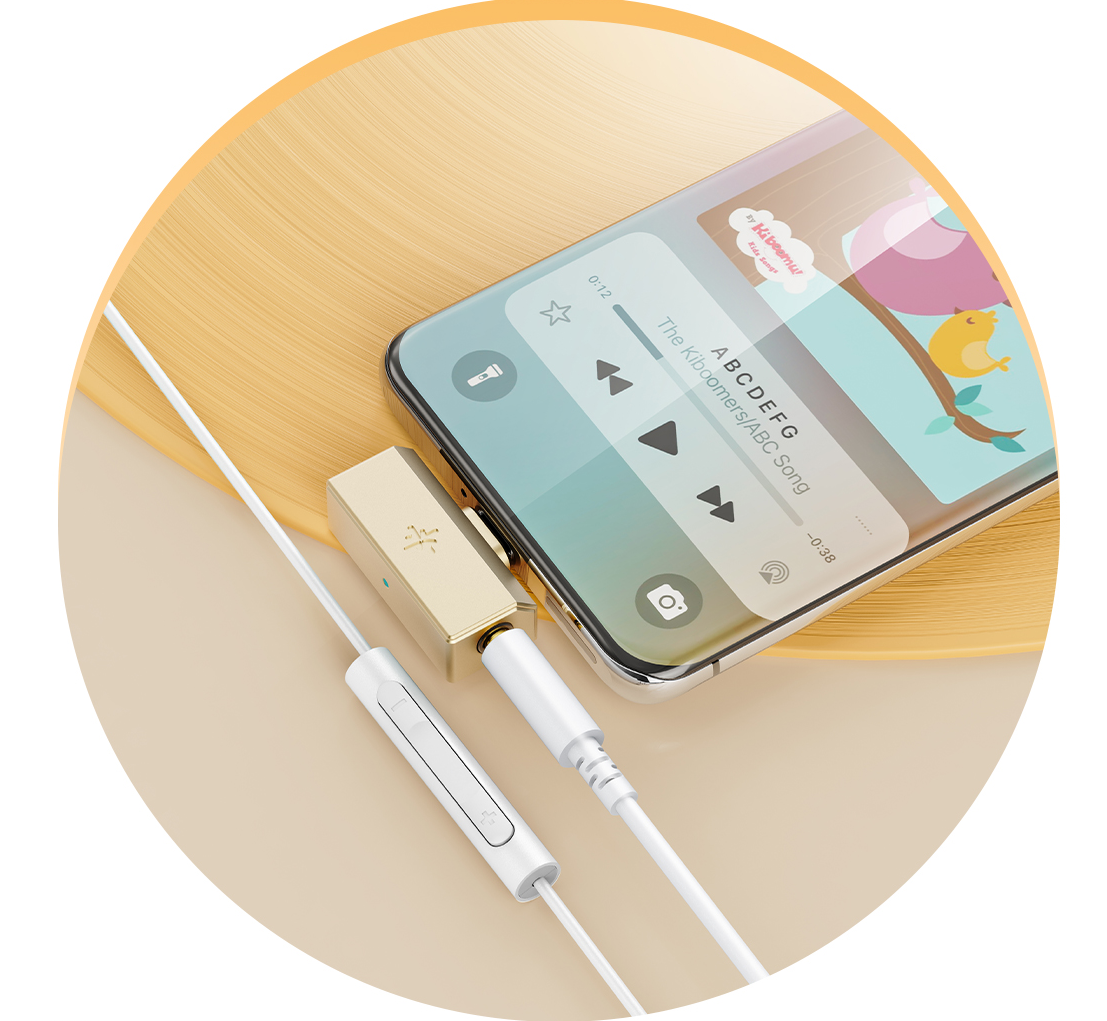

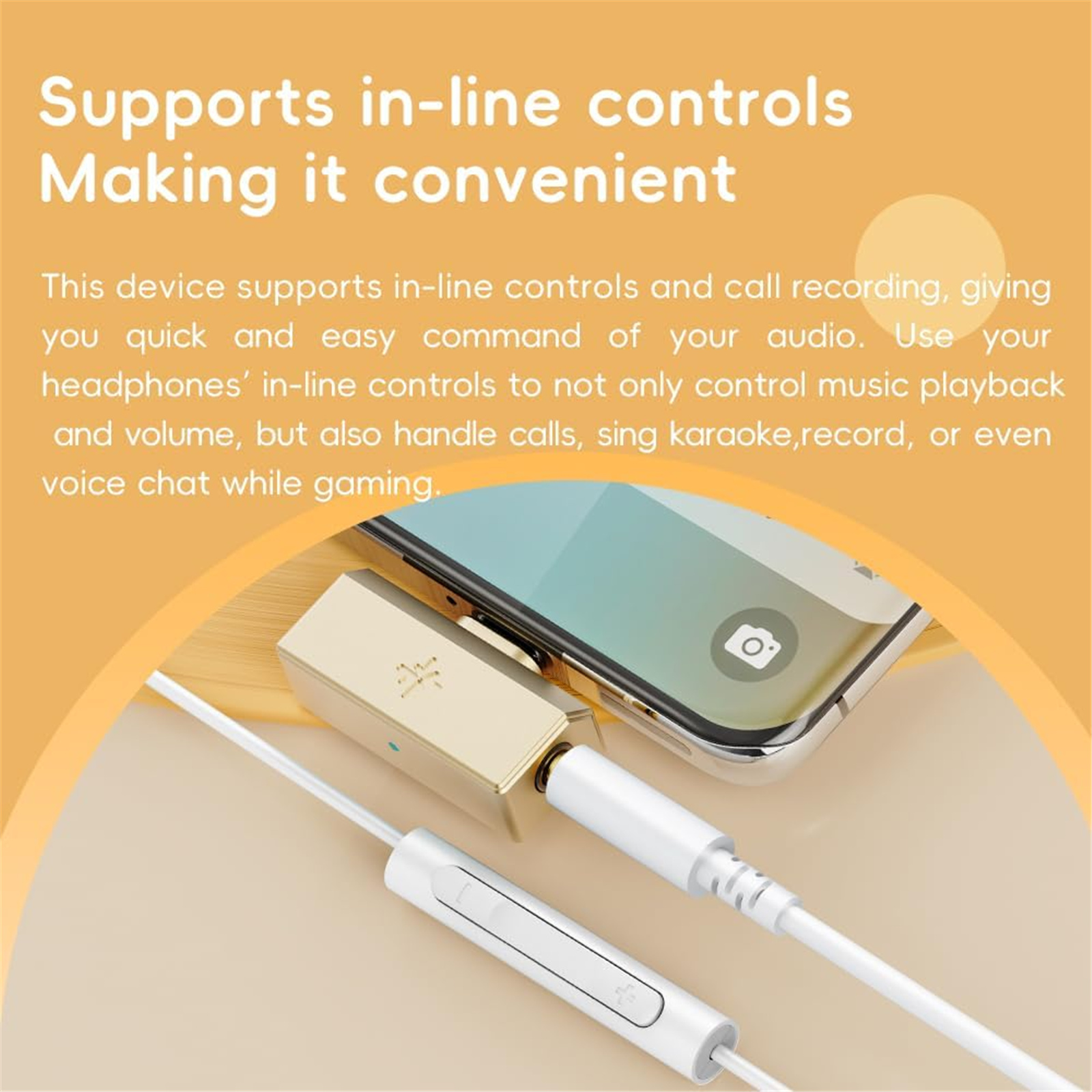

Supports in-line controls Making it convenient

This device supports in-line controls and call recording, giving you quick and easy command of your audio. Use your headphones' in-line controls to not only control music playback and volume, but also handle calls, sing karaoke, record, or even voice chat while gaming.

All-metal contruction Available in multiple colors

The TINY's full metal body provides a premium feel. It is crafted through precise CNC and polishing processes for a smooth, vivid finish. And it comes in various beautiful colors for you to choose from.

3.5mm+4.4mm outputs Robust amplification

While the TINY is small, it is also versatile, featuring both a 3.5mm and a 4.4mm output. Despite its tiny form, it seamlessly accommodates both headphone output jacks, delivering exceptional functionality and high performance.

Supports the FIIO Control ecosystem Unlocking a rich set of features

Using the FIIO Control app on Android phones or the web on PCs, you can unlock a host of features. This includes the ability to switch and customize PEQ presets, change the UAC protocol version, and make precise volume adjustments.

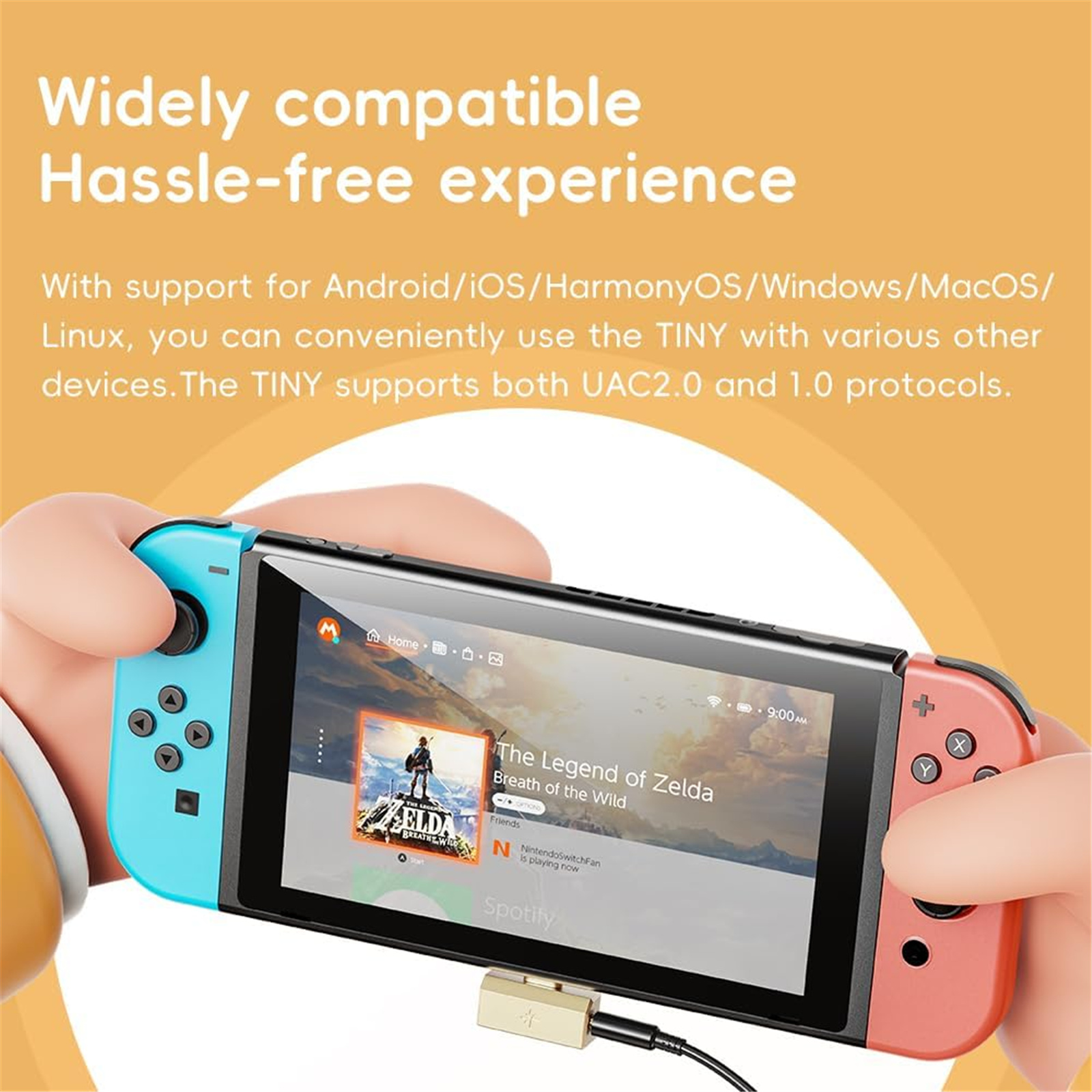

Widely-compatible Hassle-free experience

With support for Android/iOS/HarmonyOS/ Windows/MacOS/Linux, you can conveniently use the TINY with various other devices.The TINY supports both UAC2.0 and 1.0 protocols. The UAC1.0 mode provides easy compatibility with non-Android gaming devices like the Switch and PS5, improving both sound quality and the user experience when used with those devices.

Specifications

Product Type

DAC and Headphone Amplifier

Color

Black
Cyan
Retro gold

Weight

About 7g

Dimensions

About 29 x 22 x 10 mm

Package Contents

Unit x1
Quick start guide x1
Warranty card x1

Input

Type-C input
Type-C charging (TINY A)

Output

3.5mm single-ended

Output Power

45mW @ 16Ω
34mW @ 32Ω

SNR

105dBr (A-weighted)

THD+N

0.0032%

Noise Floor

5.5 μV (A-weighted)

Output Impedance

<0.5Ω

Decoding Support

PCM 32bit/384kHz and DSD256

Manufacturer Part No:
5510342
Brand:
Product Type:
Ultra-Portable DAC & Headphone Amplifier
UPC
-
Product Family:
TINY A
Shipping Weight:
0.3 kg
PB Part No:
AUDFIO5510342
Product Model:
3.5mm + USB-C Dual Port
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
