FiiO DM13 Portable High Resolution Stereo CD Player - White - Specially-designed audio architecture - Flagship Cirrus Logic CS43198 Dual DACs - 3.5mm + 4.4mm balanced headphone outputs + Optical + Coaxial - USB CD ripping - Up to 10hrs batt
FiiO DM13 Portable High Resolution Stereo CD Player - White - Specially-designed audio architecture - Flagship Cirrus Logic CS43198 Dual DACs - 3.5mm + 4.4mm balanced headphone outputs + Optical + Coaxial - USB CD ripping - Up to 10hrs batt
- Brand: FiiO
- MPN: 5580107
- Part #: AUDFIO5580107
- UPC:
- Brand: FiiO
- MPN: 5580107
- Part #: AUDFIO5580107
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Standard version - does not include Bluetooth functionality
Specially designed audio architecture, dual flagship CS43198 DACs
Two flagship Cirrus Logic CS43198 chips are paired with two low-noise HiFi SGM8262 headphone amps in the DM13's specially designed audio architecture. The combination of dual DACs and dual amplifiers allows the portable CD player to exhibit truly high-quality sound.
FIIO engineers also specially designed an output stage that better captures the sound of the DAC, with that same DAC chip controlling the volume. The DAC chip allows for a 99-level fine volume adjustment that not only achieves smooth volume changes but also makes the sound at any volume level clearer.
*Standard version cannot transmit Bluetooth.
Tiny body, enormous power

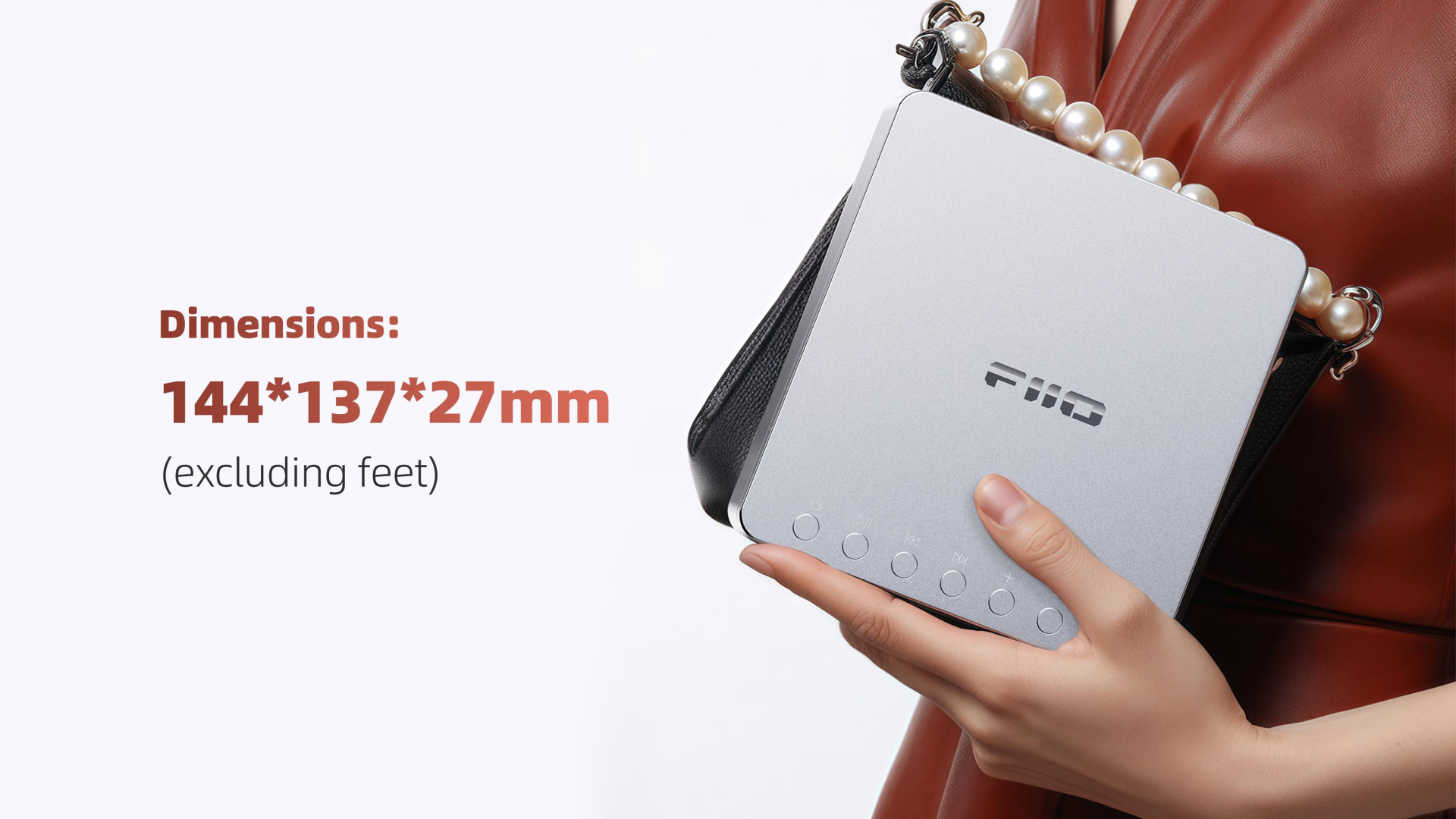

FIIO designers have combined manufacturing craftsmanship and structural design to shrink down the DM13 to be smaller than most other CD players, with dimensions of approximately 144*137*27mm (excluding feet). The DM13 also features an ESP (electronic skip protection) switch, ensuring a stable and pleasant sound experience whether you're on the go or listening while stationary.
The DM13 may be compact but packs impressive performance, distinguishing it from other similar products. It not only drives most headphones but can also connect to powered speakers or other headphone amps for an extraordinary listening experience.

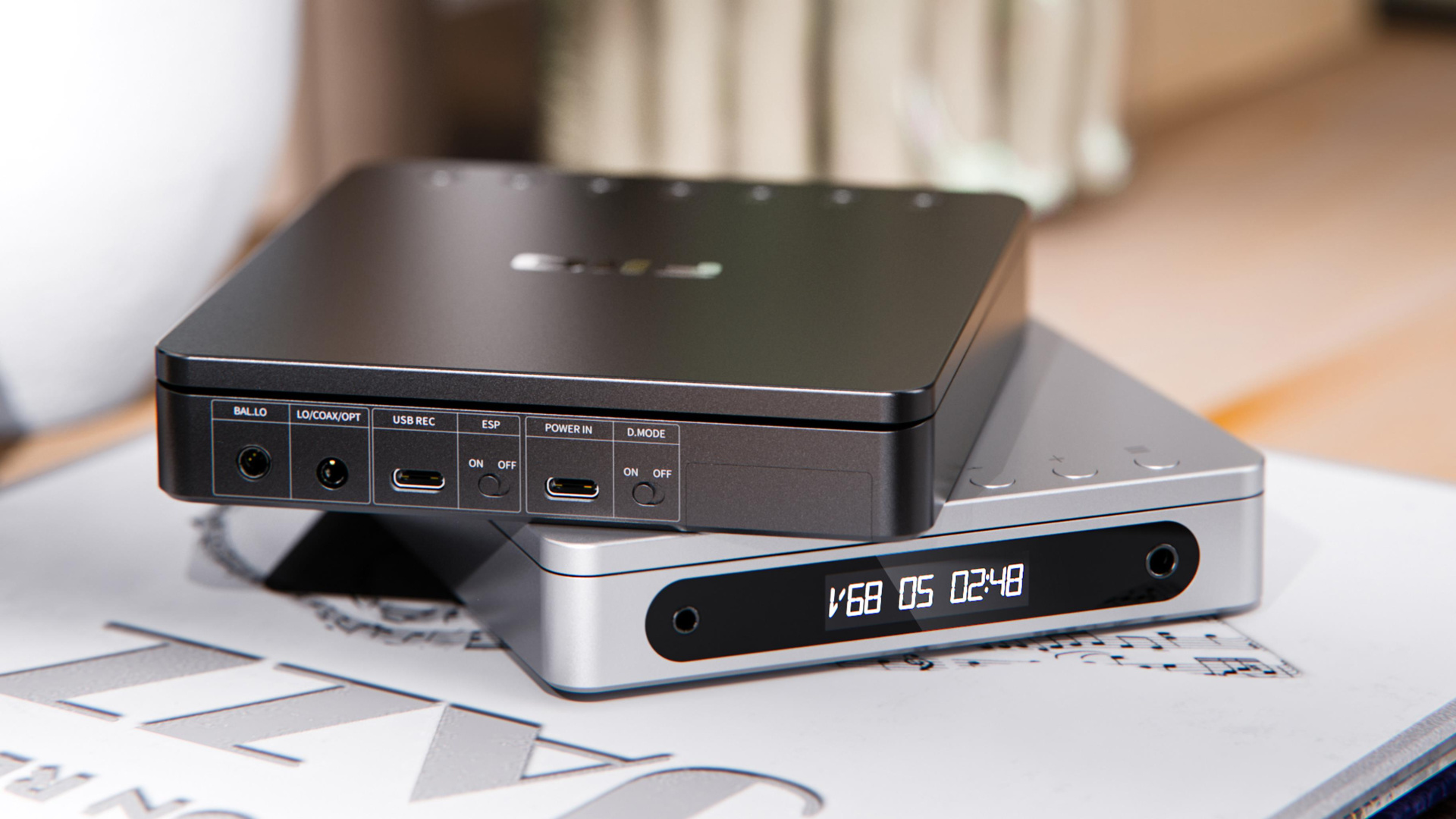

Dual analog and digital outputs
The DM13 comes with 3.5mm+4.4mm headphone outputs as well as 3.5mm+4.4mm line outputs, allowing for connections to headphones or active speakers and power amplifiers.
The DM13 also features optical and coaxial digital outputs for connection to an external DAC. Moreover, it combines custom low-jitter crystal oscillators to ensure accurate synchronization of the digital clock, resulting in cleaner and more stable digital signal transmission.
USB CD ripping, more ways to play
Compared to similar levels of portable CD players, the DM13 comes with a rarely-seen function of USB CD ripping. You can rip your favorite CDs into WAV files stored on a portable storage device, making it easy to share with friends and family. The WAV music files on that portable storage device can then be easily transferred to other computers or phones, allowing you to play the music on your CDs anytime, anywhere.
*Only supports FAT32 formatted storage devices.
Gapless and smooth playback
In the early stages of designing this product, we extensively collected user feedback and overcame many challenges to carefully create a range of user-friendly and thoughtful features - including gapless playback, ability to keep favorites, and loop playback. The loop playback function supports looping on a single track, random tracks, and even on the entire CD - allowing you to customize how you want to listen.
For more impressive features, such as the custom high-contrast, long-lasting LCD display, patented desktop mode, and 10 hours of playback from lithium batteries, please visit the product page on our website.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Portable Audio
Xiaomi Sound Outdoor 30W Portable Bluetooth Speaker - Black IP67...
Xiaomi Sound Pocket Portable Bluetooth Speaker - Black IP67 Water...
Ultimate Ears UE HYPERBOOM (2024 USB-C Version) Wireless Portable...
Ultimate Ears UE BOOM 4 Wireless Portable Bluetooth Speaker -...
Panasonic RF-2400 Portable AM/FM Radio - Silver 3.5mm Headphone...
FiiO DM13 Portable High Resolution Stereo CD Player - White - Specially-designed audio architecture - Flagship Cirrus Logic CS43198 Dual DACs - 3.5mm + 4.4mm balanced headphone outputs + Optical + Coaxial - USB CD ripping - Up to 10hrs batt
- Brand: FiiO
- MPN: 5580107
- Part #: AUDFIO5580107
Product URL: https://www.pbtech.co.nz/product/AUDFIO5580107/FiiO-DM13-Portable-High-Resolution-Stereo-CD-Playe?srsltid=AfmBOoolSdKs9bMkeen1rSrmly6itq_FZQ4c42EqE4L1l293ZJOr1yB1
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Standard version - does not include Bluetooth functionality
Specially designed audio architecture, dual flagship CS43198 DACs
Two flagship Cirrus Logic CS43198 chips are paired with two low-noise HiFi SGM8262 headphone amps in the DM13's specially designed audio architecture. The combination of dual DACs and dual amplifiers allows the portable CD player to exhibit truly high-quality sound.
FIIO engineers also specially designed an output stage that better captures the sound of the DAC, with that same DAC chip controlling the volume. The DAC chip allows for a 99-level fine volume adjustment that not only achieves smooth volume changes but also makes the sound at any volume level clearer.
*Standard version cannot transmit Bluetooth.
Tiny body, enormous power
FIIO designers have combined manufacturing craftsmanship and structural design to shrink down the DM13 to be smaller than most other CD players, with dimensions of approximately 144*137*27mm (excluding feet). The DM13 also features an ESP (electronic skip protection) switch, ensuring a stable and pleasant sound experience whether you're on the go or listening while stationary.
The DM13 may be compact but packs impressive performance, distinguishing it from other similar products. It not only drives most headphones but can also connect to powered speakers or other headphone amps for an extraordinary listening experience.
Dual analog and digital outputs
The DM13 comes with 3.5mm+4.4mm headphone outputs as well as 3.5mm+4.4mm line outputs, allowing for connections to headphones or active speakers and power amplifiers.
The DM13 also features optical and coaxial digital outputs for connection to an external DAC. Moreover, it combines custom low-jitter crystal oscillators to ensure accurate synchronization of the digital clock, resulting in cleaner and more stable digital signal transmission.
USB CD ripping, more ways to play
Compared to similar levels of portable CD players, the DM13 comes with a rarely-seen function of USB CD ripping. You can rip your favorite CDs into WAV files stored on a portable storage device, making it easy to share with friends and family. The WAV music files on that portable storage device can then be easily transferred to other computers or phones, allowing you to play the music on your CDs anytime, anywhere.
*Only supports FAT32 formatted storage devices.
Gapless and smooth playback
In the early stages of designing this product, we extensively collected user feedback and overcame many challenges to carefully create a range of user-friendly and thoughtful features - including gapless playback, ability to keep favorites, and loop playback. The loop playback function supports looping on a single track, random tracks, and even on the entire CD - allowing you to customize how you want to listen.
For more impressive features, such as the custom high-contrast, long-lasting LCD display, patented desktop mode, and 10 hours of playback from lithium batteries, please visit the product page on our website.
Specifications
Colour
White (standard version only),
Power input
5VI2A (Type-C)
DAC
CS43198*2
Headphone amplifier
SGM8262*2
Display
1.5 inch LCD
Headphone outputs
Single-ended 3.5mm + balanced 4.4mm
Line outputs
3.5mm LO/COAX/OPT + 4.4mm balanced LO

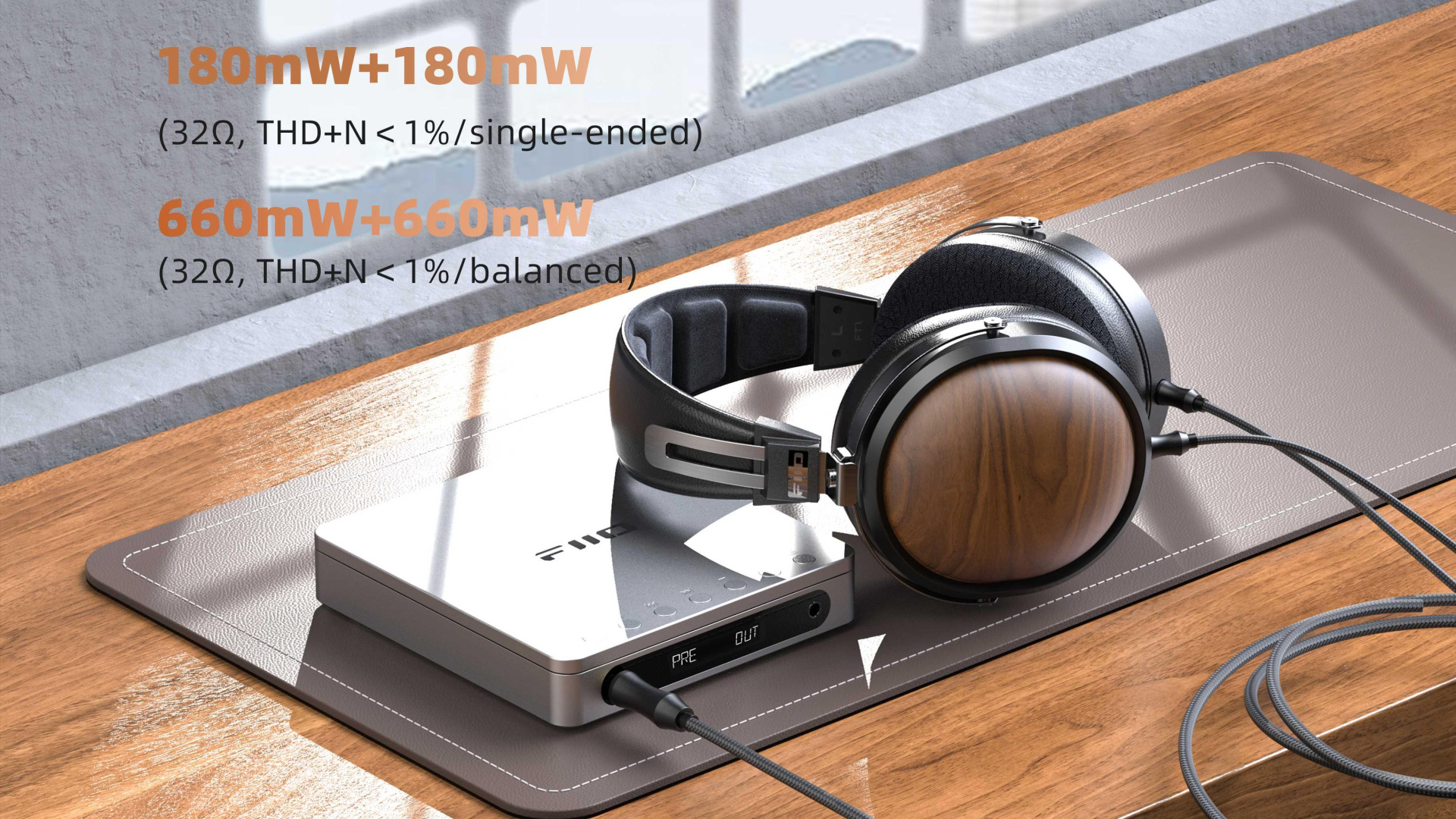

Output power 1
L+R=180mW+180mW (320, THD+N < 1%/ single-ended)
Output power 2
L+R=660mW+660mW (32Q, THD+N < 1%/balanced)
Single-ended line output level
L+R=2.5Vrms+2.5Vrms
Balanced line output level
L+R=5Vrms+5Vrms
Bluetooth output codecs
None - Standard version does not support Bluetooth
Supported CD-R formats
FLAC/WAV/WMA/AAC/MP3
(only supports CD layer of SACD discs)
SNR
=124dB (A-weighted)
Noise floor
PO: =2.4uV (A-weighted), BAL: =2.8uV (A-weighted)
THD+N
=0.0024% (1kHz/OdB @ 320)
Battery capacity
3750mAh
Battery life
=10 hours
Dimensions
About 144*137*27mm (excluding feet)
Weight
About 450g
