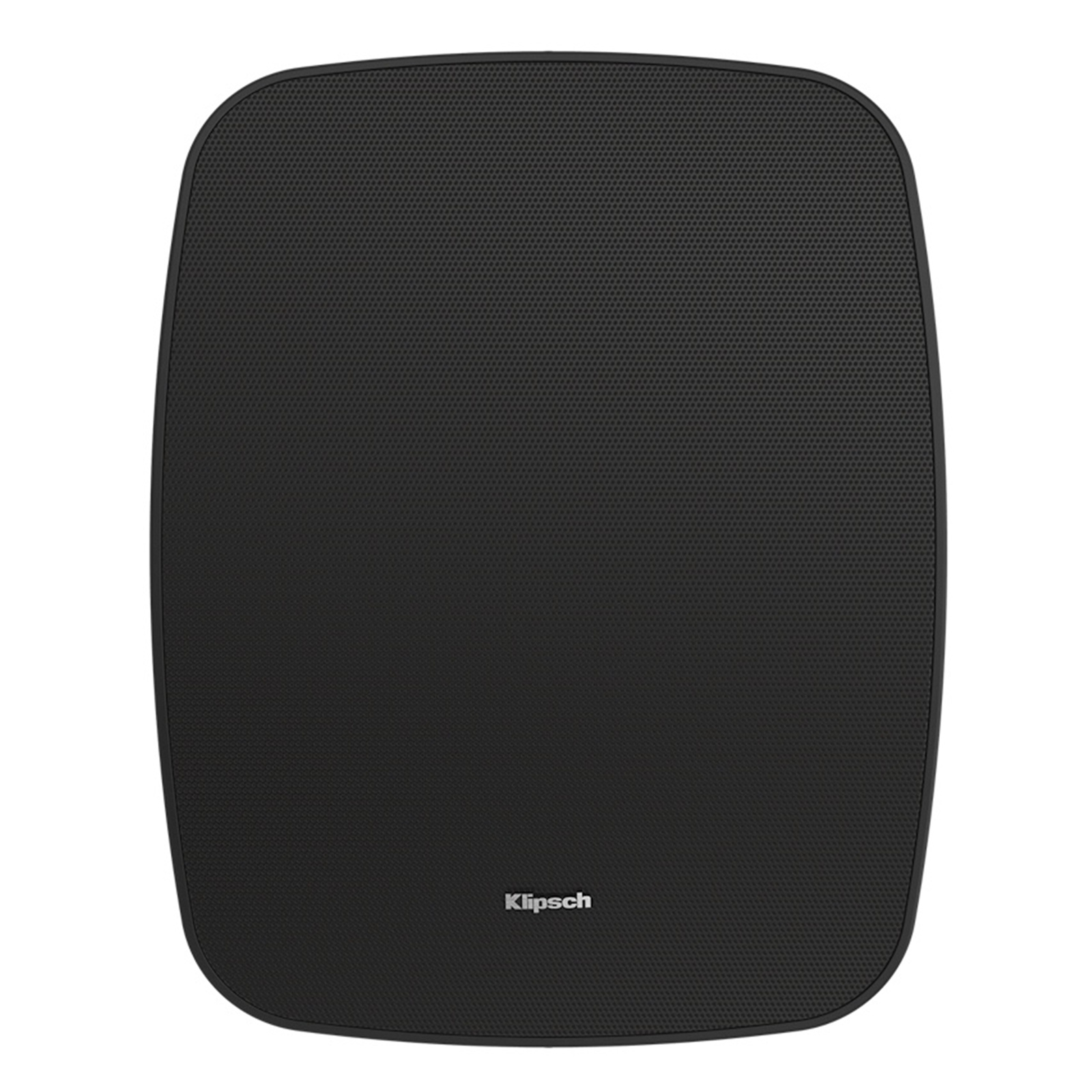

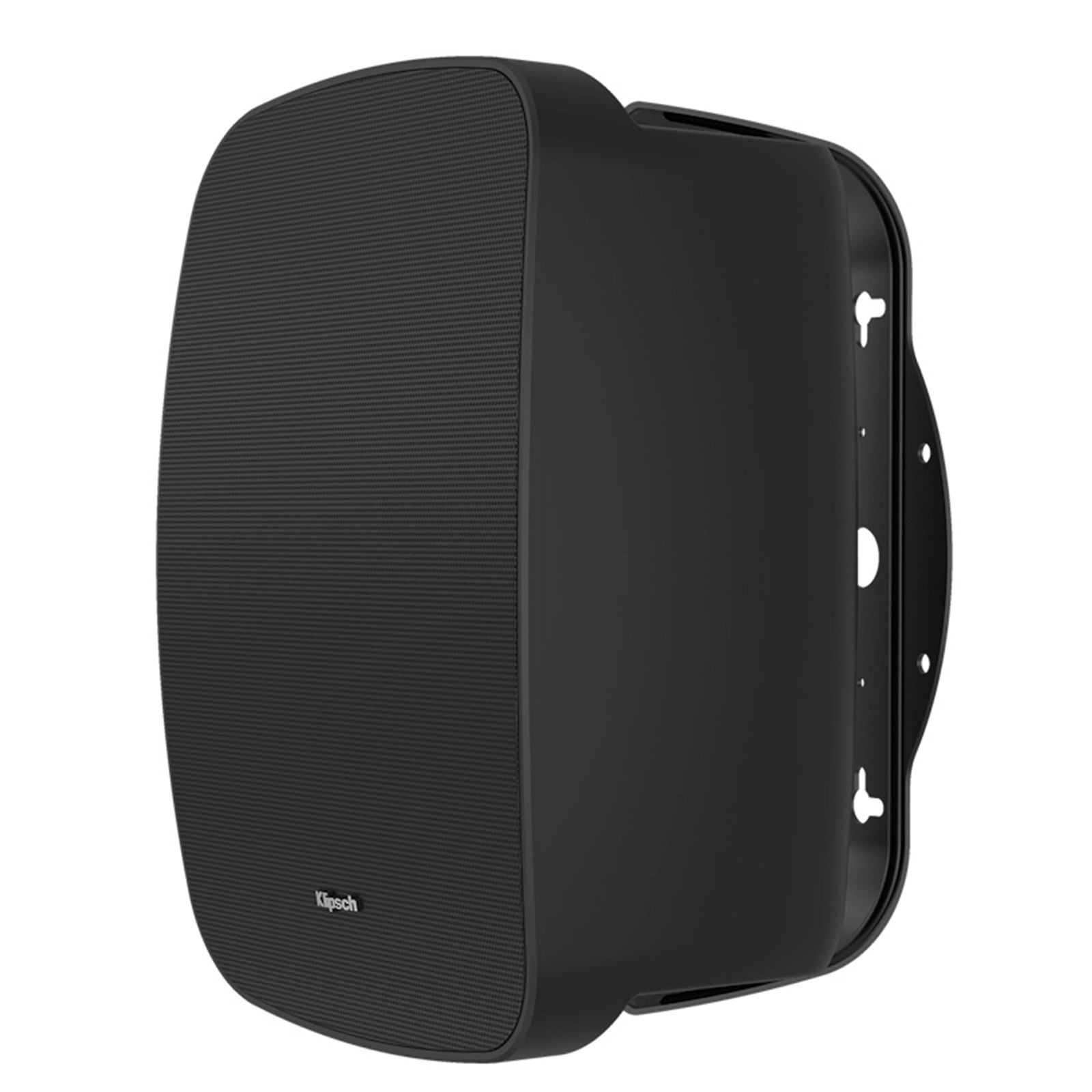

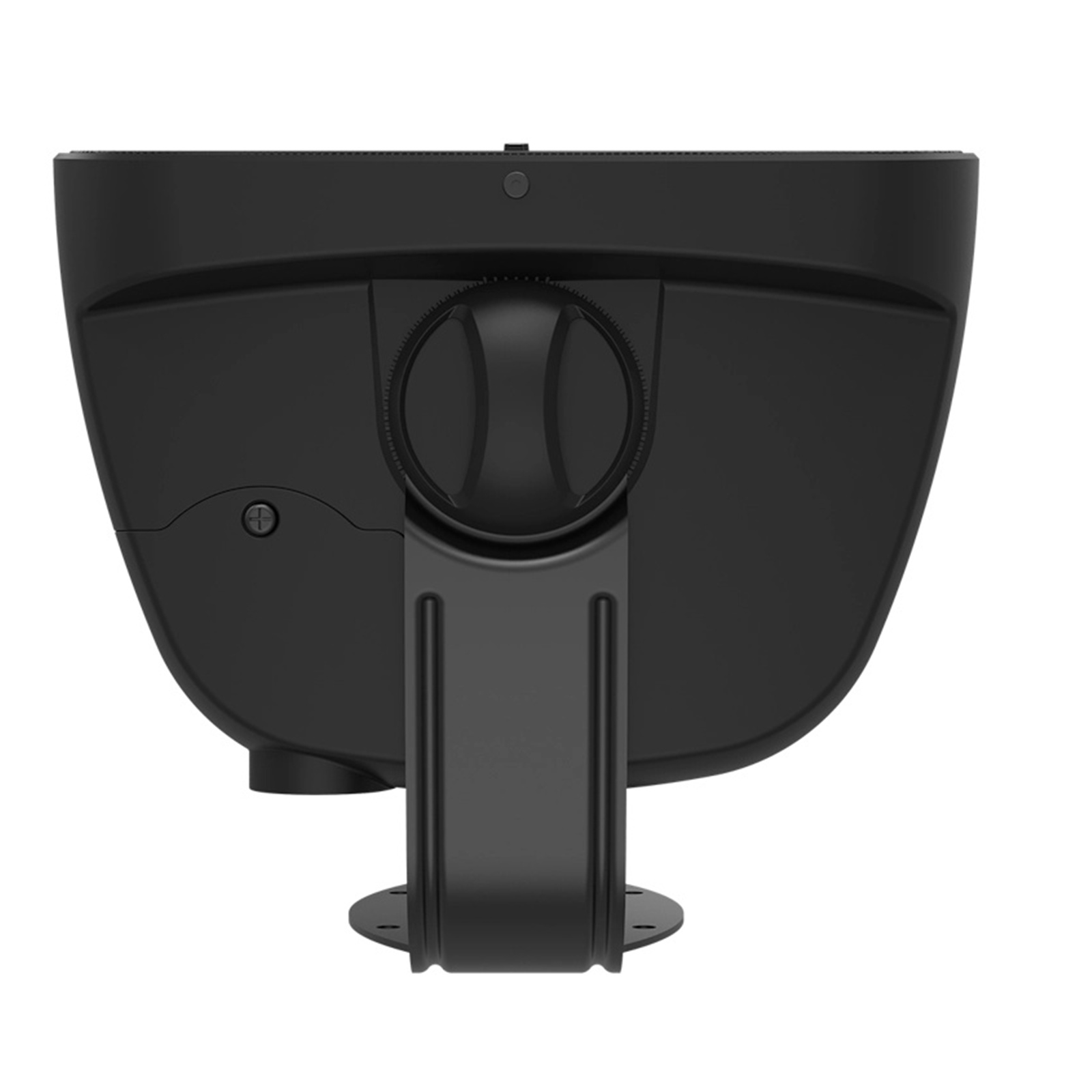

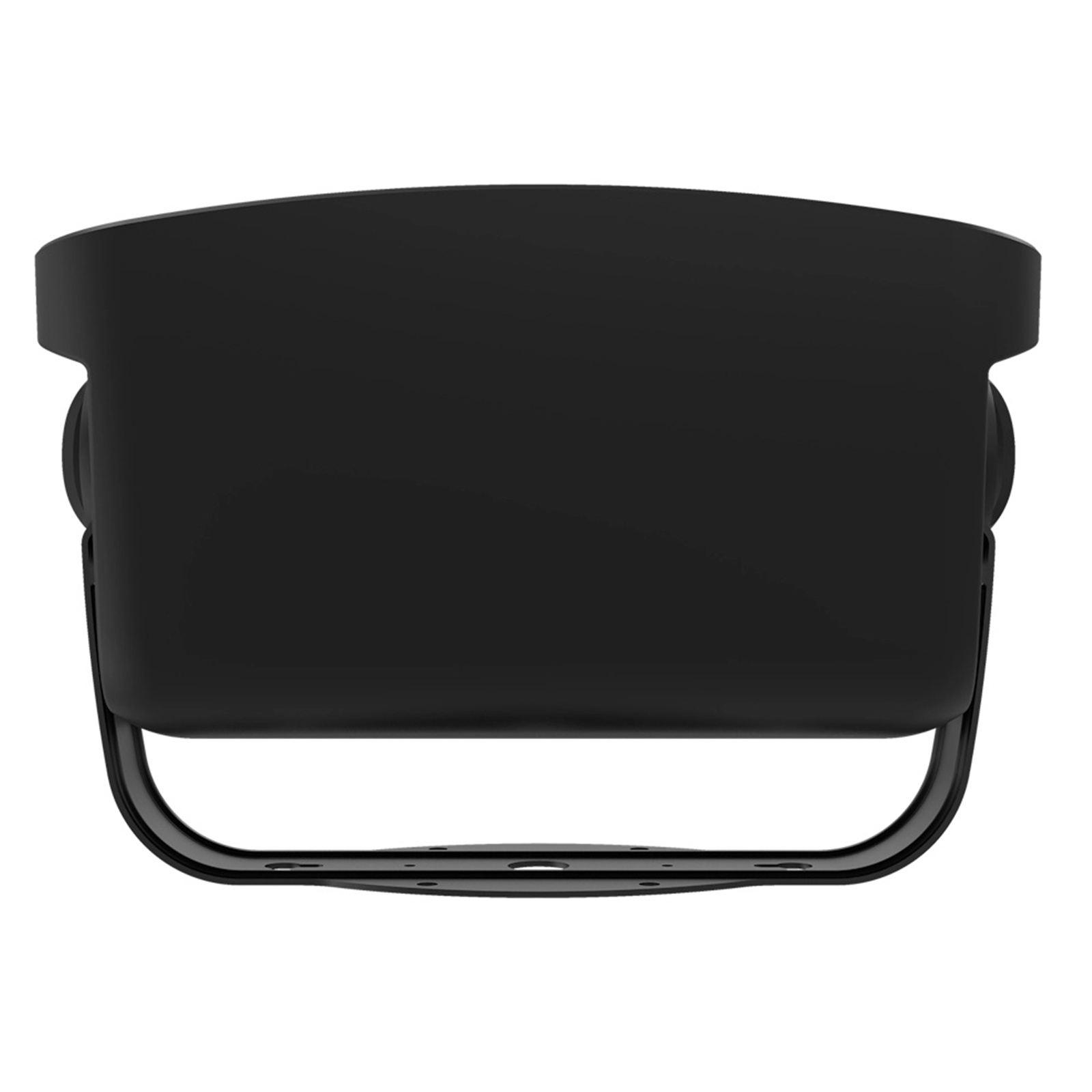

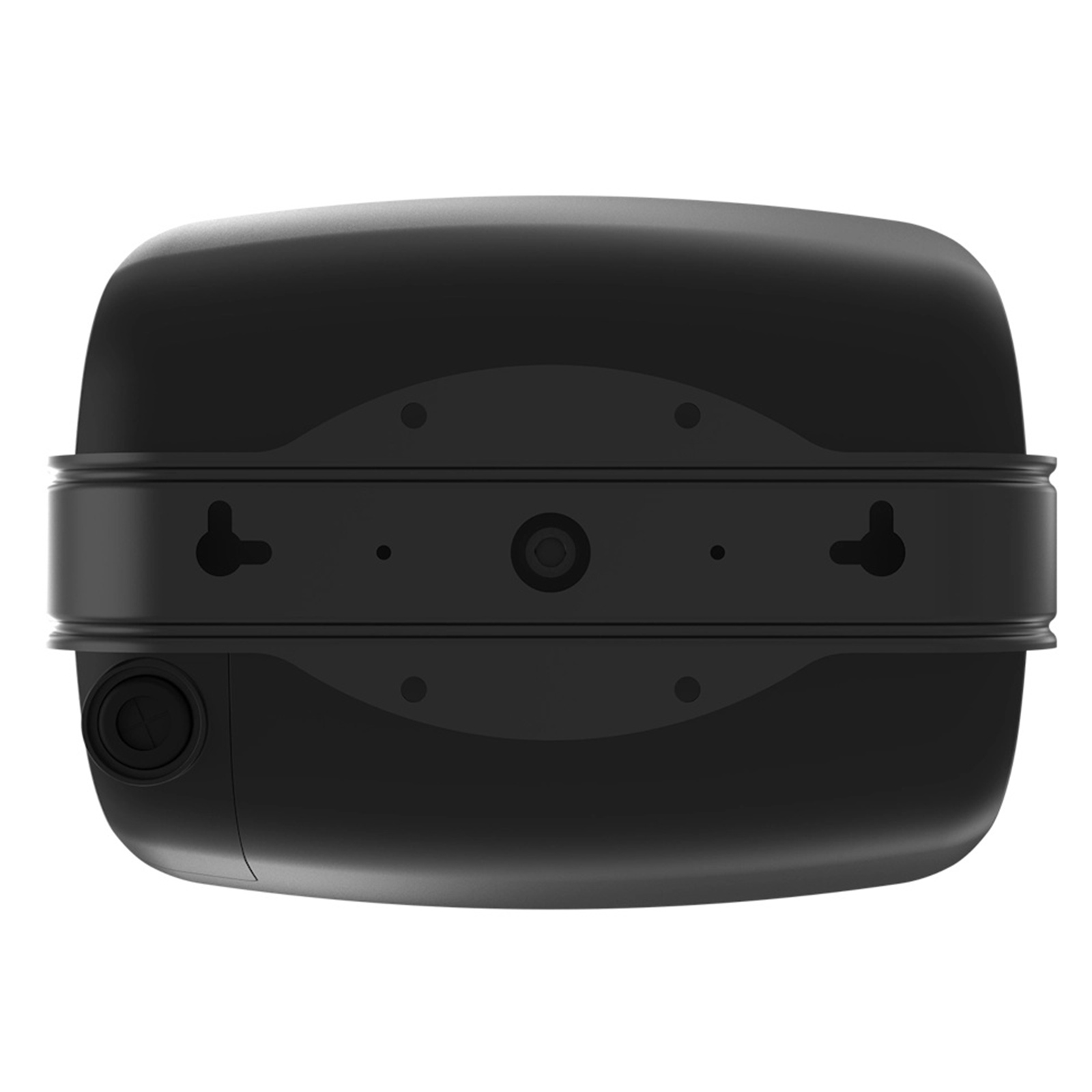

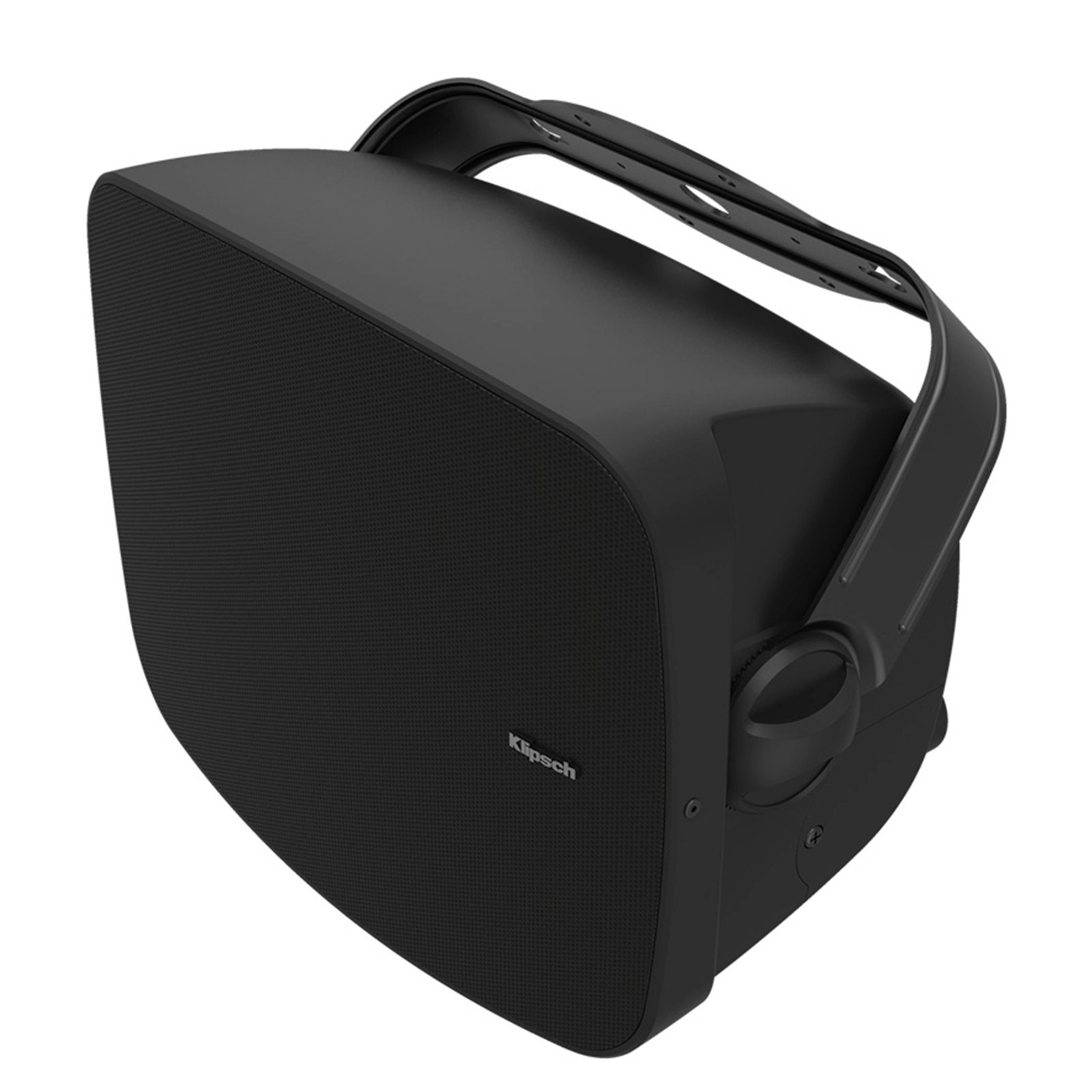

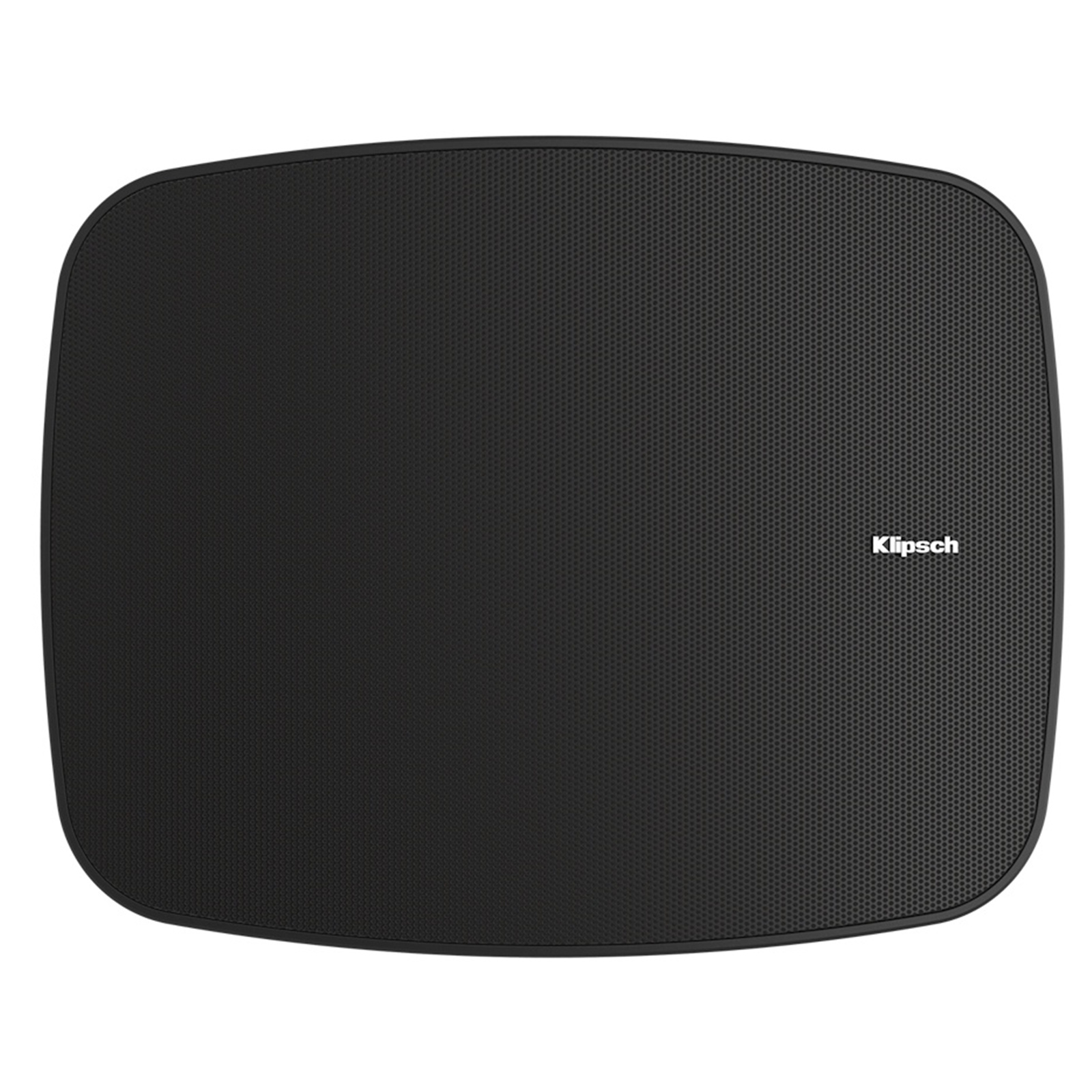

Klipsch PSM-525-TB 5.25" Indoor/Outdoor IPX6 Rated Speakers 65W 260W Peak Black
Klipsch PSM-525-TB 5.25" Indoor/Outdoor IPX6 Rated Speakers 65W 260W Peak Black
- Brand: Klipsch
- MPN: PSM-525-TB
- Part #: AUDKLP1013
- UPC:
- Brand: Klipsch
- MPN: PSM-525-TB
- Part #: AUDKLP1013
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Pro Audio & Sound Recording





Klipsch PSM-525-TB 5.25" Indoor/Outdoor IPX6 Rated Speakers 65W 260W Peak Black
- Brand: Klipsch
- MPN: PSM-525-TB
- Part #: AUDKLP1013

Product URL: https://www.pbtech.co.nz/product/AUDKLP1013/Klipsch-PSM-525-TB-525-IndoorOutdoor-IPX6-Rated-Sp
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
5.25" Indoor/Outdoor IPX6 Rated Speakers 65W 260W Peak Black
Klipsch indoor/outdoor surface mount loudspeakers feature a 5.25" woofer and 1" titanium compression driver on a horn/tweeter bridge, delivering 58Hz-20kHz frequency response with 89dB sensitivity and 65W continuous (260W peak) power handling. Housed in an all-weather, paintable ABS enclosure with an IPX6 rating, they include 70V/100V transformer taps, 8-ohm bypass, and vented Tractrix® ports.
- More bass, less space with the all-new Tractrix® Hyperfold Port™
- 1" Titanium Compression Driver for effortless, high-clarity detail
- IPX6-rated for even the most challenging commercial environments
- Multi-tap transformer for 70 or 100 volt installations, includes bypass position
- Set screws on grille
- Phoenix Connector for simplified installation
- Paintable, rust-proof aluminium grille
MORE BASS, LESS SPACE WITH THE ALL-NEW TRACTRIX® HYPERFOLD PORT™
Klipsch is all about high efficiency, low distortion. Building upon that legacy, we're introducing the all-new patented Tractrix® Hyperfold Port™ engineered to extend port length for maximum bass power via a proprietary five-step folded design. Its increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for larger coverage areas.
IPX6 RATED FOR COMMERCIAL ENVIRONMENTS
Perfect for indoor and outdoor commercial installations around the globe, the Klipsch PSM-525-T is IPX6-rated. Your clients will rest easy knowing their new speakers will be water-resistant and rainproof for the most challenging commercial environments.
MULTIPLE TAP SETTINGS
The PSM-525-T includes a multi-tap transformer for 70 or 100 volt installations. There is also a bypass position that allows normal 8-ohm operation for installations that do not require a transformer.
SET SCREWS ON GRILLE
The included set screws on each grille ensure a secure fit between the speaker and grille, while making sure the grilles stay on the enclosures regardless of the environment.
1" TITANIUM COMPRESSION DRIVER FOR EFFORTLESS, HIGH-CLARITY DETAIL
Klipsch outperforms the competition with our all-new 1" Titanium-loaded floating driver bridge with wide dispersion phase plug. Using our patented mumps technology, the PSM-525-T gives any space extra-wide coverage while providing even and consistent energy for your project.
PHOENIX CONNECTOR FOR SIMPLIFIED INSTALLATION
The PSM-525-T employ a phoenix connector for quick and intuitive connection.
Specifications
Frequency Response
58Hz-20kHz ±4dB, 48Hz -10dB
*1m, half space, anechoic
Power Handling
65W (16.7V) 55Hz-10kHz, 260W peak
*AES standard, continuous pink noise 50hz-10kHz, 6dB peaks
Calculated Max Continuous Output
104dB
Calculated at 1m at power handling power input
Sensitivity
89dB
SPL at 1m half space, anechoic with 2.83V pink noise input
Coverage
100° ±20° 1kHz-20kHz
Directivity Index
7dB ±1.5dB 1kHz-20kHz
Nominal Impedance
8 ohms, 4.3 ohms minimum @175Hz
Acoustic Crossover
2kHz
Transducers
5.25" woofer + 1" titanium compression driver on K-1200M horn/tweeter bridge
Enclosure Material
All-weather ABS plastic, paintable
IP Rating
IPX6
Enclosure Tuning
Vented via 3 folded Tractrix ports
Input Connectors
4-pin euro block
Transformer Taps
70V: 30W, 15W, 7.5W, 3.8W
100V: 30W, 7.5W, 3.8W
Bypass: 8 ohms nominal
Dimensions (With Bracket)
12.13"(309mm) x 9.5"(242mm) x 6.5"(166mm)
[8.38"(213mm)]
Weight
7.75 lbs (3.52kg)
