Klipsch RF-7-BLACK Reference III Floor Speaker 8.5" Horn Dual 10" Woofer 250W RMS 1000W Peak Black
Klipsch RF-7-BLACK Reference III Floor Speaker 8.5" Horn Dual 10" Woofer 250W RMS 1000W Peak Black
- Brand: Klipsch
- MPN: RF-7-BLACK
- Part #: AUDKLP1023
- UPC:
- Brand: Klipsch
- MPN: RF-7-BLACK
- Part #: AUDKLP1023
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Pro Audio & Sound Recording





Klipsch RF-7-BLACK Reference III Floor Speaker 8.5" Horn Dual 10" Woofer 250W RMS 1000W Peak Black
- Brand: Klipsch
- MPN: RF-7-BLACK
- Part #: AUDKLP1023

Product URL: https://www.pbtech.co.nz/product/AUDKLP1023/Klipsch-RF-7-BLACK-Reference-III-Floor-Speaker-85
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Reference III Floor Speaker 8.5" Horn Dual 10" Woofer 250W RMS 1000W Peak Black
Floorstanding speaker with dual 10" Cerametallic woofers and 1.75" titanium compression driver on a Tractrix® horn, delivering 32Hz-25kHz response, 100dB sensitivity, and 250W/1000W peak power handling. Features dual rear-firing Tractrix® ports, bi-wire/bi-amp inputs, and a dual-chambered bass-reflex cabinet.

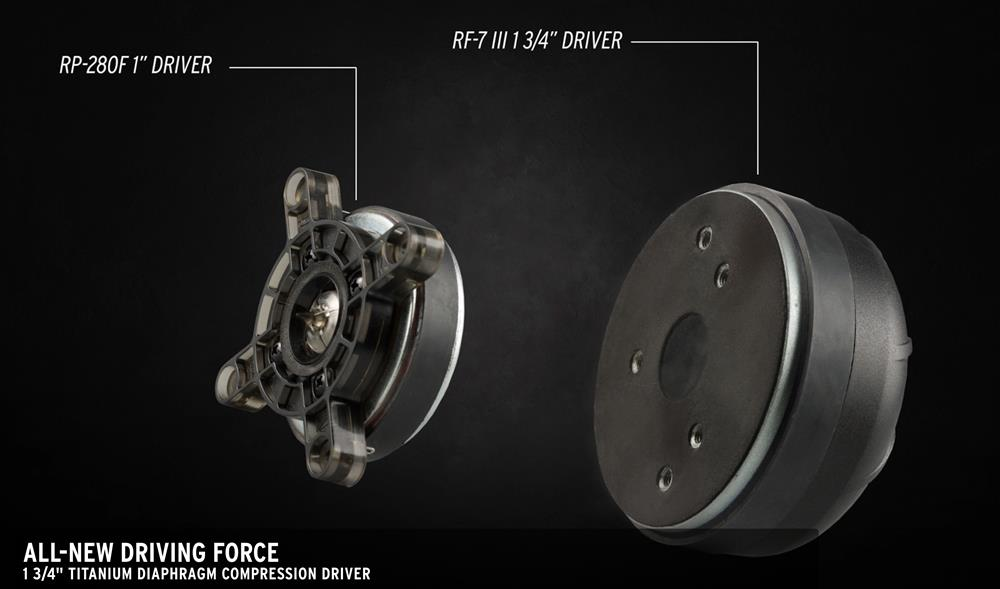

New 1 3/4 titanium diaphragm compression driver
The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.

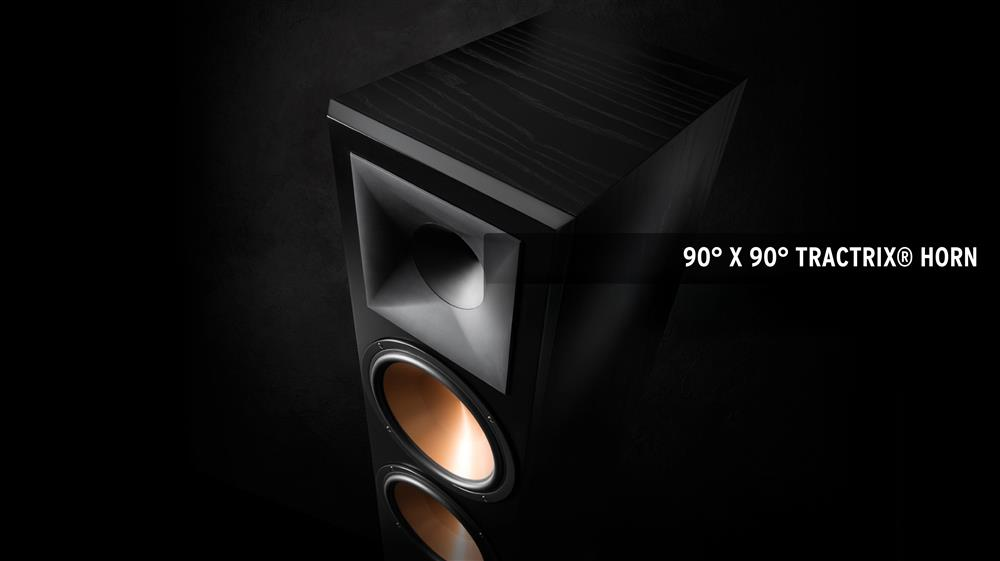

90° x 90° Tractrix® horn
The redesigned Tractrix horn utilises a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension, while enhancing imaging and dynamics. The compressed moulded rubber construction adds high-frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.

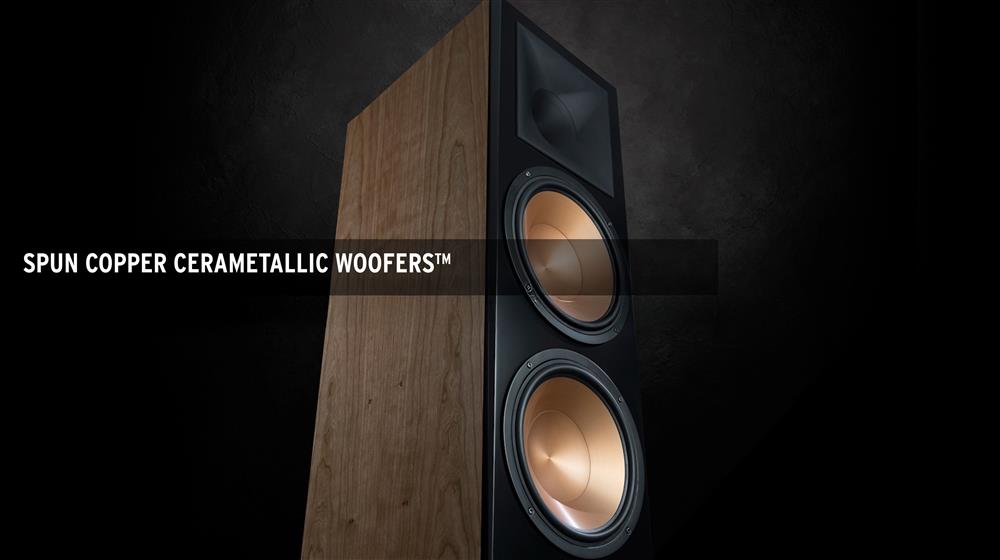

Spun copper Cerametallic woofers™
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity and lightweight construction for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.

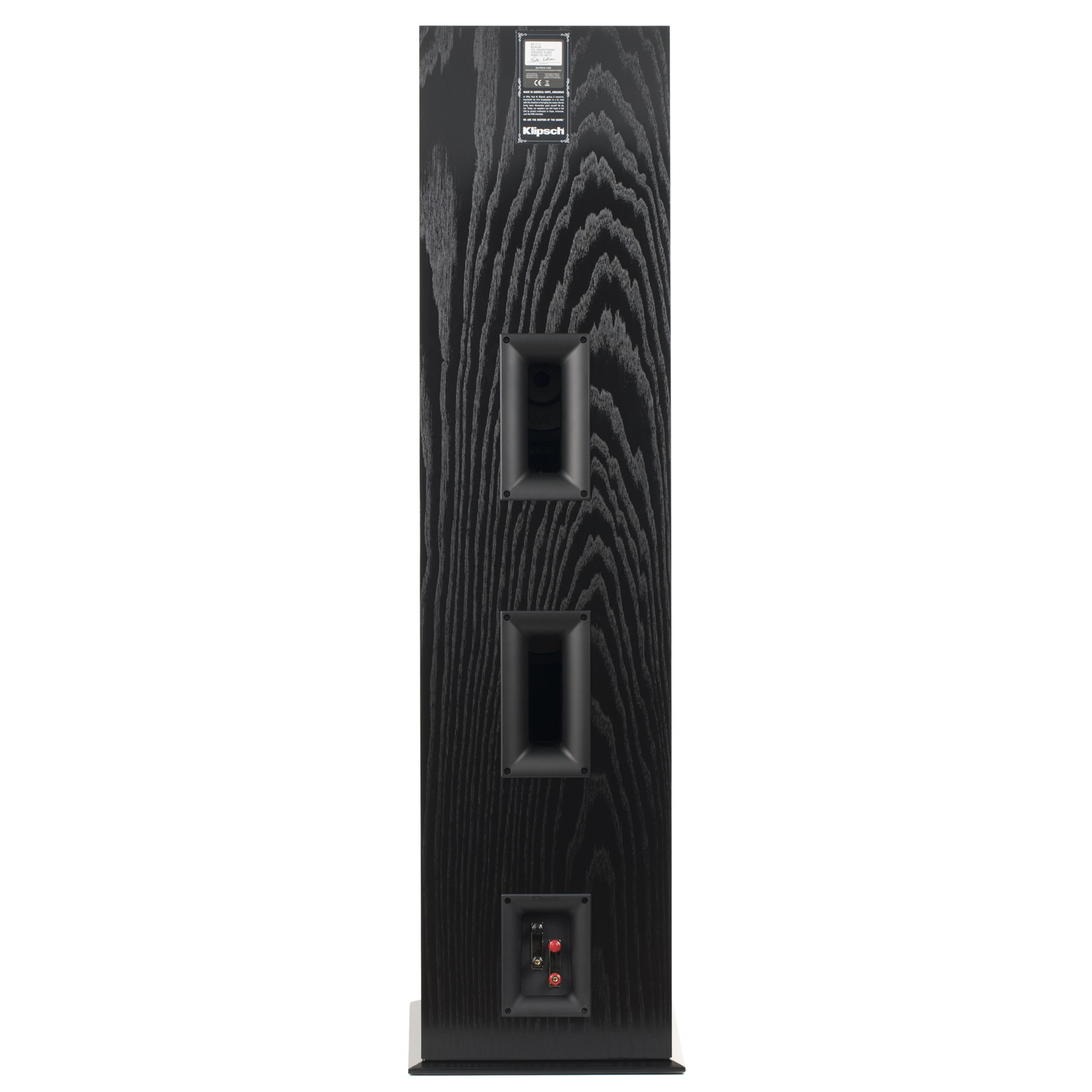

New Tractrix® port
Utilising Tractrix geometry, the new RF-7 III ports allow for the most efficient air transfer from the cabinet - for the cleanest, most powerful low frequency response on the market.

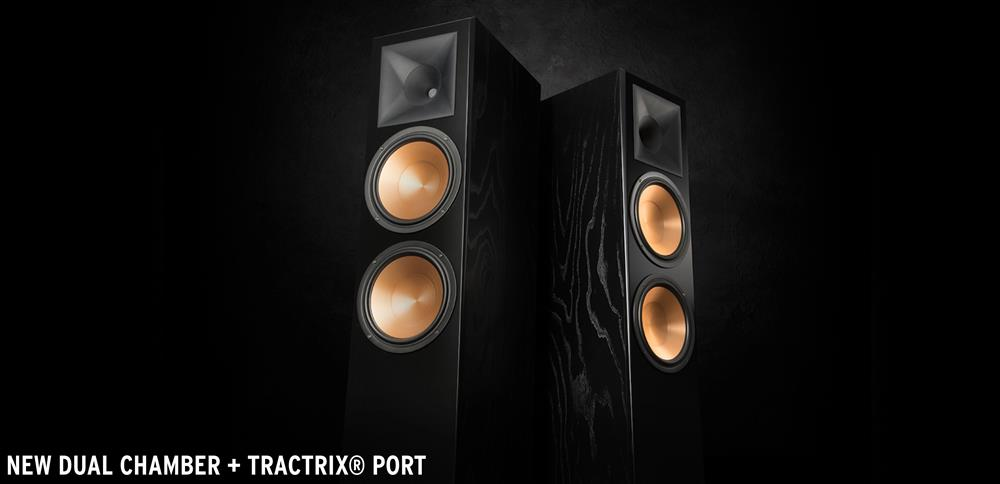

Dual-chambered enclosure design
The new bifurcated enclosure allows each 10" driver and port to work independently from the other. This improves the linearity of both drive systems and minimises standing wave problems inside the cabinet that can cause frequency anomalies in the sensitive midrange frequencies.
Cast frame woofer design
Each 10" woofer features a heavy-duty cast aluminium frame for resonant-free operation. In addition, each woofer incorporates a dual shorting-ring magnet structure design to eliminate modulation of the magnetic flux, resulting in improved linearity of cone movement.
Furniture-grade wood veneers
RF-7 III enclosures all utilise furniture-grade wood veneers and are available in Black Ash, Cherry, and Walnut.
Specifications
Finish
Black
Frequency Response
32-25kHz +/- 3dB
Power Handling
250W / 1000W peak
Sensitivity
100 dB @ 2.83V / 1M
Nominal Impedance
8 ohms compatible
High Frequency Horn
8.5" square 90˚ x 90˚ Tractrix® Horn
High Frequency Drivers
1.75" (4.45cm) titanium diaphragm compression driver
Crossover Frequency
1,300 Hz
Low Frequency Drivers
Two 10" (25.4cm) Cerametallic cone woofers
Inputs
Dual binding posts / bi-wire / bi-amp
Enclosure Type
Dual chambered, bass-reflex - via dual rear-firing Tractrix ports
Height
49" (124.5cm) including plinth
Width
13.875" (35.2cm) including plinth
Depth
17.875" (45.4cm) including plinth
Weight
97 lbs (44.1kg)
