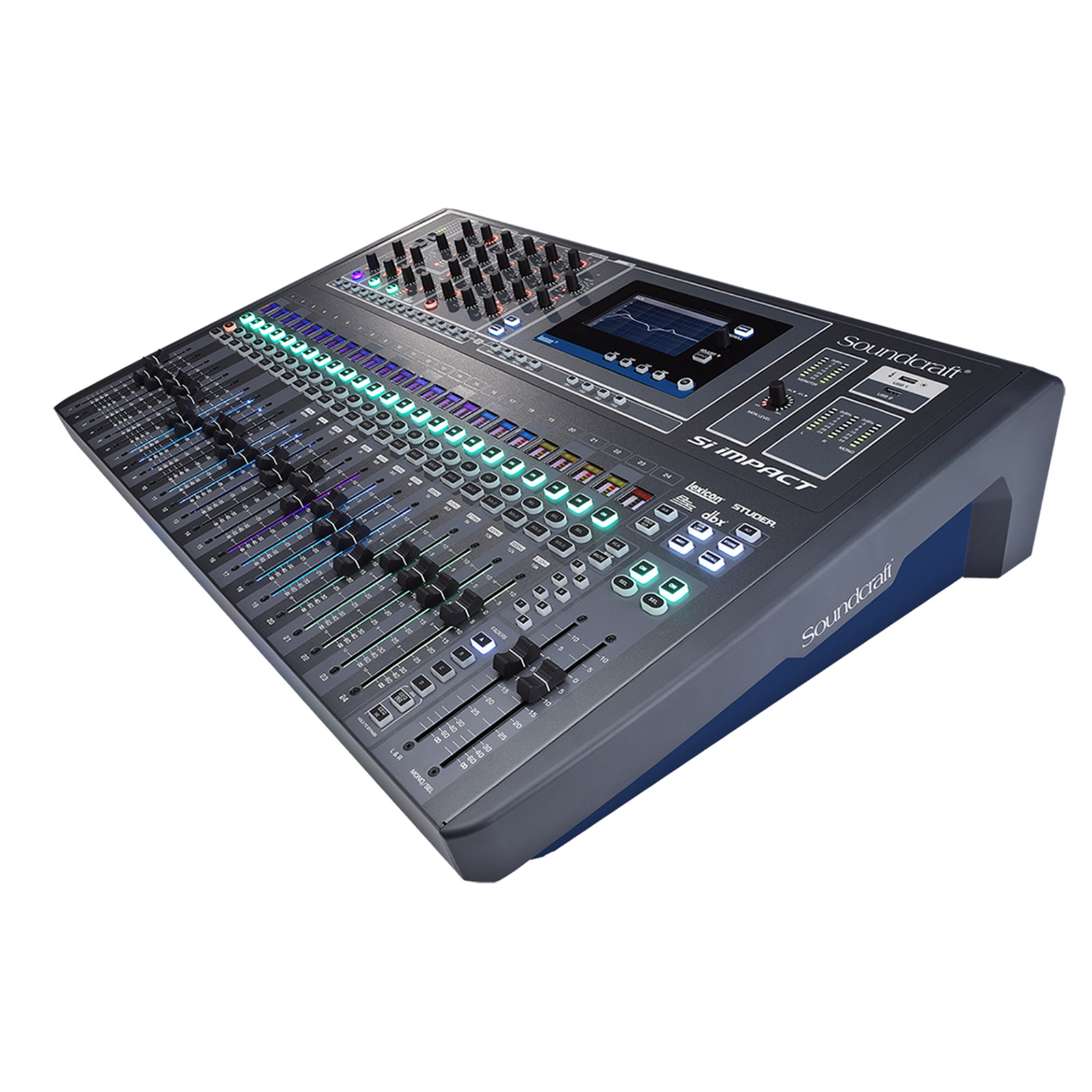

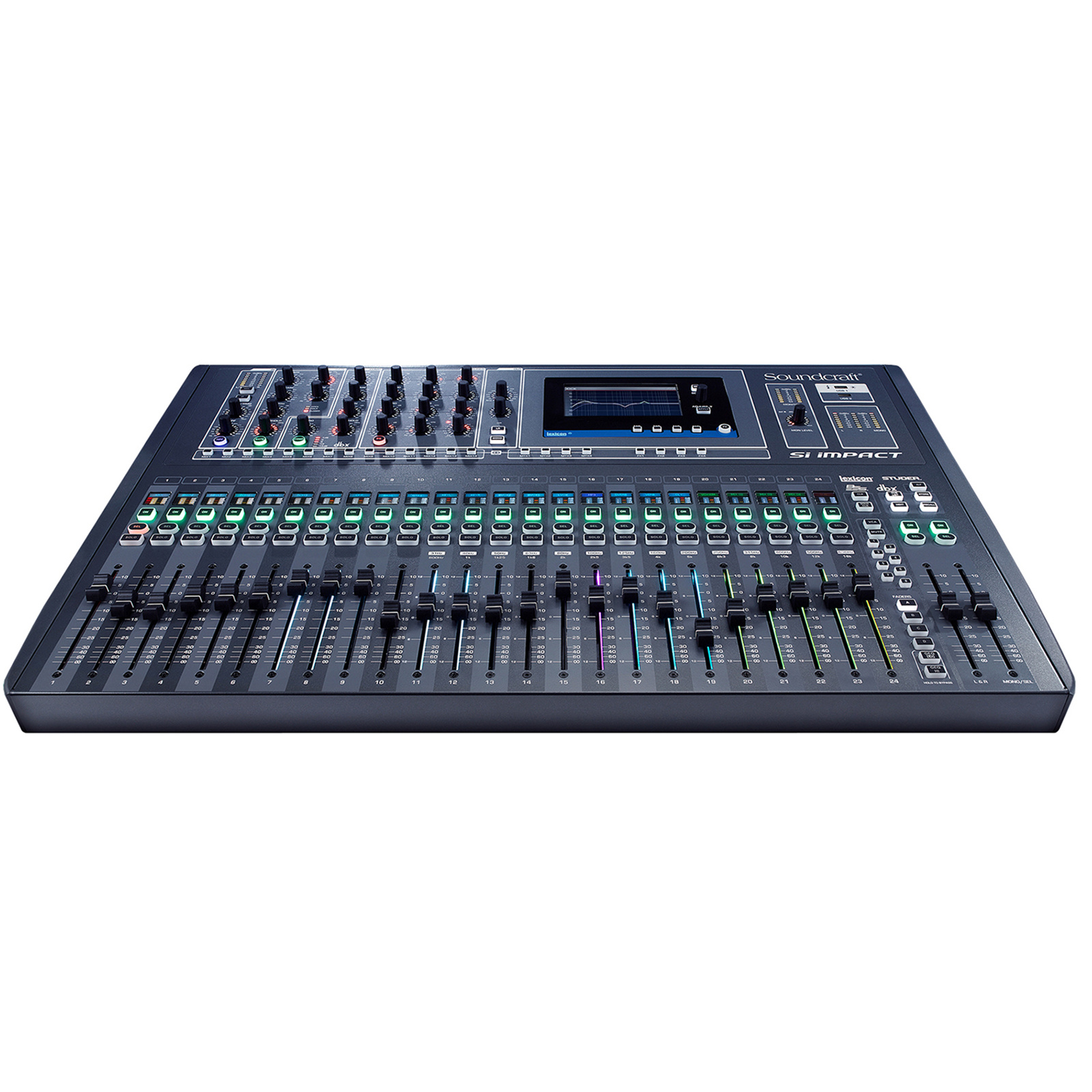

SOUNDCRAFT SIIMPACT SI IMPACT DIGITAL MIXER W/32CH USB REC
SOUNDCRAFT SIIMPACT SI IMPACT DIGITAL MIXER W/32CH USB REC
- Brand: SOUNDCRAFT
- MPN: SIIMPACT
- Part #: AUDSCF5085997
- UPC:
- Brand: SOUNDCRAFT
- MPN: SIIMPACT
- Part #: AUDSCF5085997
- UPC:
Features
Innovative Digital Mixing with Uncompromised Audio Quality
Drawing on over 40 years experience in live sound mixing, Si Impact brings the latest digital mix innovations together with the unrivalled sound quality of Soundcraft. Designed to be as simple as an analog mixer, but offer radical workflow enhancements like our unique FaderGlow™ system, massive DSP power, and a pristine 32-in/32-out USB audio interface, Si Impact delivers digital live sound mixing and recording for those who refuse to compromise on audio quality.
- 32 Mic Inputs
- 8 XLR/1/4" Combi-jacks for line inputs and instruments
- 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
- 31 Output busses (All with full DSP processing and GEQ)
- 4-band Fully Parametric EQ on each channel and bus
- 8 VCAs + 8 Mute groups
- 26 motorised faders (24 input + LR/Mono)
- 4 fully customisable Fader Layers
- Built-in Stagebox Connectivity
- 5" touchscreen display
- Multi-Colour LCD Channel Displays on each input fader
- 4 studio-grade Lexicon Effects engines and dedicated FX busses
- BSS Graphic Equalisers on every bus
- 20 sub-group / aux busses
- 4 mono/stereo matrix busses
- 32x32 USB audio interface for multi-track recording and playback
The legendary British sound
From humble beginnings in London more than 40 years ago and still designed and engineered in the UK, Soundcraft defined the term 'British sound' in live sound mixing consoles.
Soundcraft Co-Founder Graham Blythe's acclaimed microphone preamps and 'British' equaliser ensures the Si Impact proudly carries Soundcraft's signature sound today.

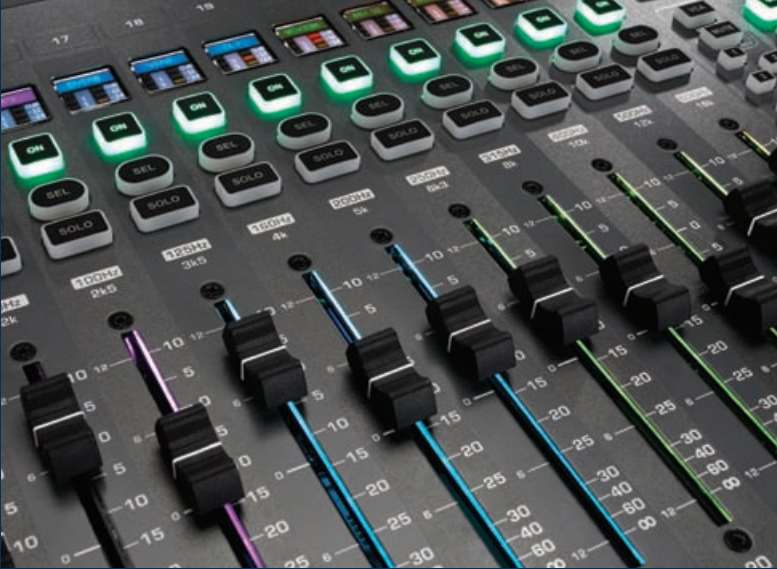

Going beyond analogue control
Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analogue workflow with digital flexibility. FaderGlow™ illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling - aux sends, FX sends or even the graphic EQ that's available on every bus.
Each fader channel also features a clear multi-color LCD display - giving 'at a glance' information on levels and offering a fully customisable'scribble strip' to name your channels.
World-class effects & dynamics
Si Impact isn't just packed with DSP power. It's packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays and modulations from Lexicon, legendary dbx dynamics and industry-standard BSS Graphic Equalisers.

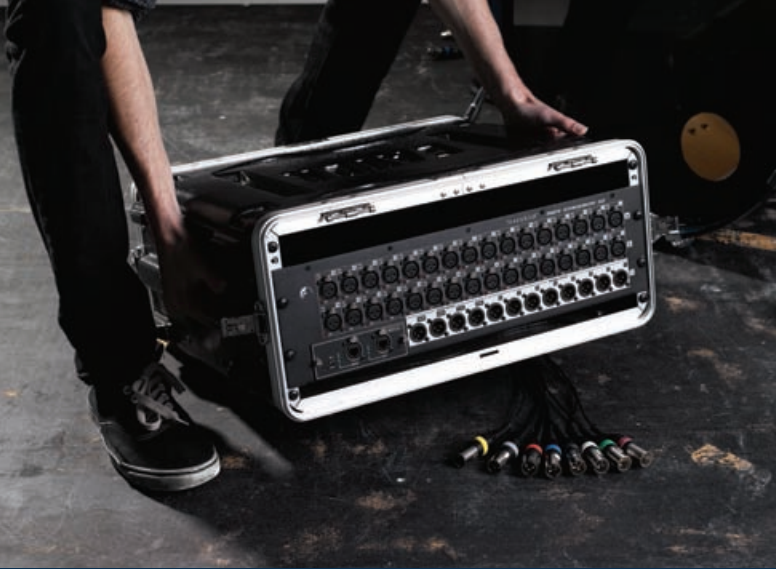

Put your I/O where you need it
With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it.
Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.
Pristine audio direct to your DAW
Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback - and a free download of Ableton Live Lite 9 is included.
A single connection to your PC or MAC and you're ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback.

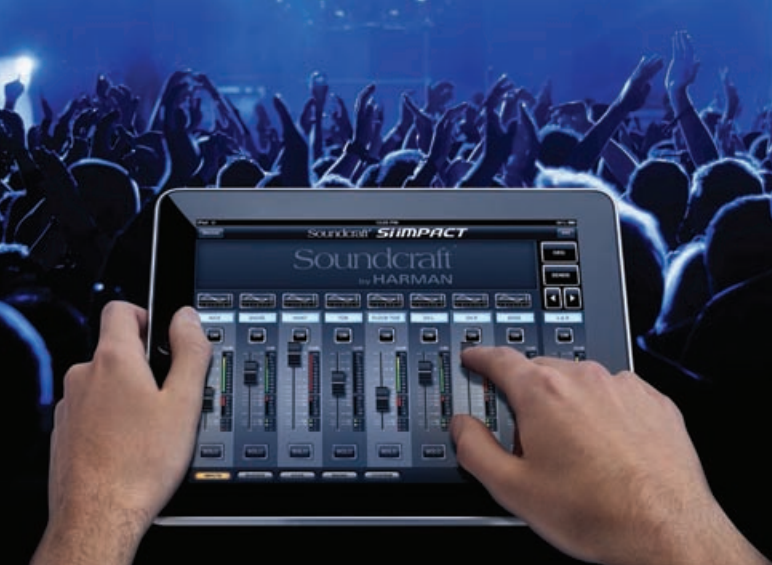

Remote mixing with your iPad®
The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app.
Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Recording Devices
DJI Mic 2 2-Person Compact Digital Wireless Microphone System -...
RODE Wireless GO II Single Microphone System , Compact Wireless...
Sony ICD-PX470 4GB Digital Voice Recorder with Built-in USB...
RODE WIME Wireless Micro USB-C Ultra-compact Wireless Microphone ...
RODE WIME Wireless ME Microphone System - Single Channel, Compact...
SOUNDCRAFT SIIMPACT SI IMPACT DIGITAL MIXER W/32CH USB REC
- Brand: SOUNDCRAFT
- MPN: SIIMPACT
- Part #: AUDSCF5085997
Product URL: https://www.pbtech.co.nz/product/AUDSCF5085997/SOUNDCRAFT-SIIMPACT-SI-IMPACT-DIGITAL-MIXER-W32CH?srsltid=AfmBOorp8T0sIYMc5-xw6k1b-AIy-ml0wGjSPEAg55uMtBfip6Td73hZ
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Innovative Digital Mixing with Uncompromised Audio Quality
Drawing on over 40 years experience in live sound mixing, Si Impact brings the latest digital mix innovations together with the unrivalled sound quality of Soundcraft. Designed to be as simple as an analog mixer, but offer radical workflow enhancements like our unique FaderGlow™ system, massive DSP power, and a pristine 32-in/32-out USB audio interface, Si Impact delivers digital live sound mixing and recording for those who refuse to compromise on audio quality.
- 32 Mic Inputs
- 8 XLR/1/4" Combi-jacks for line inputs and instruments
- 40 DSP input channels (32 mono inputs and 4 stereo channels/returns)
- 31 Output busses (All with full DSP processing and GEQ)
- 4-band Fully Parametric EQ on each channel and bus
- 8 VCAs + 8 Mute groups
- 26 motorised faders (24 input + LR/Mono)
- 4 fully customisable Fader Layers
- Built-in Stagebox Connectivity
- 5" touchscreen display
- Multi-Colour LCD Channel Displays on each input fader
- 4 studio-grade Lexicon Effects engines and dedicated FX busses
- BSS Graphic Equalisers on every bus
- 20 sub-group / aux busses
- 4 mono/stereo matrix busses
- 32x32 USB audio interface for multi-track recording and playback
The legendary British sound
From humble beginnings in London more than 40 years ago and still designed and engineered in the UK, Soundcraft defined the term 'British sound' in live sound mixing consoles.
Soundcraft Co-Founder Graham Blythe's acclaimed microphone preamps and 'British' equaliser ensures the Si Impact proudly carries Soundcraft's signature sound today.
Going beyond analogue control
Combining One-Knob-One-Function control with unique features like FaderGlow™, Soundcraft combines analogue workflow with digital flexibility. FaderGlow™ illuminates the fader track in different colours to provide at-a-glance status information on precisely what the fader is controlling - aux sends, FX sends or even the graphic EQ that's available on every bus.
Each fader channel also features a clear multi-color LCD display - giving 'at a glance' information on levels and offering a fully customisable'scribble strip' to name your channels.
World-class effects & dynamics
Si Impact isn't just packed with DSP power. It's packed with DSP power from the acknowledged experts in digital FX. That means studio-grade reverbs, delays and modulations from Lexicon, legendary dbx dynamics and industry-standard BSS Graphic Equalisers.
Put your I/O where you need it
With built-in connectivity for an optional Soundcraft Stagebox, Si Impact lets you put your I/O where you need it.
Set up your Stagebox by the band for live sound applications, or position it in the live room for studio recording all via a single piece of Cat 5 cable.
Pristine audio direct to your DAW
Si Impact makes recording quick and easy with superb quality, built-in 32-in/32-out USB recording and playback - and a free download of Ableton Live Lite 9 is included.
A single connection to your PC or MAC and you're ready to make multi-track recordings direct to any digital audio workstation. Send up to 32 inputs and 32 outputs to and from your DAW for recording and playback.
Remote mixing with your iPad®
The mix power of Si Impact is accessible from anywhere in the venue, via the Soundcraft remote iPad® app.
Mix FOH from the audience location, mix monitors from the stage, or allow musicians to set their own monitor mix from multiple iPad® devices.
Specifications
Brand
SOUNDCRAFT
Manufacturer Part Number
SIIMPACT

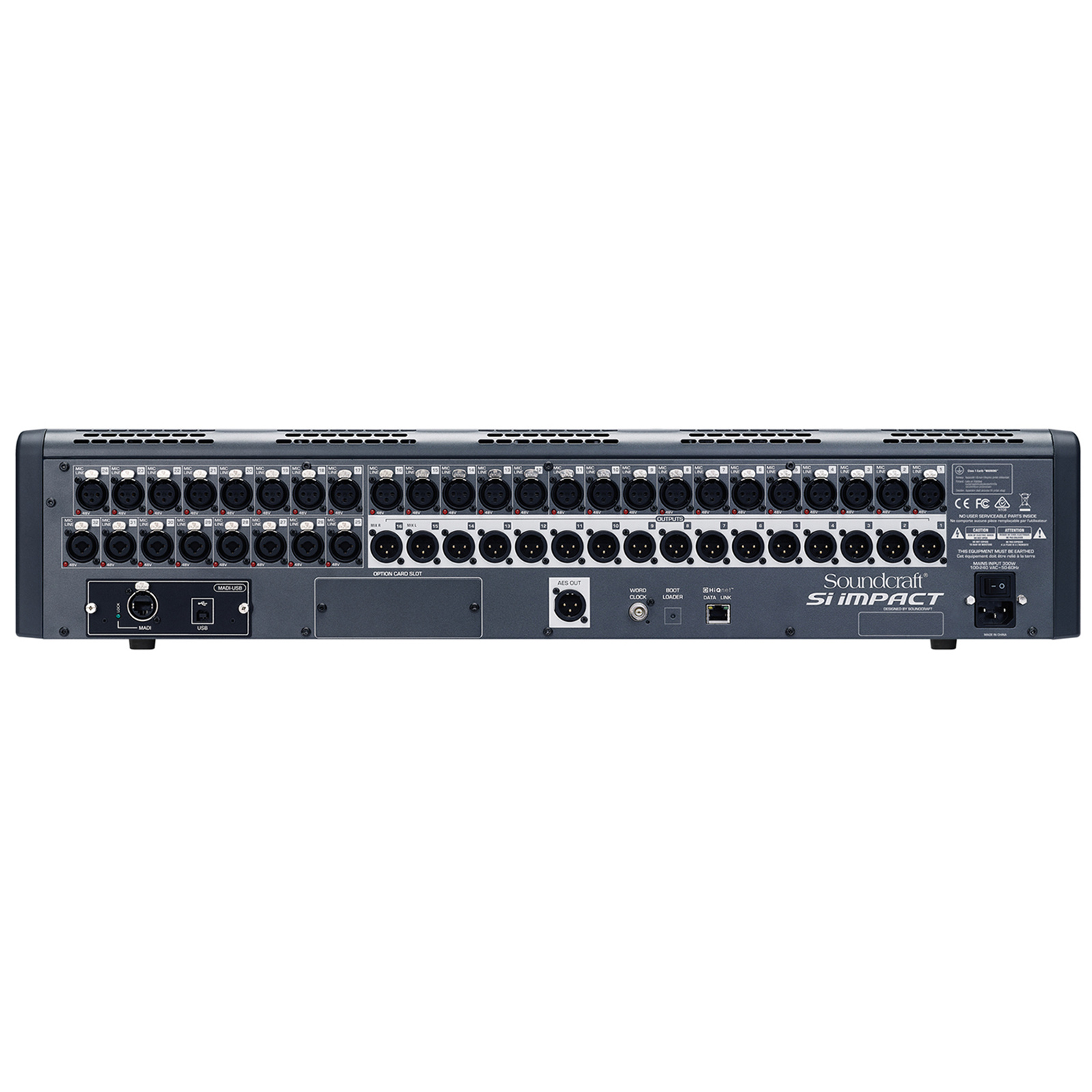

Connectivity
32 recallable GB mic inputs with locking connectors and phantom power indicators
16 XLR analogue line outputs
8 XLR/1/4" Combi-jacks for line inputs and instruments
AES Out
Word Clock
HiQnet Ethernet port for HiQnet system integration and ViSi Remote System
32x32 ViSi Connect expansion slot
Input Section
8 LED Input Meter
48v Phantom power switch
Polarity reverse switch
Input Gain/Trim Adjustment
Variable High Pass Filter
HPF engage switch
Gate
Dedicated encoders for Attack, Release, Depth,
Threshold and Sidechain Filters
Gate open, hold and close status LED indicators
Gate engage switch
Compression
Dedicated encoders for Attack, Release, Gain,
threshold and Ratio controls
5 Segment LED gain reduction indicator
Compressor engage switch
4-Band British EQ
4-band fully Parametric EQ with independent Q control and bell or shelving options on the HF and LF bands.
EQ engage switch
32-in/32-out USB Interface
32-in/32-out low latency recording interface
Compatible with PC and MAC DAW software
Ableton Live Lite 9 software download included
Lexicon Effects Section
4 integral Lexicon stereo effects engines
29 effect presets per engine with hall, plate and room reverbs, plus delays, modulations and pitch
Up to 12 parameters for each preset accessed by touchscreen dialogue and 4 surface encoders
Dedicated Tap tempo switches
Output Section
Channel delay for time alignment on input and output bus, displayed as time or distance
Variable time delay per channel or Bus (0-500ms)
Pan control
LR switch for assigning/un-assigning channels and busses to the L/R output
Mono switch for routing to mono output (centre speaker, sub bass channel, etc.)
Channel Meters
4 segment LED Input meter, 3 segment LED Gain reduction meter and Gate closed indicator across all channels on the surface
Surface Controls & Global Metering
24 Motorised input faders + LR/Mono (Fully motorised With 4 fully customisable fader Layers)
FaderGlow™ illuminates the fader track for at-aglance display of current fader function: White - Linked channels, Pink - Stereo Inputs, Red - Graphic EQ, Dark blue - VCAs, Cyan - Lexicon FX
Multi-Colour LCD Channel Displays on each input fader for instant visual feedback and naming
8 VCA groups
8 mute groups for muting groups of channels as one
Snapshot control - 1000 cues can be stored and recalled from dedicated cue control buttons
USB port for saving/loading shows and snapshots with USB memory sticks
5" colour touchscreen for patching, routing, show set-up and security settings
8 LED input and output meters (monitor L/R, master L/R, mono)
Headphone output
